Woodworking vertical band saw machine
Model:MW470
Max.Working Width(mm):420 mm
Max. Cutting Width:420 mm
Saw Blade Length:4700 mm
Saw wheel linear Speed:27.3 m/s
Weight (KG):900 KG
Power (kW):7.5
Max.Working Width(mm):420 mm
Max. Cutting Width:420 mm
Saw Blade Length:4700 mm
Saw wheel linear Speed:27.3 m/s
Weight (KG):900 KG
Power (kW):7.5
Details
Spare Parts
Inquiry

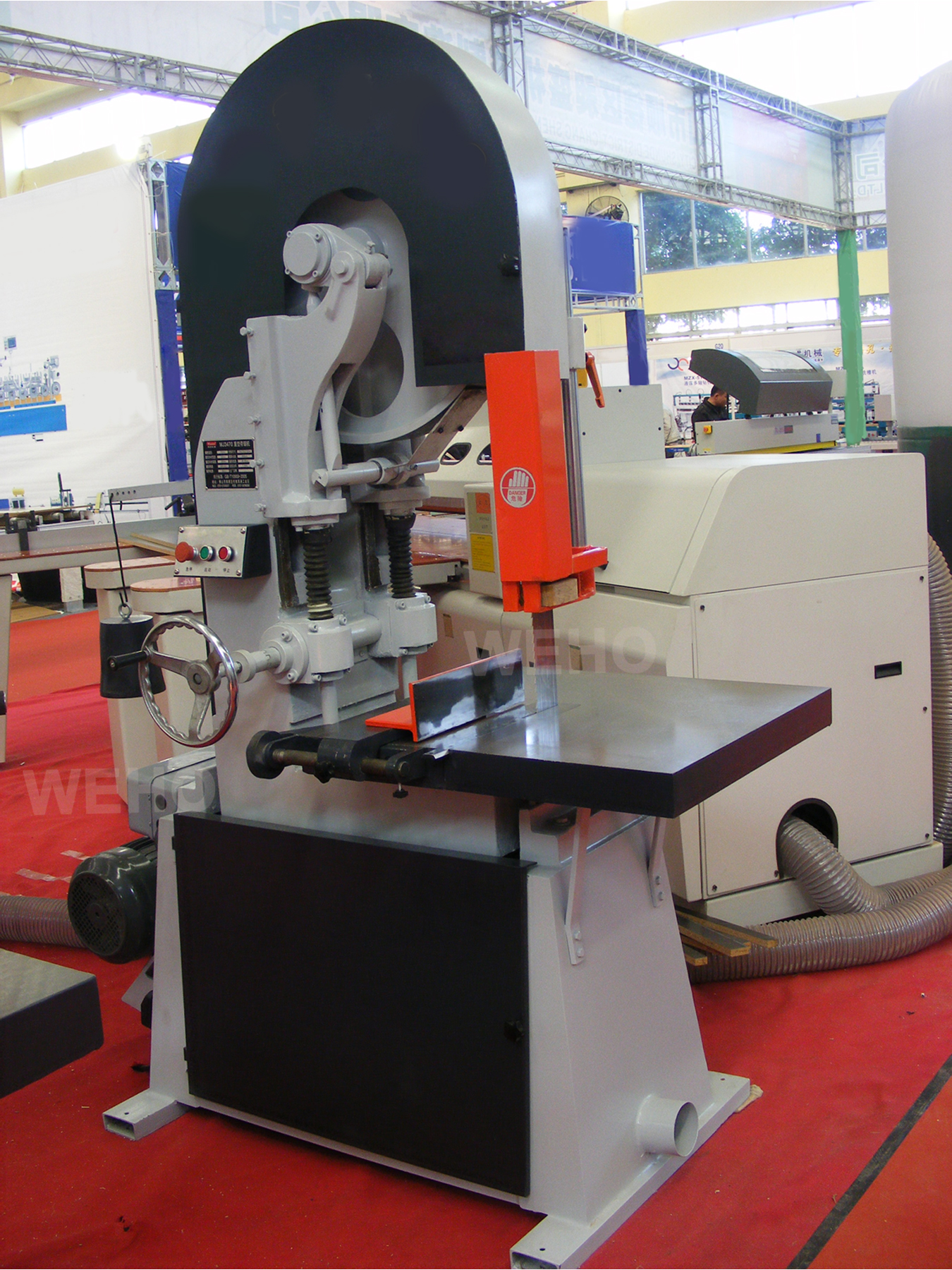

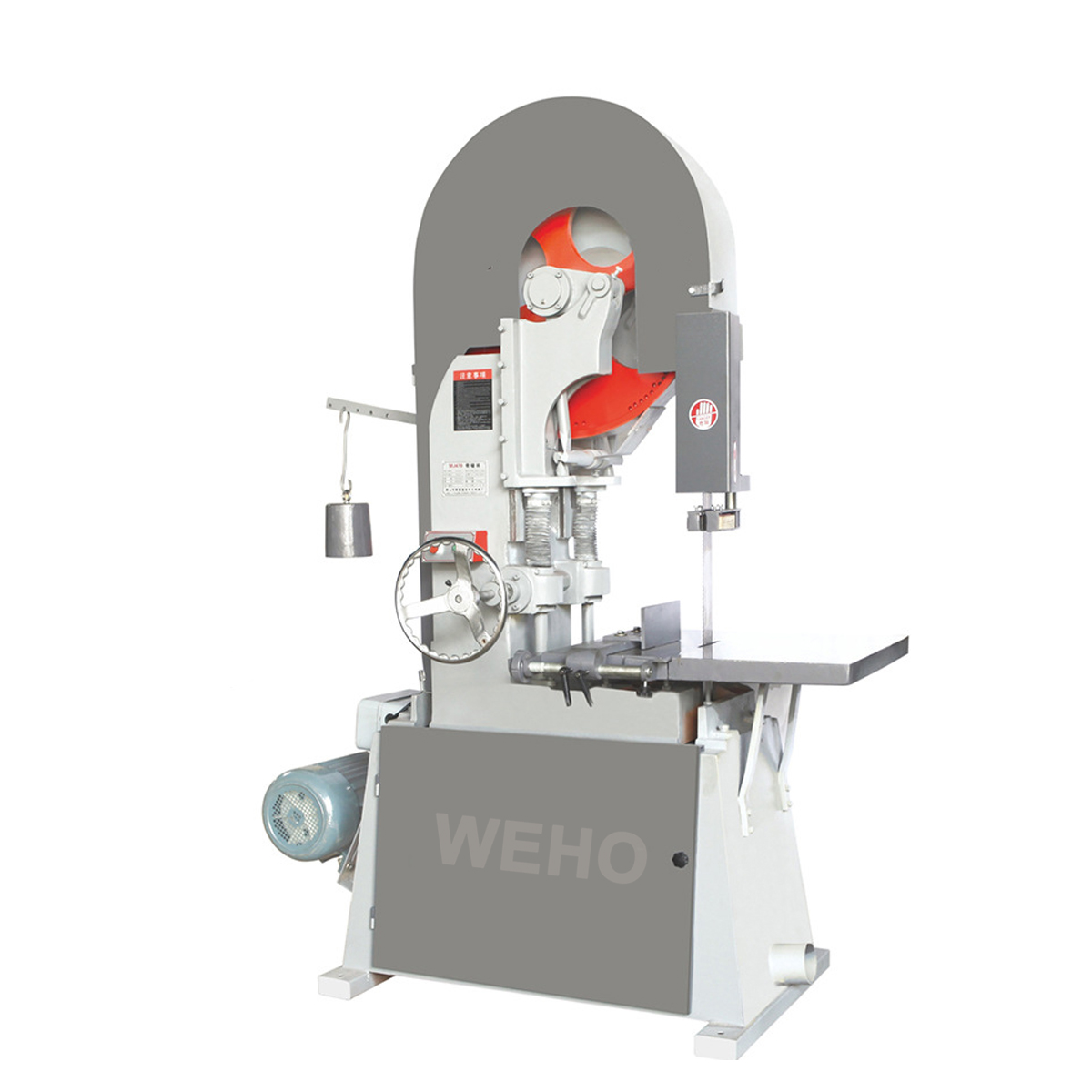

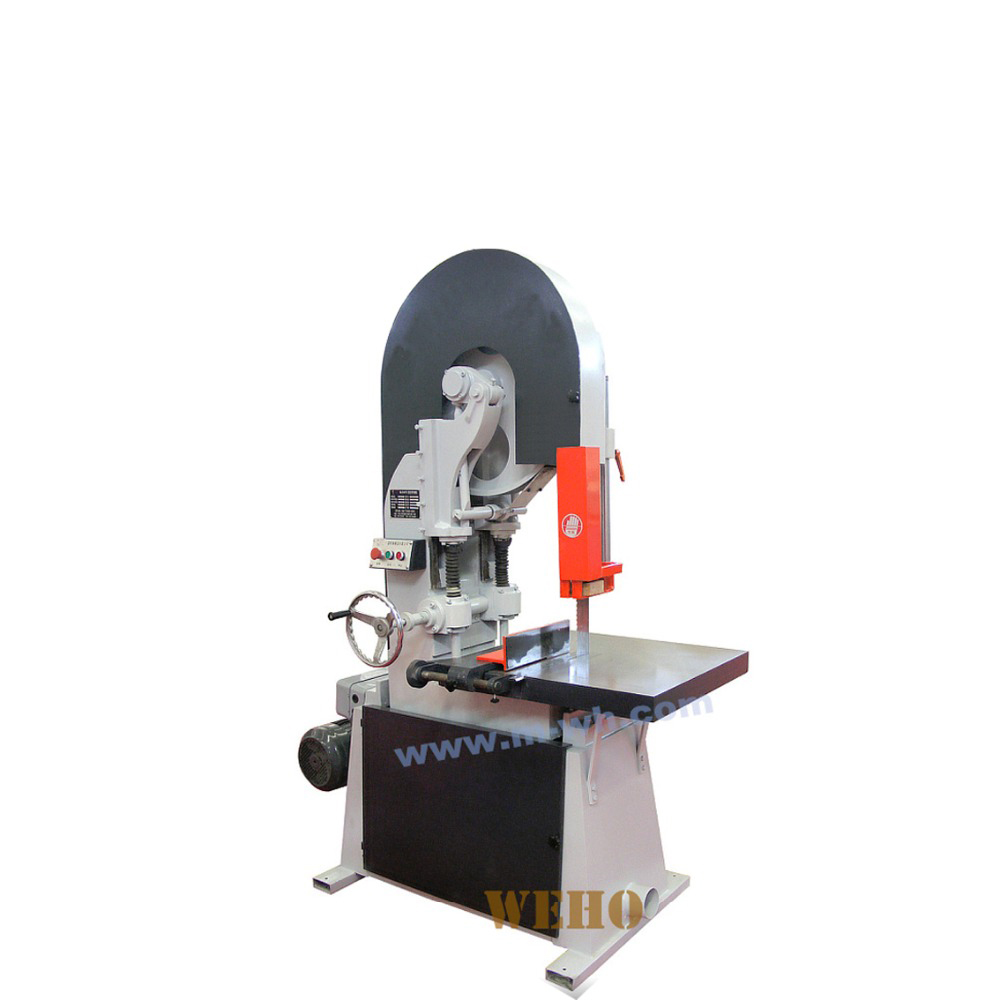

Woodworking vertical band saw machine
Woodworking vertical band saw machine is designed for smooth cutting and trouble-free operation. Blade tension can be conveniently adjusted by means of a hand-wheel.
|
Product Name
|
Woodworking vertical band saw machine
|
|
Model
|
MW470
|
|
Motor
|
7.5kw
|
|
Working table size
|
770*750mm
|
|
Cast iron wheel size
|
650mm
|
|
Max. cutting height
|
450mm
|
|
Max. cutting width
|
420mm
|
|
Saw blade length
|
4700mm
|
|
Saw blade width
|
10-70mm
|
|
Saw blade linear speed
|
27.3m/s
|
|
Table tilting
|
0~45
|
|
Overall size
|
1700 * 850 * 2200mm
|
|
N/W
|
900kg
|
Woodworking vertical band saw machine

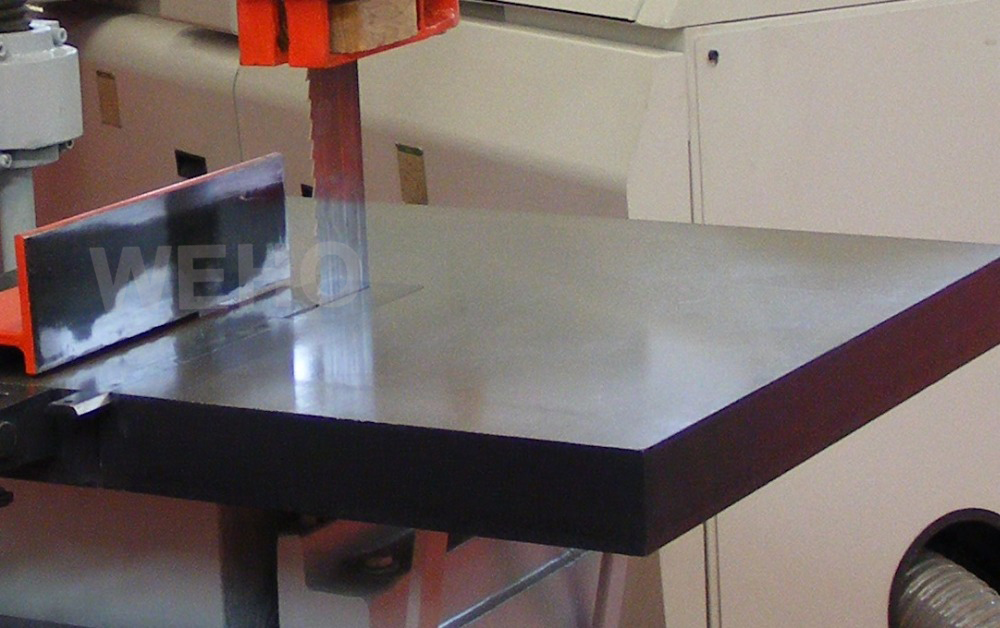

The see-through guard provides operator safety and protection. Precision computer balanced wheels eliminate vibration for accurate blade tracking.
Woodworking vertical band saw machine
Cast iron wheels make smooth, easy blade adjustments with less effort.Adjustable angle scale keeping the cutting path smooth and precise.
