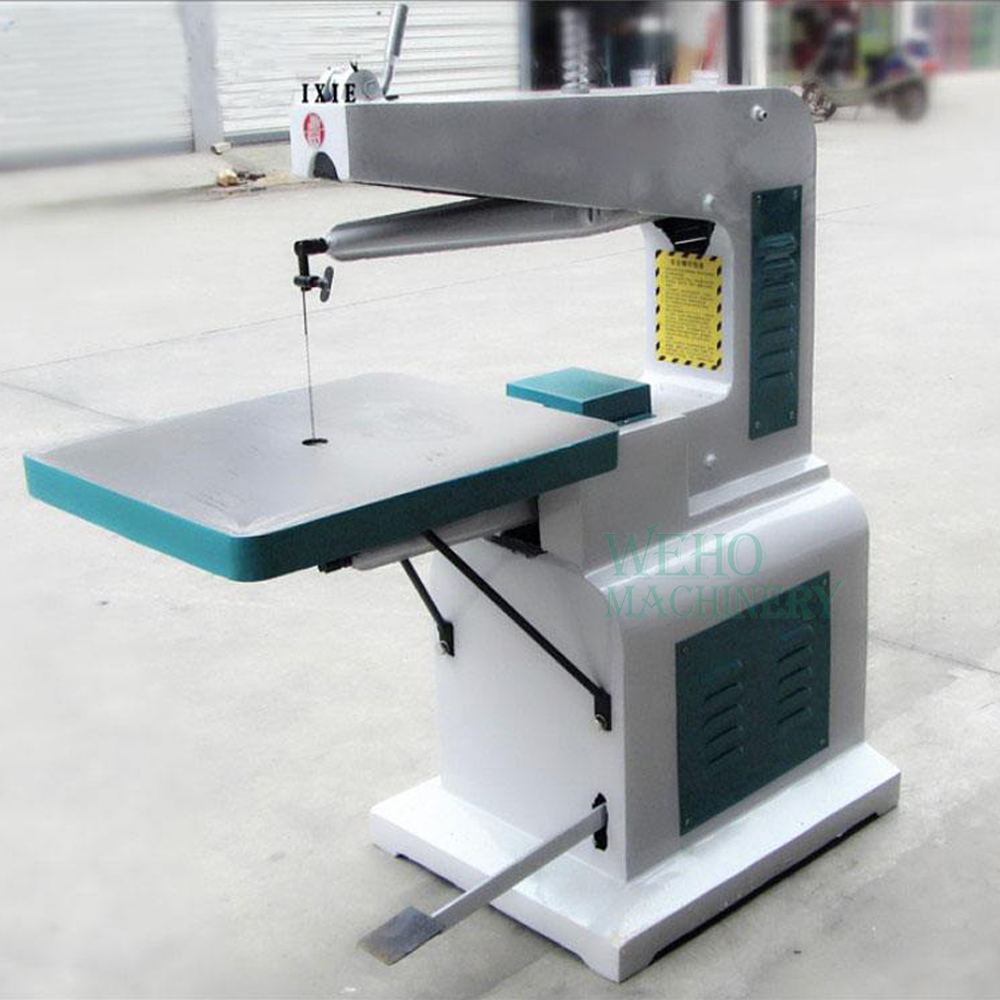

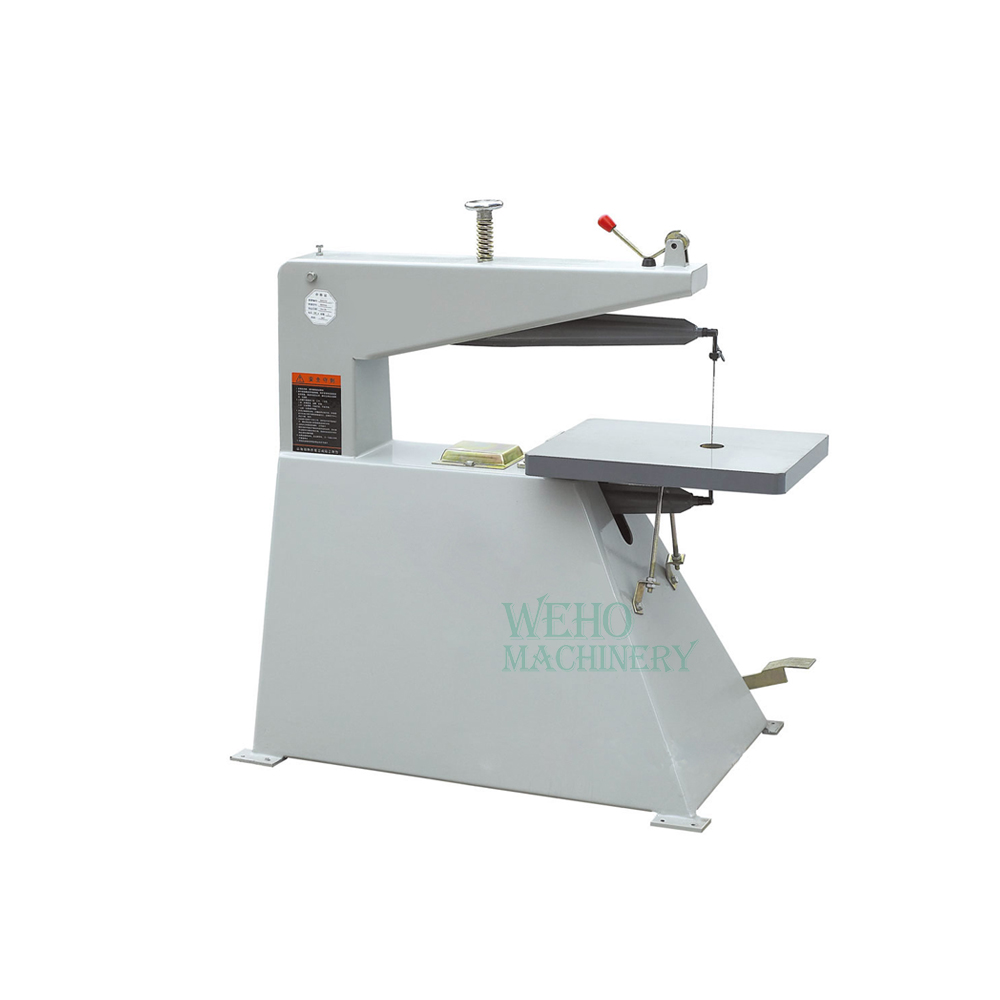

Vertical samll manual jigsaw curved saw machine with radial arm
Modle:MWJ444
Saw blade length:310mm
Max cutting width:1250mm
Cutting thickness:100mm
Install power:1.5kw
Saw blade length:310mm
Max cutting width:1250mm
Cutting thickness:100mm
Install power:1.5kw
Details
Spare Parts
Inquiry
Woodworking scroll saw machine is a curve processing equipment. It is suitable for internal and external sawing, sawing, irregular bending and carving of wood, wood-based panels, glass, foam plastics and aluminum and copper materials. Widely used in furniture, toys, decoration and advertising industries, is a simple operation, easy to use.| Model | MJ444 |
| Saw blade length | 310mm |
| Max cutting width | 1250mm |
| Cutting thickness | 100mm |
| Max. stroke | 65mm |
| Maximum line speed | 72m/min |
| Belt length | A 650mm |
| Install power | 1.5kw |
| Work table | 680*600mm |
| Overall size | 1730*760*1300mm |
| N/W | 250kg |
Elastic handle of saw blade: used to adjust the tightness of saw blade.
Jigsaw chuck: used to clamp saw blade.
Elastic wheel of rocker arm: used to adjust the tightness of the rocker arm.
Wire saw drive mechanism: ensure the saw blade vertical movement, reduce vibration
Working table: increase the thickness of the fine grinding table, durable, not easy to deformation
Up and low rocker arm: the upper and lower rocker arm with high strength and hardness can be adjusted back and forth to enhance cutting.
Scroll saws are comparatively safe. In particular, inadvertent contact between the blade and the operator's fingers is unlikely to result in serious injury.
Woodworking scroll saw allows a substantial amount of creativity and requires comparatively little space. In addition, many scroll saw projects require little more than the saw itself, reducing the investment in tools.
