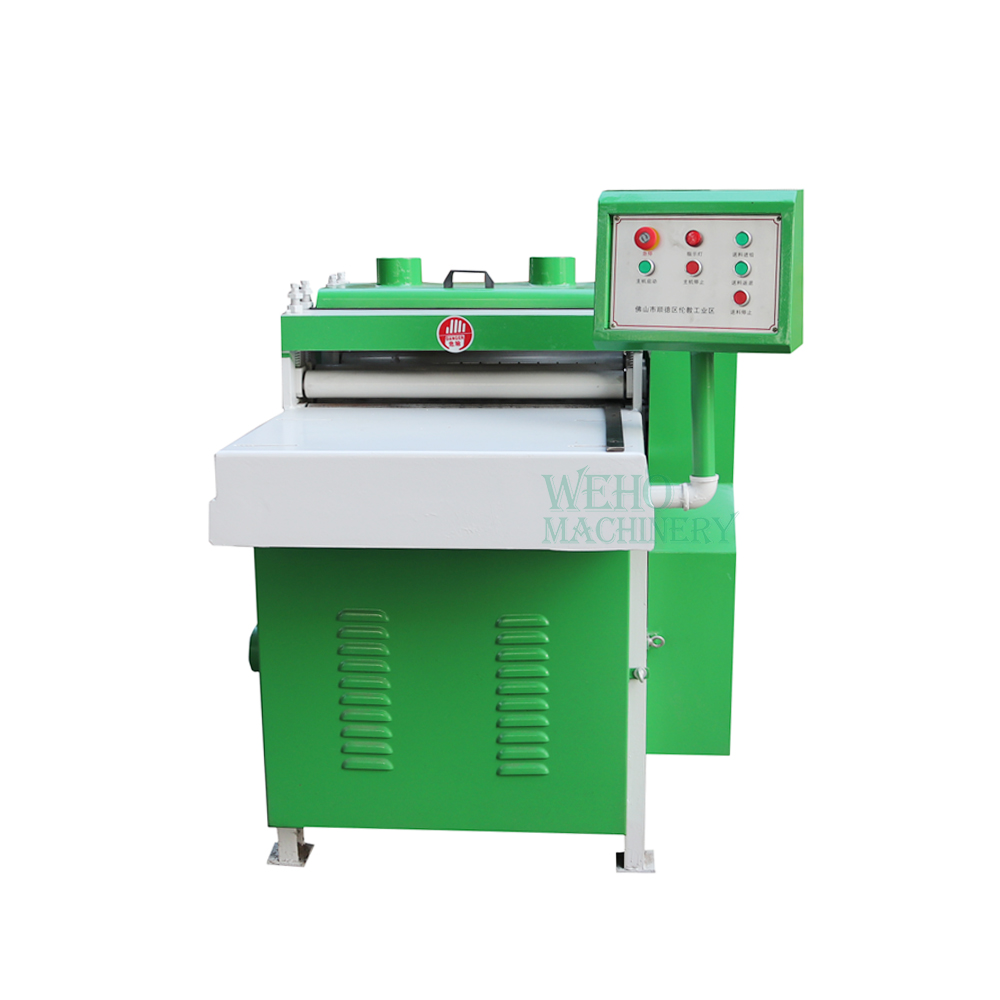

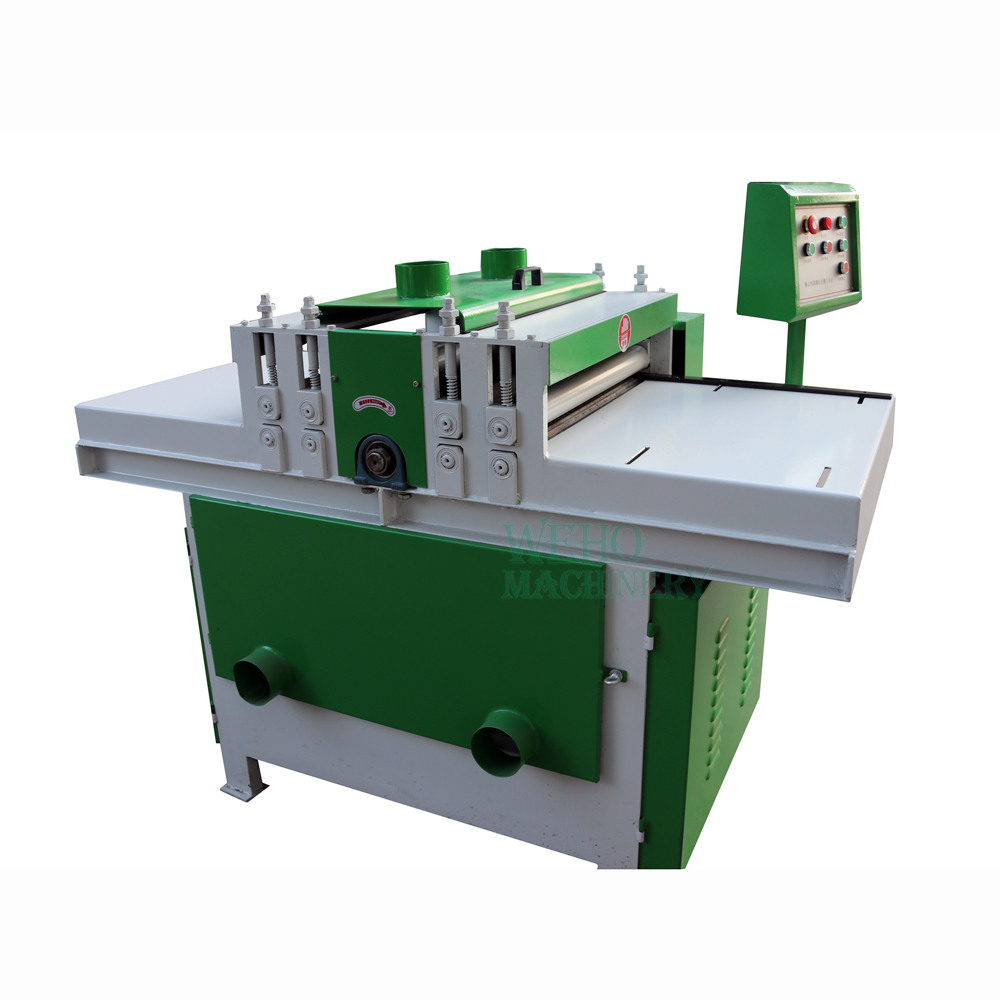

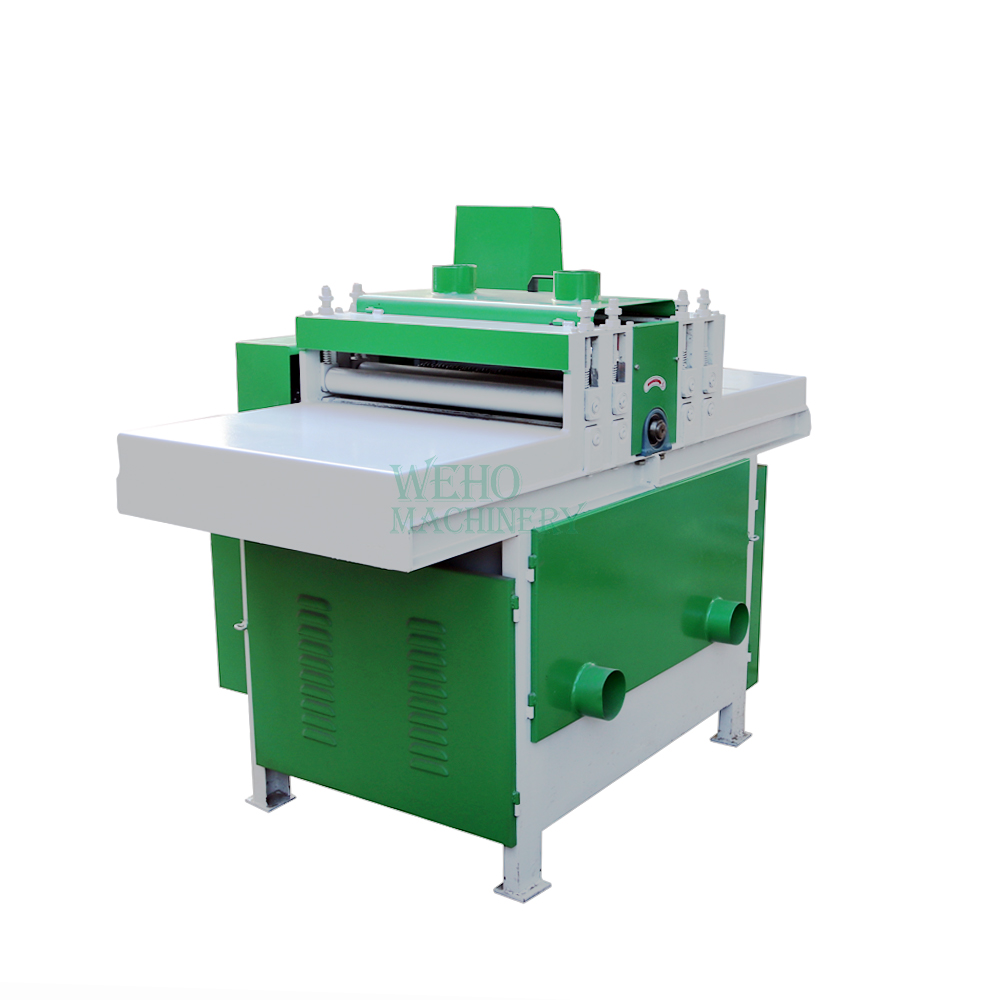

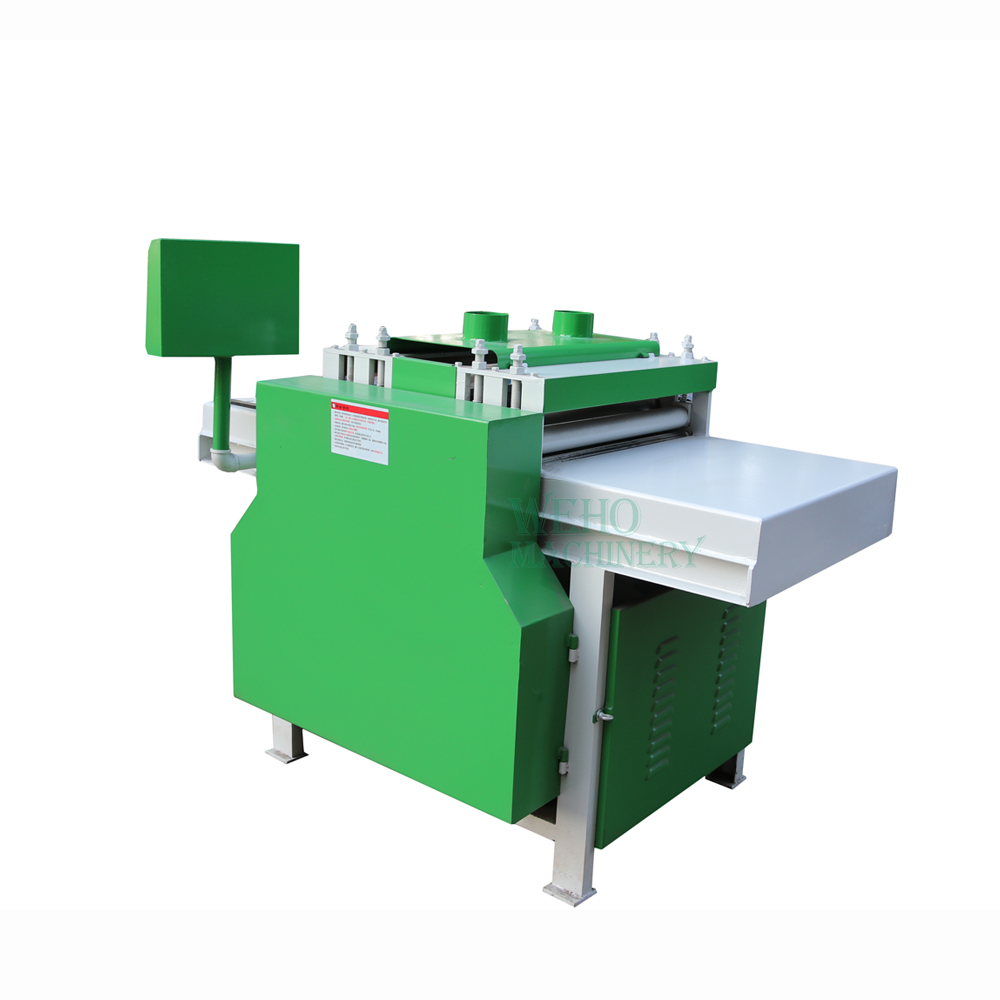

Woodworking multiple circular multi blade rip saw machine for wood cutting | Circular Saw Machine


Model:MXJ-600
Main spindle dia:50mm
Feeding speed:0-20m/min
circular saw blade dia:200mm
Cutting sheet width:10-600mm
Feeding motor:0.37kw
Weight (KG):500 KG
Power (kW):15


Details
Spare Parts
Inquiry

The main function of multi-blade sawing machine is cutting wood board to sized sheet pieces.multi-blade circular saw safe and simple operation, saw shaft has precise machining, make the whole machine work more stable and smooth, ensure the sheet after cutting are smoothness and precise straightness.
SPECIFICATIONS
Model MJH600
Main motor power 11kw
Feeding motor power 0.37w
Maximum working width 300mm
Minimum working width 100mm
Maximum working thickness         60mm
Spindle diameter 50mm
Big single key 10X5

The automatic multi rip saw compose of mechanical automatic feeding, front and rear pushing material cylinder parts, height detecting parts, automatic pressing parts, saw blade adjustment parts, PLC control system and liquid crystal touch screen are optional.

Multi-blade circular saw Main Features:

1.Humanized design of working platform, easy and smooth feeding.

2.It can process long, broken, thin, thick and other types of plates.

3.The worktable is equipped with front and rear active feed rollers to facilitate feeding and reduce work intensity plank multi rip saw.

4.Fast speed, stable feeding, high spindle speed, smooth saw blade, long service life.

5.Fully enclosed safety guard, safe and environmentally friendly,dust protection and environmental protection device .

The process of cutting wood with automatic feeding, multi-saw cutting, continuous discharging, its production efficiency is very high multi blade cutting machine.



 WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines. Our goal is to exceed customer expectations. We’re machine factory, but service is our business.


Circular Saw Machine
