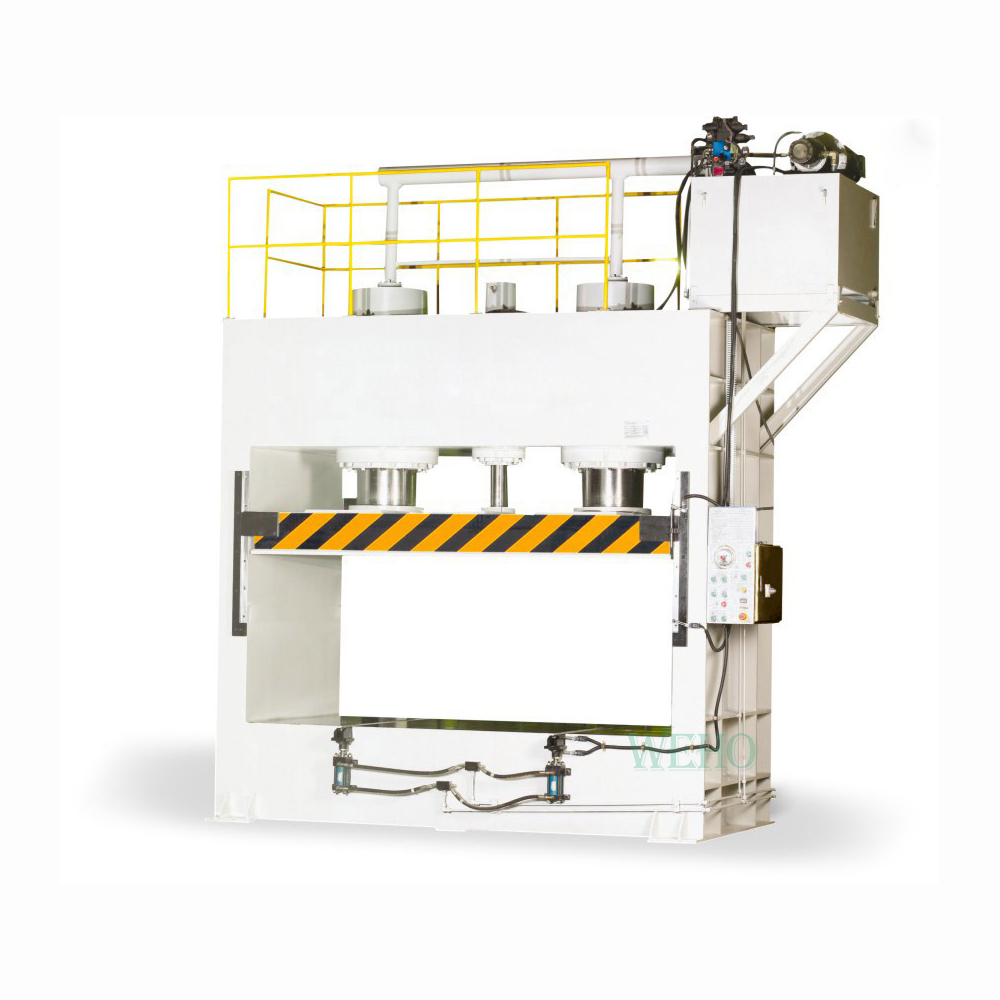

wooden door veneer cold hydraulic oil press lamination machine | Furniture Lamination Machine
Model:MH3248
Max. total thrust:80-500T
Oil cylinders diameter size:90mm-380mm*2
Weight:2000KG/11800KG
Pressure:50/T60T/75T/500T
Details
Spare Parts
Inquiry
![](https://upload.digoodcms.com/594/1609307300441/参数.jpg)
Used to glue furniture plates, building partitions, doors, (that is, within the frame and glue thin plywood) and in a variety of wood-based panel (such as plywood, block board, MDF, particleboard) surface pressure Posts a variety of decorative material (such as decorative paper, decorative fabric, fireproof melamine plate,metal foil, thin man-made and natural wood, natural veneer parquet);cold press machine can also be used as a veneer drying leveling, leveling color decorative wood chips,amorphous.
Spec /model No | MH3248-50T | MH3248-60T | MH3248-75T | MH3248-500T |
Press platen dimensions | 3000*1250 mm | 2500*1250 mm | 3000*1250 mm | 1270*2700 mm |
Max. total thrust | 80T | 60T | 75T | 500T |
Pressure of hydraulic system | 210kg/cm 2 | 210kg/cm 2 | 210kg/cm 2 | 16.8kg/cm 2 |
Max.platen opening | 1000mm | 1000mm | 1000mm | 800-1200mm |
Oil cylinders size | Diameter 90mm | Diameter 125mm | Diameter 125mm | Diameter 380mm*2 |
Piston rod 90mm*3 | Piston rod 90mm*2 | Piston rod 90mm*2 | Piston rod 160mm*1 |
|
Oil cylinders arrange | Straight Line | Straight Line | Straight Line | Straight Line |
Oil cylinders power | 5.5kw | 5.5kw | 5.5kw | 7.5kw |
Overall dimension | 2900*1250*3150 mm | 2900*1250*3150 mm | 2900*1250*3150 mm | 4000*1600*4000 mm |
Weight | 2000 kg | 2000 kg | 2000 kg | 11800kg |
![](https://upload.digoodcms.com/594/1608798748936/展示.jpg)
Automatic feeding system, automatic door cold press machine production line.Oil cylinder for lift table, strong power.It can press various material,easy to operation,good for door skin press for PVC press on MDF.
![](https://upload.digoodcms.com/594/1616550458286/COLD_PRESS_(2).jpg)
Surface pressure Posts a variety of decorative material (such as decorative paper, decorative fabric, fireproof melamine plate,metal foil, thin man-made and natural wood, natural veneer parquet); cold pressing machine can also be used as a veneer drying leveling, leveling color decorative wood chips, amorphous.
Automatic feeding system, automatic door cold press machine production line.
![](https://upload.digoodcms.com/594/1616550460136/H6bda5ad480914b5fb93d3b39b9773e28l.jpg)
Used to glue furniture plates,building partitions, doors, (that is, within the frame and glue thin plywood) and in a variety of wood-based panel (such as plywood, block board, MDF, particleboard).
In additional to, the cold press can be applicable in density boards, shaving board, veneer boards, solid wood boards, wood glue and woodworking industry.
![](https://upload.digoodcms.com/594/1616550460137/Hd8aee8fe193a47948da5109a233bb407j.jpg)
Features:
1.The pressure can be adjusted according to the production process, convenient and wide applicability
2.This machine is simple and reasonable structure, the operation mode is convenient, easy to learn and easy to use.
3. Strong power and high quality steel, column cylinder.
![](https://upload.digoodcms.com/594/1610611770450/press lamination line.jpg)
![](https://upload.digoodcms.com/594/1610611777417/hydraulic cold pressing.jpg)
![](https://upload.digoodcms.com/594/1609293749067/H3b57622ad47e4c0485c673f3736b2947H.png_.webp.jpg)
![](https://upload.digoodcms.com/594/1609293749066/H1da052c8888e48fc9df917d67b17211fV.png_.webp.jpg)
![](https://upload.digoodcms.com/594/1616550458287/H4ea34c16ee5d4d69b5a2b7ee79e18ac3p.jpg)
![](https://upload.digoodcms.com/594/1616550460136/H6bda5ad480914b5fb93d3b39b9773e28l.jpg)
Used to glue furniture plates,building partitions, doors, (that is, within the frame and glue thin plywood) and in a variety of wood-based panel (such as plywood, block board, MDF, particleboard).
In additional to, the cold press can be applicable in density boards, shaving board, veneer boards, solid wood boards, wood glue and woodworking industry.
![](https://upload.digoodcms.com/594/1616550460137/Hd8aee8fe193a47948da5109a233bb407j.jpg)
Features:
1.The pressure can be adjusted according to the production process, convenient and wide applicability
2.This machine is simple and reasonable structure, the operation mode is convenient, easy to learn and easy to use.
3. Strong power and high quality steel, column cylinder.
![](https://upload.digoodcms.com/594/1610611770450/press lamination line.jpg)
![](https://upload.digoodcms.com/594/1610611777417/hydraulic cold pressing.jpg)
![](https://upload.digoodcms.com/594/1609293749067/H3b57622ad47e4c0485c673f3736b2947H.png_.webp.jpg)
![](https://upload.digoodcms.com/594/1609293749066/H1da052c8888e48fc9df917d67b17211fV.png_.webp.jpg)
