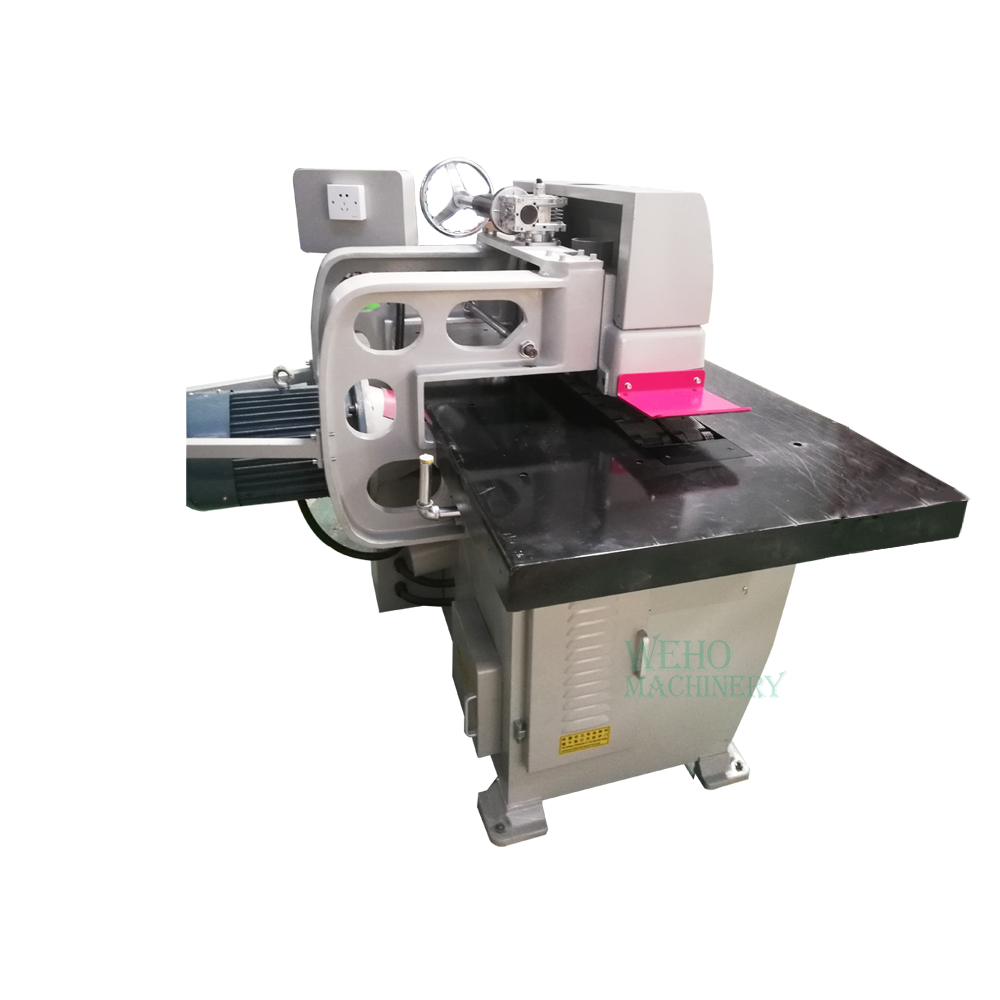

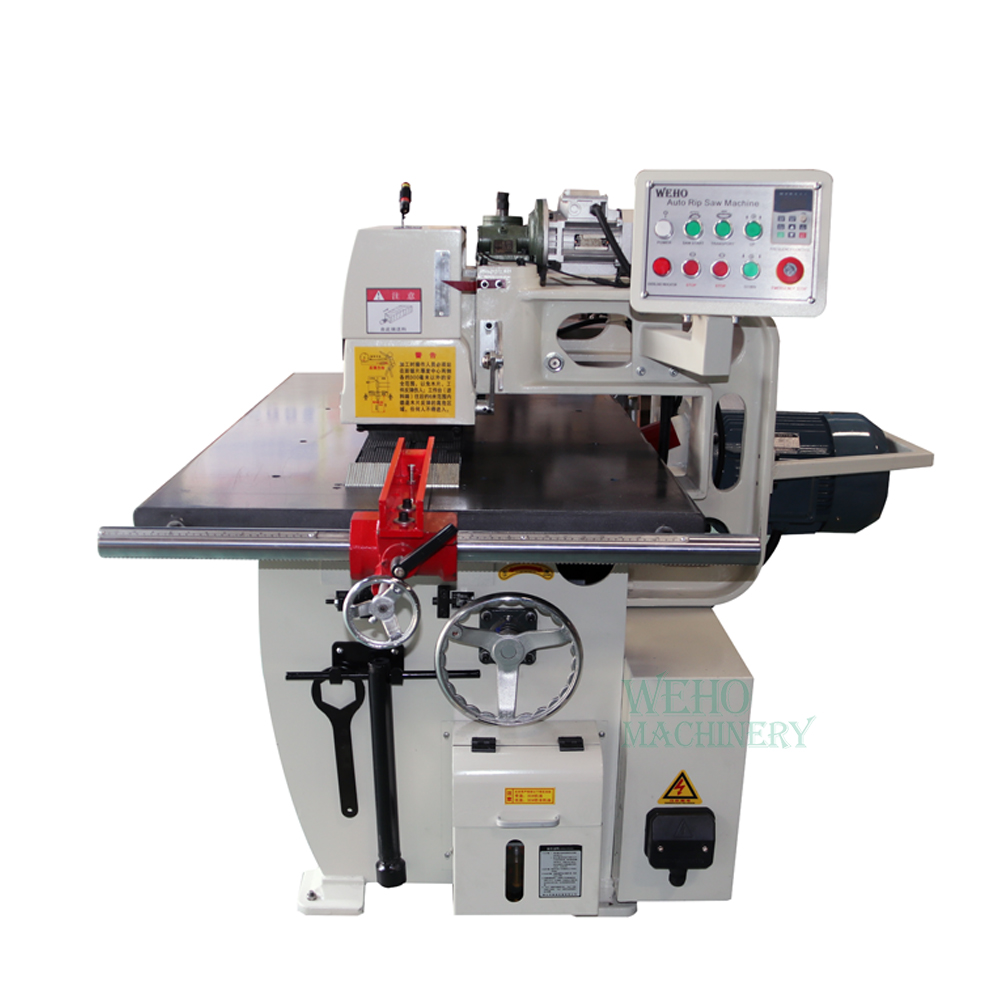

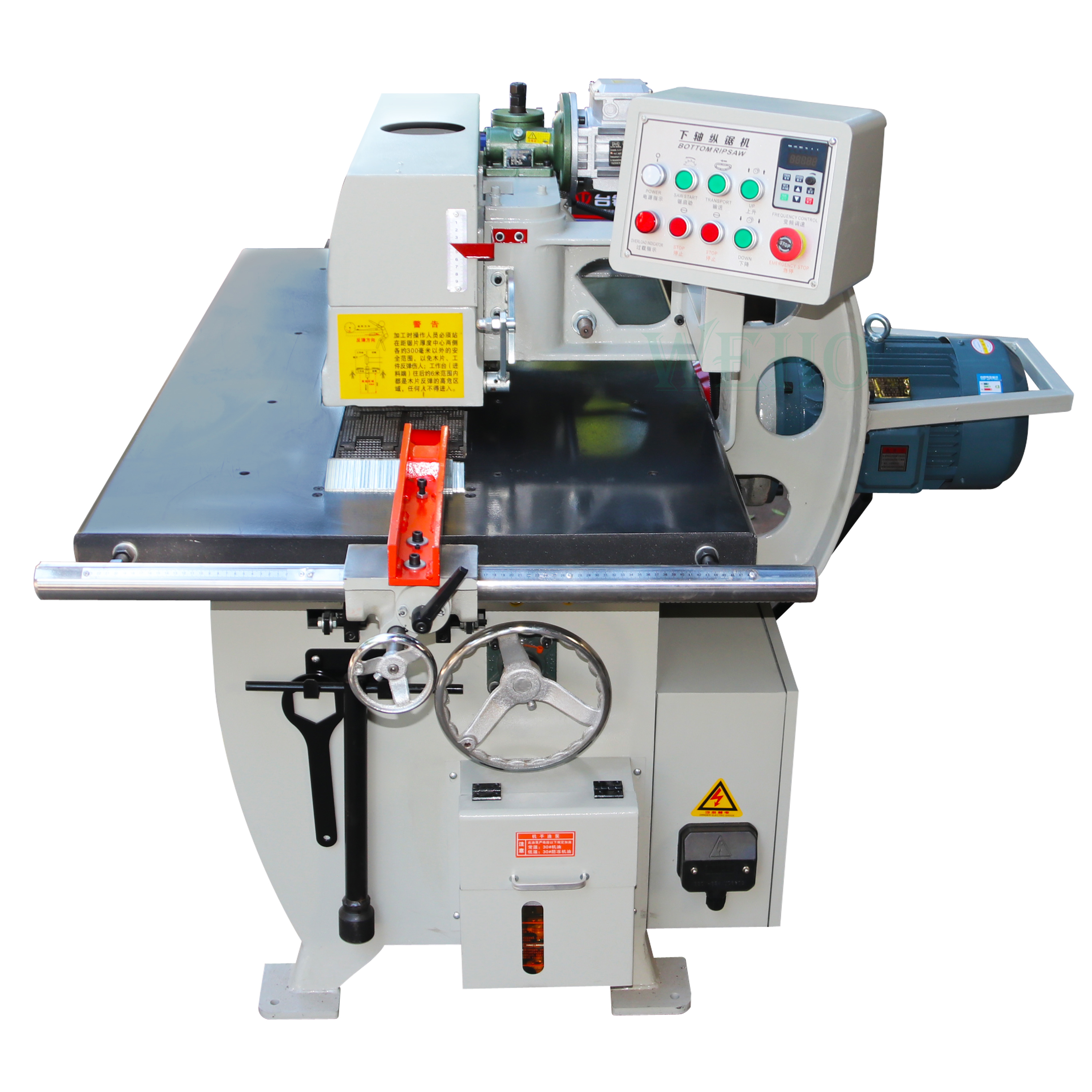

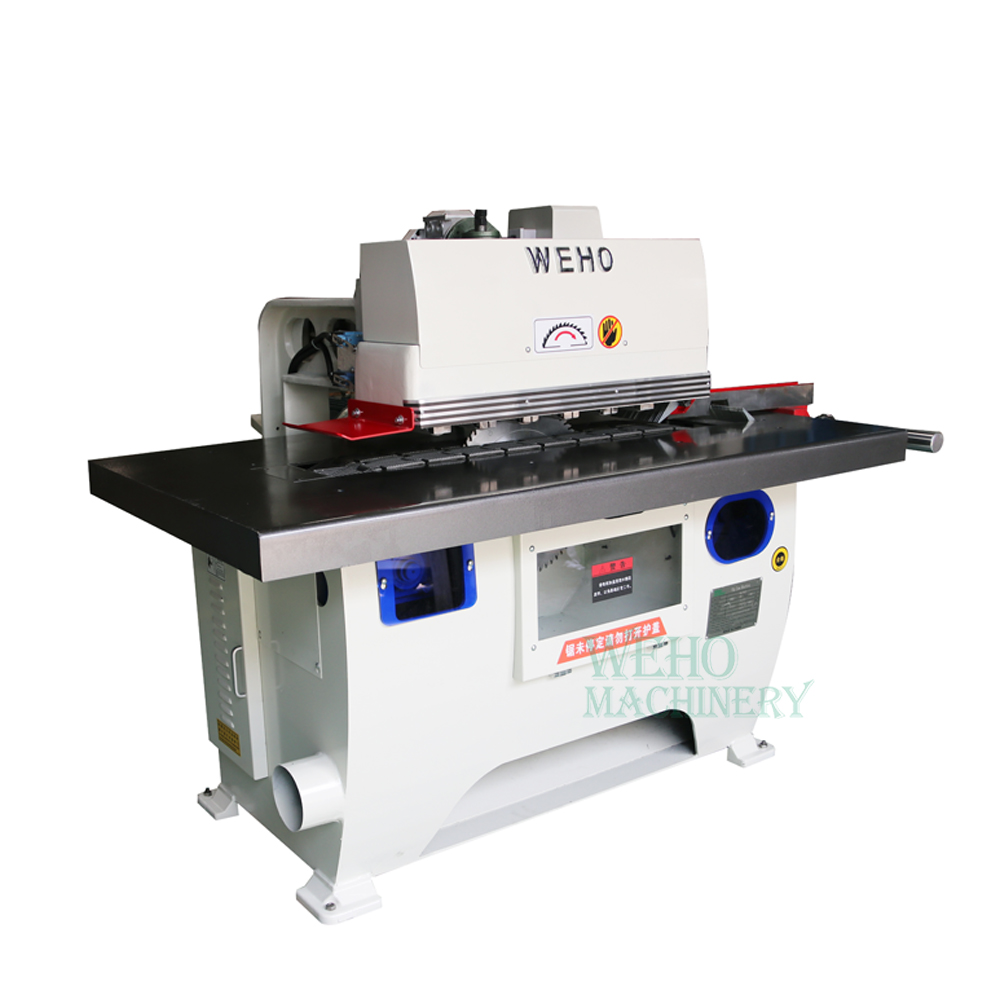

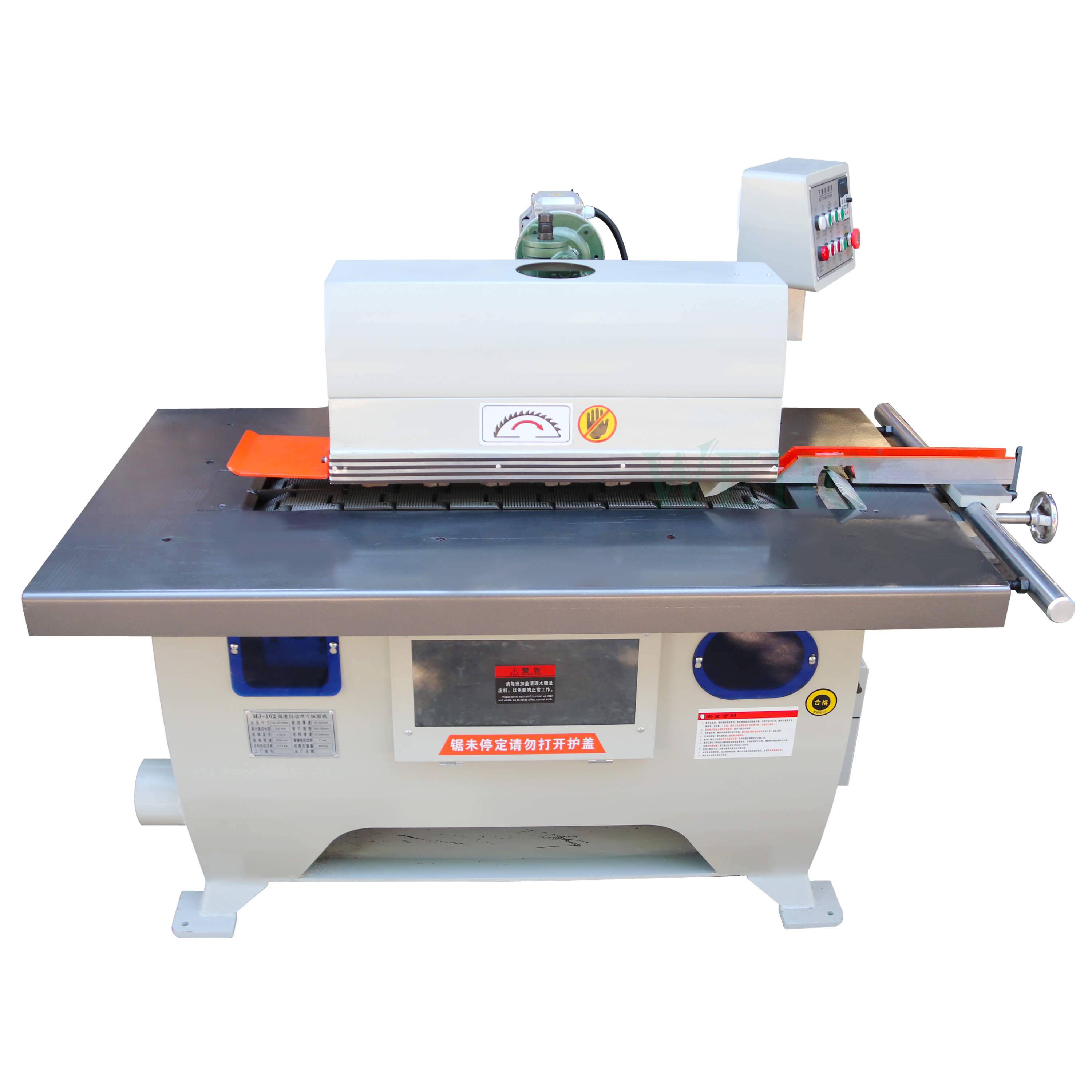

Wood working straight line rip cut circular saw machine
Working thickness scope: 5-80mm
Max working width: 460mm
Min working length: 200mm
Deep throat: 460mm
Feeding speed: 10-26m/min
Overall size: 1700x1350x1500mm
Weight: 1000kg
Rip saw is a wood saw that is specially designed for making a rip cut, a cut made parallel to the direction of the wood grain.Its main use is for high-precision wood processing such as solid wood cutting, jigsaw, seaming, trimming, sawing and planning.

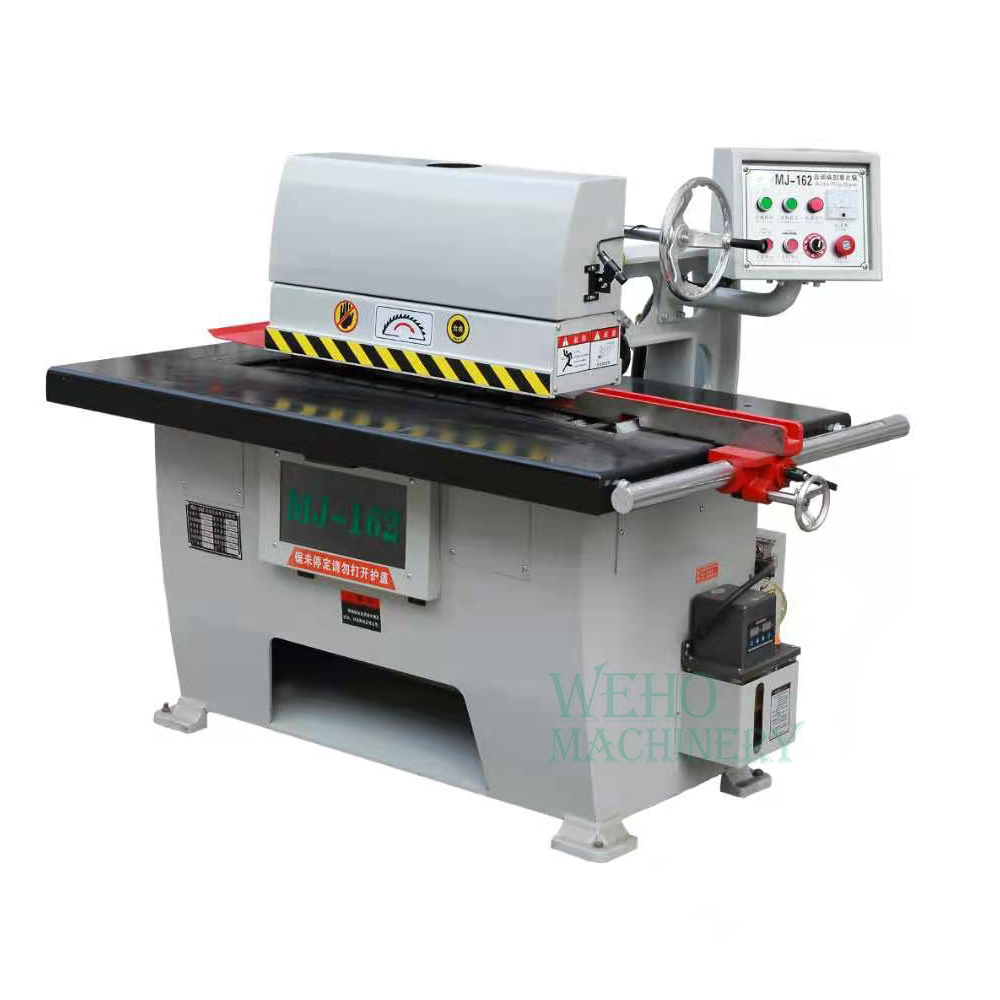

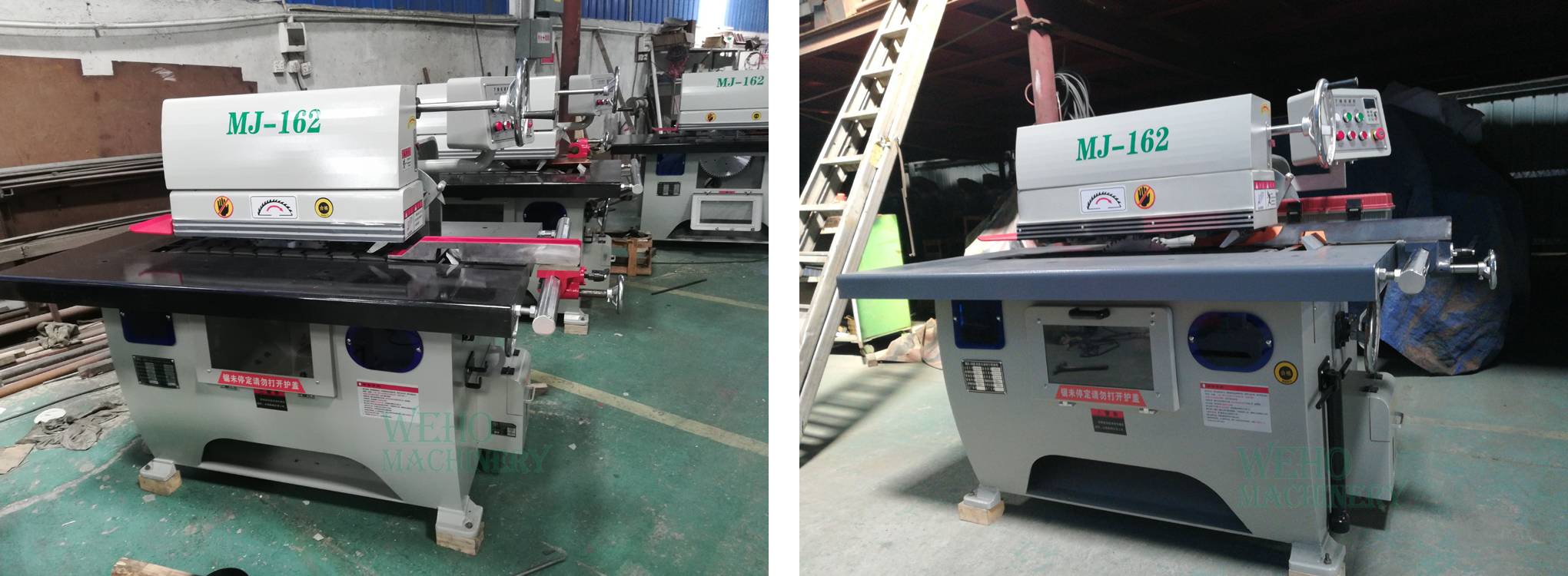

| Model | MJ162 |
| Working thickness scope | 5-80mm |
| Max working width | 460mm |
| Min working length | 200mm |
| Deep throat | 460mm |
| Spindle speed | 2900r/min |
| Feeding speed | 10-26m/min |
| Saw shaft diameter | 50.8mm |
| Blade size | 355x50.8x4x70T |
| Total power | 11.75kw |
| Main saw motor power | 11kw |
| Feeding motor | 0.75kw |
| Lifting motor power | 0.37kw |
| Table size | 1500x840mm |
| Table thickness | 6mm |
| Ruler length | 440mm |
| Suction port diameter | 100-200mm |
| Overall dimension | 1700x1350x1500mm |
| Packing size | 160x1500x1400mm |
| Machine weight | 1000kg |

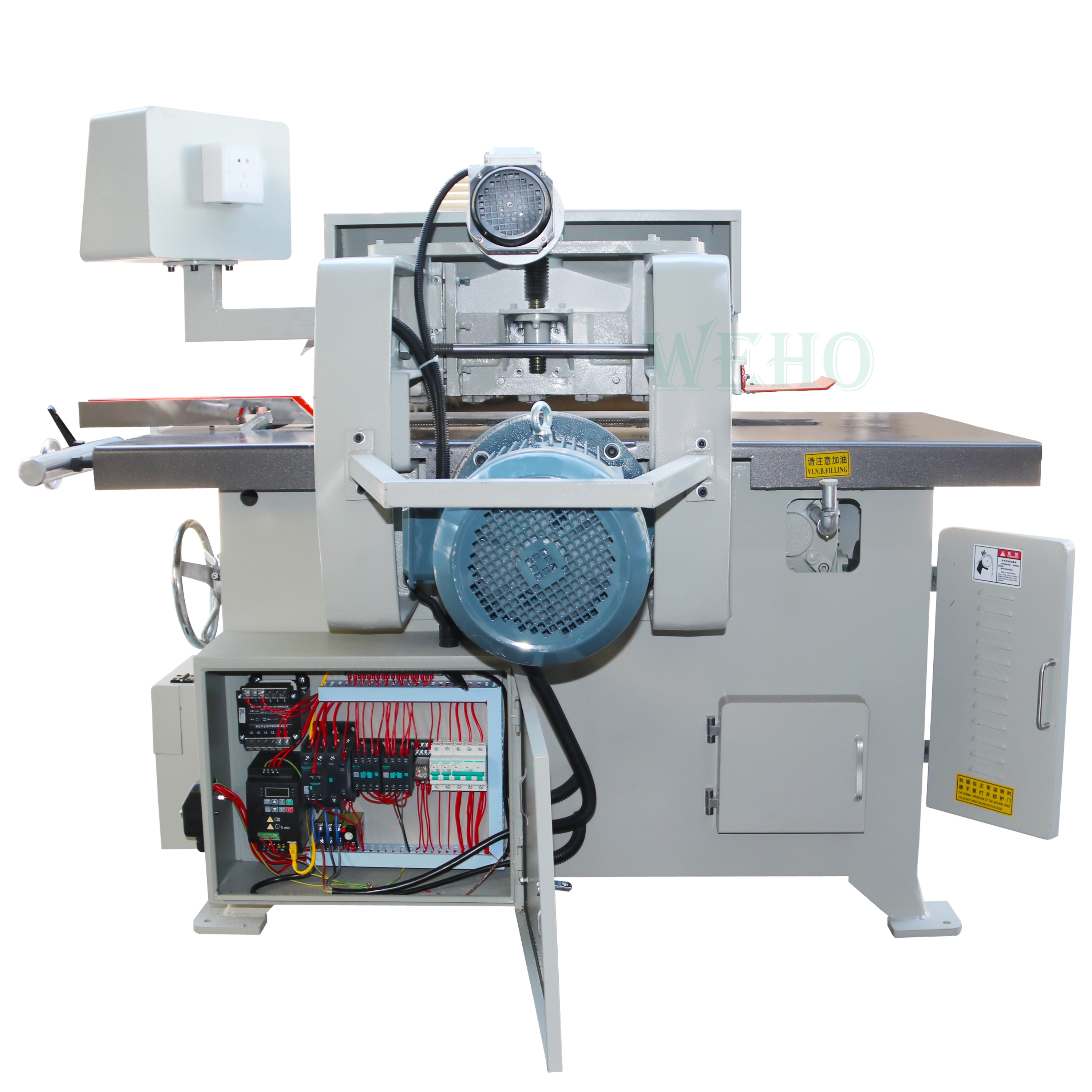

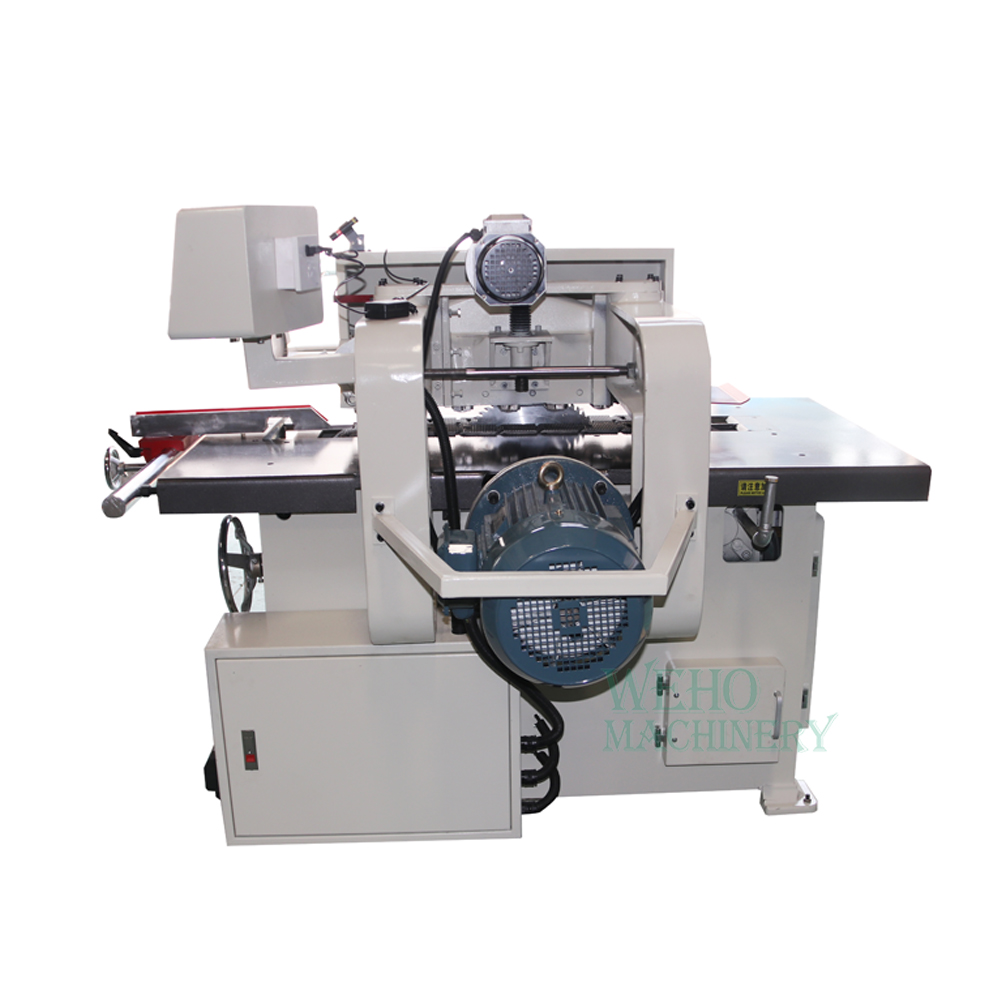

The fuselage table is lengthened; the thickness of the table is 6mm high-quality steel plate, which is lengthened by the ruler. The track shifting mechanism adopts high-precision stepless speed change; it is highly user-friendly in circuit design. When the machine tool is not in use, the track automatically stops running, and the loading automatically resumes operation, which extends the life of the chain.
Unique guide fence of Straight line rip saw machine is able to be used at both sides, preventing the chain plate and guide rail from wearing anddamaging the precision of the machine.
Standard laser positioning device, reducing waste of woods for the straight line rip saw machine.Micro-processor pump for centralized lubrication, providing oil shortage protection and fully guaranteeing the rip saw machine operation and service life.
Rip saw machine Frame is made of quality steel welded with special technology. Through special process and precision finishing,superior reliability and precision are achieved.The main shaft is made of high-hardness tool steel material through 8 steps of precision machining.
The spindle of rip saw machine assembly adopts special material through super finishing, precision assembling and dynamically balancing, guaranteeing superior stability and precision.
The spindle of rip saw machine assembly adopts special material through super finishing, precision assembling and dynamically balancing, guaranteeing superior stability and precision.
How to buy
1. Contact WEHO sales and provide your requirents to get best solutions
2. Order confirmed, get invoice, contract from WEHO.
3. Normally, producton started against TT by 30% deposit.
4. After one week, WEHO sales inform you production state and delivery date.
5. Order finished, WEHO sales send you photos, videos and spare parts for confirmation.
6. Book shipping order, delivery the machine to your port.
How to do if I can not operate
When you get the machine, if you have operation problem, we will make video meeting to teach you. If video teaching can not solve, our engineers will go to your place, and all charges paid by customer's side.
How to get spare part after warranty
After many years using, service will be important. We will always responsible for weho machines, including find problems, send spart parts, and teach you to replace the parts.
Service contacting
Before buying, choose suitable model contact Whatsapp 008613378477841. After buying, technical supporting contact 008613326792205
