Wood stick round making machine MW9060 | wood stick making machine
Model :MW9060
Spindle velocity:4000 r/min
Feeding speed:3m or 5m per minute
Planing diameter:15-60mm
Min planing length:500mm
Weight (KG):310 KG
Power (kW):3
Spindle velocity:4000 r/min
Feeding speed:3m or 5m per minute
Planing diameter:15-60mm
Min planing length:500mm
Weight (KG):310 KG
Power (kW):3
Details
Spare Parts
Inquiry
Provided with heavy-duty construction, And quickly produces round rods from square stock four wheels automatic feed and 2 Magnetic safety switches optional.Various cutters and feed rollers of this round rod milling machine to accommodate different sizes and types of stock, including:Acrylic, rattan, bakelite and wood
| Model | MW9060 |
| Main motor power | 3 kw |
| Feeding motor power | 0.75 kw |
| Worm wheel decelerator | 50: 1 80Model |
| Spindle velocity | 4000 r/min |
| Feeding speed | 3/5 m/min Double Pully Gear |
| Cutting diameter | 20-80mm |
| Largest chipping allowance | 2mm (semidiameter) |
| Shortest cutting length | 600 mm |
| Overall dimension | 1200*610*1100mm |

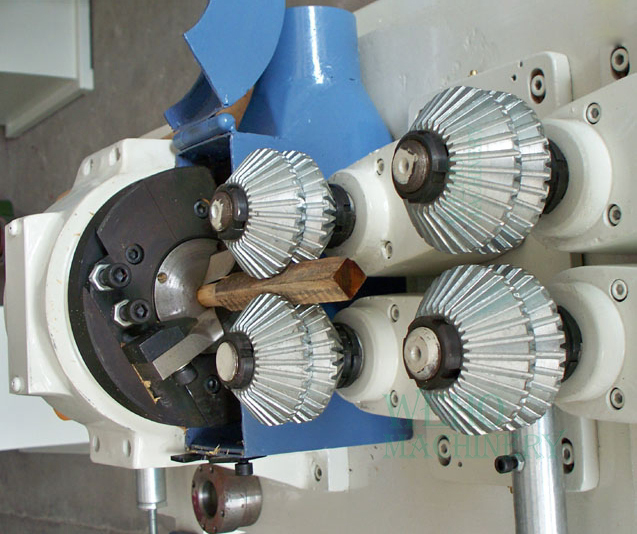

Feeding wheels has differnt installing type for different diameter rod. wood Round stick milling machine, produce broom, with round rod cutter.
Various cutters and feed rollers of this round rod milling machine to accommodate different sizes and types of stock, including:Acrylic, rattan,bakelite and wood.
Name:Single wheels feeding and feeding out，Suitable for make square rod or round rod to sized round shape.Mass productions for the machines, we can make different color, logo for customers.
Main Features
1) Working size 20-80mm
2) Working speed 3-5 meter per mins
5) Perfect machine for broom handle manufacture
Various cutters and feed rollers of this round rod milling machine to accommodate different sizes and types of stock, including:Acrylic, rattan,bakelite and wood.
Name:Single wheels feeding and feeding out，Suitable for make square rod or round rod to sized round shape.Mass productions for the machines, we can make different color, logo for customers.
Main Features
1) Working size 20-80mm
2) Working speed 3-5 meter per mins
5) Perfect machine for broom handle manufacture

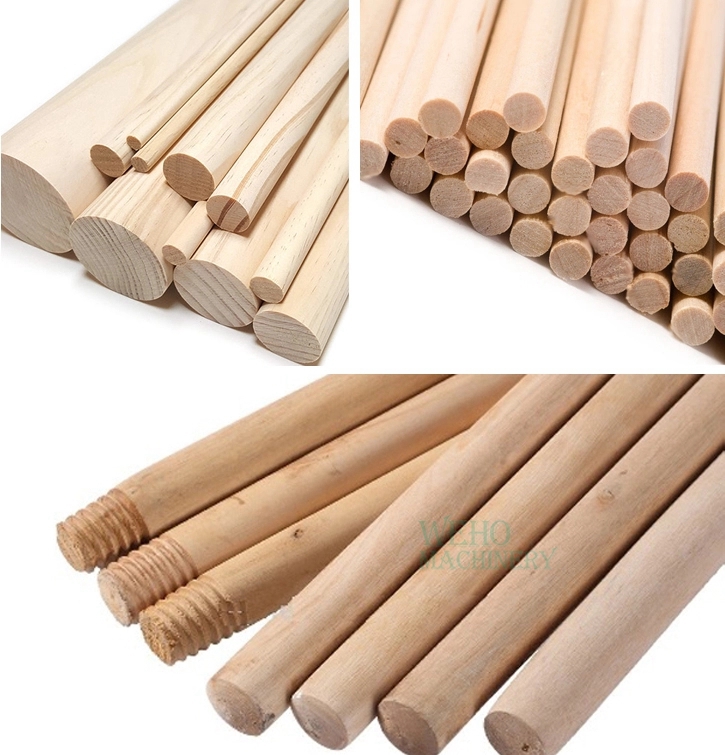

Suitable for wood broomstick, mop and broom handle, Shovel handle etc manufacturing.Easy for operation, durable in use.
Our machine control quality from steel machinery, thicker steel ensure machine rotating without vibration. Completed processing ensure machine base not deformated in many years.
WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines. Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines. Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
