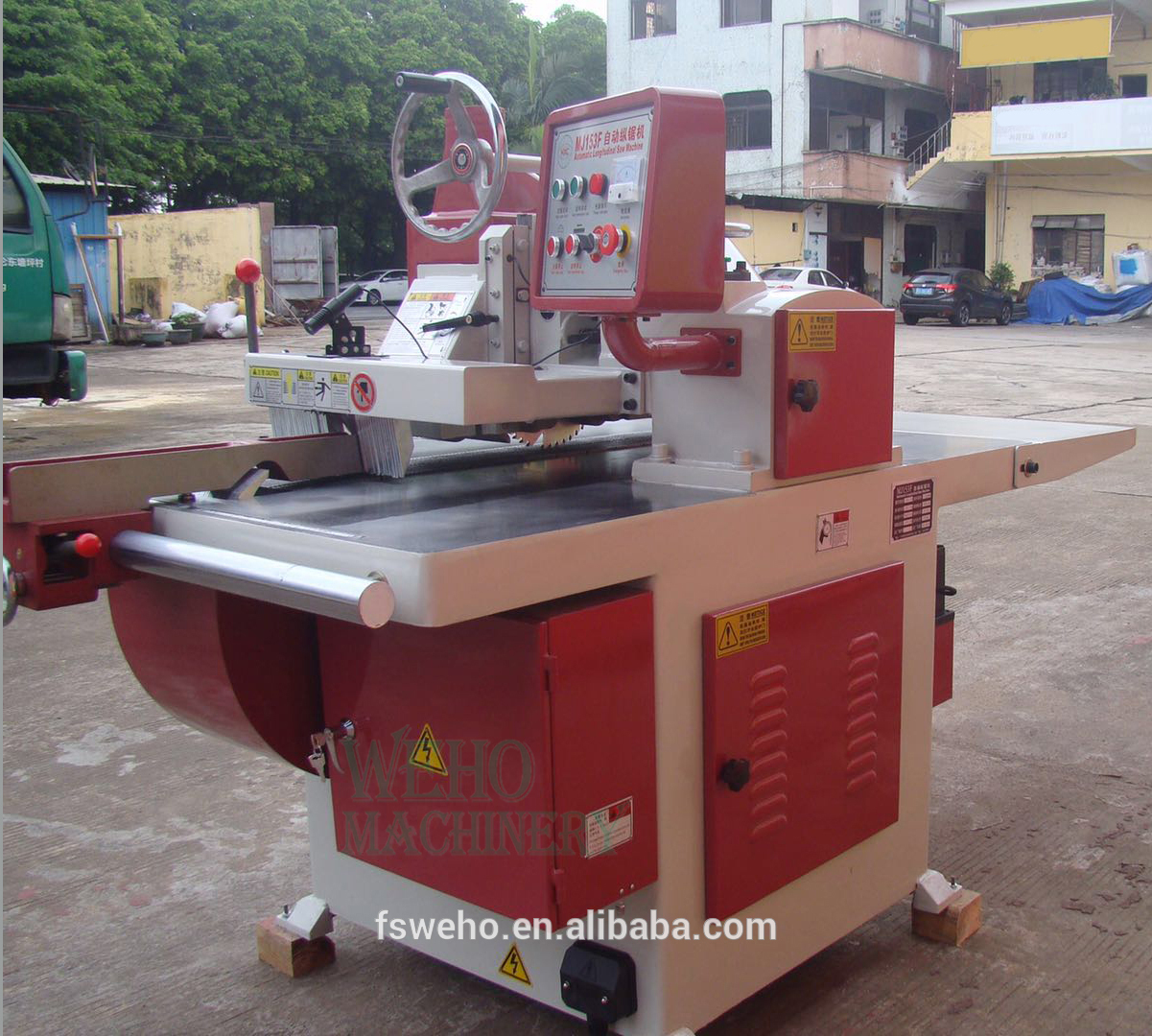

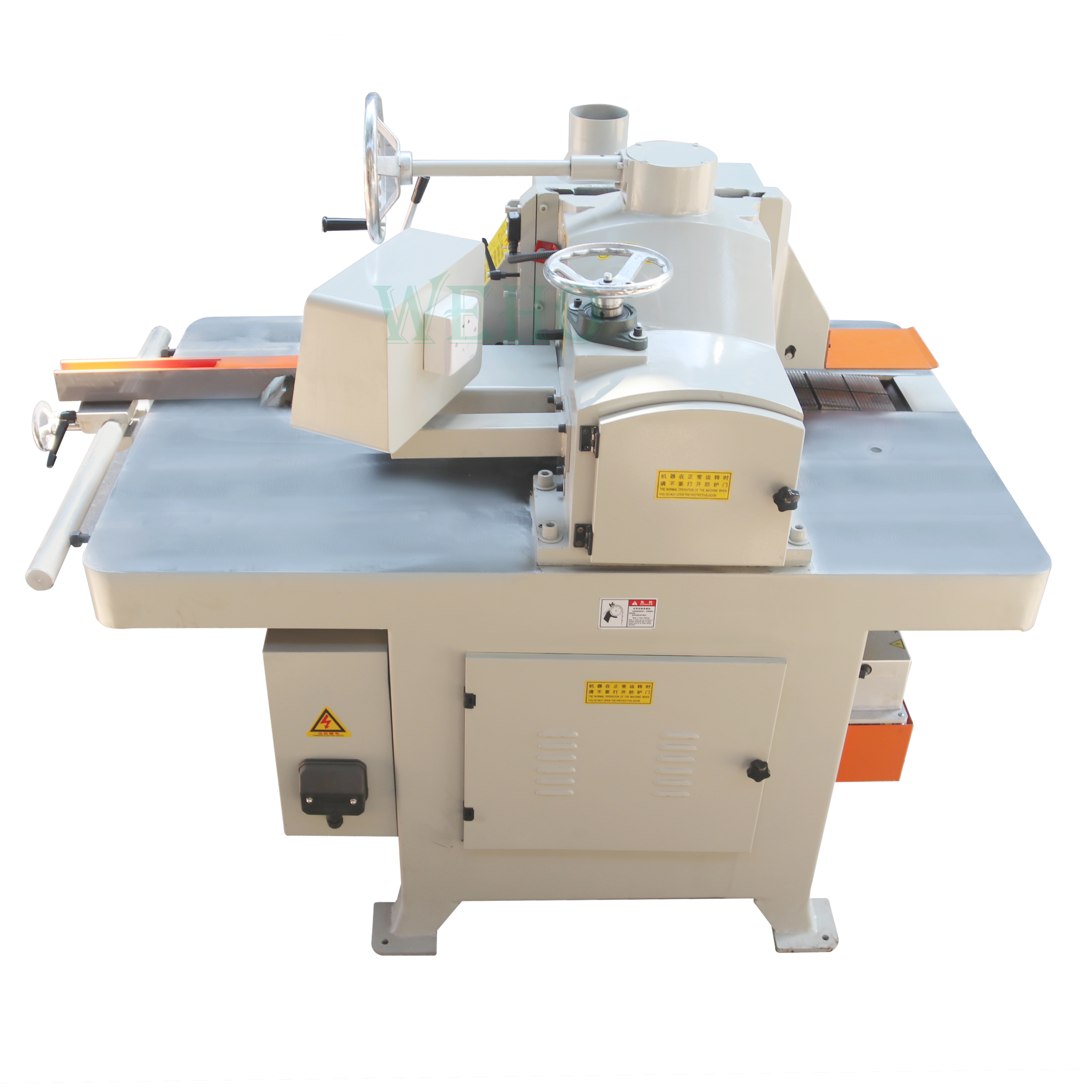

Wood lumber cutter gang straight line rip cut saw woodworking blades table saw | Gang Rip Saw
Model：MJ153
Table size：1500mmx950mm
Blade diameter：305mm
Sawing width：360mm
Sawing thickness：5-85mm
Blade specification：ϕ305Xϕ25.4Xϕ4X48Z
Saw spindle motor power：7.5kw
Feeding motor power：0.75kw
Table size：1500mmx950mm
Blade diameter：305mm
Sawing width：360mm
Sawing thickness：5-85mm
Blade specification：ϕ305Xϕ25.4Xϕ4X48Z
Saw spindle motor power：7.5kw
Feeding motor power：0.75kw
Details
Spare Parts
Inquiry
Rip saw is a wood saw that is specially designed for making a rip cut, a cut made parallel to the direction of the wood grain.Its main use is for high-precision wood processing such as solid wood cutting, jigsaw, seaming, trimming, sawing and planning.The fuselage table is lengthened; the thickness of the table is 15mm high-quality steel plate, which is lengthened by the ruler.Reciprocating Saw carriage moved with gear motor, same to cnc beam saw structure, moves steady for perfect cutting. All major electrical components and transmission bearings are made of international brand components with stable performance.
1. Rip saw machine Frame is made of quality steel welded with special technology. Through special process and precision finishing, superior reliability and precision are achieved.
2.Chain plates and the guide rail of rip saw adopt special material and treatment, with precision finishing, providing superior surface hardness, precision and wear-resistance. Super service life.
3.The spindle of rip saw machine assembly adopts special material through super finishing, precision assembling and dynamically balancing, guaranteeing superior stability and precision.
4.Triple protection of anti-kickback devices and the side guard, fully protecting operators.
5.Micro-processor pump for centralized lubrication, providing oil shortage protection and fully guaranteeing the rip saw machine operation and service life.
6. Time cleaning and lubrication for the chain plates.
7.Unique guide fence of Straight line rip saw machine is able to be used at both sides, preventing the chain plate and guide rail from wearing anddamaging the precision of the machine.

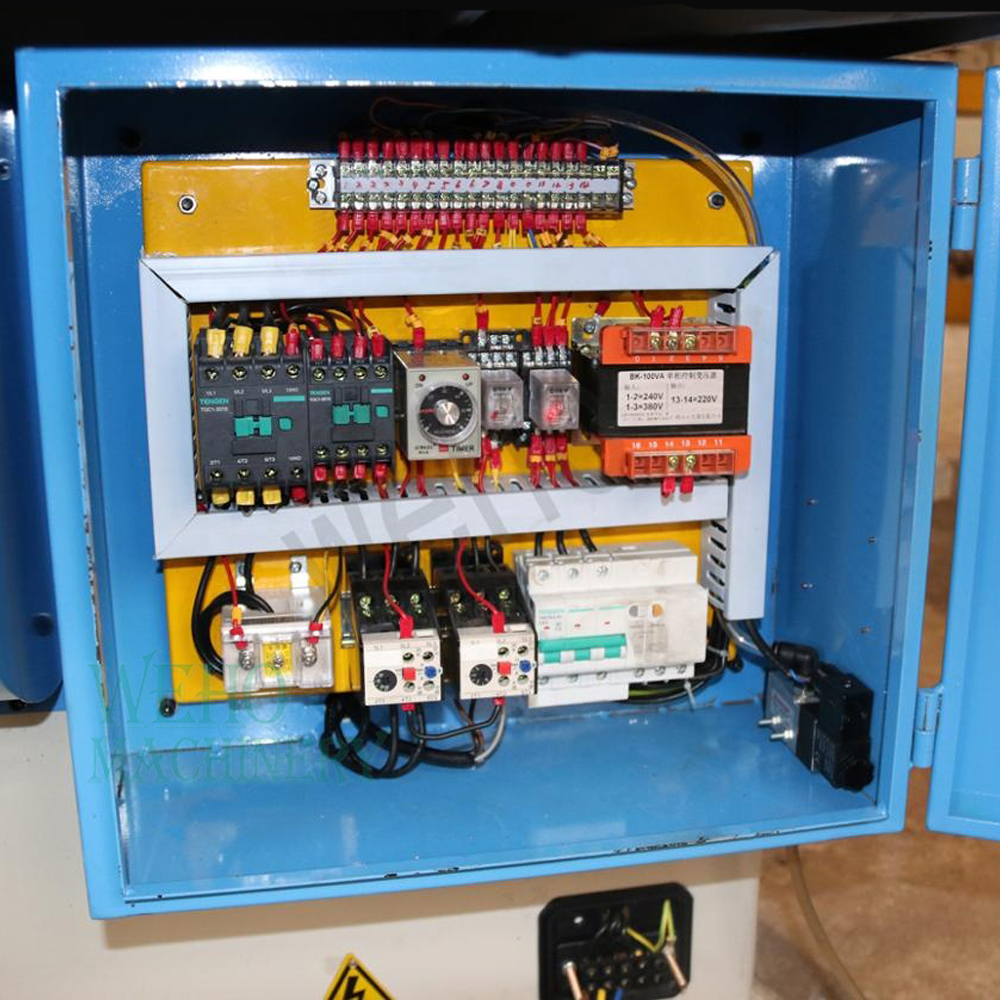

8.Main electrical components and transmission units are purchased from quality international brands, guaranteeing reliability.
9.Standard laser positioning device, reducing waste of woods for the straight line rip saw machine.

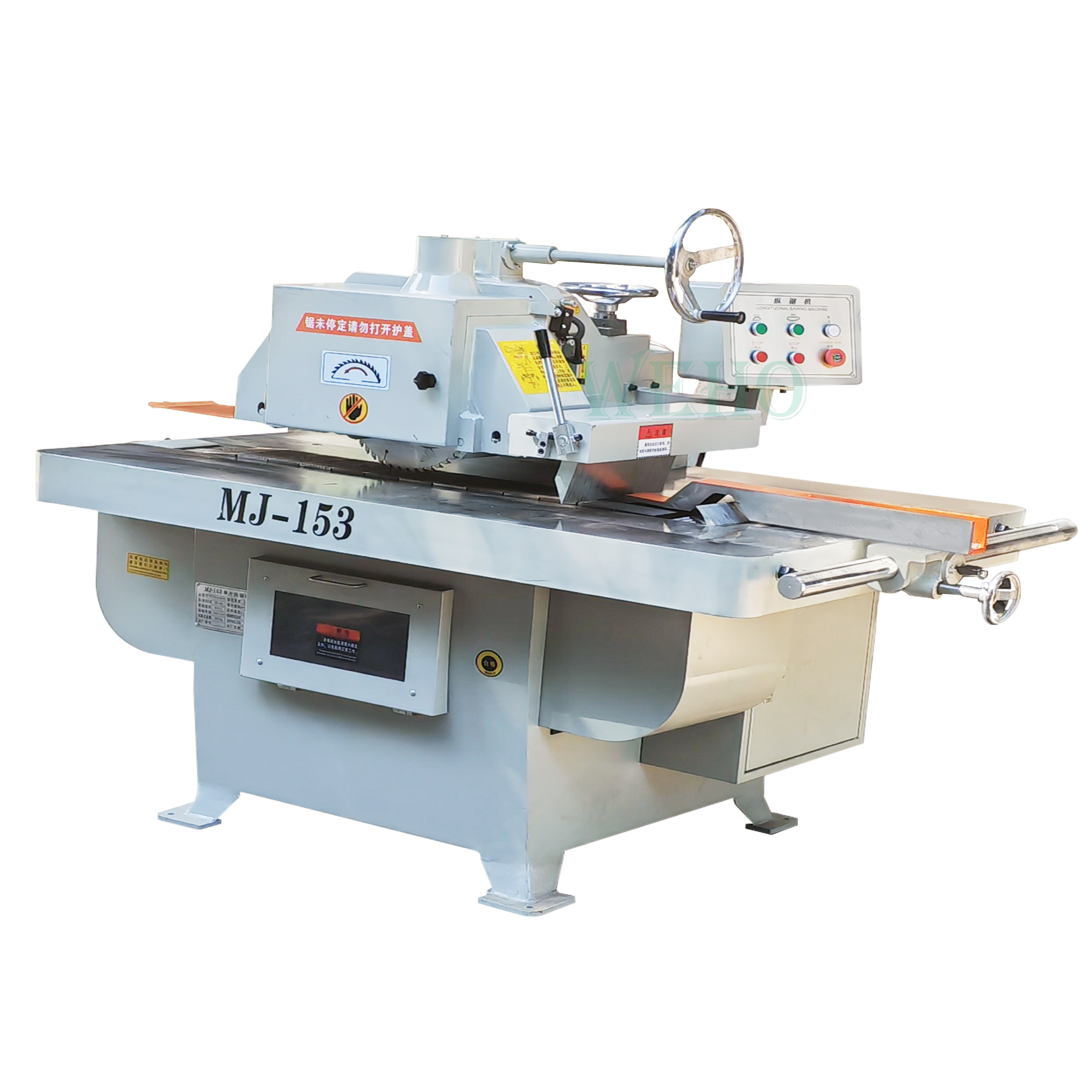

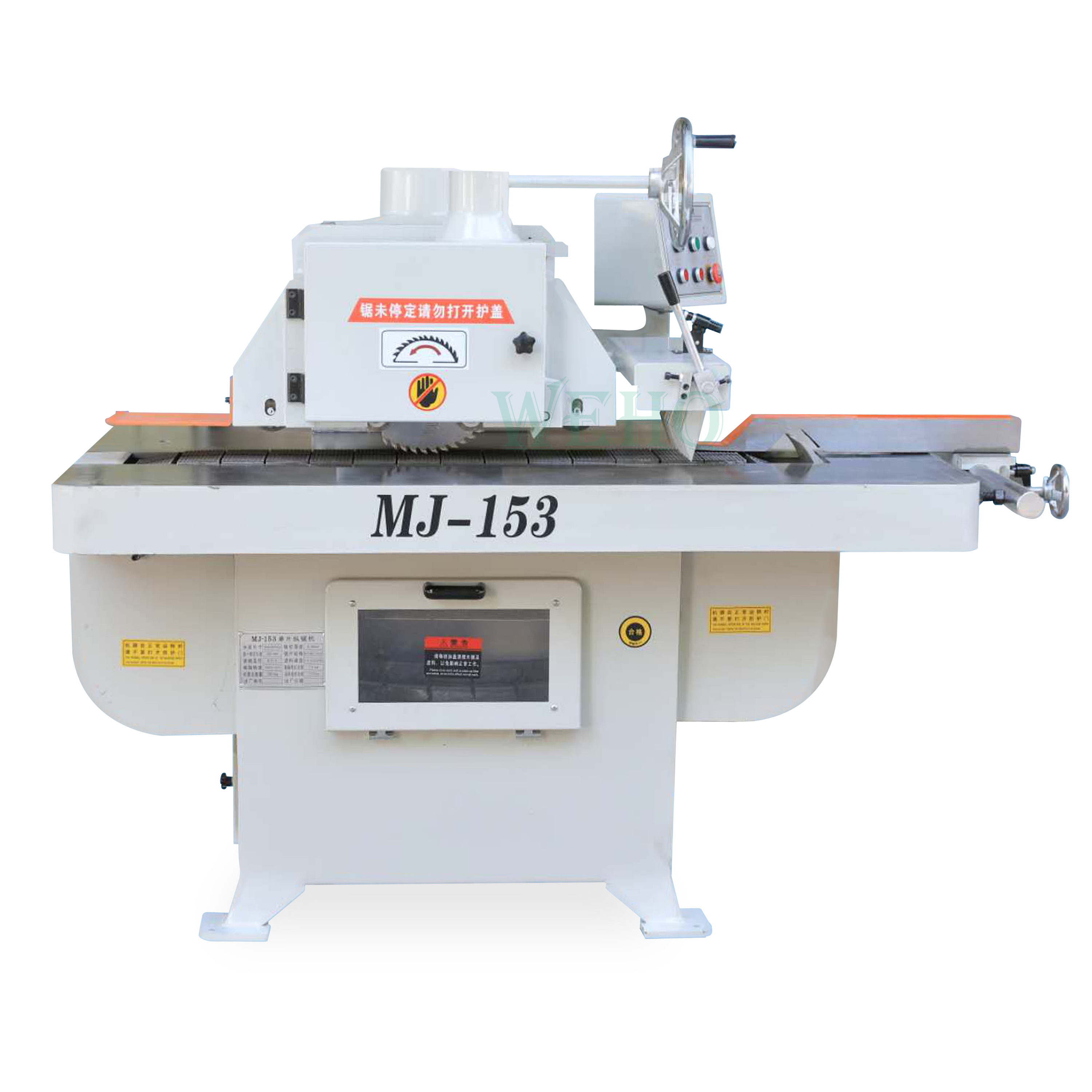

| Name | Straight line rip saw bench machine manufacturers MJ153 |
| Modle | MJ153 |
| Maximum sawing thickness | 85mm |
| Minimum sawing length | 350mm |
| Deep throat | 360mm |
| Spindle speed | 3700r/min |
| Feeding speed | 12-32m/min |
| Saw shaft diameter | 25.4mm |
| Blade size | ￠305×￠25.4×4×48T |
| Total power of machine tool | 8.25kw |
| Main saw motor | 7.5kw |
| Feeding motor | 0.75kw |
| Table size | 1500×950mm |
| Table thickness | 11mm |

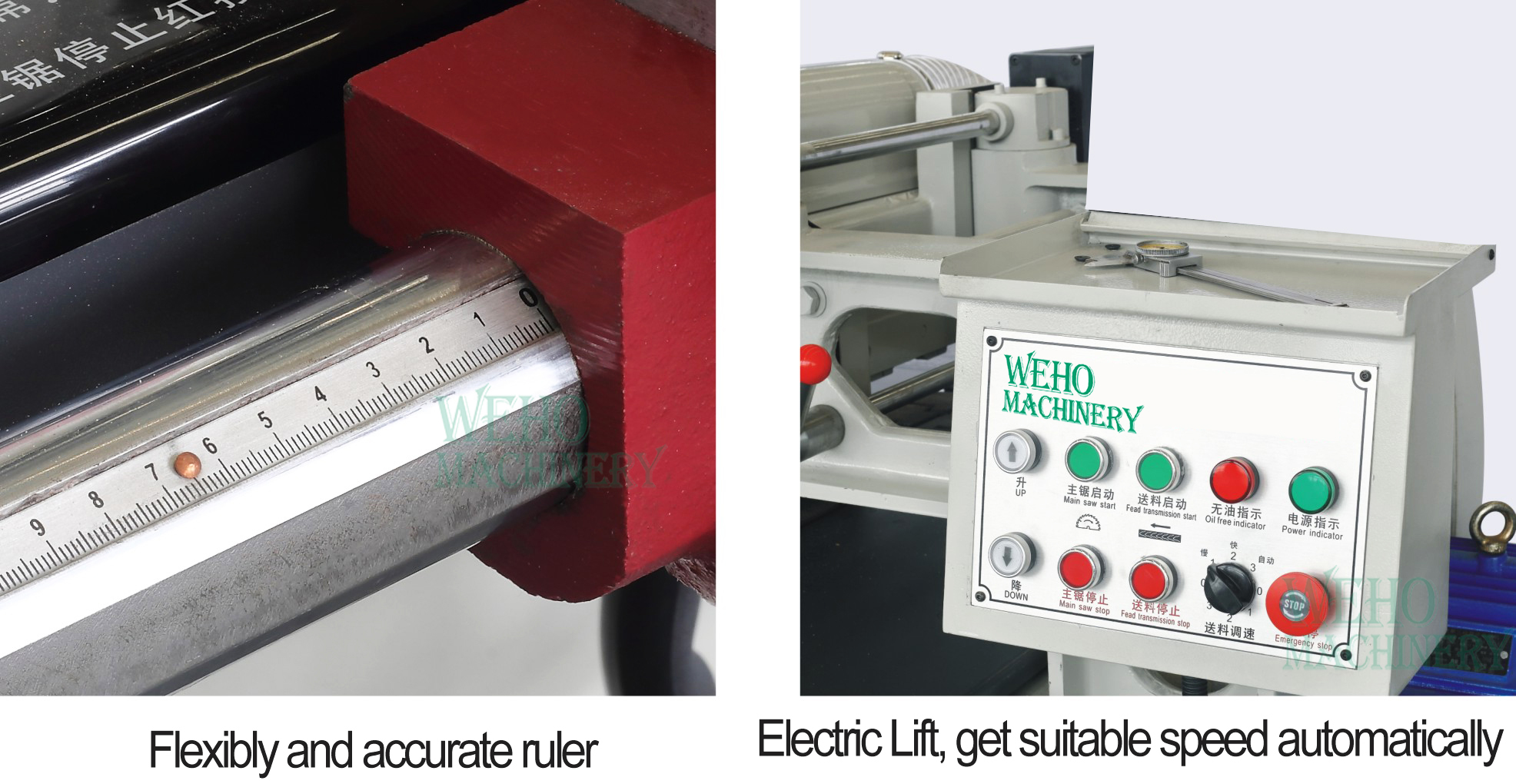

| Ruler length | 600mm |
| Suction port diameter | 100mm |
| Overall dimension | 1800x1050x1500mm |
| Packing size | 1600×1050×1400mm |
| Machine weight | 950kg |
1.The fuselage table is lengthened; the thickness of the table is 11mm high-quality steel plate, which is lengthened by the ruler.
2. The track shifting mechanism adopts high-precision stepless speed change; it is highly user-friendly in circuit design. When the machine tool is not in use, the track automatically stops running, and the loading automatically resumes operation, which extends the life of the chain.
3. The main shaft is made of high-hardness tool steel material through 8 steps of precision machining. What is even more remarkable is that the oil pump is used to supply oil to the main shaft and then supply oil to the chain. This reduces the operating temperature of the main shaft and prolongs the life of the main shaft. Emphasis is placed on the interchangeability of the complete set of spindles, which will bring better convenience to future maintenance and replacement.
4. Configure triple upper and lower anti-bounce devices to ensure safer operation
5. All major electrical components and transmission bearings are made of international brand components with stable performance.
1.The fuselage table is lengthened; the thickness of the table is 15mm high-quality steel plate, which is lengthened by the ruler.
2. The track shifting mechanism adopts high-precision stepless speed change; it is highly user-friendly in circuit design. When the machine tool is not in use, the track automatically stops running, and the loading automatically resumes operation, which extends the life of the chain.
3. The main shaft is made of high-hardness tool steel material through 8 steps of precision machining. What is even more remarkable is that the oil pump is used to supply oil to the main shaft and then supply oil to the chain. This reduces the operating temperature of the main shaft and prolongs the life of the main shaft. Emphasis is placed on the interchangeability of the complete set of spindles, which will bring better convenience to future maintenance and replacement.
4. Configure triple upper and lower anti-bounce devices to ensure safer operation
5. All major electrical components and transmission bearings are made of international brand components with stable performance.
The fuselage table is lengthened; the thickness of the table is 15mm high-quality steel plate, which is lengthened by the ruler.Reciprocating Saw carriage moved with gear motor, same to cnc beam saw structure, moves steady for perfect cutting. All major electrical components and transmission bearings are made of international brand components with stable performance.Famous brand eletric parts, ensure the machines using long time.
How to buy
1. Contact WEHO sales and provide your requirents to get best solutions
2. Order confirmed, get invoice, contract from WEHO.
3. Normally, producton started against TT by 30% deposit.
4. After one week, WEHO sales inform you production state and delivery date.
5. Order finished, WEHO sales send you photos, videos and spare parts for confirmation.
6. Book shipping order, delivery the machine to your port.
How to do if I can not operate
When you get the machine, if you have operation problem, we will make video meeting to teach you. If video teaching can not solve, our engineers will go to your place, and all charges paid by customer's side.
How to get spare part after warranty
After many years using, service will be important. We will always responsible for weho machines, including find problems, send spart parts, and teach you to replace the parts.
