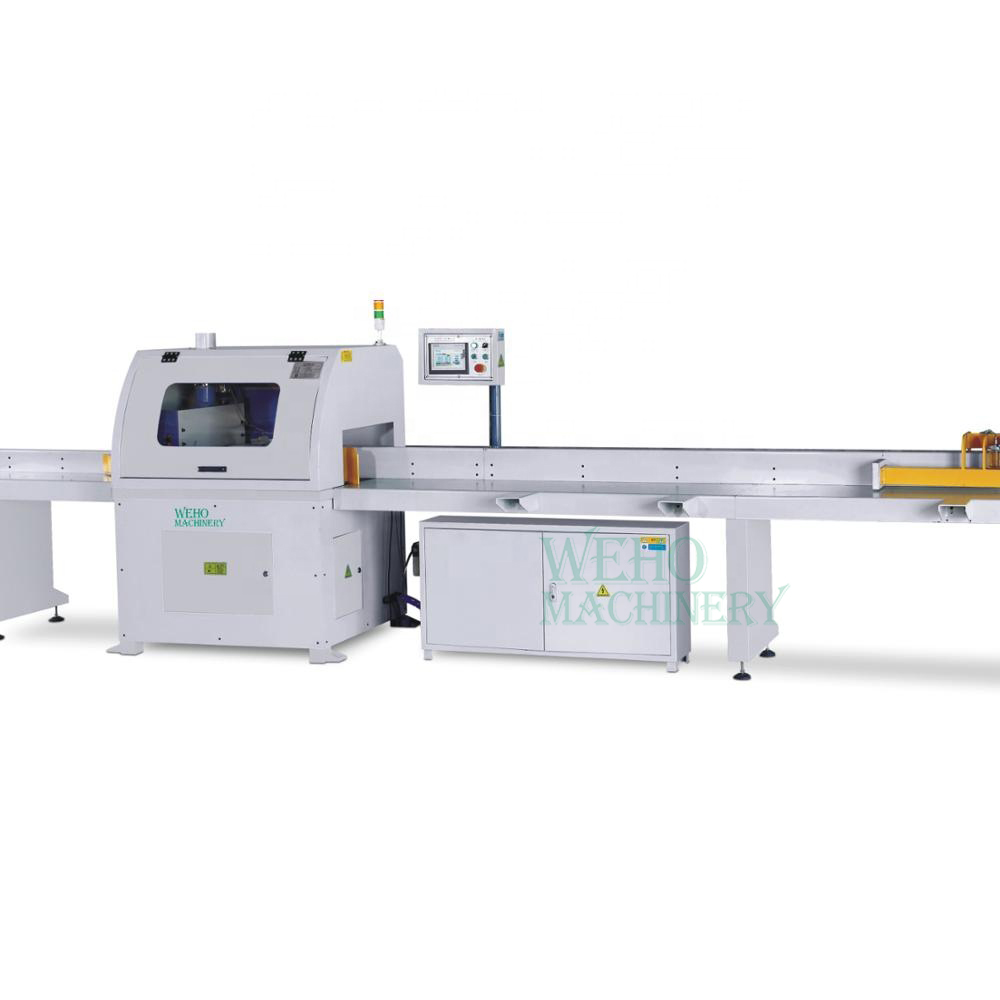

Wood length circular pneumatic cross cutting saw machine
Model:MJB601
Cutting width:30-250mm
Cutting thickness:10-120mm
Feeding speed:5-25m/min
Cutting saw blade size:300-450mm
Weight (KG):500 KG
Power (kW):7.5
Cutting width:30-250mm
Cutting thickness:10-120mm
Feeding speed:5-25m/min
Cutting saw blade size:300-450mm
Weight (KG):500 KG
Power (kW):7.5
Details
Spare Parts
Inquiry
It is suited for timber, log ,plastic board, aluminium and other similar materials cutting off.
Heavy-duty steel cabinet is built with precision for extra stability and designed for maximum safety.
Easy operation, the cutting cycle is controlled by twin buttons or a foot switch (included).
The saw blade runs inside the frame for safe operation.
|
Produce name
|
Full automatic Pneumatic Cross Cutting Saw for Wood timber aluminium pipe plastic board cutting
|
|
Model
|
MJB601
|
|
Sawing thickness
|
10-120mm
|
|
Sawing width
|
30-250mm
|
|
Maximum sawing length
|
4000mm
|
|
Maximum cutting cross section
|
100*250mm
|
|
Feeding speed
|
5-25m/min
|
|
Cutting speed
|
40pcs/min
|
|
Saw blade size
|
450mm*30mm
|
|
Saw shaft speed
|
3500rpm
|
|
Feed servo motor
|
750w
|
|
Saw shaft motor power
|
7.5kw
|
|
Air pressure
|
5-6kg/cm2
|
|
Dust collecting port
|
100mm*2
|
|
Mechanical Dimensions
|
9000*1200*1300mm
|
|
Sawing error
|
+/-0.3mm
|

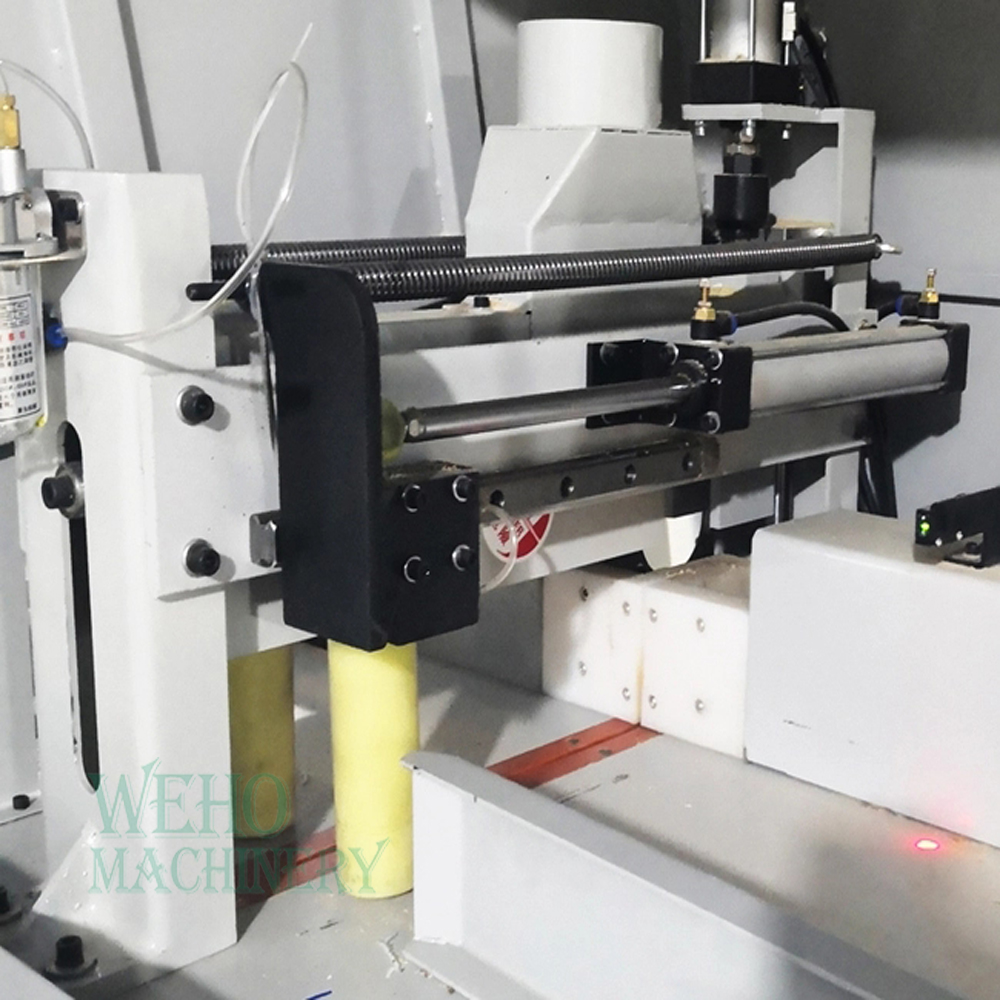

Quick-adjust head clamp.
4" dust collection port. Large side access door for quick easy blade changes.
Precision ground and balanced chrome steel alloy arbor.
Blade guard clamp holds the piece securely in place during the cut.
Available in Right Hand & Left Hand configuration Powerful 7.5HP main motor Pneumatic foot pedal operation with adjustable cutting speed from the front of the machine Fast cutting rate,Material clamp is easily adjusted for workpiece thickness variation.
Fast cutting rate, Cycle speeds are adjustable for wood cut off saw machine. Motion cycles are pneumatically operated, and conveniently controlled by a foot switch. Easy belt tension is adjustment or replacement. In-feed and out-feed roller conveyors are standard for cut off saw
STANDARD EQUIPMENT – Pneumatic blade feed. – Two-handed safety starting system. – Variable blade feed speed. – TCT saw blade Ø 350 mm. – Working table of 1.2 mt. left from the blade. – Working table of 1.2 mt. right from the blade.
