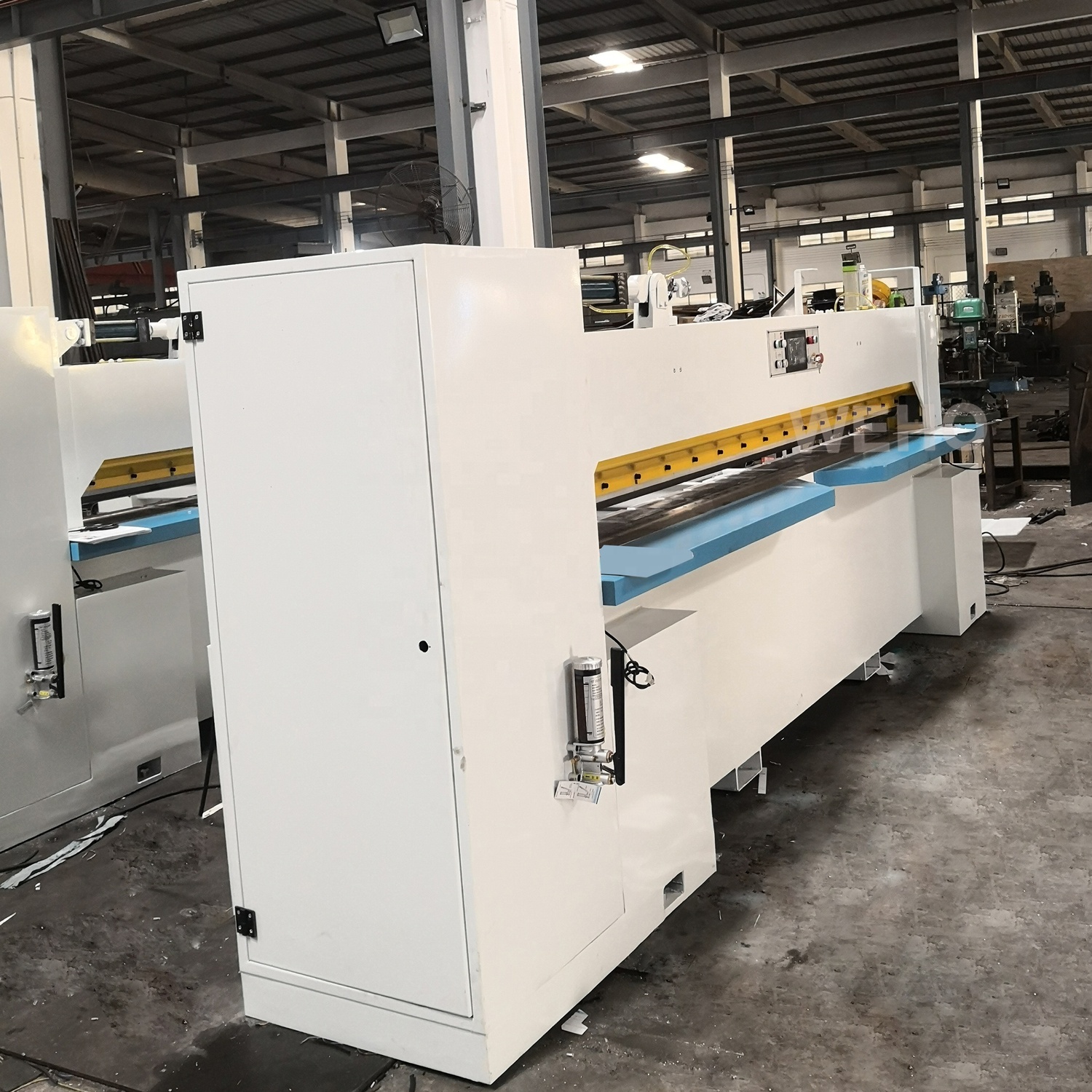

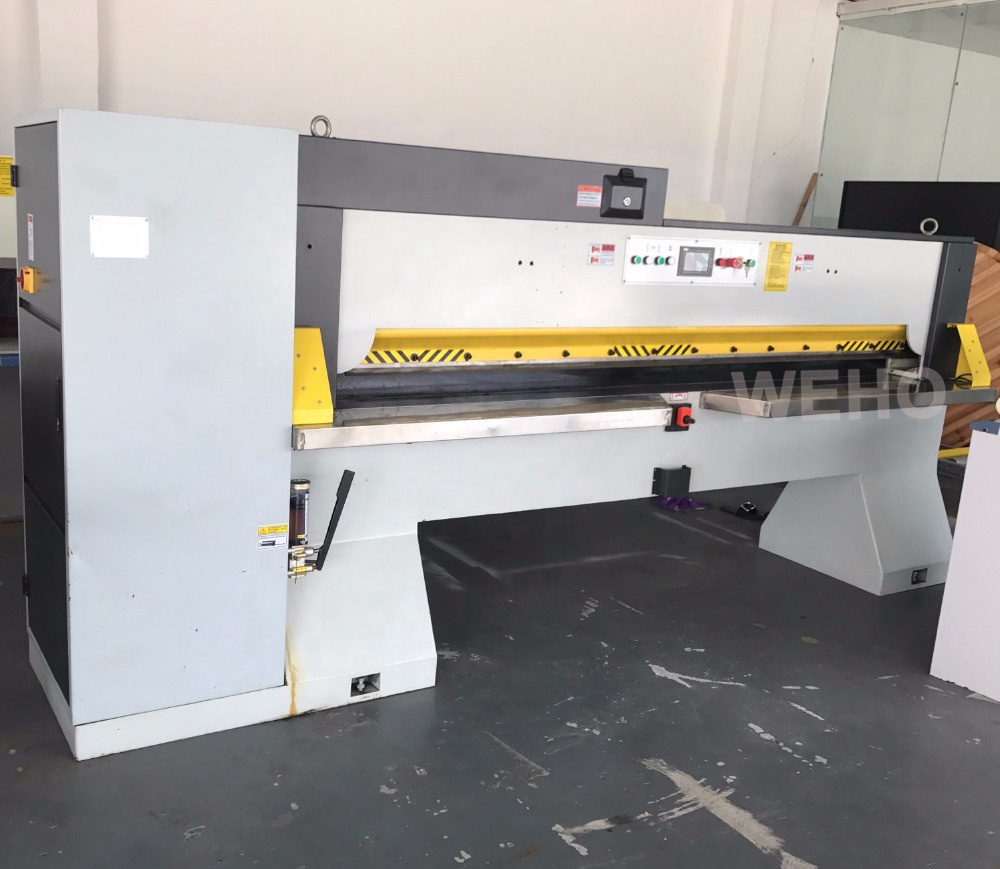

Wood Hydraulic Veneer Guillotine machine
Model:M3100Q
Max.cutting length:3100mm
Max.cutting width:50mm
Max.working pressure:10Mpa
Dimension(L*W*H):4200x1700x1700mm
Weight:2500kg
Power (kW):4
Max.cutting length:3100mm
Max.cutting width:50mm
Max.working pressure:10Mpa
Dimension(L*W*H):4200x1700x1700mm
Weight:2500kg
Power (kW):4
Details
Spare Parts
Inquiry
Wood Hydraulic Veneer Cutter is used for plywood production or woodworking production, it can be used for cutting veneer or thin wood board into required size.
|
Name
|
Wood Hydraulic Veneer Guillotine machine M3100Q
|
|
Modle
|
M3100Q
|
|
Max.cutting length
|
3100mm
|
|
Max.cutting width
|
50mm
|
|
Max.working pressure
|
10Mpa
|
|

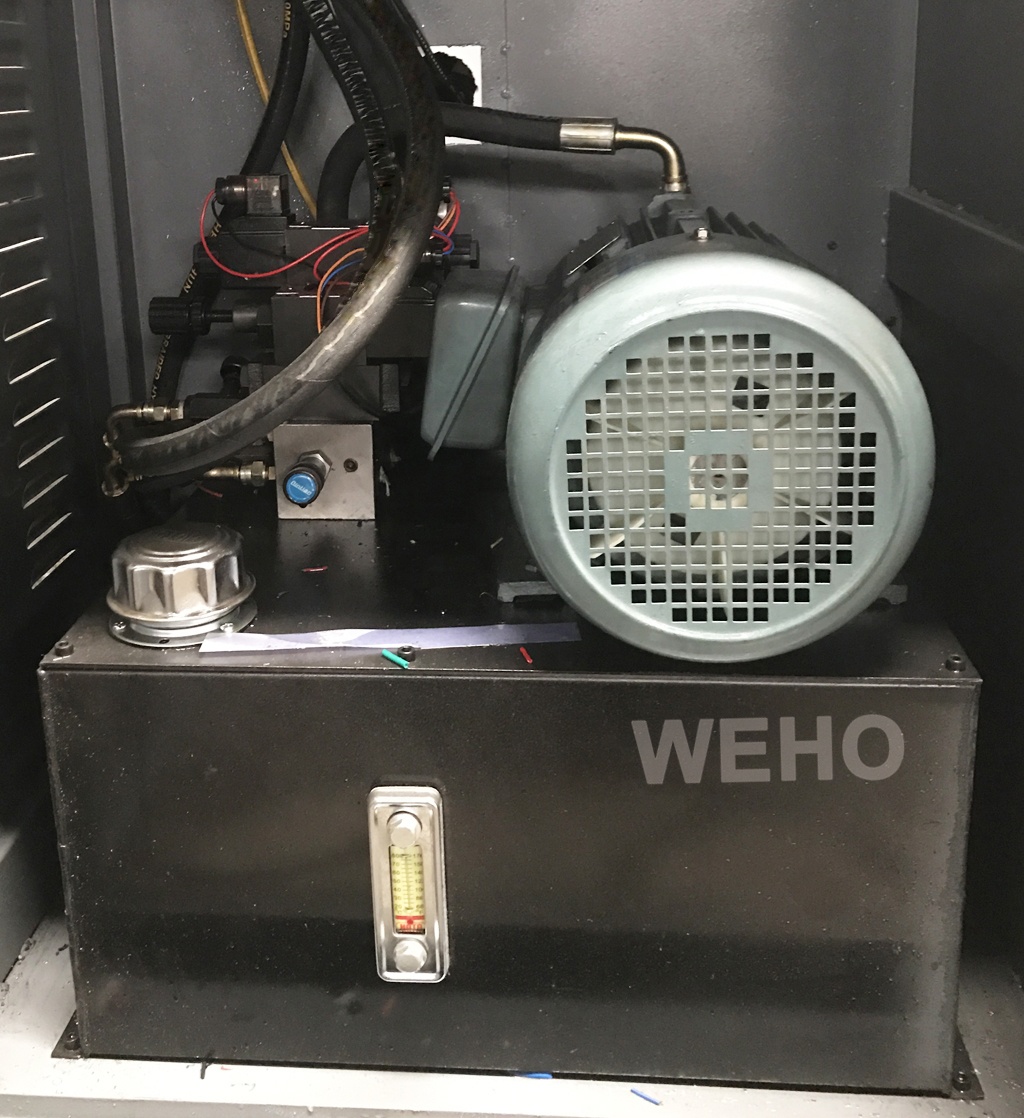

Oil pump power
|
4kw
|
|
Feeding motor power
|
0.18kw
|
|
Machine weight
|
2600kg
|
|
Overall size
|
4200x1700x1700mm
|
Main features:
High quality cutting
Motor driven rear fence for rapid movements
Manual handwheel with millimeter counter for an accurate adjustment
Light indicating the cut position
High quality cutting
Motor driven rear fence for rapid movements
Manual handwheel with millimeter counter for an accurate adjustment
Light indicating the cut position
WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines.Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
