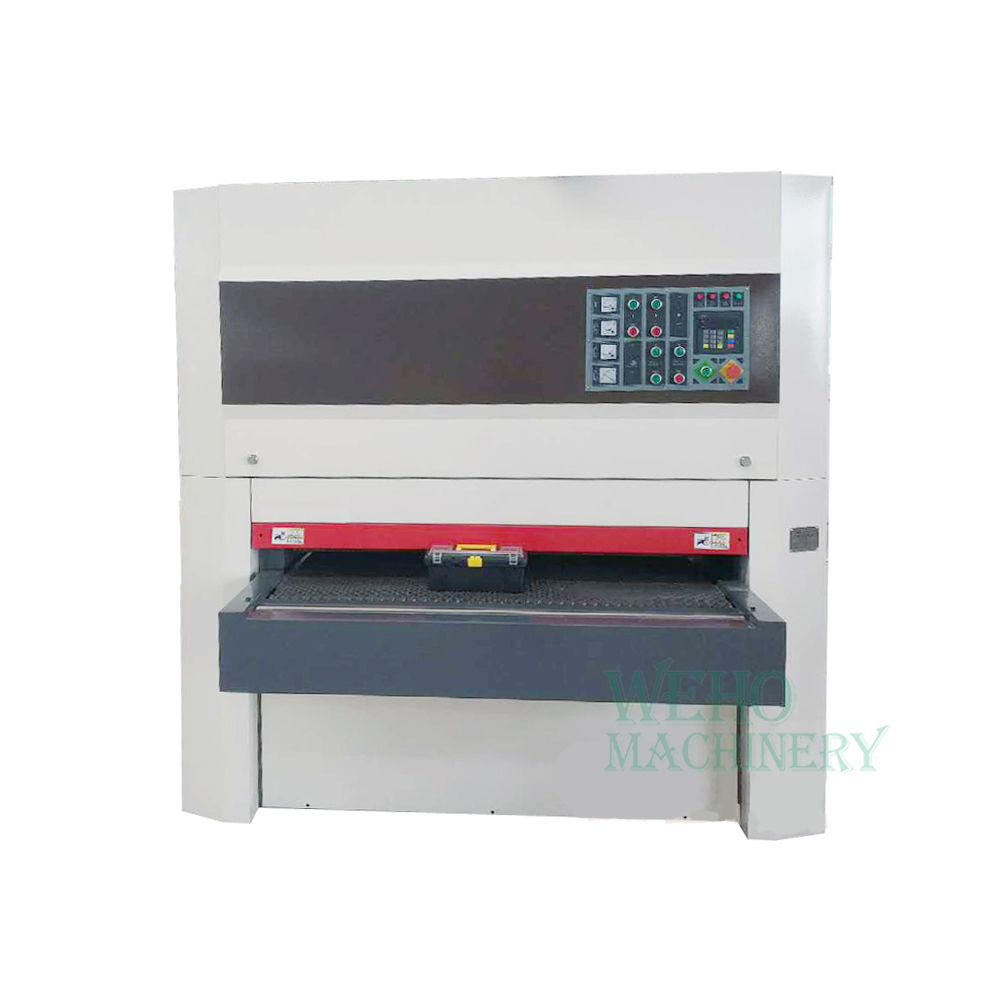

Wood floor wide belt sander machine
Model:R-RP1300
Max sanding width:1300mm
The shortest processing length:480mm
Processing thickness:2.5mm-100mm
Belt size:1330×2200mm
Transfer speed:6-30m/min
Machine size:2100×2650×2150mm
Max sanding width:1300mm
The shortest processing length:480mm
Processing thickness:2.5mm-100mm
Belt size:1330×2200mm
Transfer speed:6-30m/min
Machine size:2100×2650×2150mm
Details
Spare Parts
Inquiry
This machine tool is mainly used for the fixed thickness processing of solid wood plates, multi-layer boards, joinery boards, wooden doors and other products, with a large amount of sanding and high working efficiency.
|
Model
|
R-RP1300
|
|
Max sanding width
|
1300mm
|
|
The shortest processing length
|
480mm
|
|
Processing thickness
|
2.5mm-100mm
|
|
Conveyor motor power
|
4kw
|
|
Lifting motor power
|
0.37kw
|
|
Belt size
|
1330×2200mm
|
| First sand line speed | 22m/s |
| Second sand line speed | 18m/s |
|
Working pressure
|
0.6mpa
|
| Weight | 3500kg |
|
Vacuum volume
|
10000m3/h
|
|
Transfer speed
|
6-30m/min
|
|
Machine size
|
2100×2650×2150mm
|

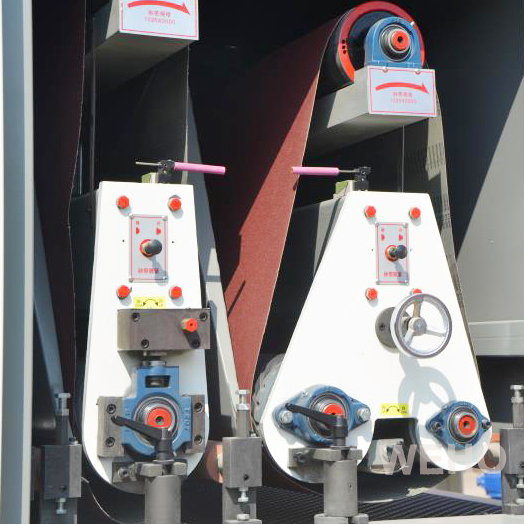

The diameter of the front sanding frame of the belt sander is 190mm,and the steel roller Rear sand rack combination head, rubber roller plus polishing pad, rubber roller diameter 190mm.
Drive system: Ball screw transmission，high precision and more durable in use.
Feeding belt automatic entering , Protector for sanding belt breaking down and loosen. Advanced balancing testing fixed thick rolls, steel rolls and pulleys, makes the machine run more smoothly.
The wood floor sander machine with belt tensioning device, conveyor belt automatic centering device, sand belt deviation deviation stop device, photoelectric deviation deviation device, emergency stop device.
Control system：Servo system drive, high precision.
The wide belt sander conveyor belt material PVC diamond grid. Equipment body processing and tempering failure treatment, roller grinding and dynamic and static balance treatment. Granite grinding on conveyor bed platform.
Control system：Servo system drive, high precision.
The wide belt sander conveyor belt material PVC diamond grid. Equipment body processing and tempering failure treatment, roller grinding and dynamic and static balance treatment. Granite grinding on conveyor bed platform.
WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines.Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
