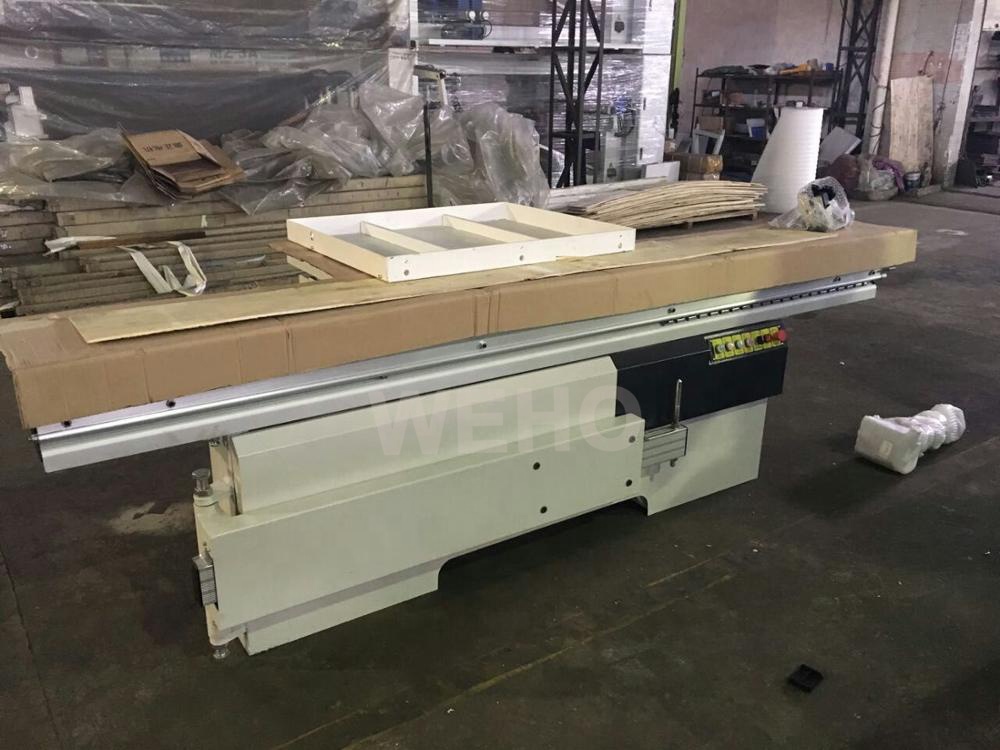

Wood cutting machine precision sliding table panel saw
Model: MJ320C
Main power:5.5KW
Packing size:3200*1100*1200mm
Sliding table width:375mm
Saw diameter:350mm
scoring saw power:0.75kw or 1.1kw
Main power:5.5KW
Packing size:3200*1100*1200mm
Sliding table width:375mm
Saw diameter:350mm
scoring saw power:0.75kw or 1.1kw
Details
Spare Parts
Inquiry
Designed to cut wood panel, ply chipboard, MDF&HDF, ABS board, PVC board and other board with the similar structure and hardness in high precision. It is a nice choice for the furniture production and decoration industry.
|
Product Name
|
Wood cutting machine precision sliding table panel saw
|
|
Model
|
MJ320C
|
|
Max cutting length
|
3200mm
|
|
Max cutting thickness
|
90mm
|
|
Main saw power
|
5.5kw
|
|
Main saw Speed
|
4200/5600rpm
|
|
Slot Saw Power
|
0.75kw
|
|
Slot Saw speed
|
9000rpm
|
|
Main saw blade
|
φ305-φ350
|
|
Scoring saw blade
|
φ120×φ22mm
|
|
Blade tilt angle
|
0-45°
|
|
Packing size
|
3400*1100*1120mm
|
Large, accurate and easy installation sliding table makes precision cutting possible. Scoring blade eliminates all tear out on laminated plywood and other lumber coring it first.Sliding table comes with precision fence with lens magnifier.
Convenient, quick release fence. Powerful motor with aluminum housing enables heat to exhale efficiently.
Finish ground, heavy-duty cast iron table.4" dust hood onwoodworking sliding panel saw,Steel constructed cabinet for durability and stability.
Extension panel at the back and both sides provide larger table surfaces. Blade guard with dust collection outlet to eliminate saw just more efficiently.Easy to change any type of sliding tables.
WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines.Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
