Vertical band saw machine
Model:MW396
Cast Iron Wheel Size:600 mm
Cutting Height:300 mm
Max. Cutting Width:400 mm
Saw Blade Length:4400 mm
Saw wheel linear Speed:1100m/min
Weight (KG):580 KG
Power (kW):5.5
Cast Iron Wheel Size:600 mm
Cutting Height:300 mm
Max. Cutting Width:400 mm
Saw Blade Length:4400 mm
Saw wheel linear Speed:1100m/min
Weight (KG):580 KG
Power (kW):5.5
Details
Spare Parts
Inquiry
High speed band saw designed for smooth cutting and trouble-free operation. Blade tension of band saw can be conveniently adjusted by means of a hand-wheel. The see-through guard provides operator safety and protection.
| Model | MW396 |
| Name | Vertical bandsaw machine |
| Motor | 5.5KW (7.5 HP ) 3 phase |
| Working Table Size(LXWXH) | 820 x 700 mm |
| Cast Iron Wheel Size | 600mm |
| Cutting Height | 300mm |
| Max. Cutting Width (w/o fence) | 500mm |
| Max. Cutting Width (with fence) | 400mm |
| Saw Blade Length | 4400 mm |
| Saw Blade Width | 3 mm-50mm |
| Standard 25 mm | |
| Saw wheel linear Speed | 1100m/min |
| Table Tilting | 0~45° |
| Table Height | 902 mm |
| Braking System | Foot Pedal+Micro Switch |
| Driving Belt | Out driving device |
| Machine Size | 1470 x 850 x 2100mm |
| N.W/G.W. | 550KG/580KG |

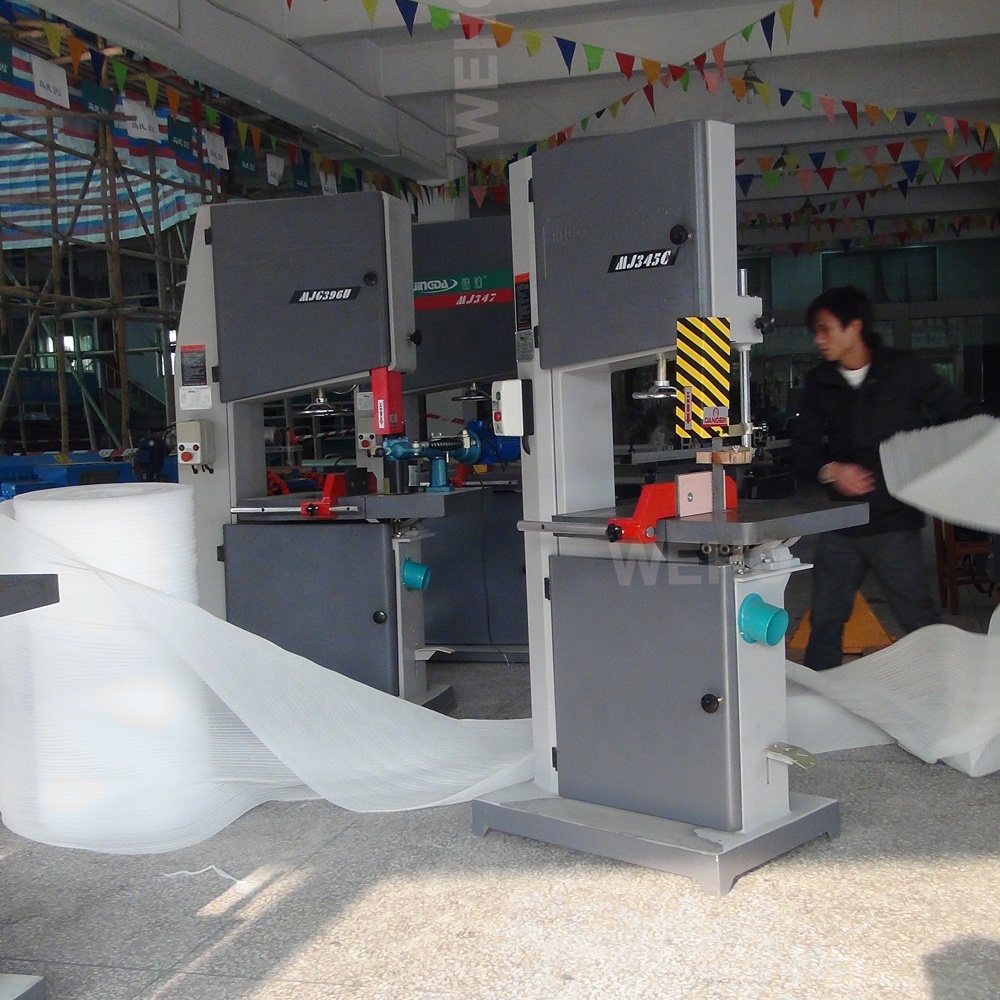

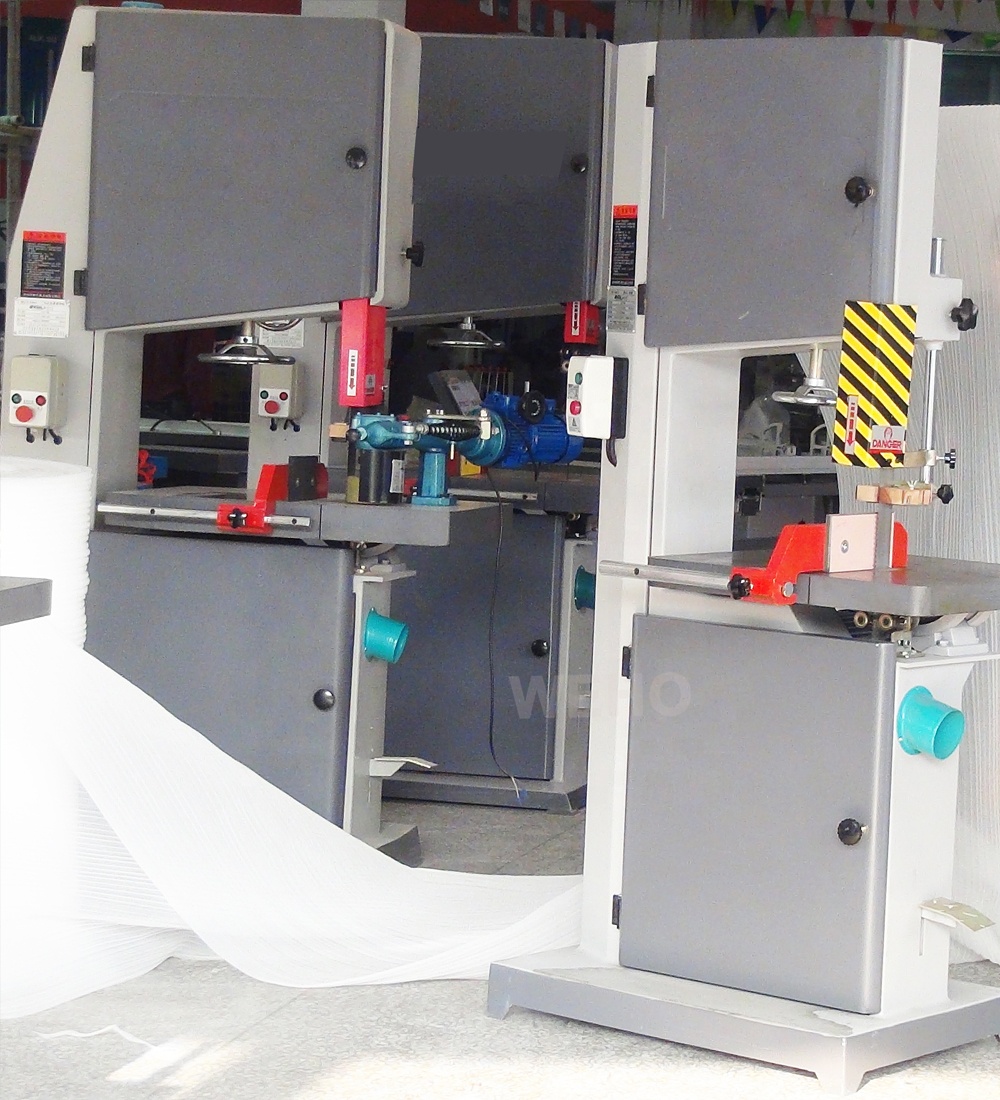

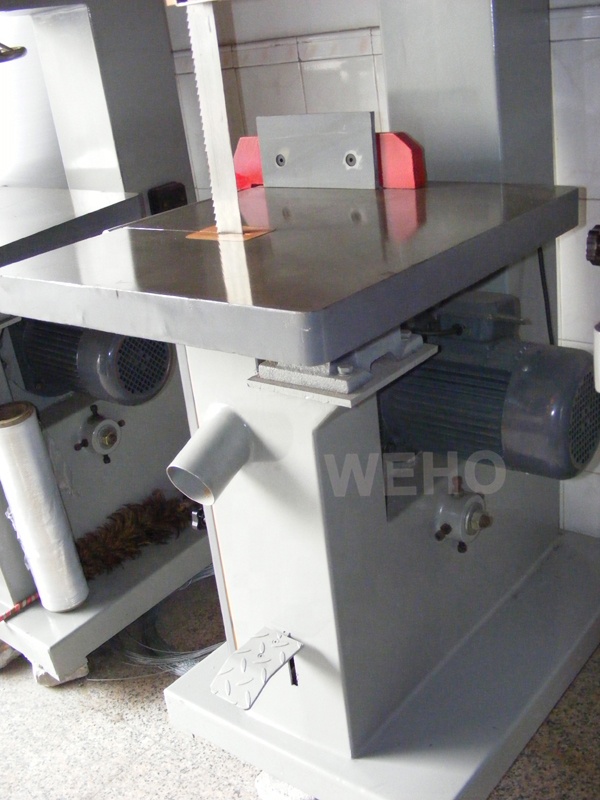

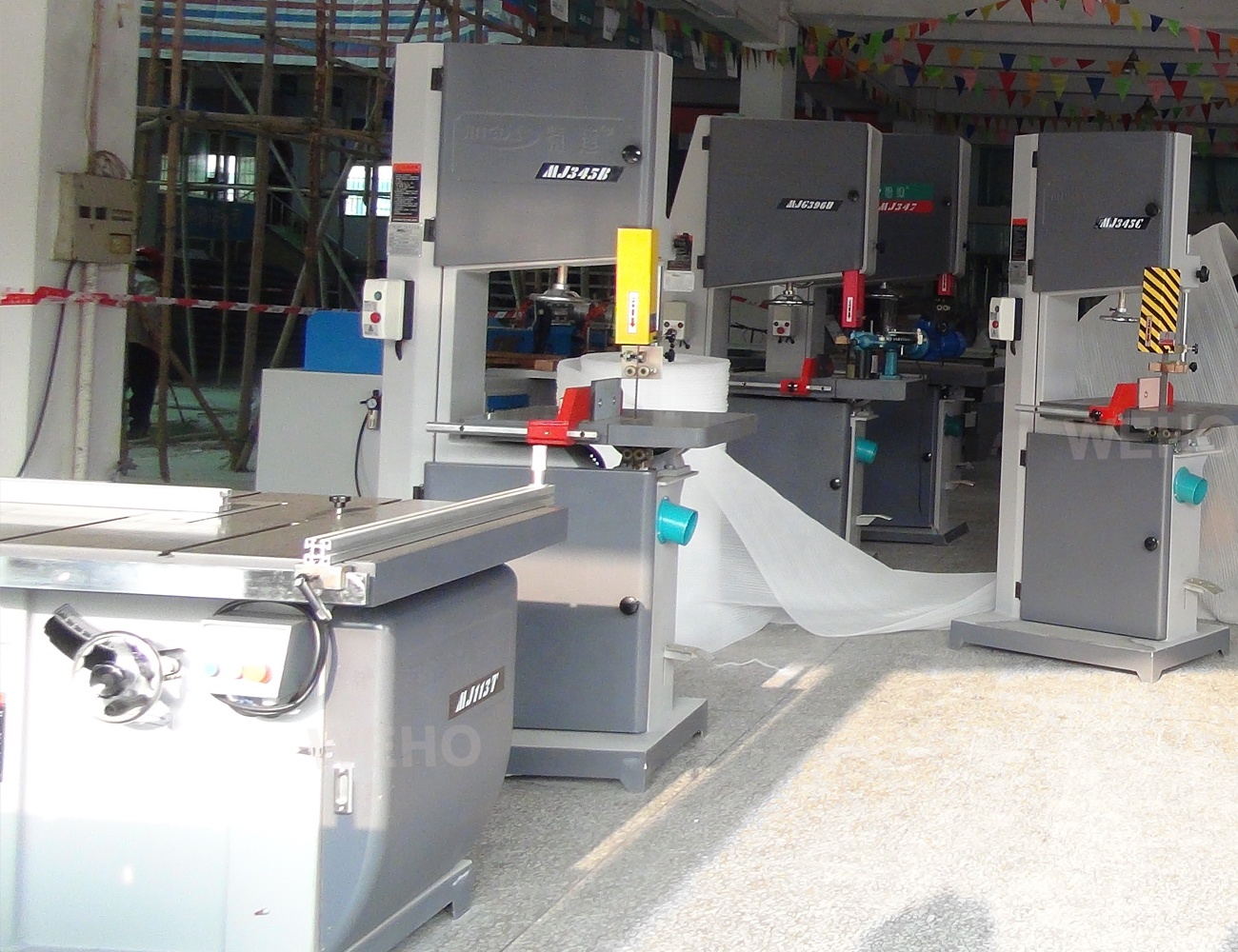

Vertical band saw machine MW396
Adopt outer convey frame, easy to change belt, strengthen and improve working efficiency. Adopt high linearity speed and thin saw blade device, can cut smooth and narrow cutting path ,saving material. Cutting path good with self-correct, Nice anti-curve character. Without cutter broken status.
Precision computer balanced wheels eliminate vibration for accurate blade tracking. Cast iron handwheels of band saw make smooth, easy blade adjustments with less effort. Adjustable angle scale of high speed band saw keeping the cutting path smooth and precise.
