UV double side rolling machine for Irregular wood products
Quick Details
Model：600 900 1300
Processing length range (max, min) ：Min300mm Min300mm Min300mm
Processing width range (max, min)：Max600mm Max900mm Max1300mm
Machining thickness range (max, min)：5-80mm 5-80mm 5-80mm
Feed speed：0-20m/min 0-20m/min 0-20m/min
Feed power：0.4kw 0.4kw 0.4kw
Rubber tyre power：0.4kw 0.4kw 0.4kw
Model：600 900 1300
Processing length range (max, min) ：Min300mm Min300mm Min300mm
Processing width range (max, min)：Max600mm Max900mm Max1300mm
Machining thickness range (max, min)：5-80mm 5-80mm 5-80mm
Feed speed：0-20m/min 0-20m/min 0-20m/min
Feed power：0.4kw 0.4kw 0.4kw
Rubber tyre power：0.4kw 0.4kw 0.4kw
Details
Spare Parts
Inquiry
This UV double side rolling machine is used for UV coating and drying on the side of irregular shaped products.It is suitable for all kinds of wood products, especially for the UV transparent primer on both sides of wooden doors.
The surface of the product treated by this machine is smooth and full.
| Model | 600 | 900 | 1300 |
| Processing length range (max, min) | Min300mm | Min300mm | Min300mm |
| Processing width range (max, min) | Max600mm | Max900mm | Max1300mm |
| Machining thickness range (max, min) | 5-80mm | 5-80mm | 5-80mm |
| Feed speed | 0-20m/min | 0-20m/min | 0-20m/min |
| Feed power | 0.4kw | 0.4kw | 0.4kw |
| Rubber tyre power | 0.4kw | 0.4kw | 0.4kw |
| Number of rubber tyred | 2 | 2 | 2 |
| Number of rollers | 2 | 2 | 2 |
| Diaphragm pump brand | 4 diaphragm pump | 4 diaphragm pump | 4 diaphragm pump |
| Air pressure requirements | 6KG | 6KG | 6KG |
| Installed power of the whole machine | 1.5kw+3kw | 1.5kw+3kw | 1.5kw+3kw |
| Total weight | 400KG | 500KG | 600KG |
| Package size | 1000*1550*1400 | 1000*1850*1400 | 1000*2250*1400 |

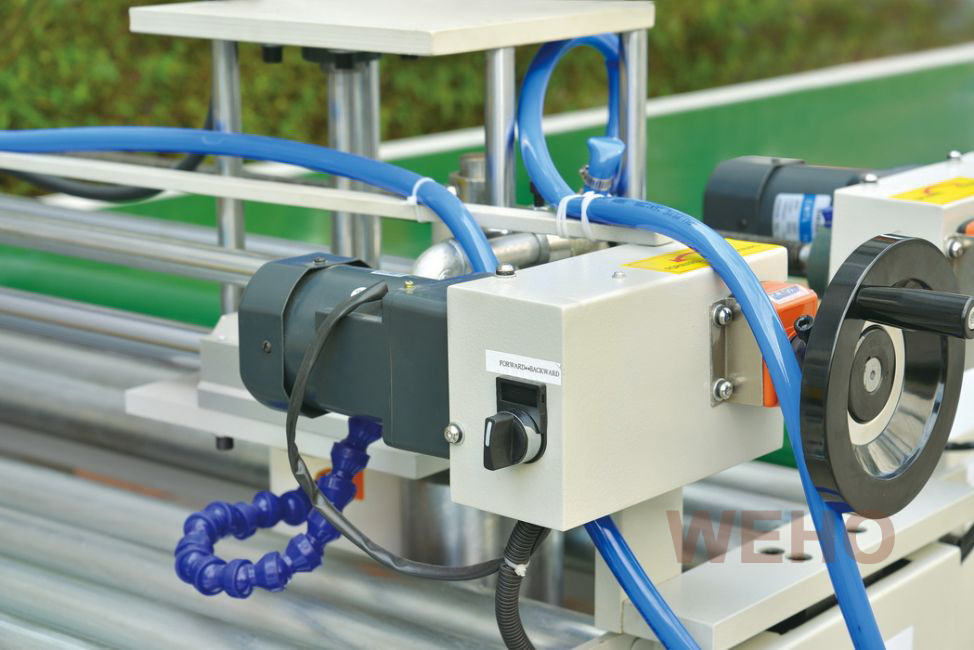

This machine adopts Siemens motor delta frequency converter for speed regulation; The polishing wheel is made of raw materials imported from Japan, with solvent resistance and good smoothness of paint.

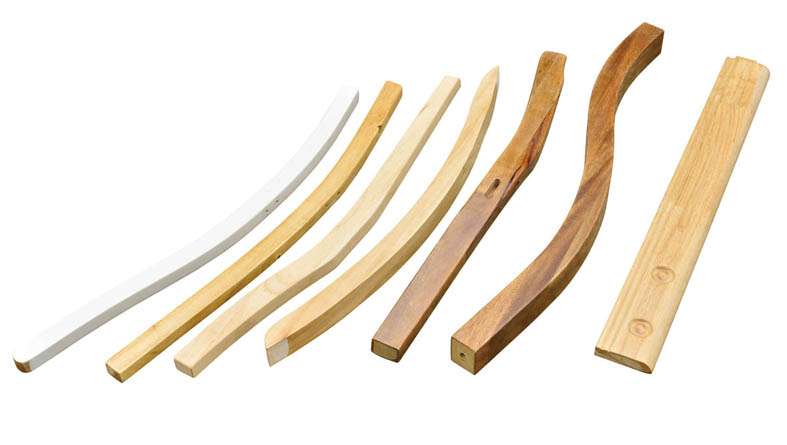

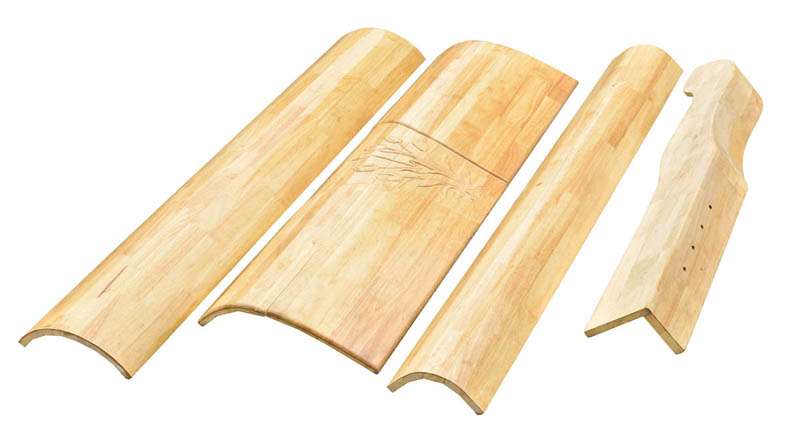

It is mainly used for UV finish treatment on the surface of special-shaped products such as skirting line, doors and windows, door pocket line, etc;At the same time, Irregular wood products coating machine can polish 1-4 sides of the special-shaped multi-faceted products at the same time.
This double side rolling coating machine uses U-V UV curing coating, which can be recovered quickly without waste, and can be dried instantly, saving time and labor, greatly improving the quality and production efficiency.
Uv Double Side Rolling Machine
