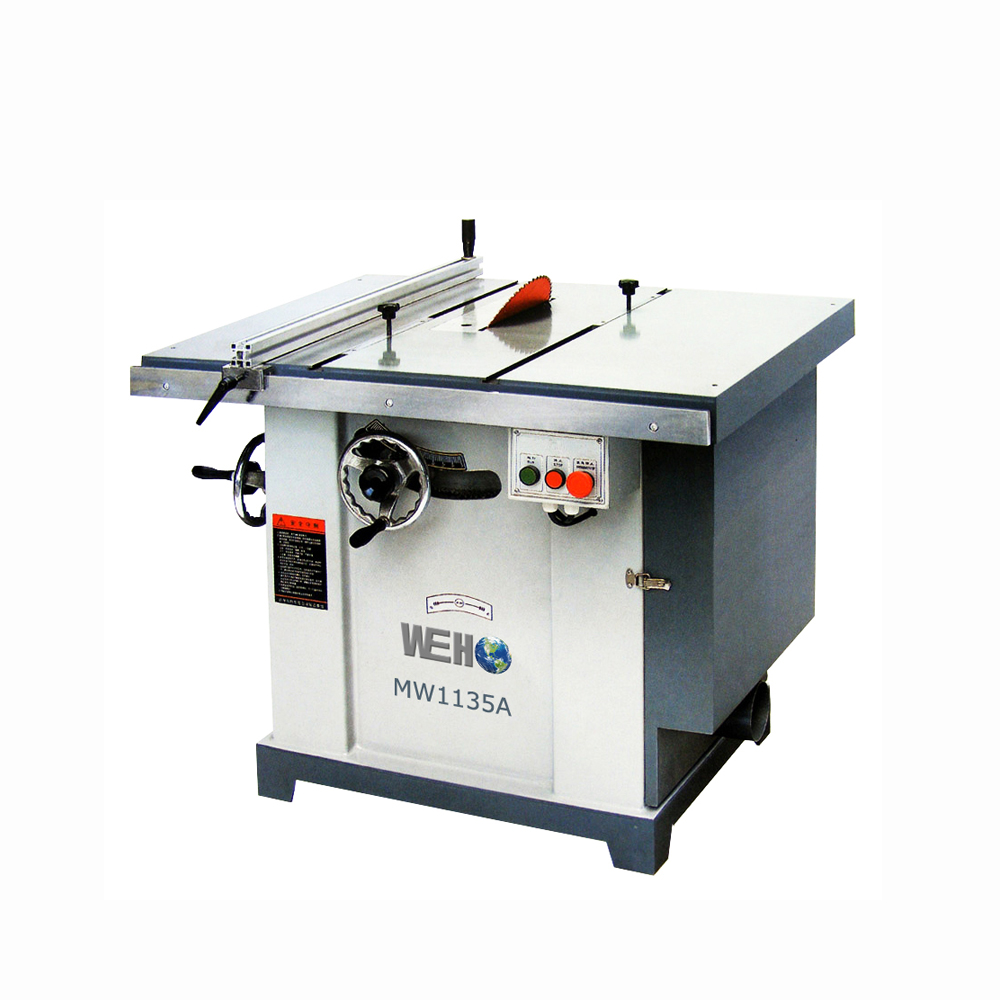

Tilting arbor sliding circular table panel saw for wood cutting

Model：MW1135
Max Saw blade diameter：355mm
Max working thickness：70mm(45degree)/100mm(90degree)
Main shaft diameter：25.4mm
Main shaft rotation：3500r/min


Contact Us Send Inquiry
Details
Spare Parts
Inquiry

High quality reinforced steel cabinet fo greater stability.High-quality cast-iron table and extensions, precision machined and polished to perfection.2 miter gauge T-slots & deluxe cast-iron miter gauge.Slotted, heavy-duty steel blade guard and splitter & heavy-duty, precision-made aluminum table insert.Magnetic switch with overload protection.Matching triple V-belt drive, on balanced cast-iron pulleys for smooth vibration-free running.Arbor mounted on heavy-duty, permanently lubricated, sealed ball bearings.

Product name Table Saw Woodworking Machine
Model MW1135
Total power 3kw
Main shaft rotation 3500r/min
Max Saw blade diameter 355mm
Main shaft diameter 25.4mm
Max working thickness 70mm(45degree)/100mm(90degree)
Working table size 1000*780mm










Table Panel Saw
