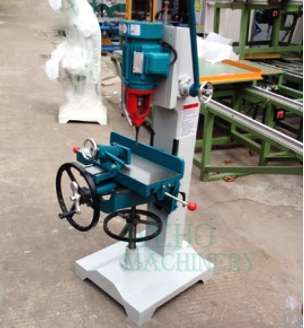

Solid square wood hole drilling machine for furniture | Square drilling making machine
Working table vertical travel:200mm
Working table horizontal travel:400mm
Max. width of mortise:22mm
Max. depth of mortise:100mm
Dimension(L*W*H):500*650*1200mm
Weight (KG):120 KG
Power (kW):1.5

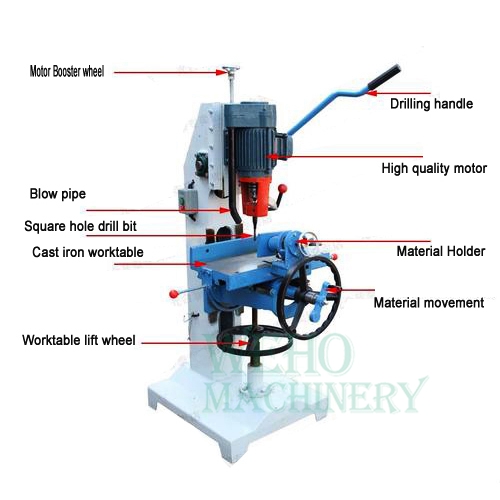

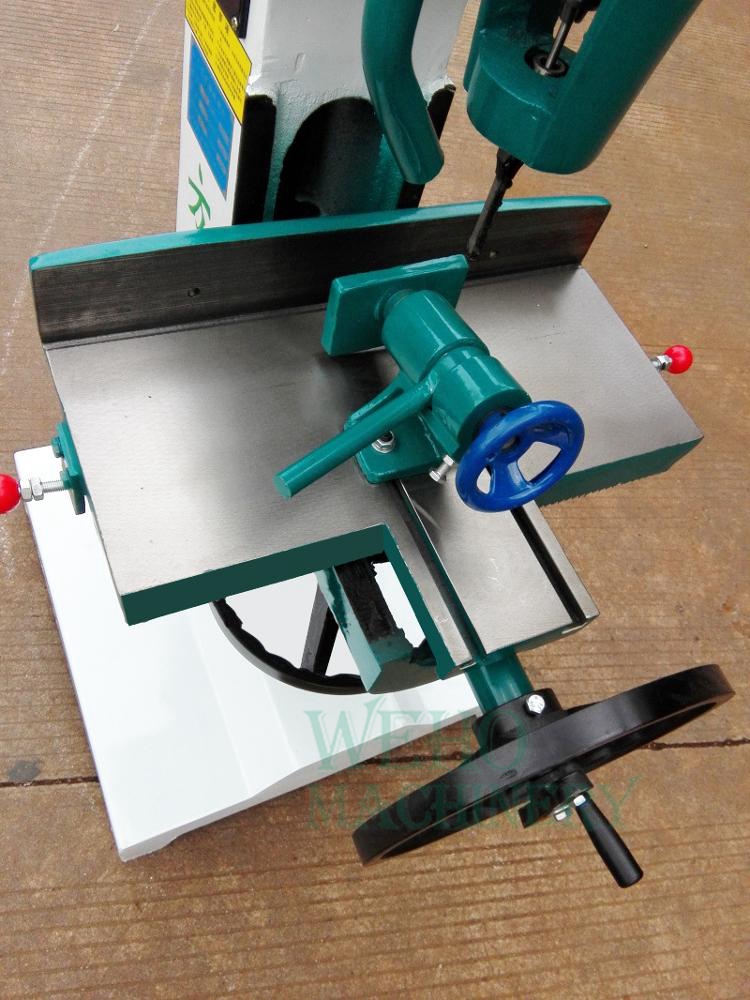

Mainly used for drilling round or square mortise holes.Adopts pneumatic motion for the drilling head;Mortiser adopts special dust blowing device which using the power of motor; workbench adopts dovetail guide lifting and moving system.
|
Product Name |
Mortiser drilling machine |
|
Model |
MWZ161 |
|
Working table vertical travel |
200mm |
|
Working tavle horizontal travel |
400mm |
|
Max. width of mortise |
22mm |
|
Max. depth of mortise |
100mm |
|
Working table tilting angle |
±30° |
|
Spindle rotating speed |
2840r/min |
|
Motor power |
1.5kw |
|
Overall size |
500*650*1200mm |
|
N/W |
120kg |
WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines. Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
Wood Square Drilling Machine
