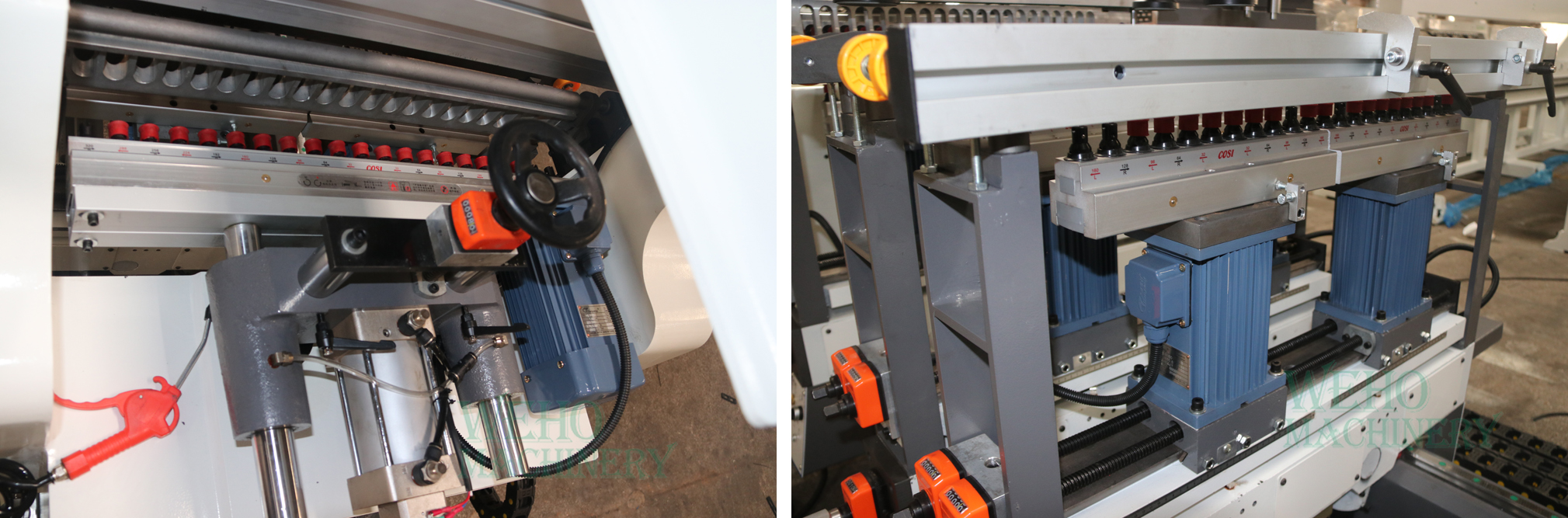

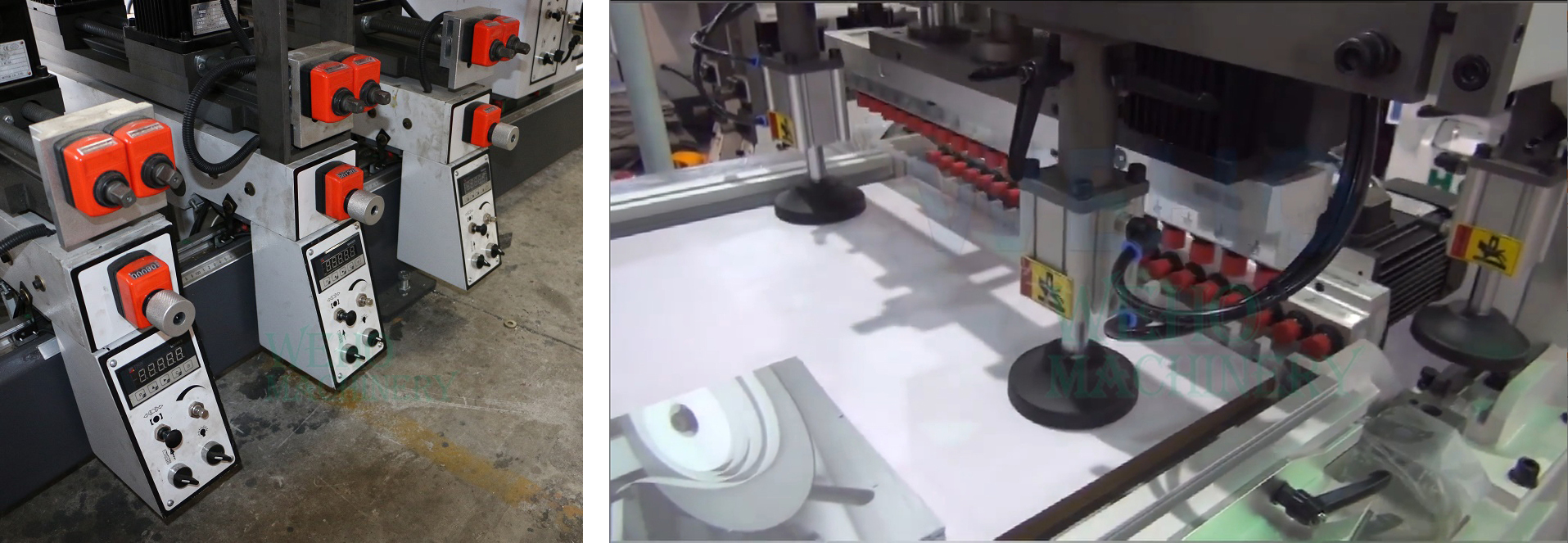

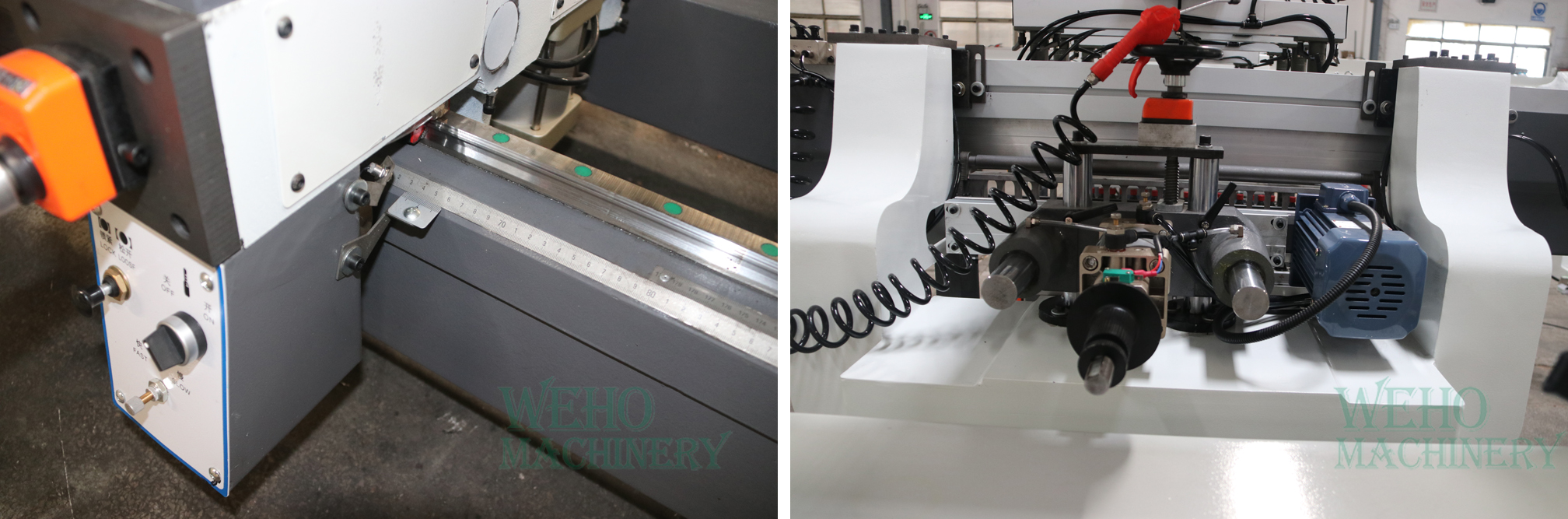

| Name: position adjusting device | Name: sides boring units |
| Brand: China WEHO | Brand: China WEHO |
| Losen this switch to move the boring heads. | there are 21 pcs bits for horizotal holes drilling. |
- Building 3 Shunheli Industrial Park,
- Lunjiao Shunde Foshan City Guandong China.
- Send Your Mail At
- weho@wehomachinery.com
- Working Hours
- Mon – Sat Day: 09.00 To 18.00

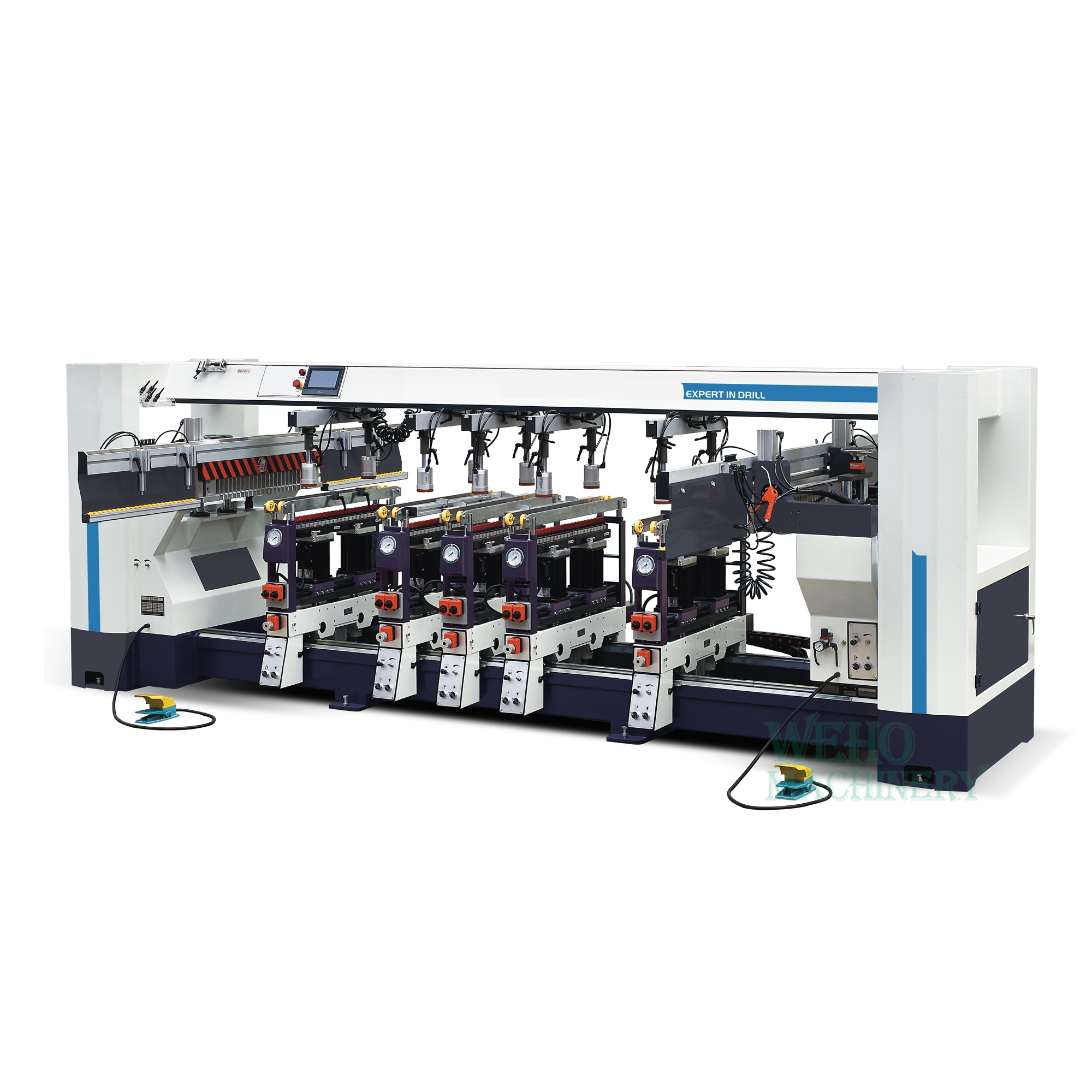

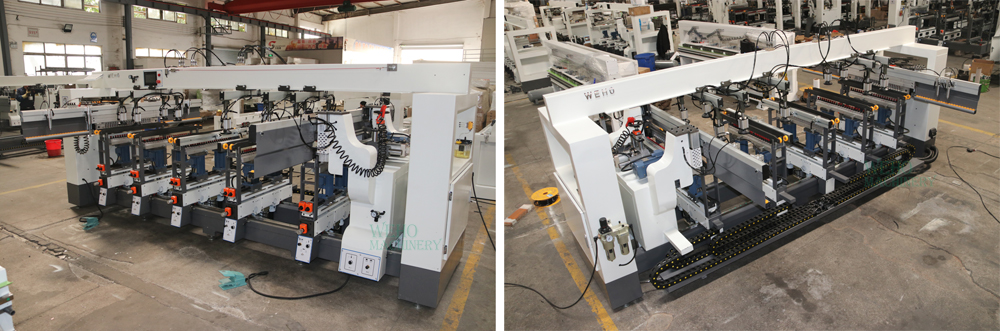

Seven-row horizontal wood drilling machine for panel cupboard making
Model:MWZ7B
Max. Drilling Dia.:Max.=35mm(single) D=13mm(Multi)
Max. Drilling Depth:H Max.=60mm
Total Number of Spindles:22*7=154
Weight (KG):3200 KG
Power (kW):16.5
Max. Drilling Dia.:Max.=35mm(single) D=13mm(Multi)
Max. Drilling Depth:H Max.=60mm
Total Number of Spindles:22*7=154
Weight (KG):3200 KG
Power (kW):16.5
Details
Spare Parts
Inquiry
Used for drilling wood, flakeboard, medium density fiberboard and so on.
1.The imported original drill row, famous and superior original electric appliance.
2. The machine tool elements choose the superior steel materials. They have been heat-treated with high intensity and eternal non-deformation.
3. The kinetic components choose the high-grade anti-wear materials with fine durability.
4. Size positioning, prompt; accurate and convenient operation.
| Model | MWZ7B |
| Max. Drilling Dia. | Max.=35mm D=13mm |
| Max. Drilling Depth | H Max.=60mm |
| Installation Dia.of Drill Bit Shaft | 10mm |
| Max. Center Distance Between Holes | L max.x B Max.=2500mm x 640mm |
| Total Power | 16.5 |
| Spindle Speed | 2840rpm |
| Total Number of Spindles | 22x7=154 |
| Overall Dimension | 4350x2500x1560mm |
| Weight | 3200kg |
| Packing size | 4430x1300x1820mm |

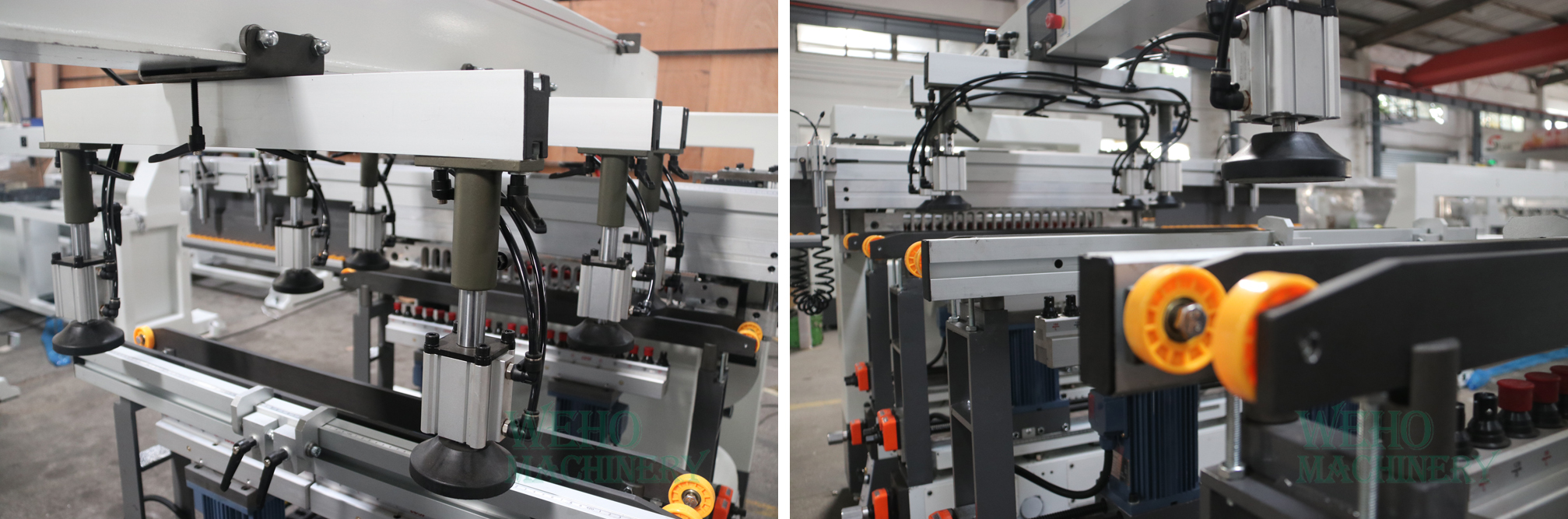

Multi spindles boring machine for carpenter furniture
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced famous brand components in pneumatic parts ,electric parts and operation parts.
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced famous brand components in pneumatic parts ,electric parts and operation parts.

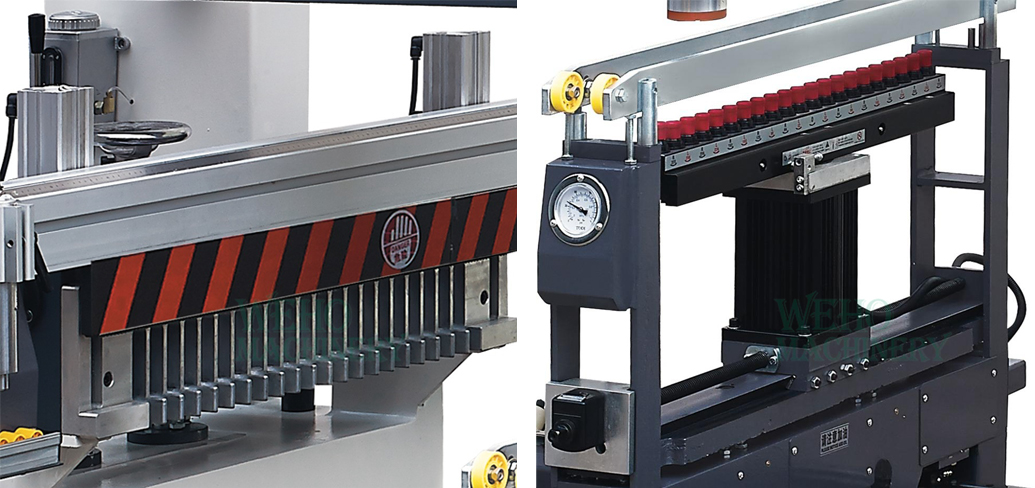

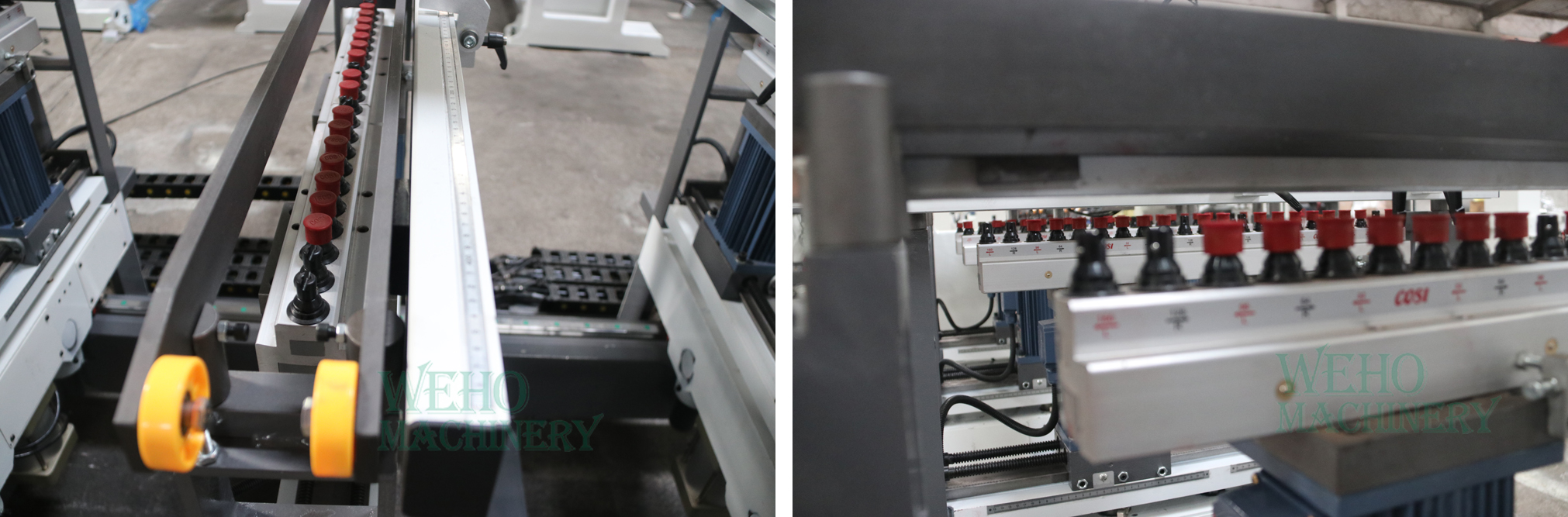

| Name: Boring units | Name: Cylinder press material |
| Brand: China WEHO | Brand: China WEHO |
| There are 21 pcs boring bits, suitable for wood capenter furniture holes drilling. | Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift. |
Spindles Boring Machine
Wood Drilling Machine
