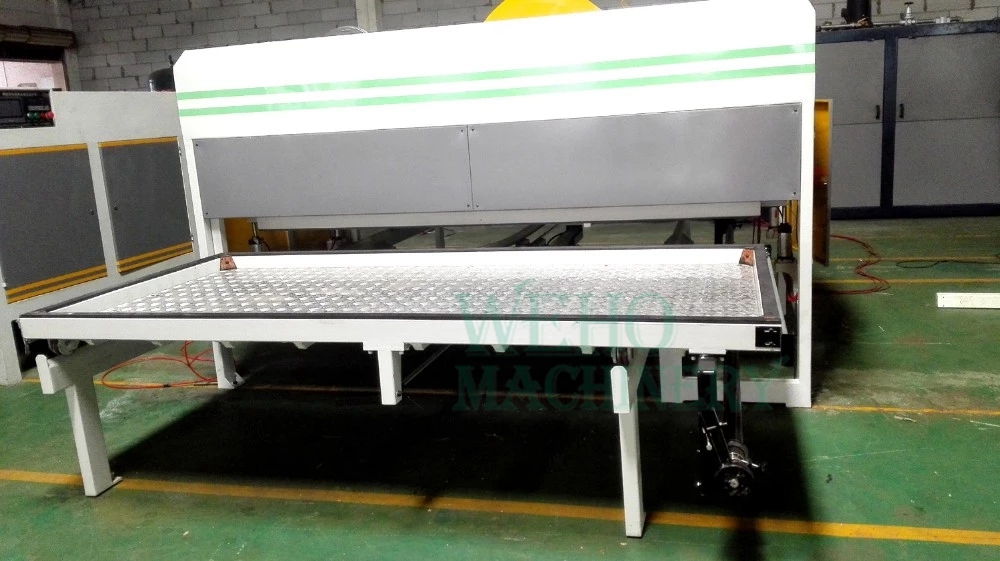

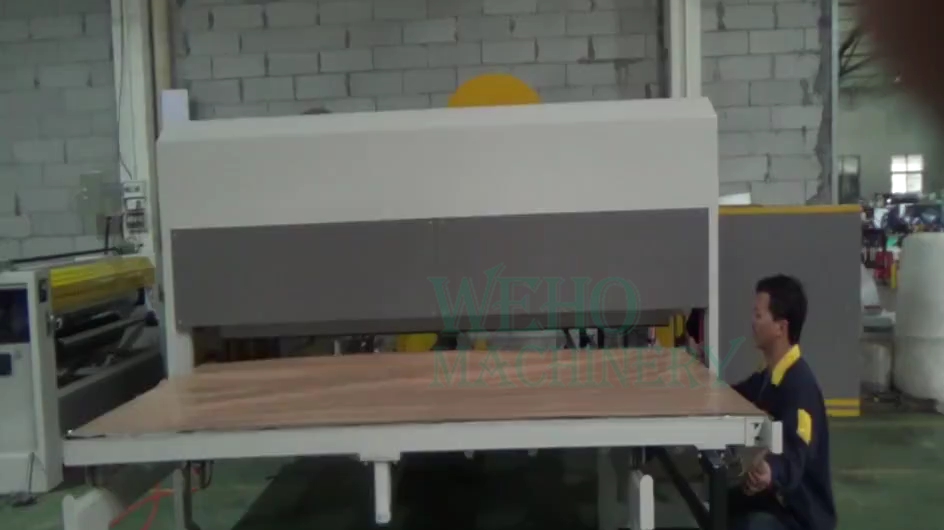

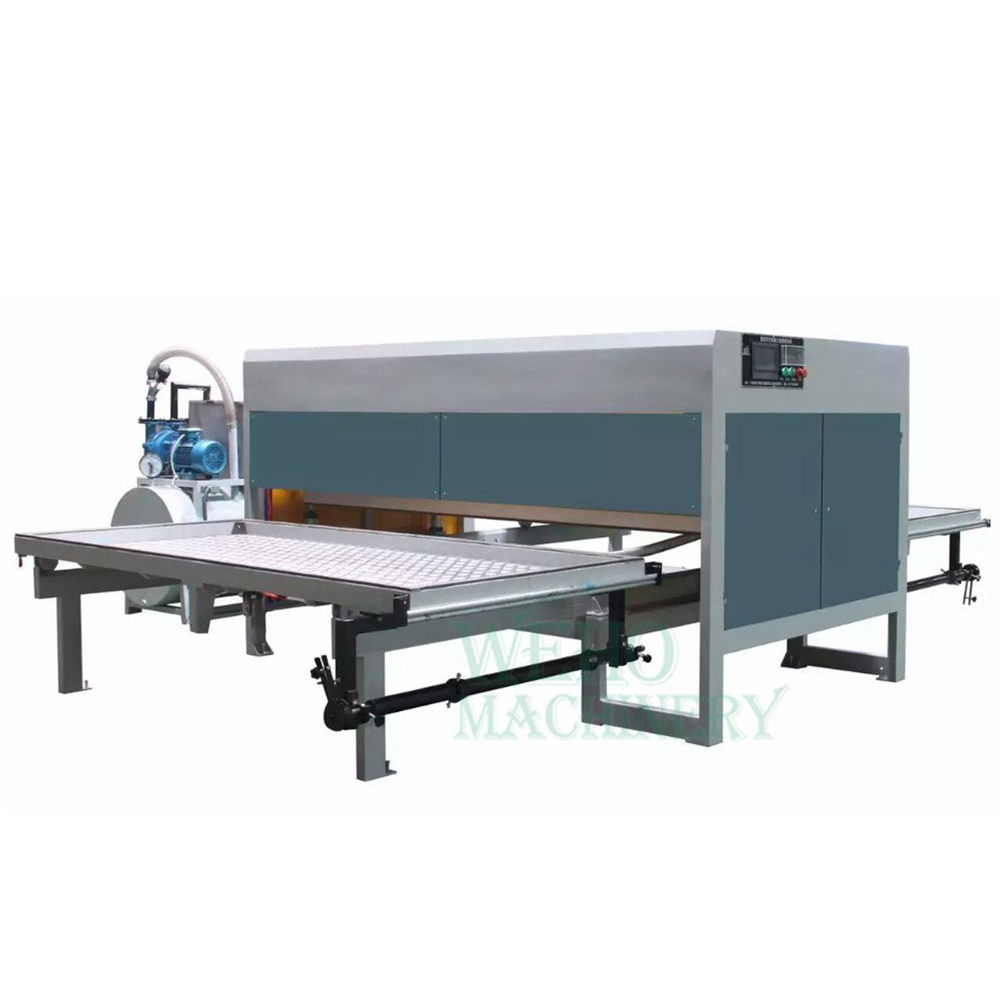

PVC film vacuum press forming machine WH2500 | Pvc Vacuum Press
Model:WH2500
Table Size:1200*2500
Dimension(L*W*H):4800*2150*1780mm
Power (kW):4.5
Weight (KG):3000 kg
Table Size:1200*2500
Dimension(L*W*H):4800*2150*1780mm
Power (kW):4.5
Weight (KG):3000 kg
Details
Spare Parts
Inquiry
PVC film vacuum press forming machine can be used to paste PVC (High gloss PVC) on furniture, cabinets, speakers, relief doors, decoration panels for walls and other abnormal decoration shapes. With a special silicon sheet, it can also work with hot transfer and veneer (real wood).
Features of Membrane Vacuum press machine
1. Adopts automatic digital display technology, the machine features highly automatic, easy operation and reliable.
2. Working platform is made of special steel, which is resistant to high temperature and corruption.
3. Use infrared heating system and imported thermal insulation material, which can ensure even heating and energy saving.
4. Uses top quality vacuum pump, features reliable performance and prompt pumping.
5. Multi-application, PVC film, Wood veneer and hot transfer are available.
| Model | WH2500 |
| Overall Dimension | 4800MM * 3500MM * 1910MM |
| Platen Size | 2500×1150×60mm |
| Rated working pressure | Negative pressure ≥-0.095Mpa |
| Motor power | 0.75KW * 2 + 4KW |
| Heating | Sillica tubes(heating is even) |
| Electric power | 30KW |
| Weight | 3000kg |
| Voltage | 380V 50HZ |
| Delivery time | 25days after receive the down payment |
Features of Membrane Vacuum press machine
1. Adopts automatic digital display technology, the machine features highly automatic, easy operation and reliable.
2. Working platform is made of special steel, which is resistant to high temperature and corruption.
3. Use infrared heating system and imported thermal insulation material, which can ensure even heating and energy saving.
4. Uses top quality vacuum pump, features reliable performance and prompt pumping.
5. Multi-application, PVC film, Wood veneer and hot transfer are available.
WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines. Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
