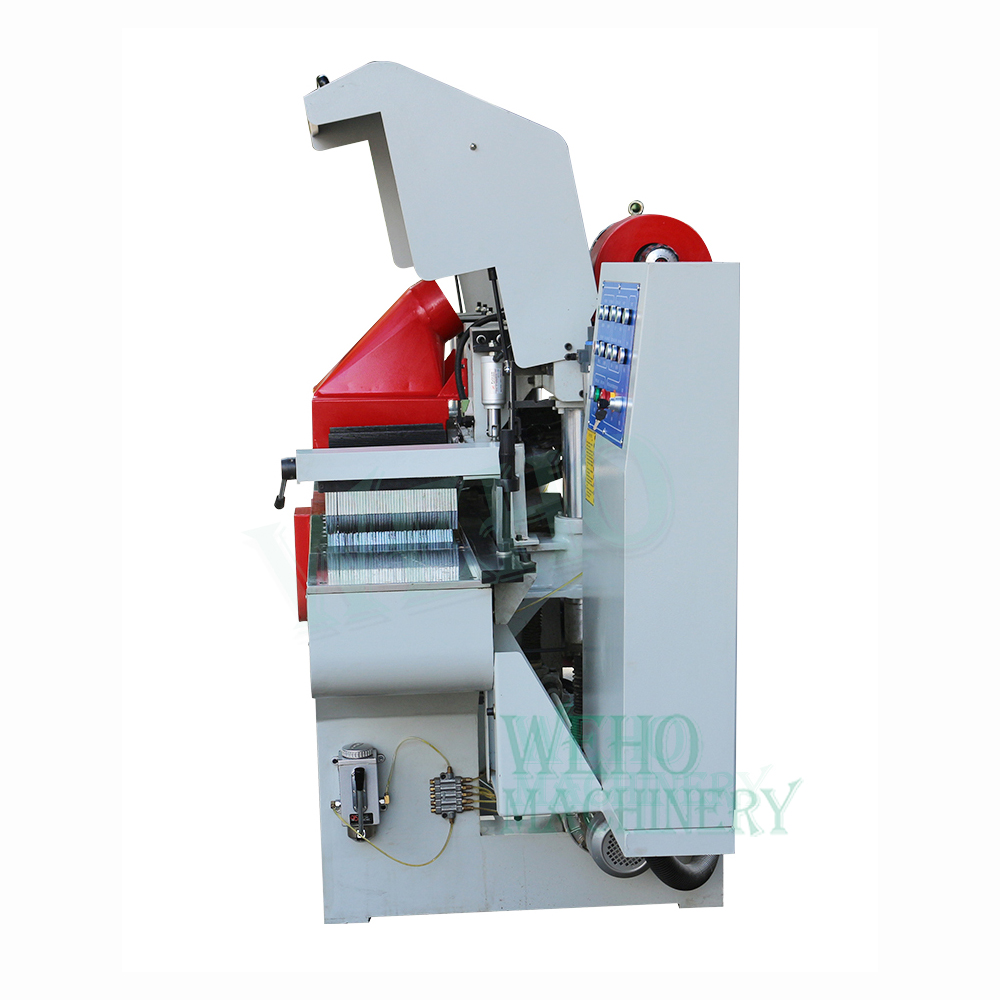

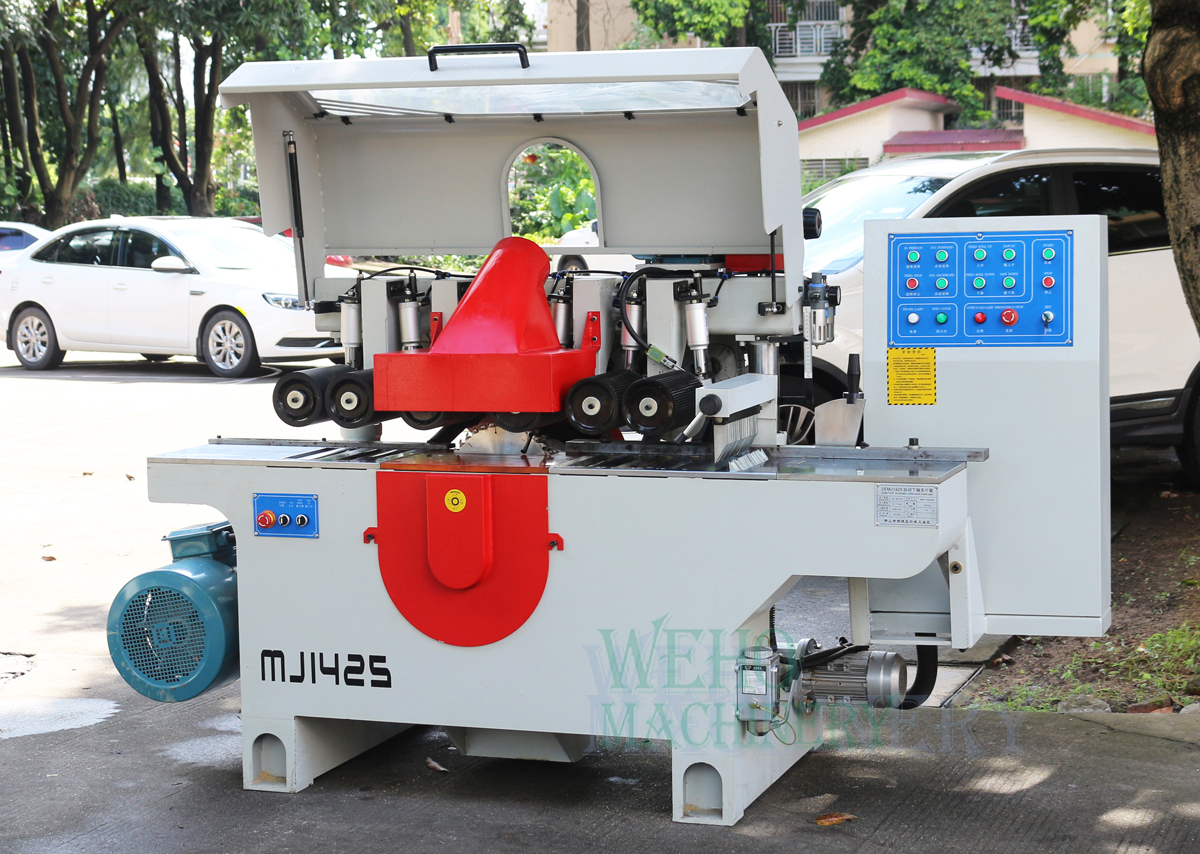

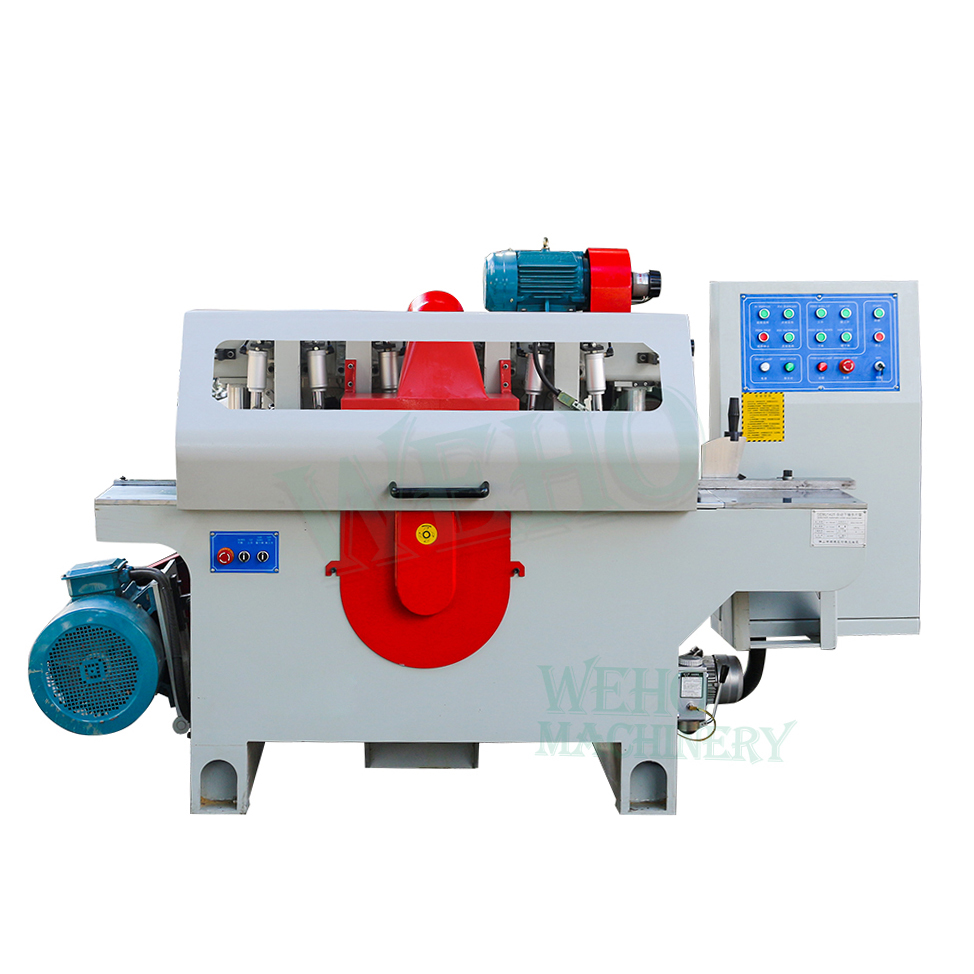

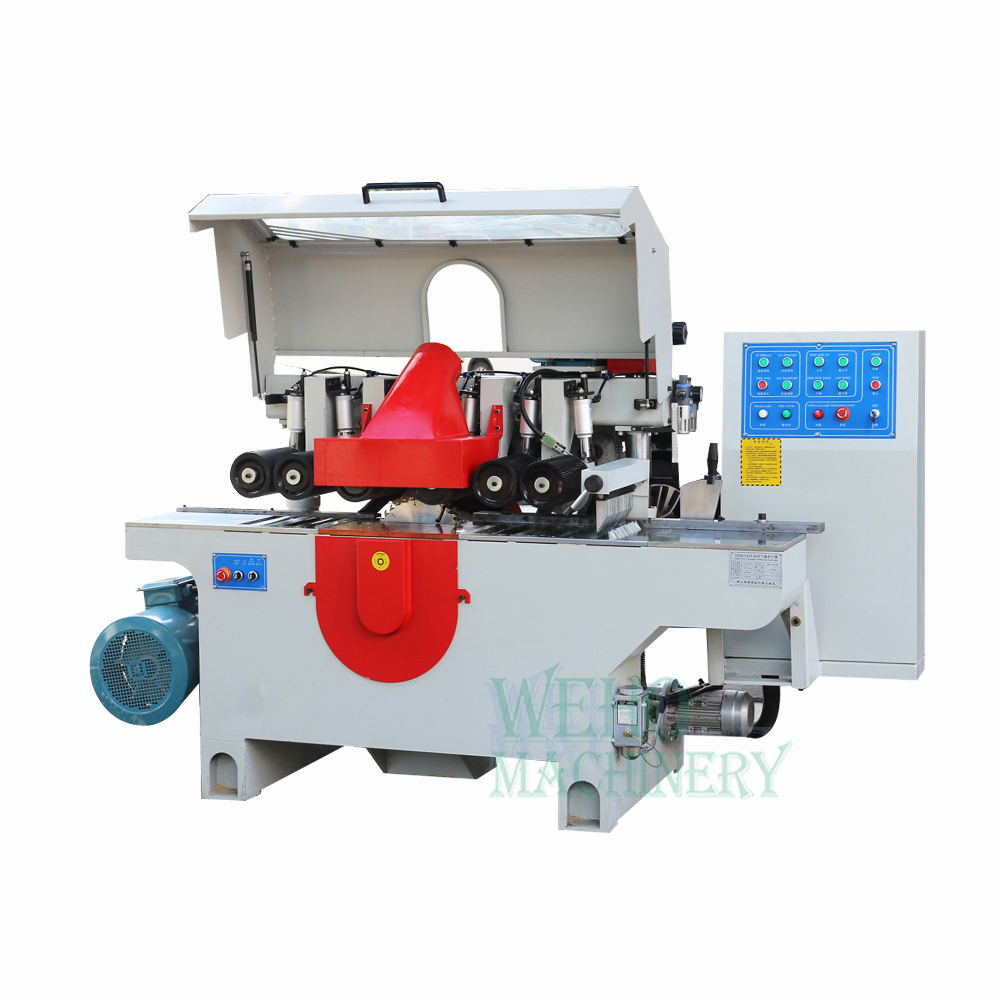

Multi blade rip cutting machine for wood | multi blade cutting machine for wood

Model:MJ1435A
Max working width：300mm
Max working thicknes：100mm
Saw blade speed：4500rpm
Saw blade diamter：350mm
Multiple blade lift motor：0.37kw
Contact Us Send Inquiry
Details
Spare Parts
Inquiry


Automatic multiple rip saw machine  is used to cut strips from sheets of wood, plywood,  pressed boards, press board, fiberglass, densified wood or insulation sheets.We get multiple strips from a single pass as the Multiple Rip Saw uses multiple carbide tipped special saws to cut sheet into separate strips of required width.
Model MJ1435A
Working size Max working width mm 300
Max working thicknes mm 100
Rotating speed Saw blade rpm 4500
Main parameter min working length mm 250
Saw blade diamter mm 350
Saw shaft diameter mm 50
Motor power Total ppower kw 32.94
Multiple blade spindle kw 30
Multiple blade lift motor kw 0.37
Cover Lift motor kw 0.37
Feeding motor kw 2.2
Size and weight Overall dimension mm 2700x1250x1600
Weight kg 1700


It is necessory equipment for timber cutting, national wood furniture such bed, sofa, chairs processing.

Max cutting width to 400mm, suitable for most lines timber cutting. feeding material parts designed with prevent springback.



We have up-down multiple saw blade, or all down multiple saw blade for wood strips cutting.




multi blade cutting machine for wood
