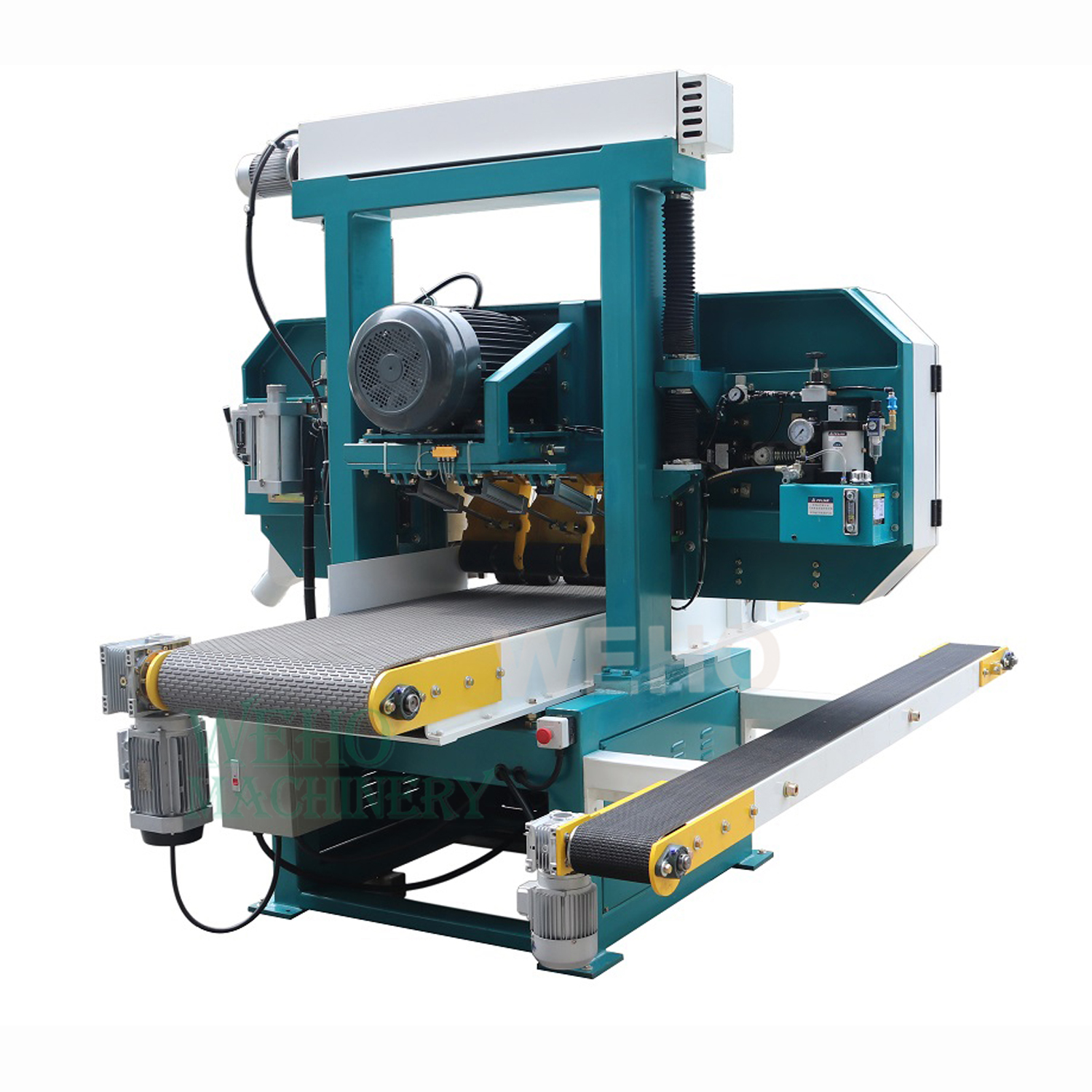

Horizontal wood cutting band saw machine for furniture
Model: MJ71B-300
Max. working size:300*300mm
Distance from saw blade:3-200mm
Width of conveyer belt:285mm
Diameter of saw wheel:711mm
Saw wheel motor:15kw
Max. working size:300*300mm
Distance from saw blade:3-200mm
Width of conveyer belt:285mm
Diameter of saw wheel:711mm
Saw wheel motor:15kw
Details
Spare Parts
Inquiry
Horizontal wood cutting band saw machine is taking over the wood cutting market! Topping the scale at over 1850kg, the band saw isthe master of all resaw machines! Applicable to all kinds of wood, panel, thick material board processing.
1) Digital height control for accurate blade positioning (enter the thickness you want and press a button)
2) Variable-speed driven feed and return conveyor
3) Powered saw elevation
4) Hydraulic blade tensioning with gauge
5) Dual 4" dust port
6) Adjustable ceramic blade guides
7) Massive steel frame construction
8) Steel conveyor table
9) Steel fence with rollers

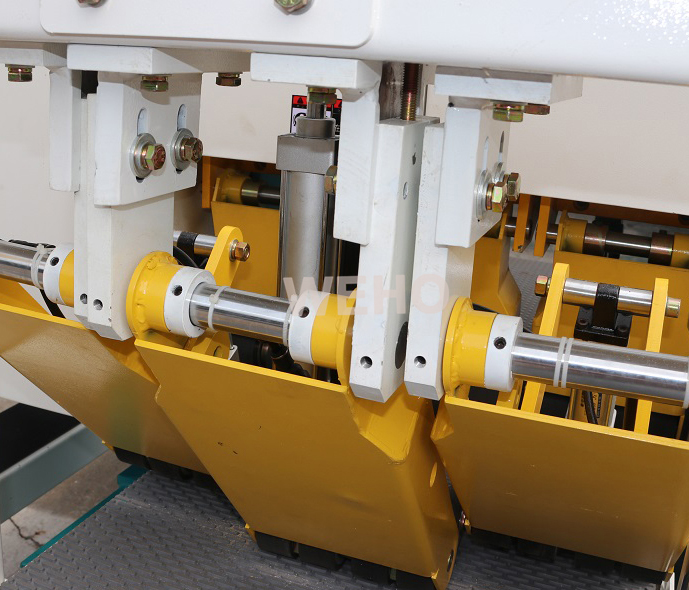

10) 4" pressure rollers with polyurethane tires
11) Hinged wheel cover
12) Simple and quick blade changes
2) Variable-speed driven feed and return conveyor
3) Powered saw elevation
4) Hydraulic blade tensioning with gauge
5) Dual 4" dust port
6) Adjustable ceramic blade guides
7) Massive steel frame construction
8) Steel conveyor table
9) Steel fence with rollers
10) 4" pressure rollers with polyurethane tires
11) Hinged wheel cover
12) Simple and quick blade changes
| Model | MJ71B-300 |
| Max working size | 300*300mm |
| Distance from saw blade | 3-200mm |
| Width of conveyer belt | 285mm |
| Diameter of saw wheel | 711mm |
| Feed speed | 0-12m/min |
| Feeding motor | 1.1kw |
| Return motor | 0.37kw |
| Saw wheel motor | 15kw |
| Diameter of dust suction pipe | 102mm*2 |
| Saw band specification | 4572*27*0.9mm |
| Saw kerf | 1.5-2.2mm |
| Outline size | 3000*2450*2000mm |
| Net weight | 1750kg |
Built to the exacting standards demanded by today's professionals, features state-of-the-art systems such as digital controls,precision blade tensioning with gauge, and a variable-speed conveyor drive system.
Automatic tensioning: The Rexroh rails are fitted with a tensioning system to make the saw blade more durable.
The sawing wheel has advanced processing technology, good stability, wear resistance, and the saw blade is not easy to break. UsesJapan imported NSK6200VV and NSK32013 bearing to ensure smooth rotation of the saw wheel.Zhengtai,SIMENS, LG and other imported electrical components: the electrical box is durable and not easy to damage.
A strong power,3-phase motor rounds out this machine for unsurpassed power to handle your biggest resaw operations.
"Dock" delivery or flatbed truck arrangements are necessary for this item.
"Dock" delivery or flatbed truck arrangements are necessary for this item.
Wear-resistant ceramic saw clamp to protect the saw blade for efficient heat dissipation and better sawing surface quality
