MF026B TCT sharpening carbide circular automatic machine saw blade grinding sharpener tools | Carbide Saw Blade Sharpening Machine
Model:MF-026B
TCT Circular Saw blade Outside Diameter:80-810mm
Saw Bore Diameter:10-220mm
Max Blade Thickness:10mm
Tooth Pitch:7-100mm
TCT Circular Saw blade Outside Diameter:80-810mm
Saw Bore Diameter:10-220mm
Max Blade Thickness:10mm
Tooth Pitch:7-100mm
Details
Spare Parts
Inquiry

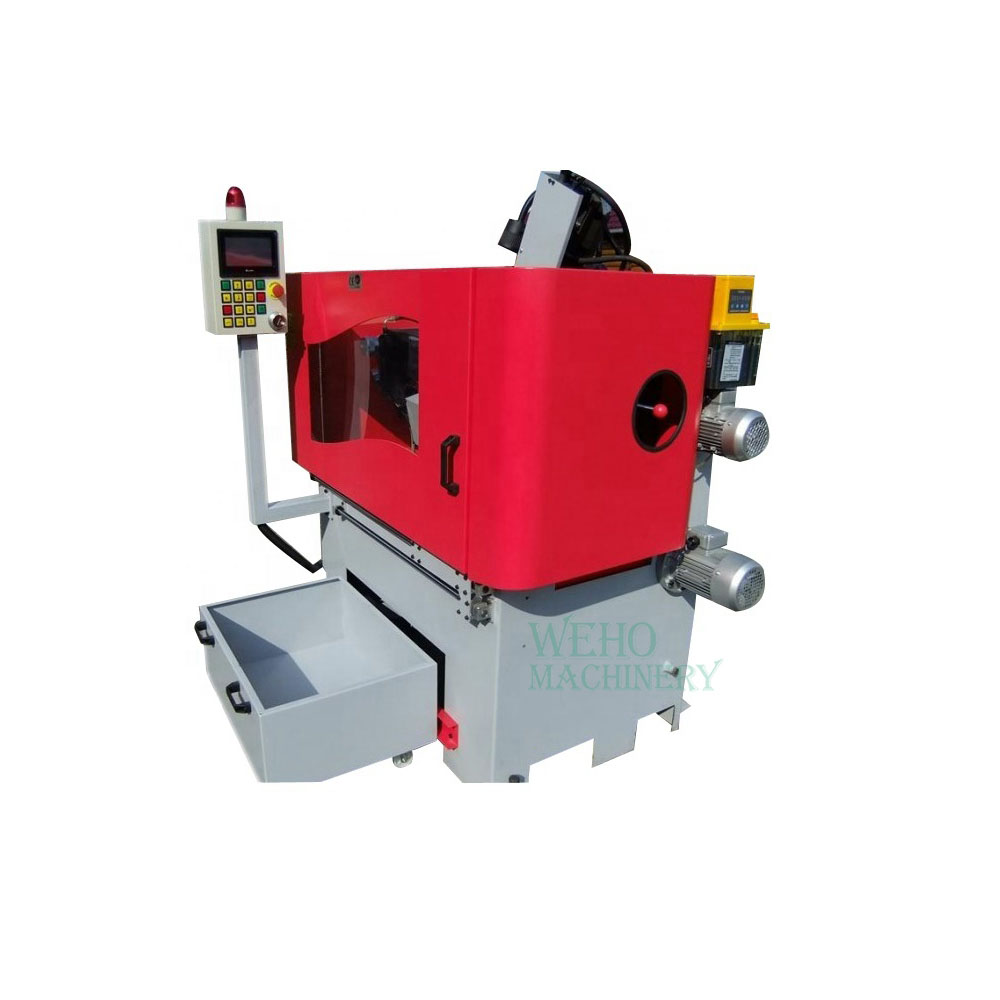

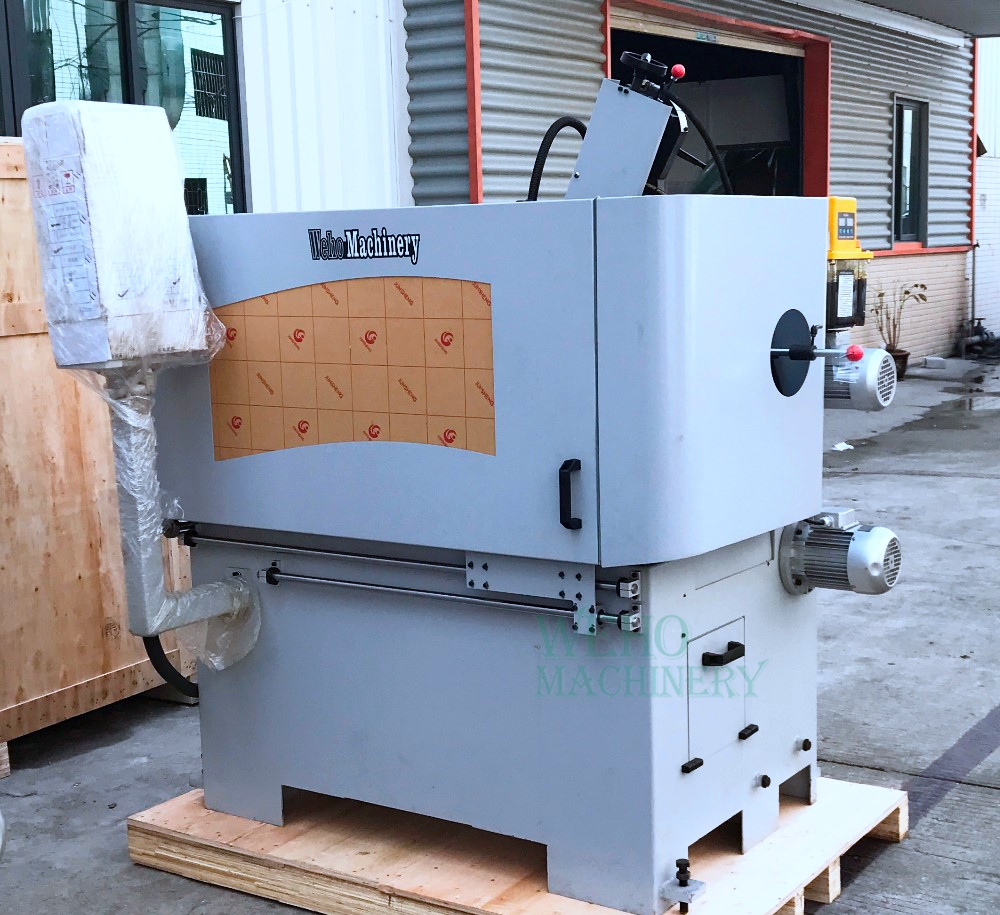

MF026B circular tct automatic machine saw blade grinding
For the complicated shapes of rake angle and clearance angle of all sorts of carbide saw blade tips.
It is user-friendly machine with transparent operation panel.
The PLC is numerical control, it stores up several kinds of sawtooth geometries for grinding various sawblades.
It is user-friendly machine with transparent operation panel.
The PLC is numerical control, it stores up several kinds of sawtooth geometries for grinding various sawblades.
|
Product Name
|
MF026B circular tct automatic machine saw blade grinding
|
|
Model
|
MF-026B
|
|
TCT Circular Saw blade Outside Diameter
|
80~810mm
|
|
Saw Bore Diameter
|
10~220mm
|
|
Max Blade Thickness
|
10mm
|
|
Tooth Pitch
|
7-100mm
|
|
Clearance Angel
|
6~ 45°
|
|
Bevel Grinding top angle
|
0° ~45°
|
|
Bevel Grinding face angle
|
3°~ +20°
|
|
Grinding Path
|
20mm
|
|
Grinding Speed
|
0.56mm/s
|
|
Grinding Speed
|
5~20teeth/min
|
|
Grinding Wheel
|
125mm
|
|
Peripheral Speed
|
26m/s
|
|
Overall size
|
1280*1680*2200mm
|
|
N/W
|
900kg
|
Main Features
1)circular saw blade sharpening tool equipment machine user-friendly machine with transparent operation panel.
2)The PLC is numerical control, it stores up several kinds of sawtooth geometries for grinding various sawblades.
3)The machine has automatic compensation program to compensate.
4) It can adjust grinding speed and it has automatic lubrication system.
The machine has automatic compensation program to compensate.It can adjust grinding speed and it has automatic lubrication system.

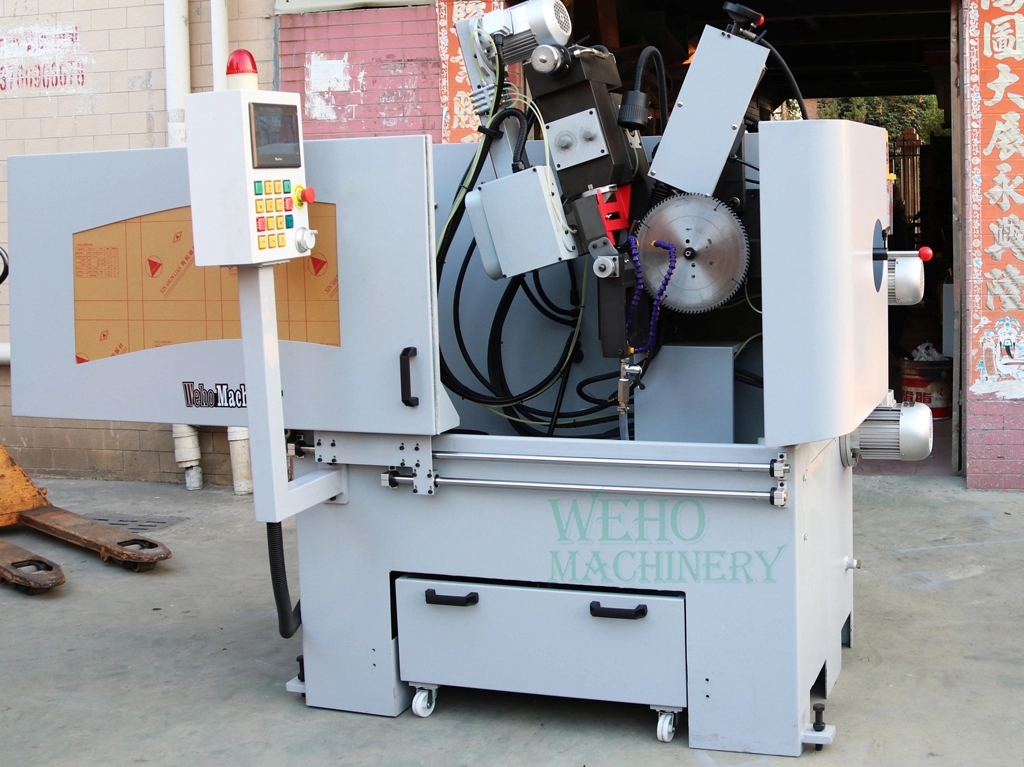

Adjust hand wheel，Grinding wheels main spindle.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Carbide Saw Blade Sharpening Machine
* Inquiry and consulting support.
* Sample testing support.
* View our Factory
After-Sales Service* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Carbide Saw Blade Sharpening Machine
