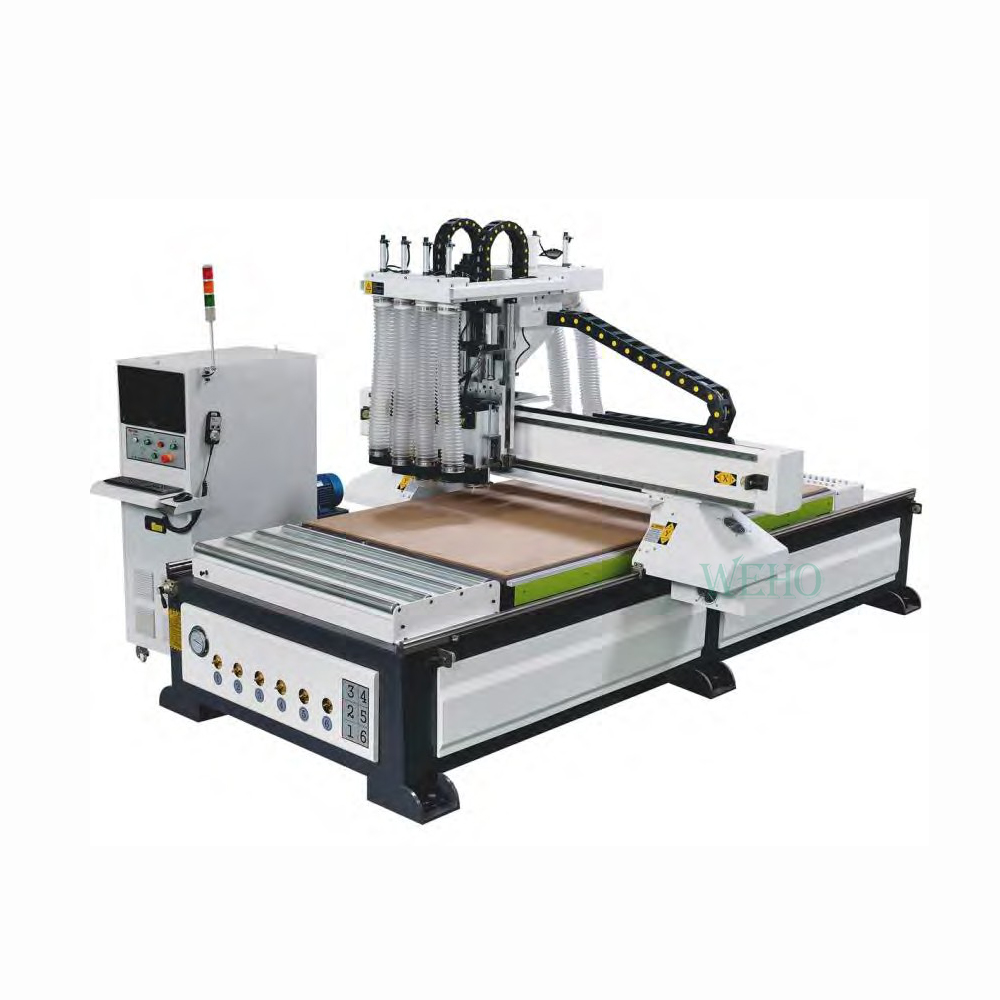

MDF cnc router cabinet doors design making mahcine for furniture
Model:LNC-4L
Table size:1260*2460mm
Empty line speed :65-80m/min
Opertating speed:8-20m/min
Spindle power:6*4kw
Spindle speed:18000r/min
Table size:1260*2460mm
Empty line speed :65-80m/min
Opertating speed:8-20m/min
Spindle power:6*4kw
Spindle speed:18000r/min
Details
Spare Parts
Inquiry
Designed for customized furniture, panel-type furniture, customized closet cabinet production, it has cutting, drilling, grooving and other processing functions, improves efficiency, save material and labor.
|
Model
|
LNC-4L
|
|
Table size
|
1260*2460mm
|
|
Equipment weight
|
2300kg
|
|
Empty line speed
|
65-80m/min
|
|
Operating speed
|
8-20m/min
|
|
Spindle power
|
6*4kw
|
|
Spindle speed
|
18000r/min
|
|
Working voltage
|
AC380V / 3PH / 50Hz
|
Spindles & Vacuum adsorption table
4 spindles is 6kw Changchuan ( CC ) or Rundawords .
Controller & Motor
Baoyuan MW2600A system is adopted,Dongling servo motor.
Electric accessories
Schneider low voltage electric accessories,Germany derou cable/schneider low voltage appliance/France schneider electric/Taiwan yade polite move.Full servo motor drive, fast, stable and efficient.
Motor & Invertor
Dongling servo motor / Planetary reducer & Invertor Shanghai zhongchen inverter 2 / zhongda 90 reducer
Linear guide rail and Rack and pinion
Transfer part Linear guide rail and High precision Rack and pinion.
Guide rail : Taiwan TDC30 guide rail for Y axis , Taiwan TDC guide rail for Xaxis , Taiwan TDC quide rail for Z axis
Adopt Taiwan high precision gear, rack, guide rail
Air cylinder
Brand:Chuanqiang, made in China
Fixed shaft & Setting instrument
Setting instrument：More accurate positioning with tool Pressing wood panel roller device
Lubrication system & Working Cable & Water Pump
Automatic lubrication system,adopt imported tow chain cable DE flexible cable
10Hp Vacuum water pump,with domestic quality water pump 7.5kw.The oil filling time is automatically controlled by the central lubrication system motor oil pump.
Operating system and interface
Taiwan SYNTEC 60W Operation system Taiwan SYNTEC Servo motor Taiwan SYNTEC Driver

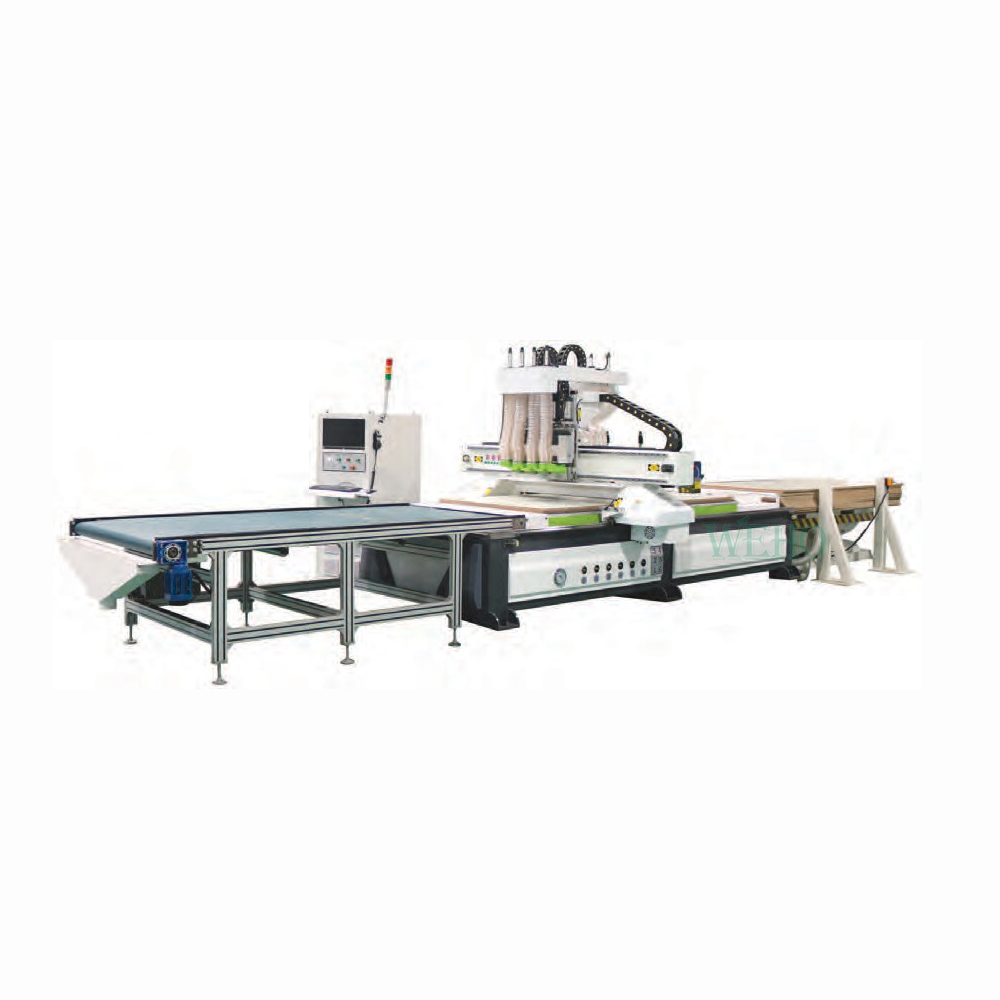

Feed pusherAutomatic pneumatic telescopic pusher saves more time and improves production efficiency.

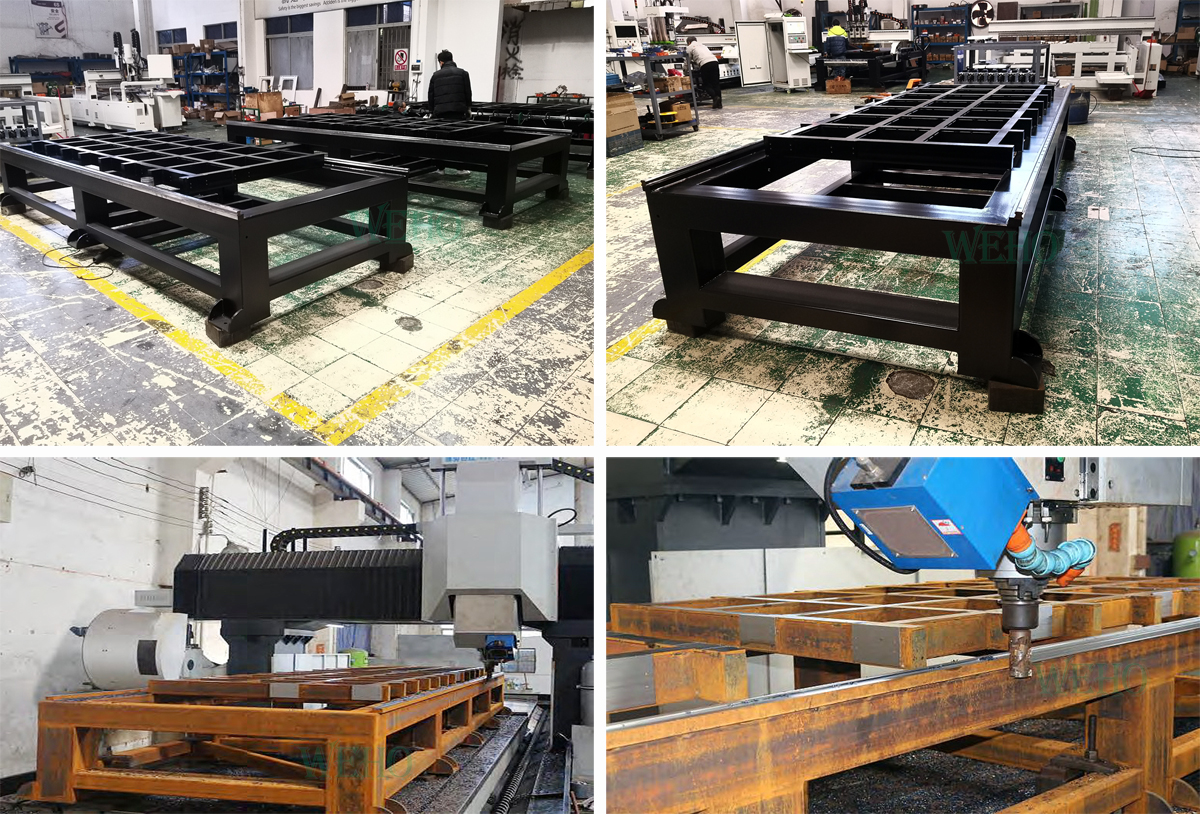

Machine basebed
Heavy duty bed, precision welding, laser cutting, f high temperature tempering, aging treatment, remove internal stress, enhance rigidity, ensure stability of the bed.
Heavy duty bed, with stronger supporting for vacuum table, ensure the vacuum stability.
WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines.Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
