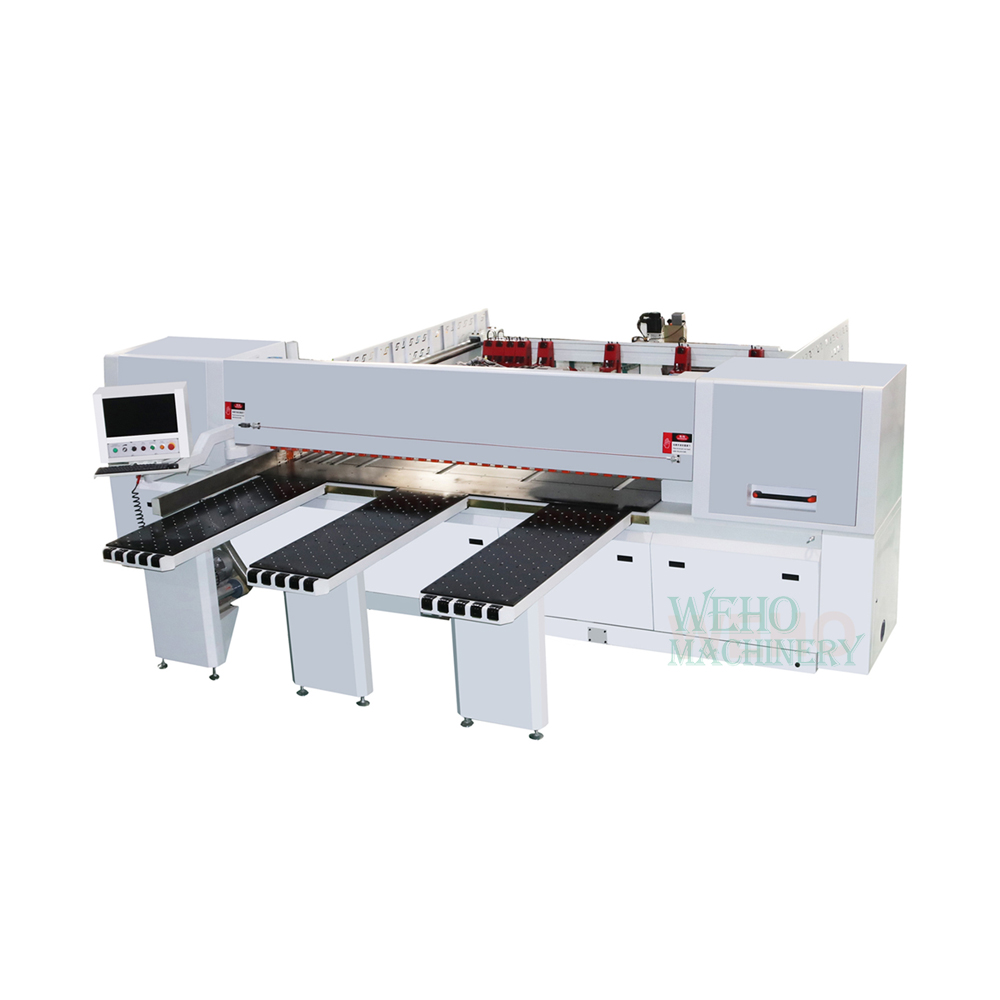

Industrial woodworking horizontal wood furniture beam panel saw automatic computer machine sale | Woodworking Panel Saw
Model:HP270G
Cutting length:270mm
Cutting thickness:0-100mm(120mm optional)
Main saw blade diameter:350mm(405mm)
Cutting length:270mm
Cutting thickness:0-100mm(120mm optional)
Main saw blade diameter:350mm(405mm)
Details
Spare Parts
Inquiry
![](http://sc01.alicdn.com/kf/Hadea452be1804801a1d4a038d35aead8c/228259657/Hadea452be1804801a1d4a038d35aead8c.png)
Panel Saw machine works for large amount of precise cutting.
Automatic blade reciprocating incising saw can be used for cutting several pieces of wood panel at presupposed width and thickness automaticly and continuously.
Work stability to avoid after-sale maintain problem.
Automatic blade reciprocating incising saw can be used for cutting several pieces of wood panel at presupposed width and thickness automaticly and continuously.
Work stability to avoid after-sale maintain problem.
Product Name
|
Woodworking furniture automatic horizontal wood panel saw machine
|
Model
|
HP270G
|
Cutting length
|
2700mm
|
Cutting thickness
|
0-100mm(120mm optional)
|
Main saw blade diameter
|
350mm(405mm)
|
Main saw spindle diameter
|
60mm
|
Main saw spindle speed
|
3910rpm
|
Blade diameter
|
180mm
|
Auxiliary saw shaft diameter
|
45mm
|
Side saw spindle speed
|
5100rpm
|
Sawing seat speed
|
5-100m/min
|
Sawing seat back speed
|
120m/min
|
Main saw blade motor
|
20HP(25optional)
|
Scoring saw Blade motor
|
2.2kw/3HP
|
Sawing seat drive motor
|
1kw
|
High pressure blower motor
|
3HP
|
Automatic feeding system
|
2kw(AC sero motor)
|
Work holder feeding speed
|
5-80m/min
|
The use of air pressure
|
7kg/cm²
|
Work platform height
|
1020mm
|
Gross weight
|
5600KG
|
![](http://sc01.alicdn.com/kf/Heb5eb15c0748491b85bcc4af5ee3dd18A/228259657/Heb5eb15c0748491b85bcc4af5ee3dd18A.png)
![](https://upload.digoodcms.com/594/1615273653734/panel_saw.jpg)
Optimized soft for Beam Panel Saw is included.Back loading with automatic feeding is optional .Panel Saw machine is updated products in the panel saw industry, with high cutting accuracy and stable cutting.
With furniture development, rapid development of the industry, manufacturers spent huge human and financial resources on cutting plates.
![](https://upload.digoodcms.com/594/1615273652218/panel_saw_machine.jpg)
The disadvantages of using the sliding table panel saw in the cutting of plates becomes more and more obvious: insufficient precision, edge collapse, fault, work injury and other phenomena often occur, which brings obvious constraints to development of enterprises
![](http://sc02.alicdn.com/kf/He8b8f66cc8cb4f5aba342ade978ea3ab2/228259657/He8b8f66cc8cb4f5aba342ade978ea3ab2.png)
![](http://sc01.alicdn.com/kf/H07ae203a983f471daaa791b914e9bf41E/228259657/H07ae203a983f471daaa791b914e9bf41E.png)

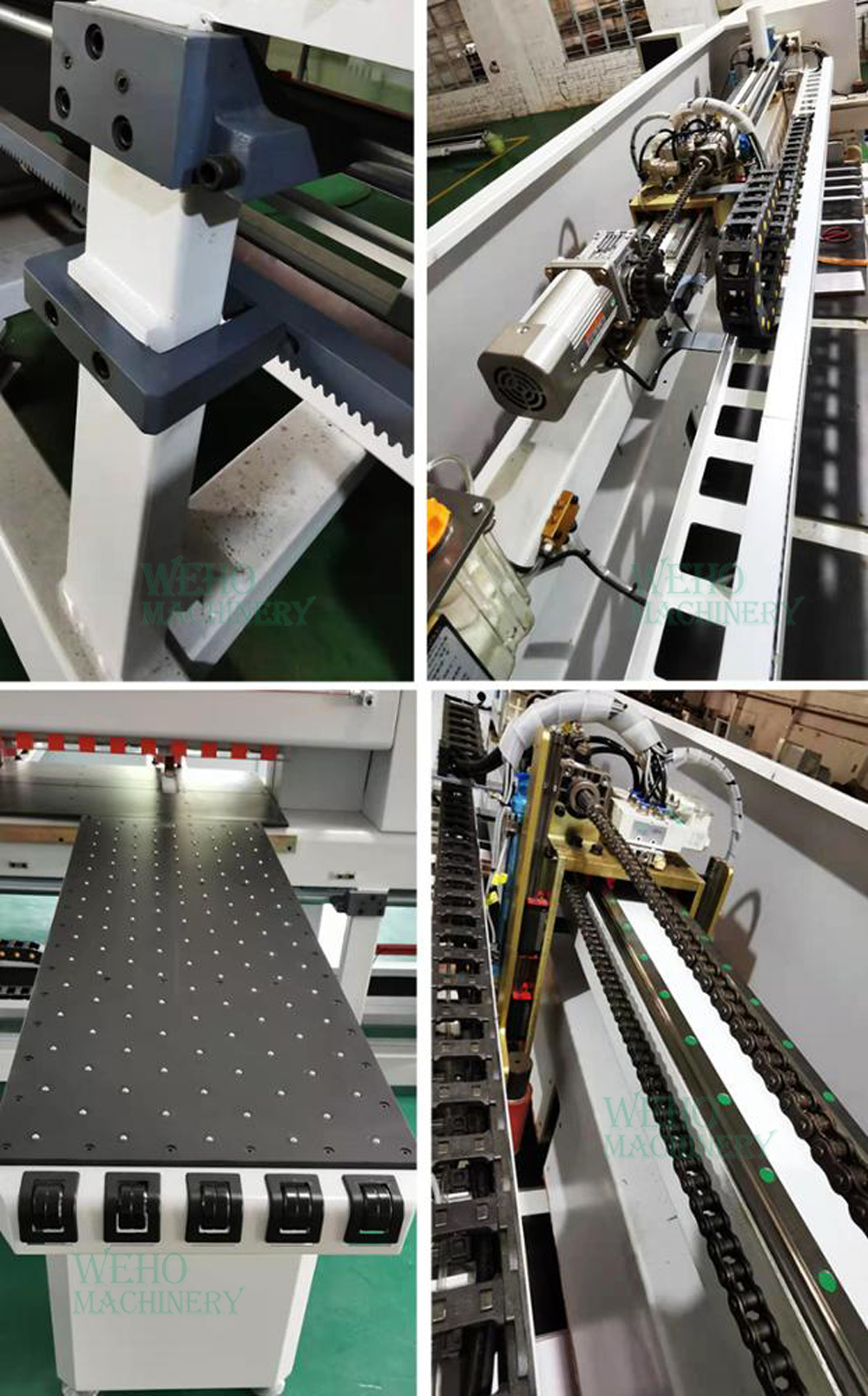

Features of the Beam Panel Saw
1.Environmental protection: dustproof curtain can make the work environment more clean, more accurate sawing.
2.The cutting board workshop dust, reduce the harm to human and environment cleaner production, low noise.
3.Operation is simple, easy to understand: do not need to use skilled workers, a teacher will be, you can save the cost of the material master please.
4. Man-machine integration operation, directly on the touch screen to enter the size of a variety of sizes and then automatically starting.
![](https://upload.digoodcms.com/594/1615273650514/beam_panel_saw.jpg)
![](http://sc01.alicdn.com/kf/H395ec8e9de2e4534b562713c9f4d891bL/228259657/H395ec8e9de2e4534b562713c9f4d891bL.jpg)
WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We design and manufacture PRESSURE NUMERICAL CONTROL WOOD BEAM SAW in China,Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
![](http://sc02.alicdn.com/kf/H598e3e0ed2334d63b47e0ee9369566b8S/228259657/H598e3e0ed2334d63b47e0ee9369566b8S.png)
![](http://sc02.alicdn.com/kf/H3b57622ad47e4c0485c673f3736b2947H/228259657/H3b57622ad47e4c0485c673f3736b2947H.png)
[]
