Industrial wood glue spreader machine


Model:MB400
Maxm gluing width:600mm
Cot diameter:250mm
Gluing speed:16m/min
Dimension(L*W*H):1900 * 1260 * 930mm
Power (kW):1.5


Details
Spare Parts
Inquiry

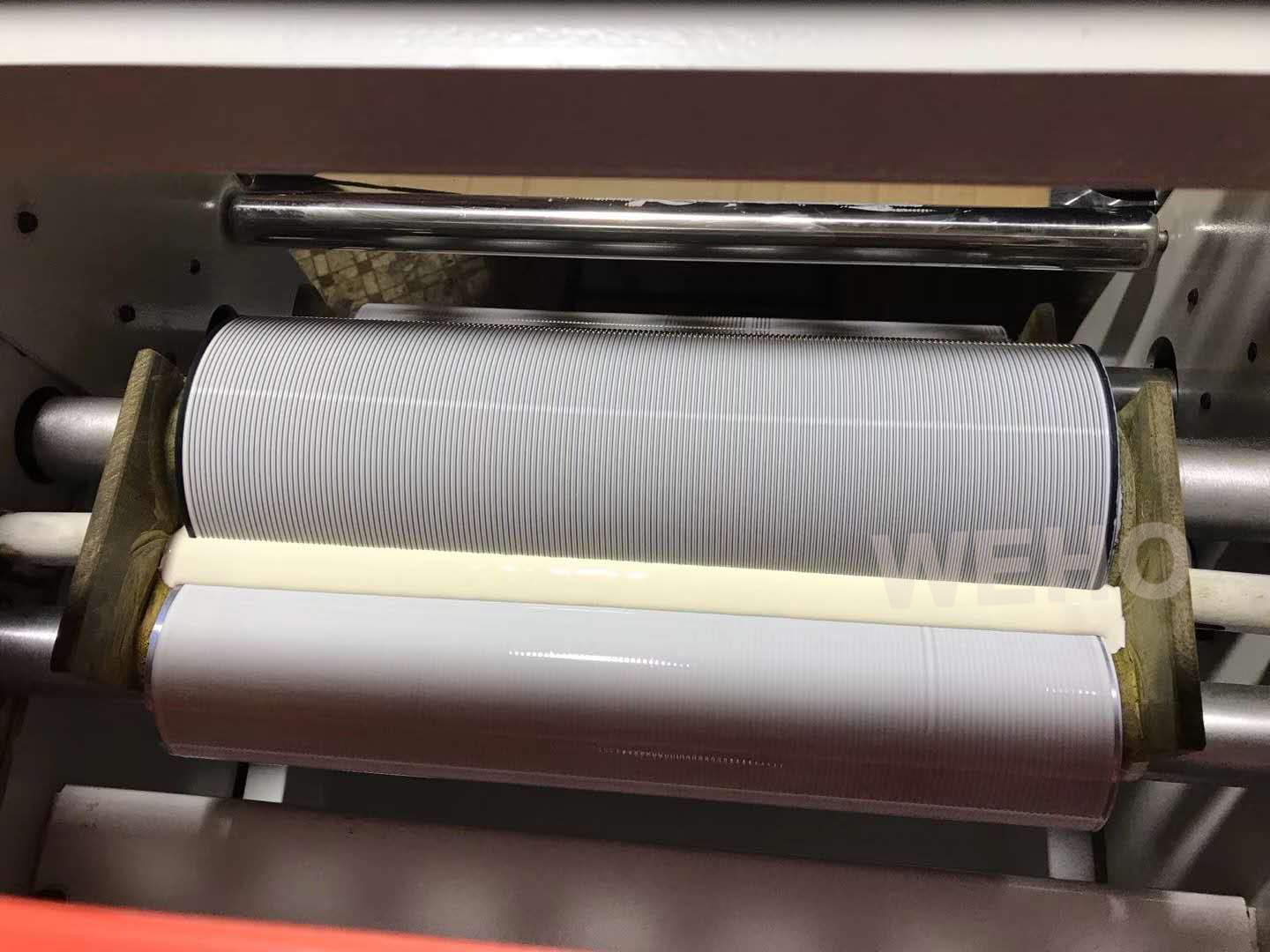

The maximum effective width of gluing machine is 600mm. The processing height is 2-30mm. The diameter of rubber roller is 250mm (two pieces), and the rubber roller is natural. Oil resistance, corrosion resistance and wear resistance.
Model
MB400
Rubber shaft diameter
1300mm
Max glue width
400mm
Working speed
12m/min
Infeed table
1500mm
Outfeed table 2000mm
Motor power
0.4kw*2
Size 3500*780*900mm
Rubber shaft diameter
1300mm

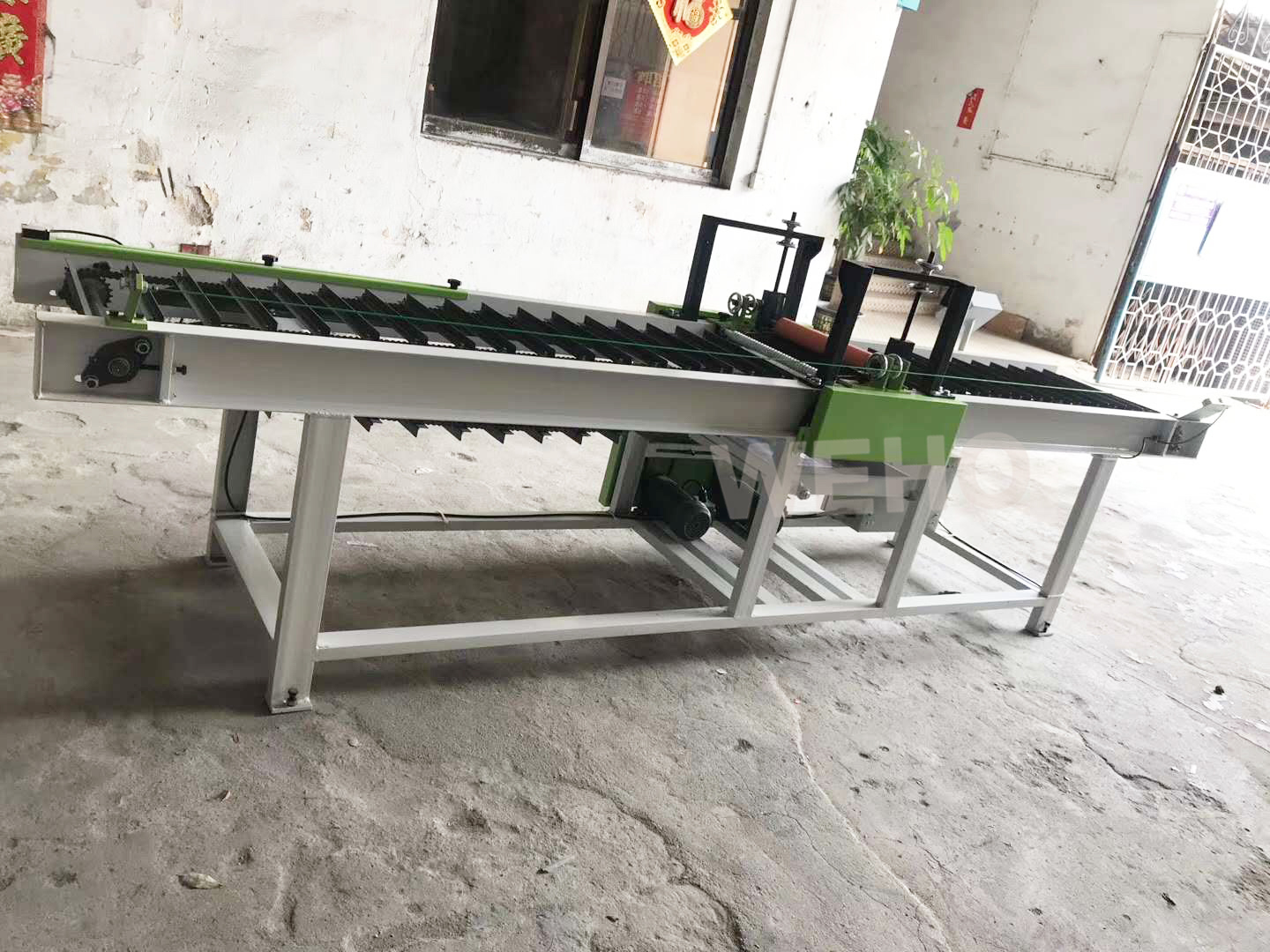

Industrial wood glue spreader machine
1.The diameter of glue mixing steel roller is 180mm (two), and the glue quantity can be controlled arbitrarily.
2.Bottom hopper design, no need to repeatedly add glue, save labor, glue, clean, greatly improve work efficiency.
3.The whole machine is of channel steel structure, equipped with door type shield, safe and use. 4. Equipped with 1.5kw-6 motor and 150 type all steel gear reducer, the service life is longer.

Open feeding port, glue can be added during processing.











Glue Spreader Machine
