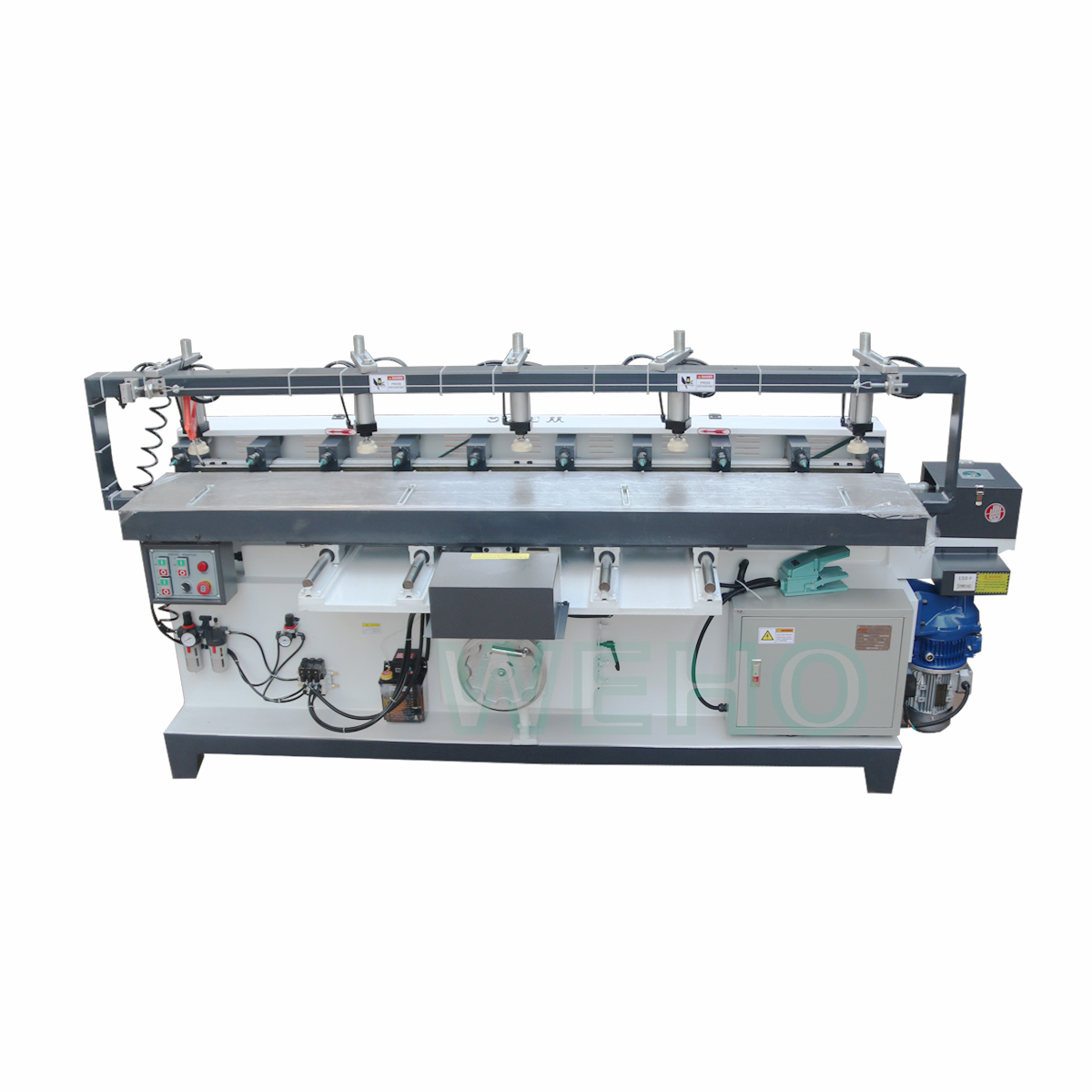

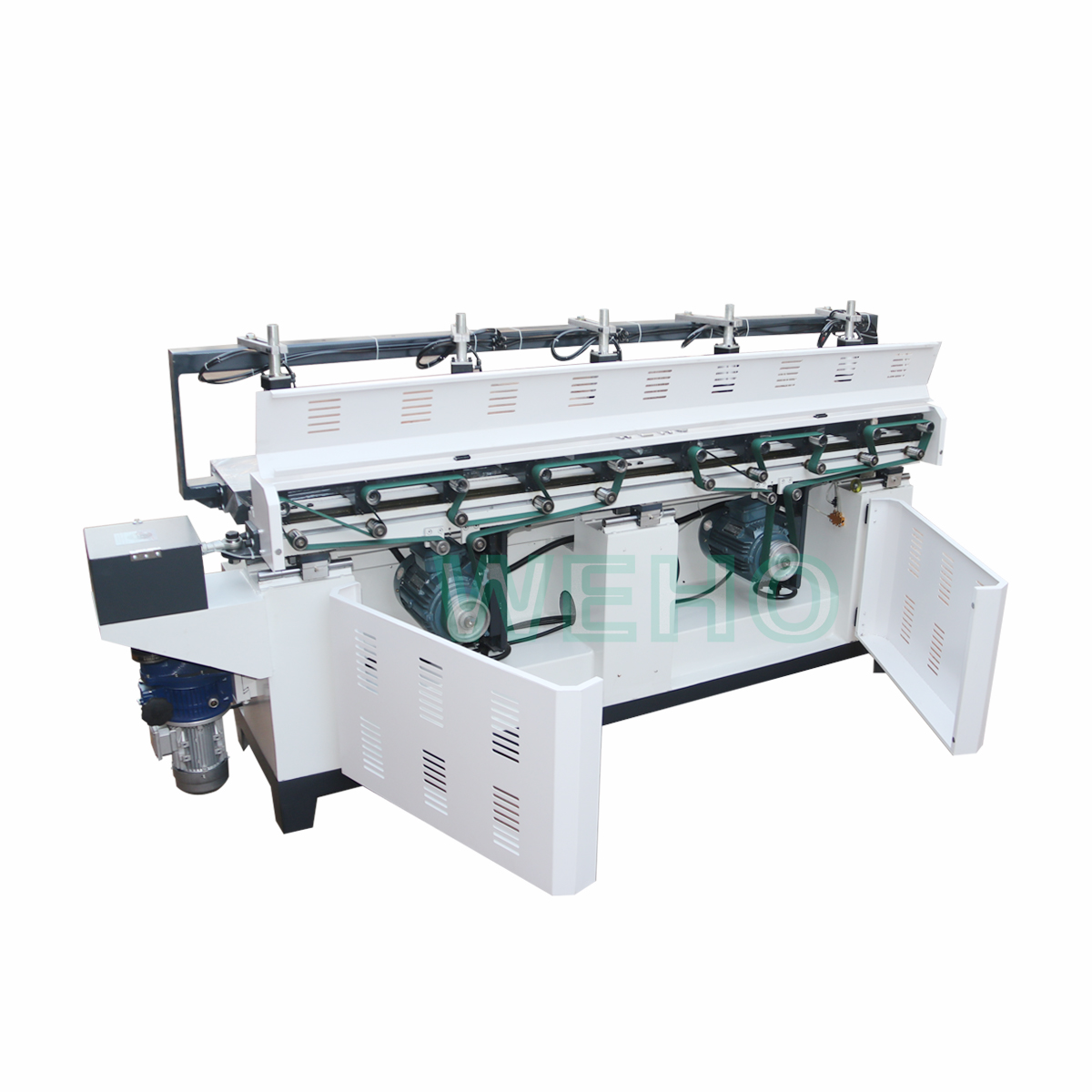

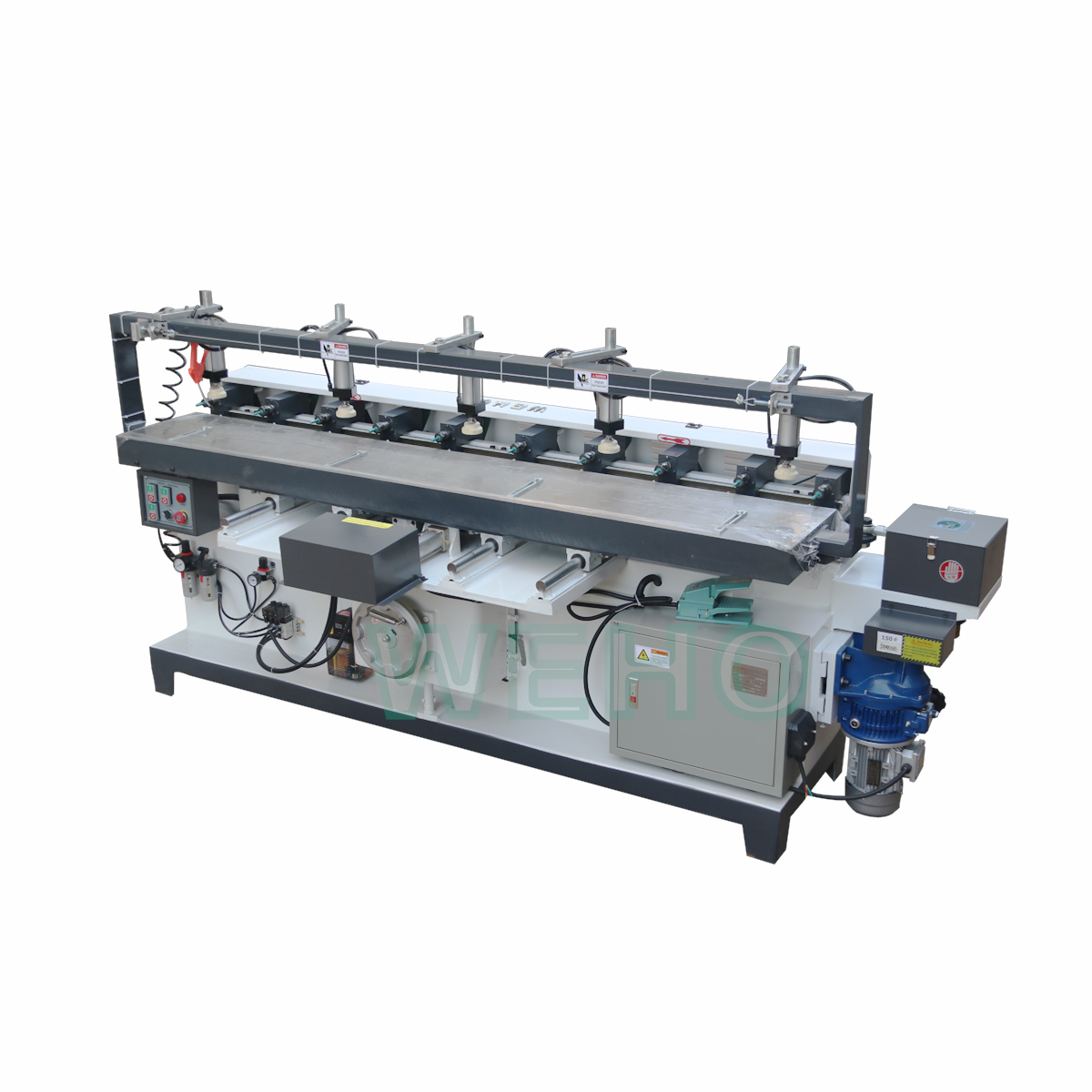

Horizontal multi head woodworking door lock timber mortiser tenoner drill machine mortising machine for sale
Model:MZX-1510
Max depth of milling groove:100mm
Max milling length:100mm
Spindle speed:9000r/min
Spindle motor power:4kw*2
Swing motor power:0.75kw
Max depth of milling groove:100mm
Max milling length:100mm
Spindle speed:9000r/min
Spindle motor power:4kw*2
Swing motor power:0.75kw
Details
Spare Parts
Inquiry
Our range of mortiser tools is drawn from the best suppliers offering long life and the highest quality finish mortice tool.Have a browse of our range of Mortise Machines.
| Model | MZX-1510 |
| Work table size | 2200*360mm |
| Maximum depth of milling groove | 100mm |
| Maximum milling length | 100mm |
| Milling groove width | 3-16mm |
| The smallest hole center distance | 60mm |
| Spindle speed | 9000r/min |
| Spindle motor power | 4kw*2 |
| Swing motor power | 0.75kw |
| Weight | 900kg |
The main series: Multiple Spindle Oscillation Mortiser,Oscillation Mortiser,CNC Multiple Futnction Tenoner Mortiser,Single Spindle Mortiser.
Mortise and tenon machineInside structure of table & central panel-Taiwan patent.
Adjustable Mortise Width,the mortise width adjustment can be read on the scale for accurate adjustment
The oil and pneumatic system permits high low speed change to suit various hardness of wood materials, ensuring excellent mortise qualitymortising machine.
Fine furniture or intricate detail work gets a lot easier.
The specially designed optional hydraulic system provides maximum stability of function operations and upgrades production quality woodworking mortising machine.
WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines. Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
