High temperature jet conveyor spray dryer machine for wood/furniture/glass/MDF paint drying
Quick Details
Model：600 900 1300
Minimum length：300mm 300mm 300mm
Working width：600mm 900mm 1300mm
Working thickness：3-80mm 3-80mm 3-80mm
Feeding speed：0-20m/min 0-20m/min 0-20m/min
Feeding power：0.75kw 0.75kw 0.75kw
Baking tube power：0.85kw 1kw 1.5kw
Model：600 900 1300
Minimum length：300mm 300mm 300mm
Working width：600mm 900mm 1300mm
Working thickness：3-80mm 3-80mm 3-80mm
Feeding speed：0-20m/min 0-20m/min 0-20m/min
Feeding power：0.75kw 0.75kw 0.75kw
Baking tube power：0.85kw 1kw 1.5kw
Details
Spare Parts
Inquiry
The jet conveyor dryer for wood wide used to dry flat articles which are coated by UV coagulated paint.Different drying process requirements can be achieved by controlling air flow rate, humidity and temperature in different sections.The High temperature jet conveyor spray dryer could fulfill different technical requirements by controlling the inside flow rate,temperate, and humidity. Multi-stage temperature control, by which can set many values for different drying techniques.
| Model | 600 | 900 | 1300 |
| Minimum length | 300mm | 300mm | 300mm |
| Working width | 600mm | 900mm | 1300mm |
| Working thickness | 3-80mm | 3-80mm | 3-80mm |
| Feeding speed | 0-20m/min | 0-20m/min | 0-20m/min |
| Feeding power | 0.75kw | 0.75kw | 0.75kw |
| Baking tube power | 0.85kw | 1kw | 1.5kw |
| Package size | 6000*850*1500mm | 6000*1150*1500mm | 6000*1550*1500mm |
50mm thick thermal insulation helps to maintain the internal temperature and reduce the power loss. The working speed is adjustable by a variable frequency drive. The internal and external air is recycling, which helps to reduce energy uses.

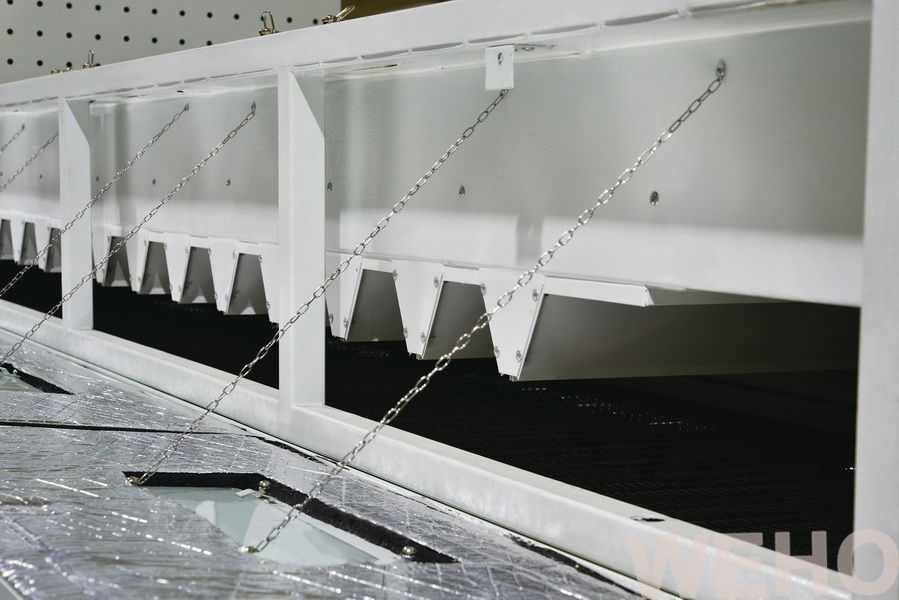

The conveyor spray dryer machine for furniture high liquidity ratio drying system dries pigmented paint and water-based paint. Ejection pipes distributed equally in the drying oven to keep air flow highly active and stable.
