Heavy precision knives sharpening equipment carbide TCT circular saw blade sharpener grinder machine

Model:CH800
Carbide Saw Outside Diameter:120-810mm
Saw Bore Diameter:10-220mm
Max Blade Thickness:10mm
Weight (KG):1100
Power (kW):3.7
Contact Us Send Inquiry
Details
Spare Parts
Inquiry


Automatic sharpening tool machine sharpen circular saw blade with grinder
Designed to suit the requirements of carbide tct circular saw blade.
CH800 cnc machines sharpening machine saw blade sharpener
Is a suitable machine for grinding all kinds of carbide tct circular saw blades . For example, carbide tipped wood cutting saw blades, aluminum cutting saw blades, forest saw blades, table saw blades etc.
Name
Automatic sharpening tool machine sharpen circular saw blade with grinder
Carbide Saw Outside Diameter
120~810mm
Saw Bore Diameter
10~220mm
Max Blade Thickness
10mm
Tooth Pitch
25-100mm
Clearance Angel
6~ 45°
Bevel Grinding top angle
0° ~45°
Bevel Grinding face angle
-3°~ +20°
Grinding Path
20mm
Grinding Speed
0.56mm/s
Working Speed
5~20teeth/min
Grinding Wheel
125mm
Peripheral Speed
26m/s
Cooling Water Capacity
60KG
Main Motor Power
2.2KW
Machinery Weight
1100KG
Machinery Size (L×W×H)
1280mm×1680mm×2200mm
Automatic sharpening tool machine sharpen circular saw blade with grinder
4 axis cnc Saw blade sharpener machine is CNC machine for circular carbide saw blades grinding.
Complicated shapes of rake angle and clearance angle of all sorts of carbide saw blade tips.
Automatic adjustment system, start automatic adjust, the grinding wheels adjust position automatically.
It is user-friendly machine with transparent operation panel.
All moving parts controlled by motor, has not pneumatic or hydraulic system, ensure high precision.
Saw blade feeding in or feeding out control by servo motor.
The machine has automatic compensation program to compensate.
It can adjust grinding speed and it has automatic lubrication system.

Special made Forging main spindle, high precision and long time working, warranty is 2 years
Germany ABB motor for grinding wheel rotating, low noice and durable in use

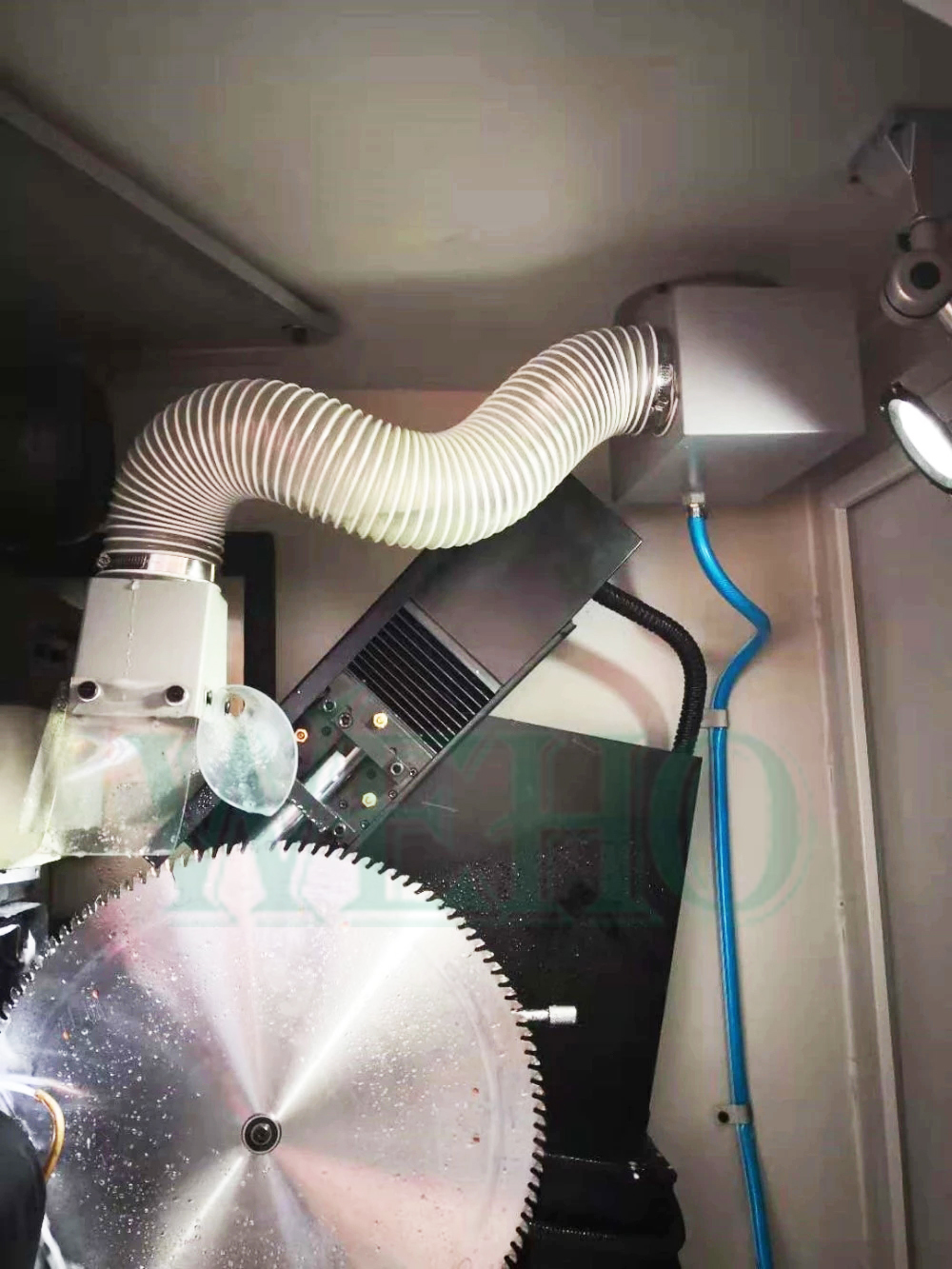

Water mist and oil mist suction device, keep inside of the machine clean and dry, reduce water mist into spindle bearing.

Automatic sharpening tool machine sharpen circular saw blade with grinder
1) User-friendly interface
2) 'Set-up' mode & 'run' mode
3)Variable grinding speed






High quality for electric road, without Signal jamming, keep the output exactly.
All Digital signal transmission, no censor, machine working very high accuracy.
4 axis cnc control the grinding wheels moving, no hydraulic system, machine work high precision and low failure rate
Precision design, without any air pressure and hydraulic system, all control by electric, durable and accuracy

Circular saw blade sharpener for aluminum cutting saw
Specialized program, make operation more easier.
hand wheels adjust grinding wheels, easy and convenient.

WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines.
Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
