Four head High speed Double sided tenoning machine for round end tenon making
Model:MSK2415A
Drill Diameter:100
Processing wood:2000*200*80mm
Main speed rotating:10000rpm
Tenoning width:180mm
Tenon thickness:70mm
Power:13.8
Drill Diameter:100
Processing wood:2000*200*80mm
Main speed rotating:10000rpm
Tenoning width:180mm
Tenon thickness:70mm
Power:13.8
Details
Spare Parts
Inquiry
Four head High speed Double sided tenoning machine for round end tenon making, rounding off tenoning machining makes tenon on both ends.Makes tenon on both ends of the piece at the same time, with all the three possible angles.
|
Name
|
Double sided tenoning machine
|
|
CNC Double End profile Tenon Machine
|
MSK2415A
|
|
Max. wood piece size
|
2000*145*80mm
|
|
Processing interval width
|
Max 2000mm/Min 150mm
|
|
Spindle Speed
|
10000 rpm
|
|
Rated Current
|
28A
|
|
Voltage
|
380V
|
|
Weight
|
2800KG
|
|
Air Pressure
|
0.6Mpa
|
|
Dimension(mm)
|
4280*2180*1700
|
|
Processing Tenon Width
|
0-180mm
|
|
Processing Tenon Thickness
|
0-110mm
|
|
Processing Tenon length
|
5-100mm
|
|
Motor Power
|
13KW
|
TECHNICAL FEATURES

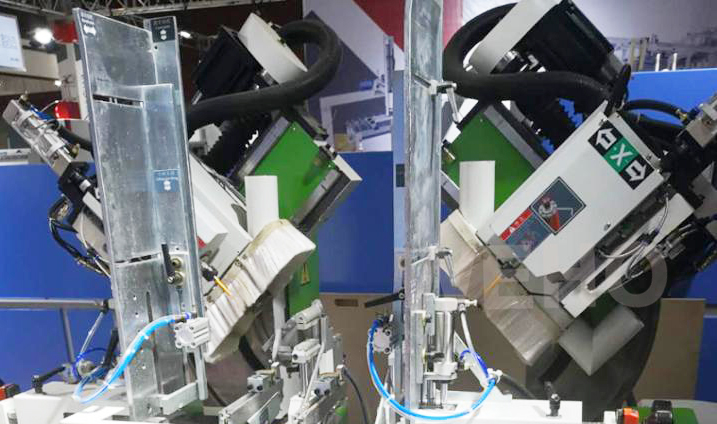

- Continuous revolution of cutters around the piece
- Thickness, inclination and width of tenons adjusted by external handles, even when the machine is working,
- Motorized approaching of the R.H. head.
- Cast iron frame to eliminate vibrations

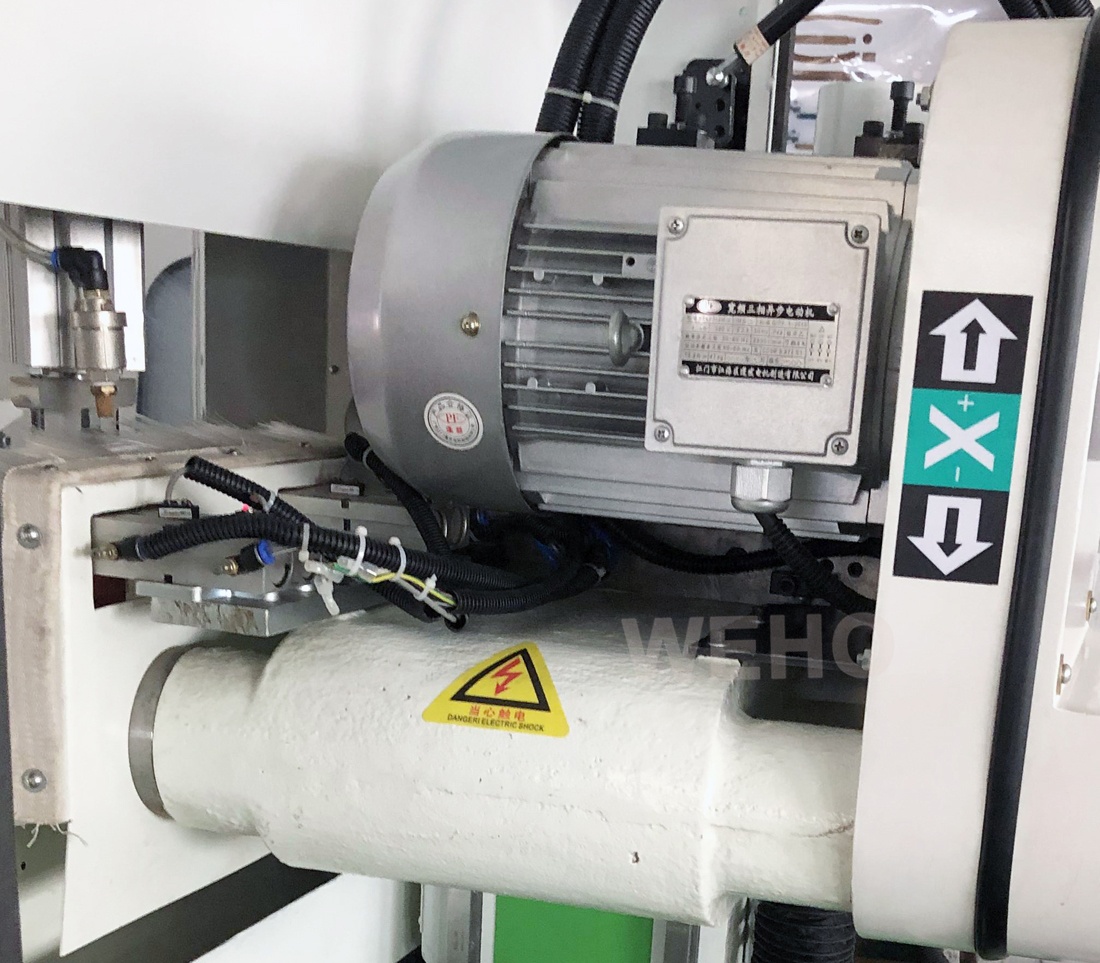

- Working heads held by angular contact bearings to eliminate clearances.
- Loader/unloader for straight or bent pieces.
- Sincronized loading/unloading to prevent any collision.
- Automatic alignement of worked pieces on guides situated in front of the operator, who is in the best position both to collect pieces and to control their quality.

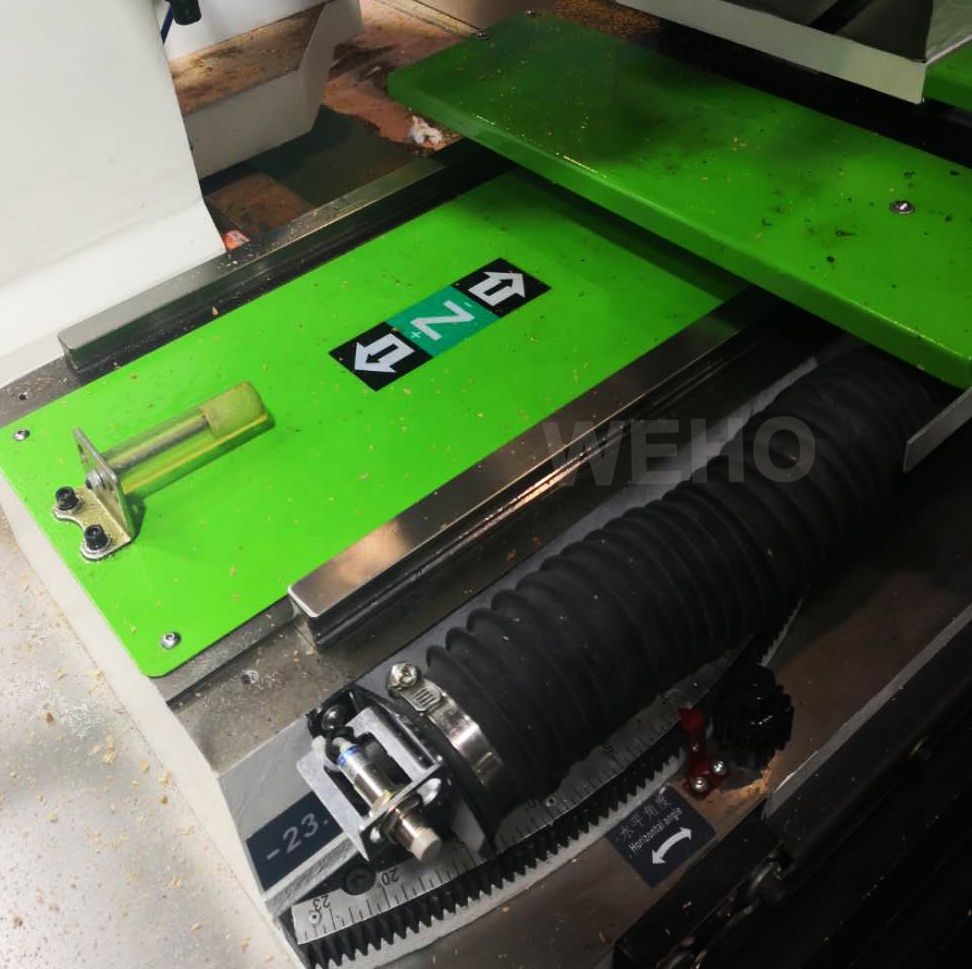

Cast iron frame to eliminate vibrations,Germany imported Rexroth with dustproof rail (x-axis, z-axis) warranty 2 years

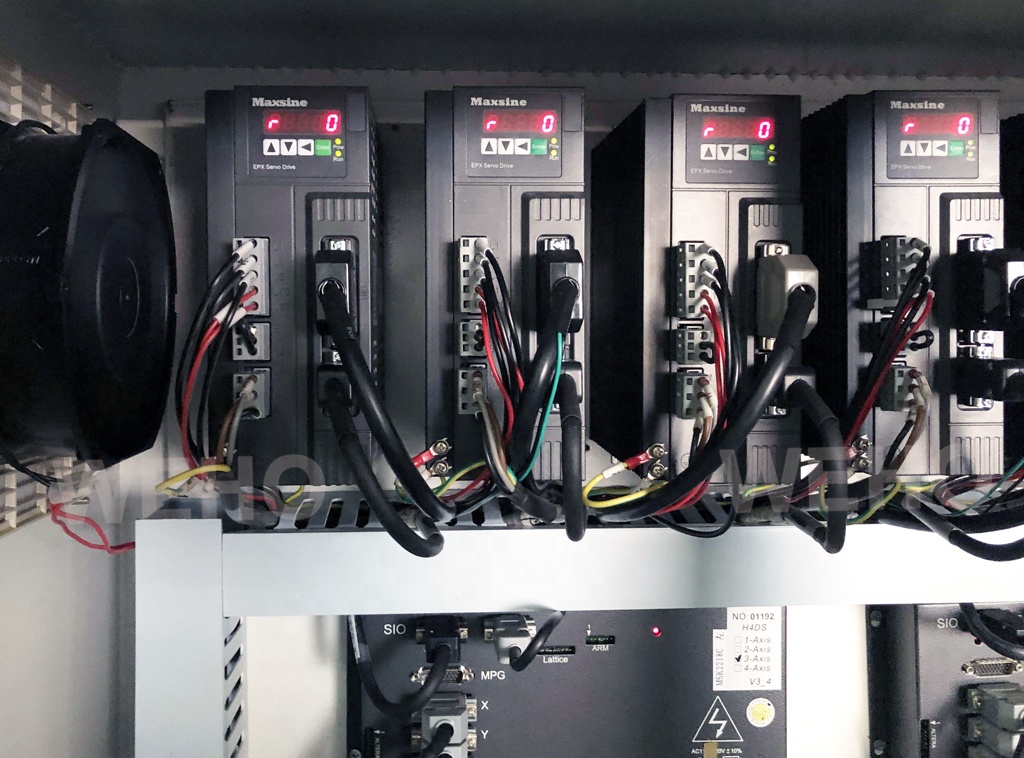

Taiwan Husc operation system, easy operation,automatic lubraction system for machine, keep at least 5 years not rusty.
