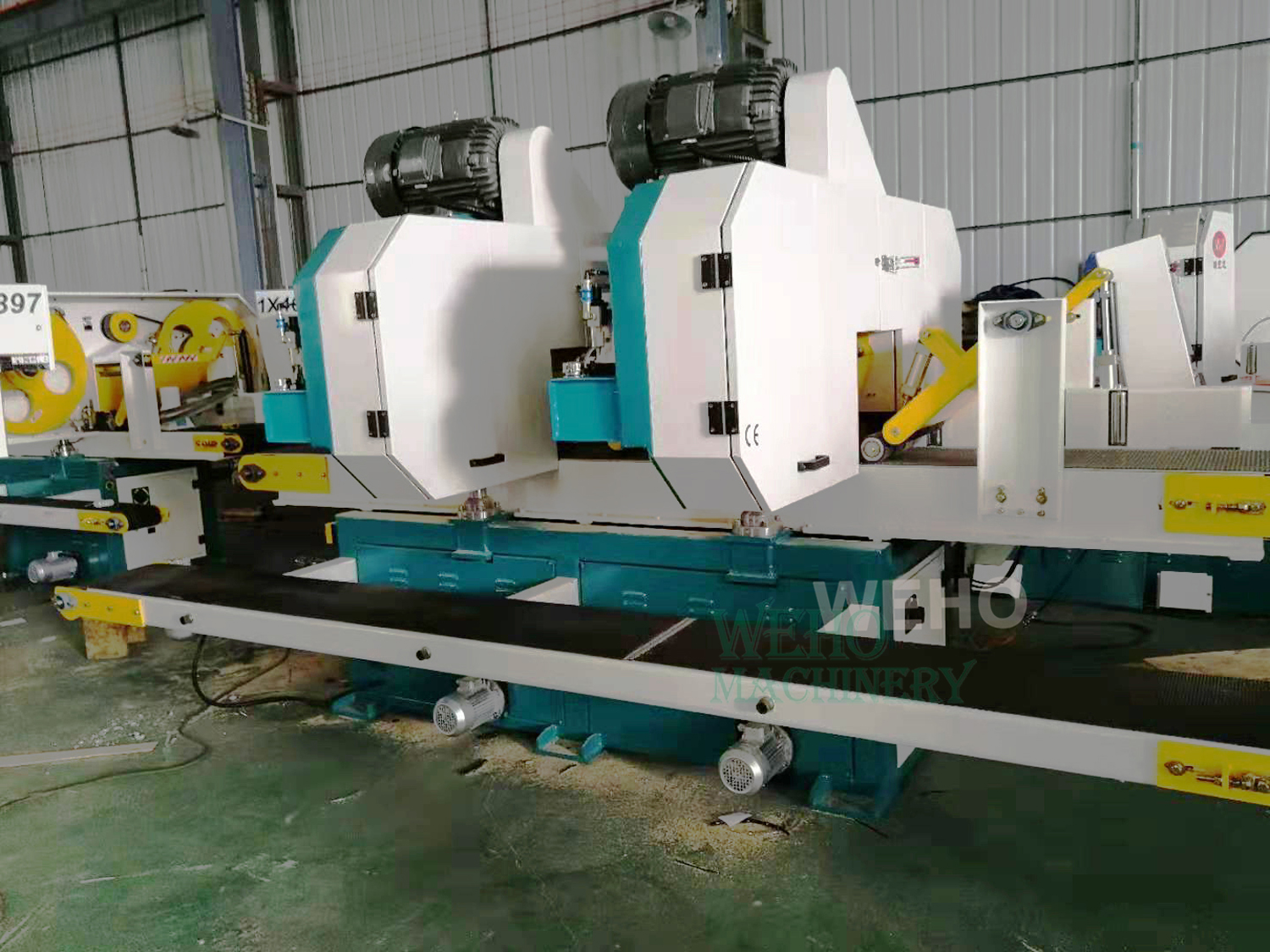

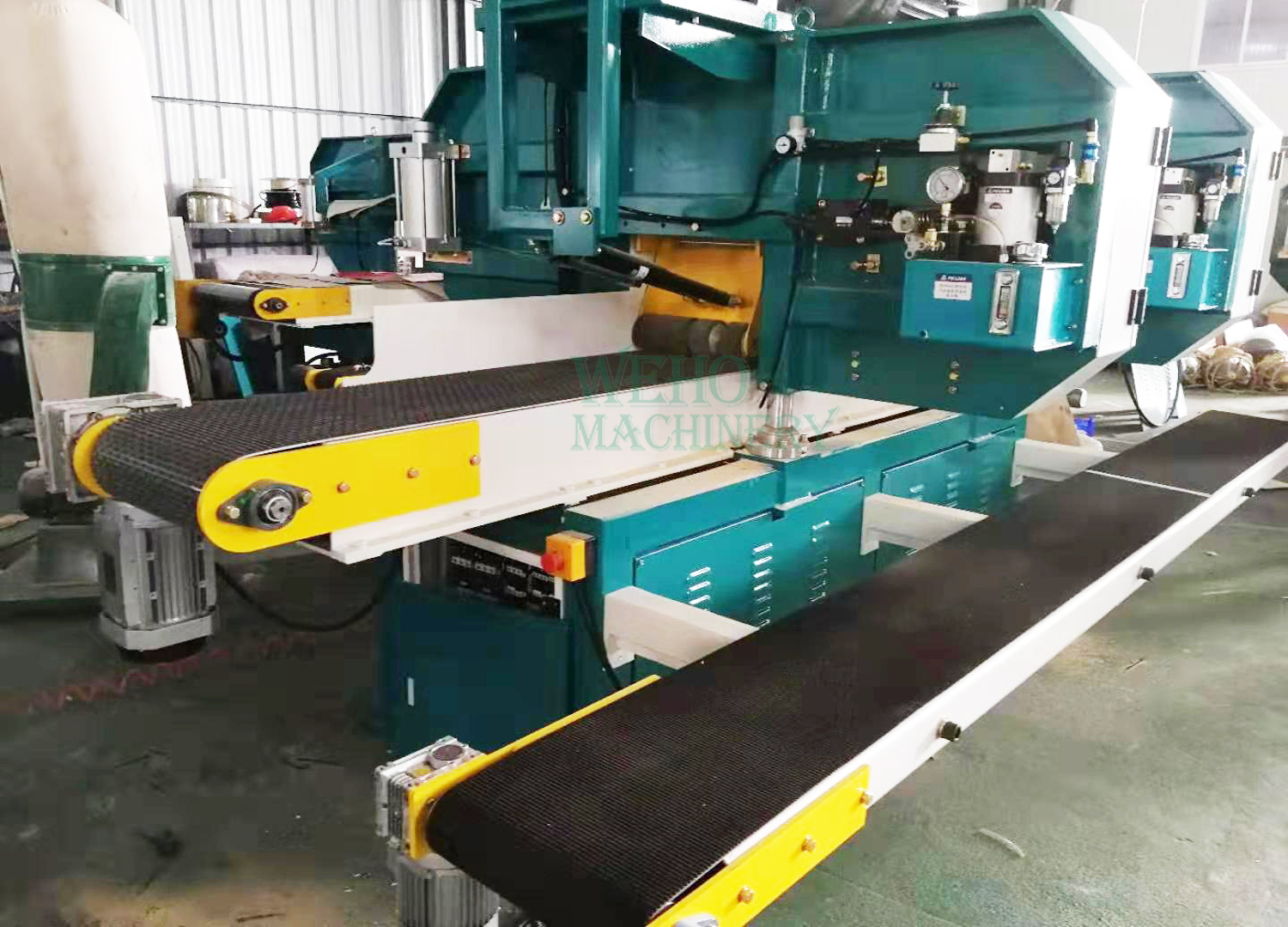

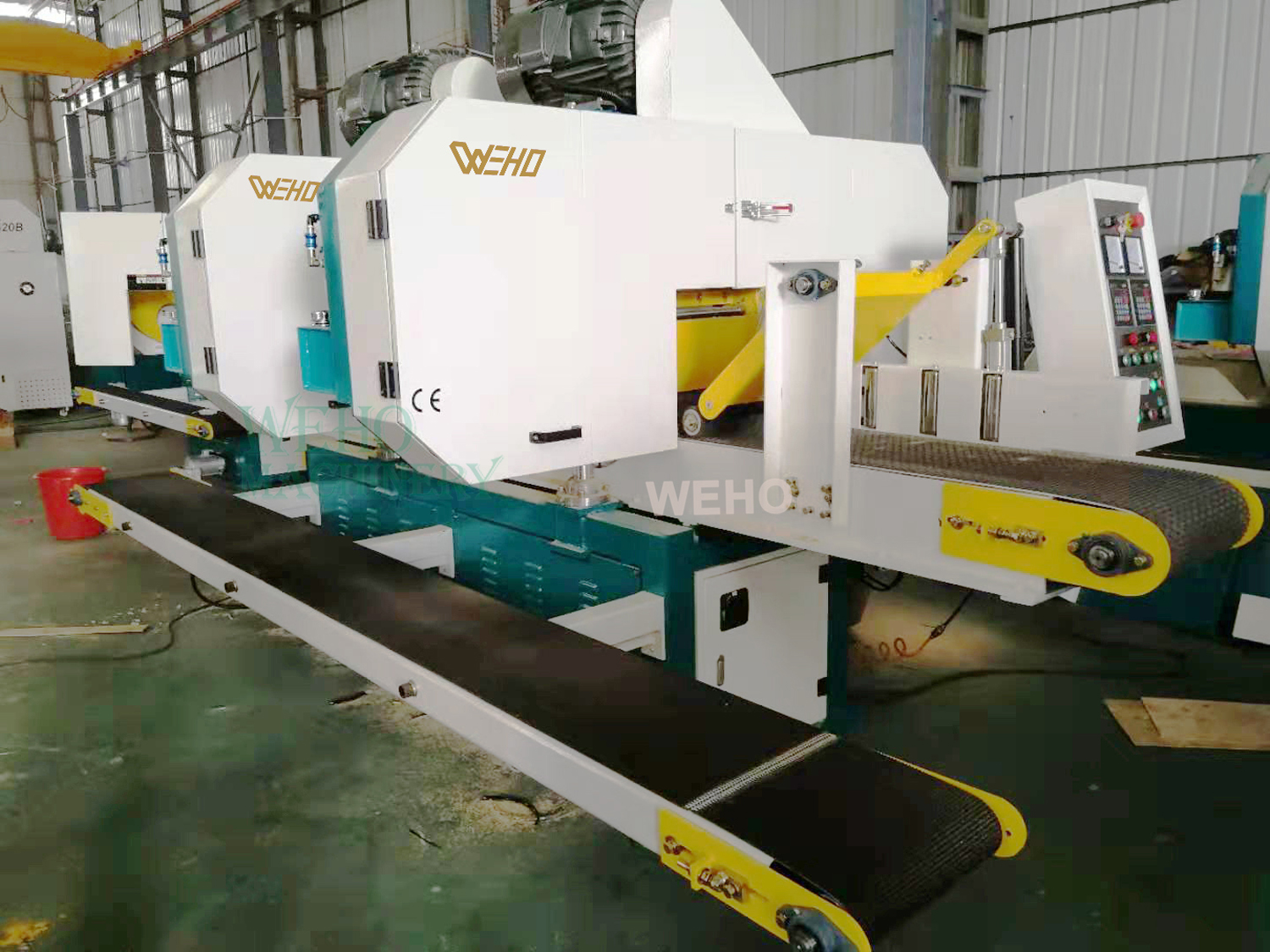

Double head advanced bandsaw horizontal band saw for wood board cutting | Wood Band Saw
Max. working size:400*200mm
Conveyer belt width:385mm
Diameter of saw wheel:711mm
Power of saw wheel:18.5kw*2
| Modle | MJ71-400X2 |
| Max working size | 400 × 200 mm |
| Distance from band saw blade to worktable | 3-60mm |
| Conveyer belt width | 385mm |
| Diameter of saw wheel | 711 mm |
| Feeding speed | 0 ~ 12m / min |
| Saw wheel motor | 18.5kw × 2 |
| Feeding motor | 1.5kw |
| Return motor | 0.55kw |
| The diameter of dust collecting pipe | 102mm × 4 |
| Saw blade size | 4572 × 27 × 0.9mm |
| Sawing | 1.4-1.6mm |
| Overall dimension | 3900 × 2250 × 2000mm |
| Net weight | 2950kg |
Built to the exacting standards demanded by today's professionals, features state-of-the-art systems such as digital controls,precision blade tensioning with gauge, and a variable-speed conveyor drive system.
Automatic tensioning: The Rexroh rails are fitted with a tensioning system to make the saw blade more durable.
The sawing wheel has advanced processing technology, good stability, wear resistance, and the saw blade is not easy to break. UsesJapan imported NSK6200VV and NSK32013 bearing to ensure smooth rotation of the saw wheel.Zhengtai,SIMENS, LG and other imported electrical components: the electrical box is durable and not easy to damage.
A strong power,3-phase motor rounds out this machine for unsurpassed power to handle your biggest resaw operations.
"Dock" delivery or flatbed truck arrangements are necessary for this item.
Wear-resistant ceramic saw clamp to protect the saw blade for efficient heat dissipation and better sawing surface quality
