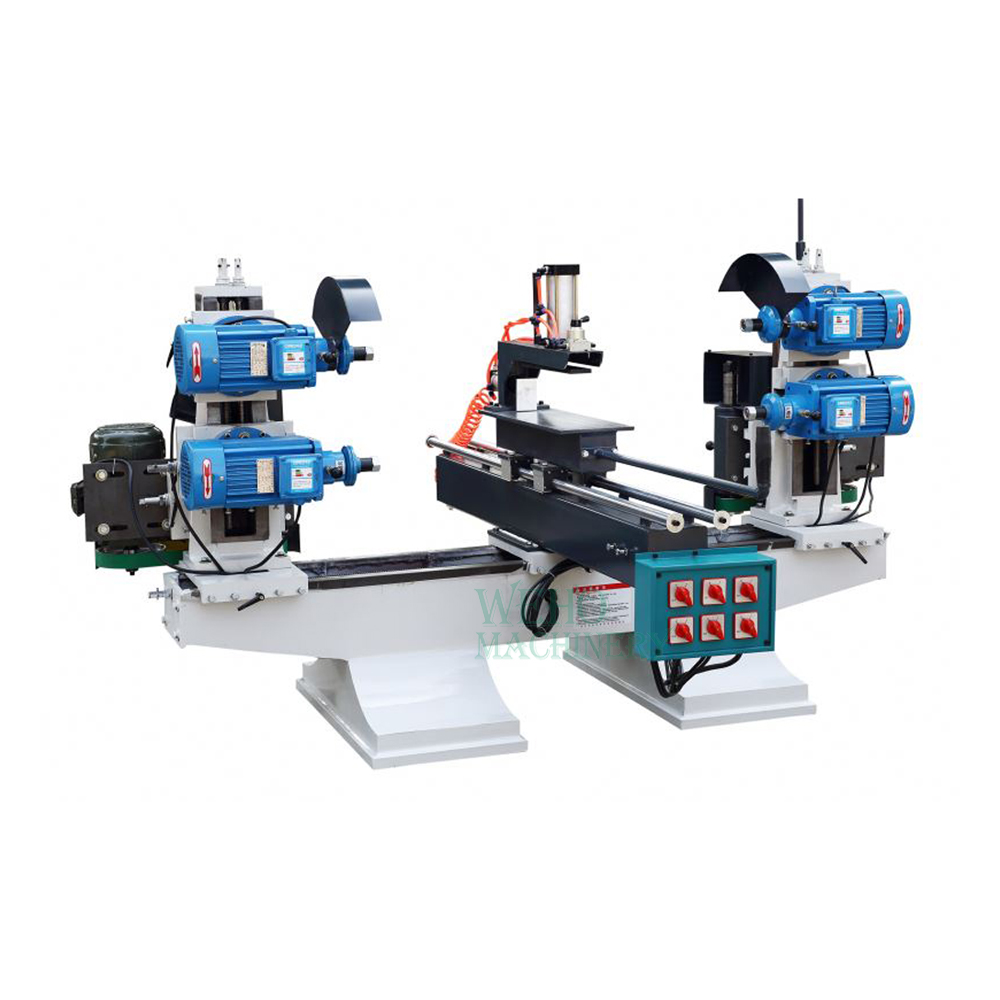

Double end mill and saw machine for wood trim profiler | Double End Mill Machine
processing length:300-1200,300-1800,300-2400mm
Max working thickness：75mm
Spindle rotating speed：4745r/min
Saw spindle rotating：2800r/min
Power(W):14.8kw
One worktable, four cutters, two mill shafts,suitable for wood cutting, fast and efficient, wood fixed length,wood profiler.
| Product name | Sawing machine |
| Working length | 300-1200,300-1800,300-2400mm |
| Max working thickness | 75mm |
| Max saw dia | 305mm |
| Feeding speed | Manual or Automatic |
| Saw blade tilting bevel | 0-45 degree |
| Spindle rotating speed | 4745r/min |
| Saw spindle rotating | 2800r/min |
| Saw blade spindle dia | 25.4 |
| Saw blade motor | 2.2kw/per |
| Vertical milling cutter spindle | 30,35,40 or customized |
| Vertical milling cutter power | 3kw or 4kw, 5.5kw |
| Weight | 1080kg,1180kg,1280kg |
It is mainly used for the double end cutting of wood to fixed length processing. It can saw the bevel angle, carry out the longitudinal processing for the short material plate, mill the double end cutting tenon.
Double end machine sawing with optional spindle shaper. Head swivel for flexible and easy operationHead adjustable for up and downSliding guide withl inear bearing for easy slidingHeavy structure for maximum stability.
Sawing machine, double end milling groove,milling shape, fixed length wood processing, the saw blade can be inclined 45 degree longitudinal cutting. wood sawing machine has solid body,good quality,wear-resistant and durable guide rail.
WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines. Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
