double-brush roller coation machine for bamboo flooring and furniture board

Quick Details
Model：600    900    1300
Processing length range (max, min)：    Min300mm    Min300mm    Min300mm
Processing width range (max, min)：Max600mm    Max900mm    Max1300mm
Machining thickness range (max, min)：3-80mm    3-80mm    3-80mm
Feed speed：0-20m/min    0-20m/min    0-20m/min
Feed power：0.75kw    0.75kw    0.75kw
Filling wheel ower：0.75kw    0.75kw    0.75kw
Contact Us Send Inquiry
Details
Spare Parts
Inquiry

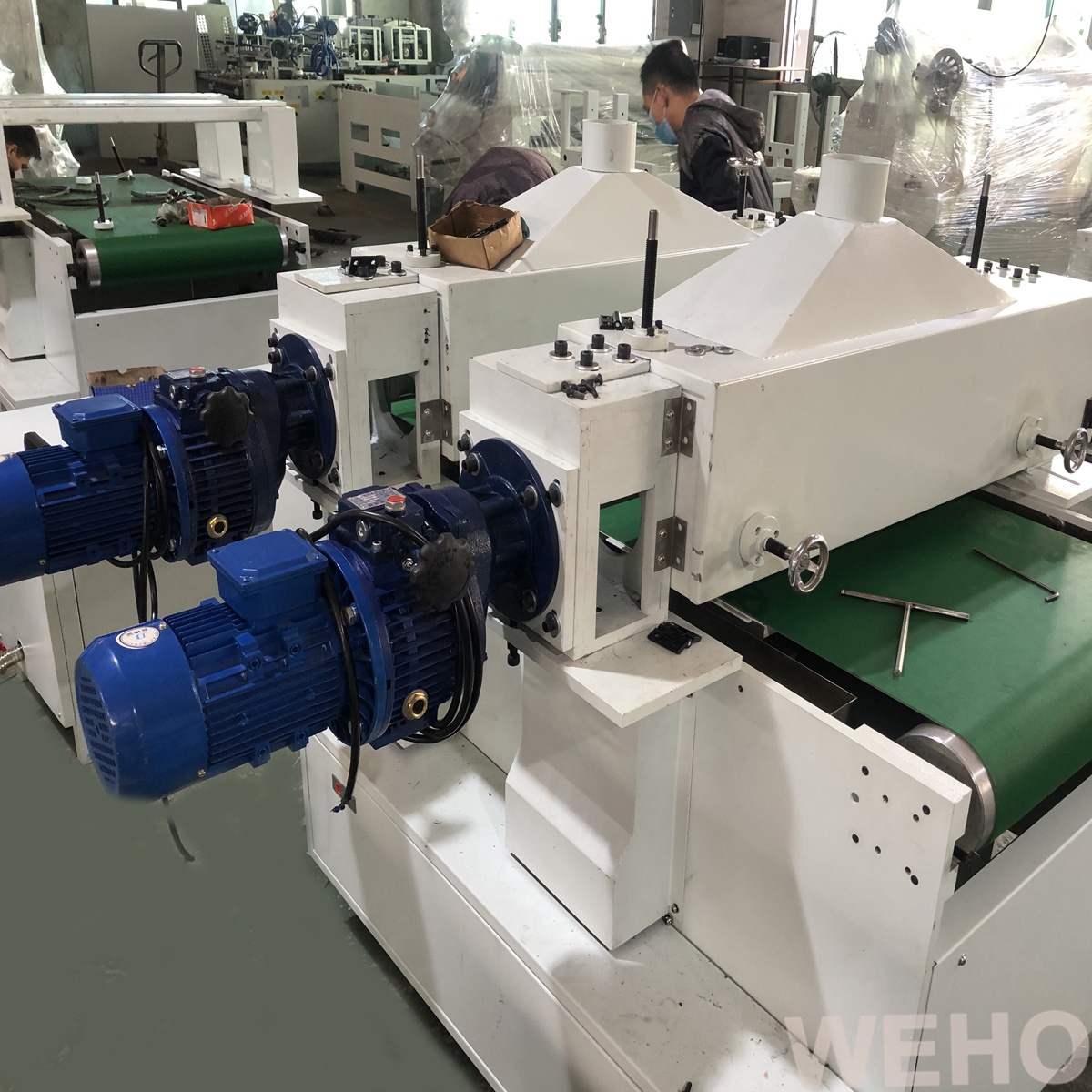

This double-brush coation machine for flooring is specially designed for the stain distribution on flat boards ike bamboo flooring or furniture.
It can wipe the stain into the wood grains l and make up for the uneven paint distribution madeby the roller coater.
By using this double-brush roller coation machine ,the surface grain will be more clearly and the layers will be more distinct.

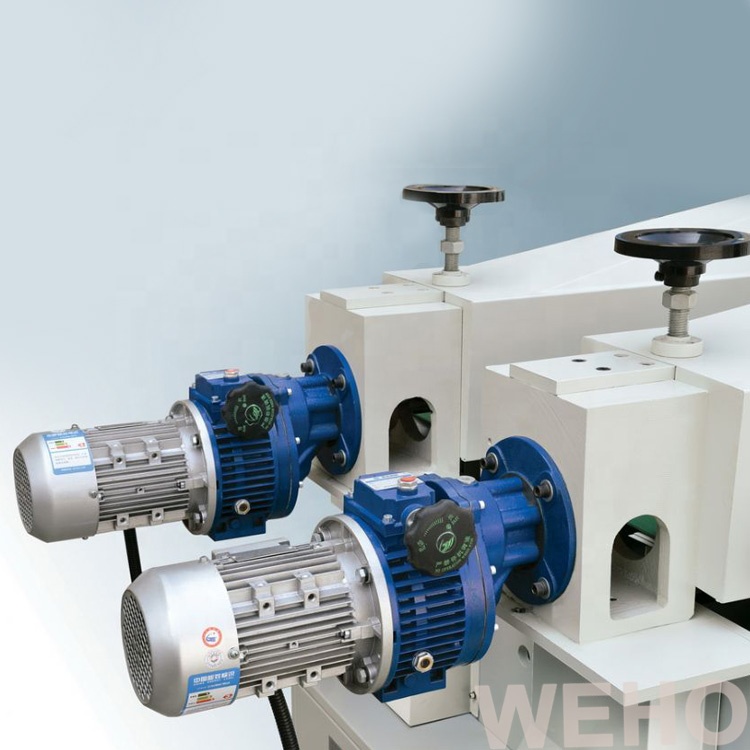

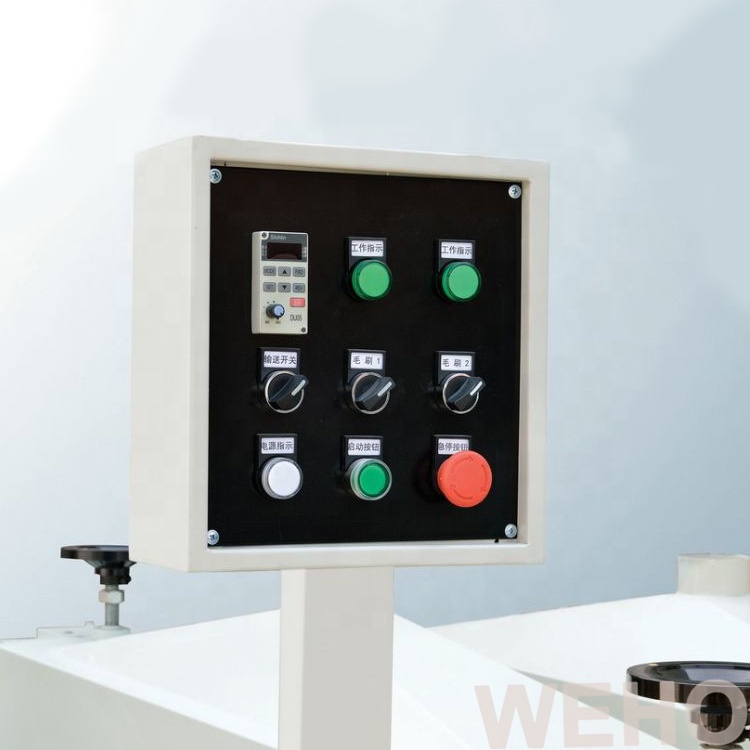

The transporting speed of double-brush precise coation machine is controlled by a transducer.

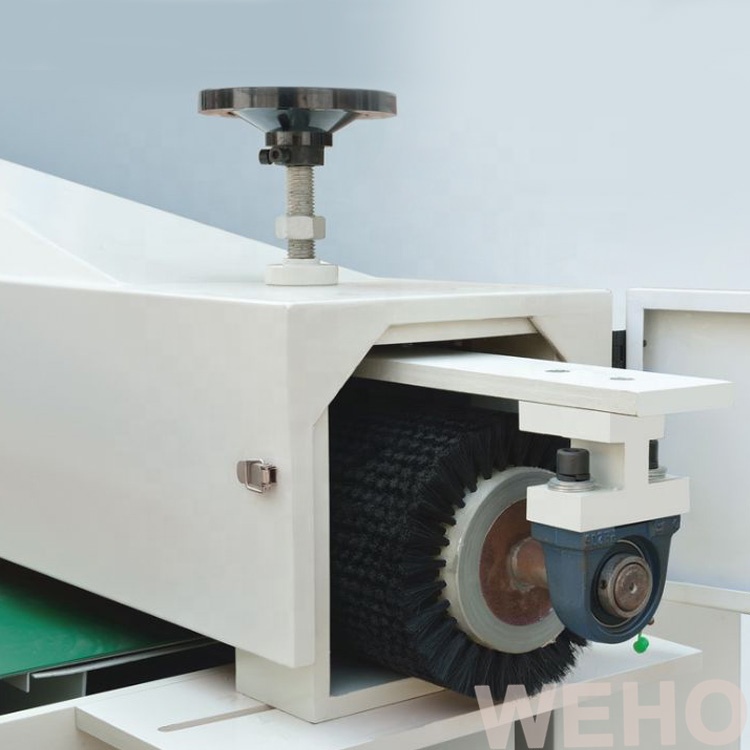

The double brush wheel of the roller coation machine can rotate at high speed through the frequency converter to wipe the surface of the board with colorant evenly.
The rush oller is designed to be unloaded easily which makes it more convenient to clean and install, and also greatly improves producing efficiency.
Model 600 900 1300
Processing length range (max, min) Min300mm Min300mm Min300mm
Processing width range (max, min) Max600mm Max900mm Max1300mm
Machining thickness range (max, min) 3-80mm 3-80mm 3-80mm
Feed speed 0-20m/min 0-20m/min 0-20m/min
Feed power 0.75kw 0.75kw 0.75kw
Filling wheel ower 0.75kw 0.75kw 0.75kw
Material and Quantity of filling wheel Sisal wheel, 2 Sisal wheel, 22 Sisal wheel, 2
Power of conveyor wheel 0.75kw 0.75kw 0.75kw
Size and Quantity of conveyor wheel Drum, 2 Drum, 2 Drum, 2
Installed power of the whole machine 2.25kw 2.25kw 2.25kw
Total weight 700KG 900KG 1300KG
Package size 1500*2100*1650 1500*2400*1650 1500*2800*1650

















Double-Brush Roller Coation Machine
