CNC woodworking horizontal band saw for wood resaw | Cnc Band Saw For Wood
Max. working size:250*300mm
Distance from saw blade:3-200mm
Width of conveyer belt:235mm
Diameter of saw wheel:711mm
Saw wheel motor:15kw
Horizontal wood cutting band saw machine is taking over the wood cutting market! Topping the scale at over 1850kg, the band saw isthe master of all resaw machines! Applicable to all kinds of wood, panel, thick material board processing.
1) Digital height control for accurate blade positioning (enter the thickness you want and press a button)
2) Variable-speed driven feed and return conveyor
3) Powered saw elevation
4) Hydraulic blade tensioning with gauge
5) Dual 4" dust port
6) Adjustable ceramic blade guides
7) Massive steel frame construction
8) Steel conveyor table
9) Steel fence with rollers
10) 4" pressure rollers with polyurethane tires
11) Hinged wheel cover
12) Simple and quick blade changes
| Model | MJ71B-250 |
| Max working size | 250*300mm |
| Distance from saw blade | 3-200mm |
| Width of conveyer belt | 235mm |
| Diameter of saw wheel | 711mm |
| Feed speed | 0-12m/min |
| Saw wheel motor | 15kw |
| Hydraulic pressure | 55kg/cm2 |
| Diameter of dust suction pipe | 102mm*2 |
| Saw band specification | 4572*27*0.9mm |
| Saw kerf | 1.5-1.8mm |
| Outline size | 3000*2250*2000mm |
| Net weight | 1900kg |
Built to the exacting standards demanded by today's professionals, features state-of-the-art systems such as digital controls,precision blade tensioning with gauge, and a variable-speed conveyor drive system.
Automatic tensioning: The Rexroh rails are fitted with a tensioning system to make the saw blade more durable.
The sawing wheel has advanced processing technology, good stability, wear resistance, and the saw blade is not easy to break. UsesJapan imported NSK6200VV and NSK32013 bearing to ensure smooth rotation of the saw wheel.Zhengtai,SIMENS, LG and other imported electrical components: the electrical box is durable and not easy to damage.
A strong power,3-phase motor rounds out this machine for unsurpassed power to handle your biggest resaw operations.
"Dock" delivery or flatbed truck arrangements are necessary for this item.

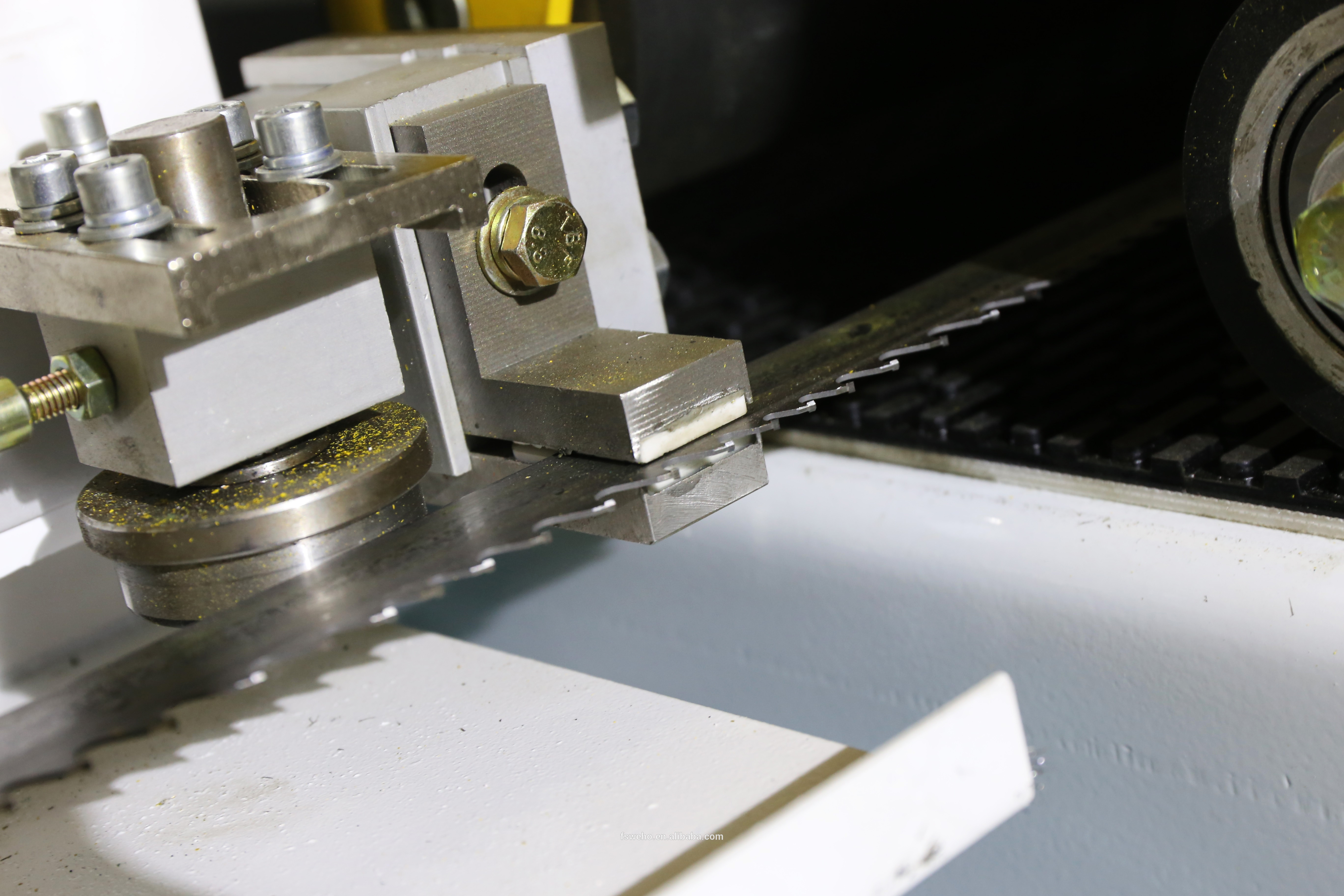

Wear-resistant ceramic saw clamp to protect the saw blade for efficient heat dissipation and better sawing surface quality
How to buy
1. Contact WEHO sales and provide your requirents to get best solutions2. Order confirmed, get invoice, contract from WEHO.
3. Normally, producton started against TT by 30% deposit.
4. After one week, WEHO sales inform you production state and delivery date.
5. Order finished, WEHO sales send you photos, videos and spare parts for confirmation.
6. Book shipping order, delivery the machine to your port.
How to do if I can not operate
When you get the machine, if you have operation problem, we will make video meeting to teach you. If video teaching can not solve, our engineers will go to your place, and all charges paid by customer's side.
How to get spare part after warranty
After many years using, service will be important. We will always responsible for weho machines, including find problems, send spart parts, and teach you to replace the parts.
