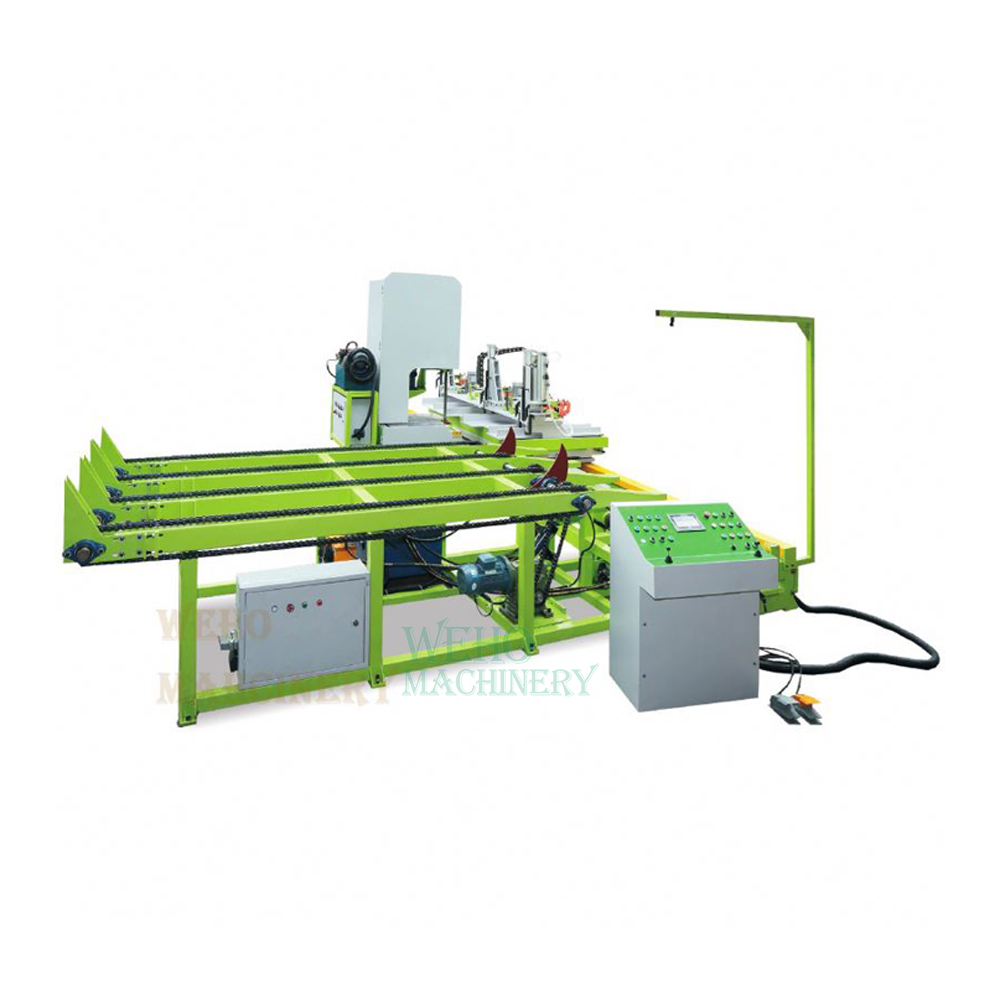

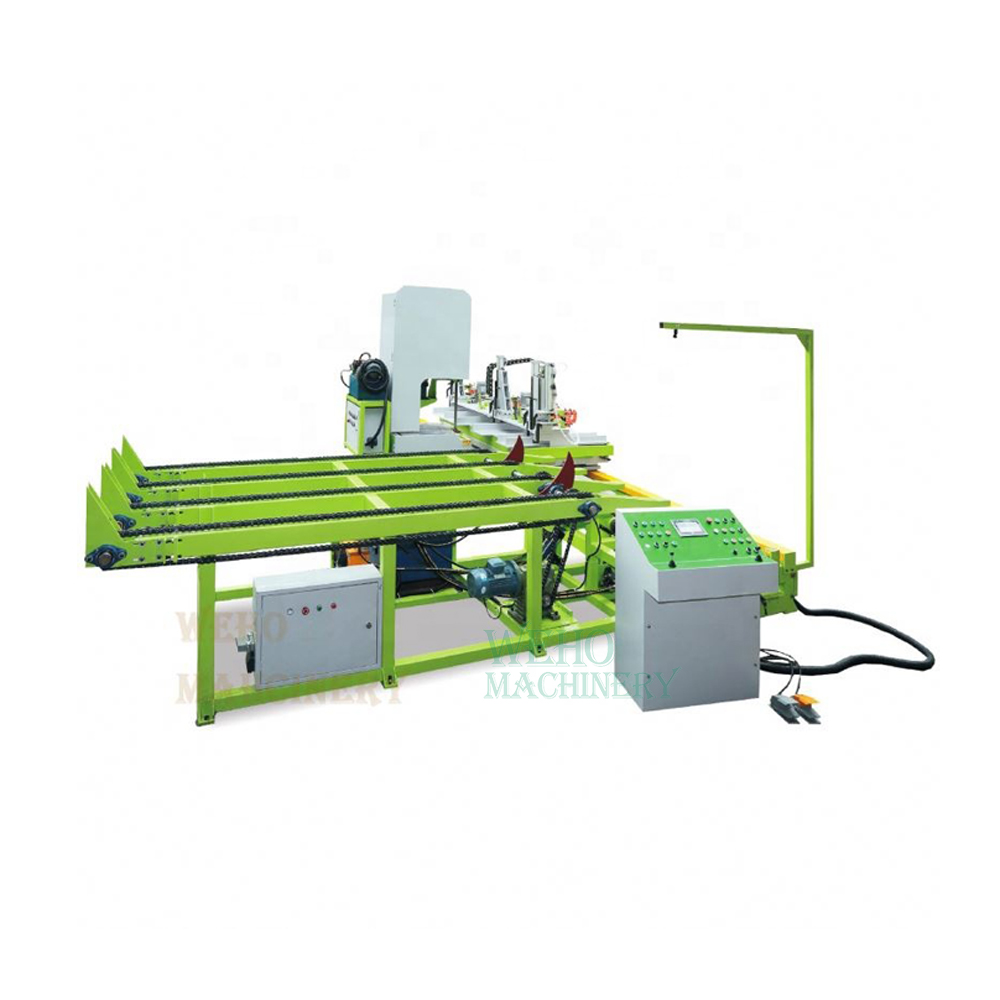

CNC control Industrial vertical wood mill cutting log band saw | Log Cutting Band Saw
Max.Working Width(mm):800 mm
Capacity cutting size:3000-6000mmL *800mm
Main motor power:21-50kw
Max. wood diameter:800
Feeding speed:5-35m/m
Blade rotating:650rmp
Suitable for large diameter Virgin forest wood log bandsaw.Slide the table adopt linear guide rail,fast and smooth cutting, Straightness is very high.
Using the HMI controll, flexible operation, convenient and use friendly.
All tracks are all sealed, in order to better dustproof, waterproof,improve the service life of the tracks.
| Modle | MJ800 |
| Length of blade | 6000mm |
| Feed speed(Variable) | 5-35m/min |
| Return speed | 50m/min |
| Specification of sawing plate | ≥3mm |
| Total motor power | 380V-50HZ 3.5KW |
| Pcking Dimensions | 4500*1500*2000mm |
| Cutting capacity | ≥800-2000mm |
| Min cutting thickness | 3mm |
| Max cutting dia | 800mm |
| Main cutting dia | 100mm |
| Wheel diameter | 810mm |
| Wheel width | 80mm |
| Width of blade | 90mm |
The [wood log bandsaw2] system comes standard with pneumatic clamping wood, also be changed to a hydraulic system devices according to customer requirements.
The footage is used in combination of precision ball screw servo motor control,it can quickly and accurately reach the desired size of the footage
[wood log bandsaw1] carriage technical parameter.
WEHO is professional for [wood log bandsaw1] designing, you will get satisfied solution, just contact us now.
WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines. Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
