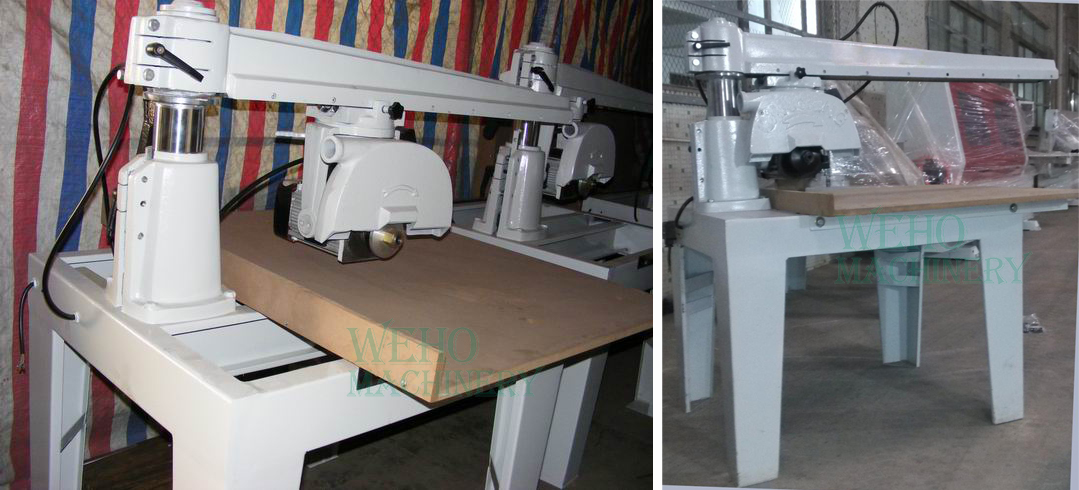

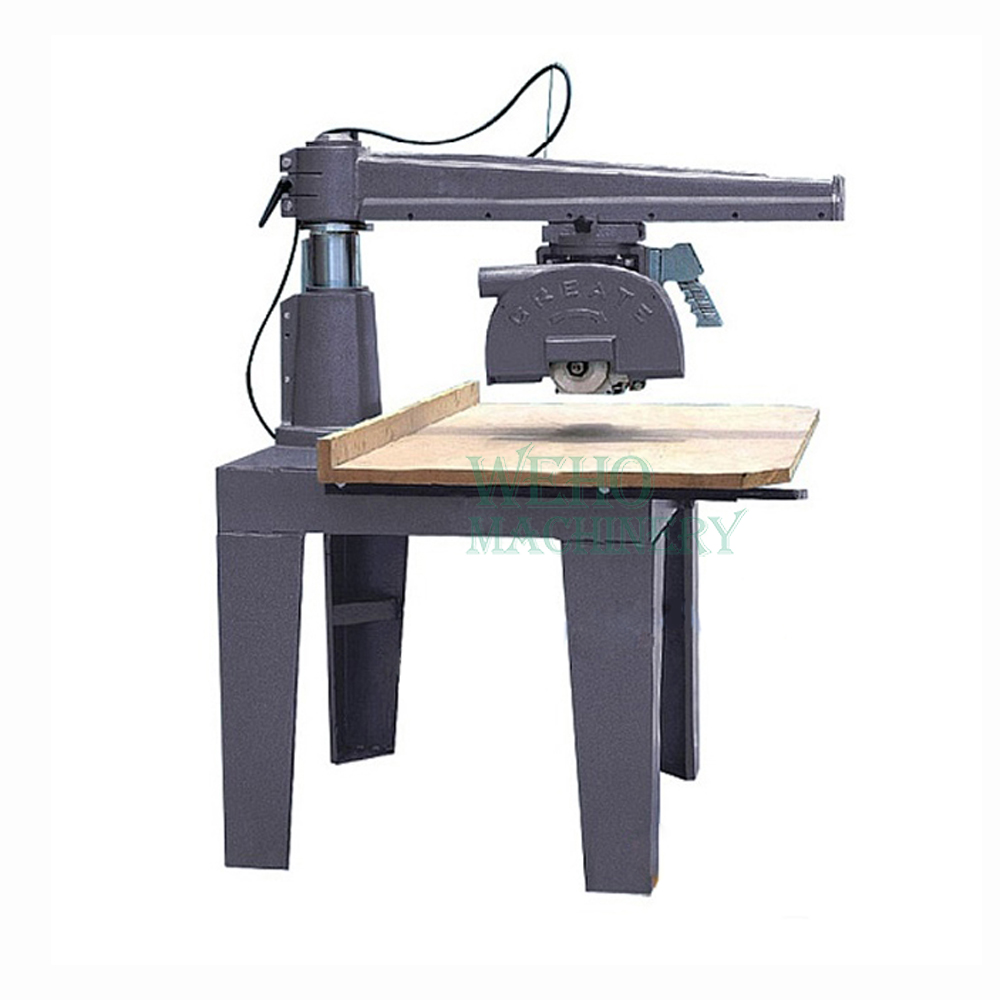

Circular saw machine Radial arm saw machine
Max. saw blade diameter:355 mm
Spindle bore:25.4 mm
Motor speed:2840 rpm
Head swiveling:0~180°
Head tilting:0~90°
Max cutting length:960 mm
Feature:Rail surface is nitriding hardened, friction and wear is reduced to the minimum. Precision ground for smooth and accurate slide of sawhead.
Sawhead runs on 8 ball bearings, provides for effortless moving and comfortable operation.
Rigidly constructed arm is one piece casted, assuring deformation free after years of operation.
Sawblade is driven with a high performance 4HP motor, compact and very light in weight.
Arm swivels 45° right and left.
|
Model |
MWJ930 |
|
Motor |
3 KW |
|
Motor speed |
2840 rpm |
|
Bearings for rails |
Linear bearing |
|
Spindle bore |
Ø25.4mm |
|
Max.saw blade diameter: |
φ355mm |
|
Head swiveling |
0~180° |
|
Head tilting |
0~90° |
|
Max cutting length |
960 mm |
|
Table area |
1120 * 860 mm |
|
Overall measurement |
990 * 1450 * 1350 mm |
|
Machine weight |
260kg |
Sawhead runs on 8 ball bearings, provides for effortless moving and comfortable operation.
Sawblade may be set at any angle, and locked securely at the desired setting.
Fully guarded sawblade gives maximum safety for the operator.
Anti-kickback pawls provides positive work holding and added safety.
Rigidly constructed arm is one piece casted, assuring deformation free after years of operation.
Sawblade is driven with a high performance 4HP motor, compact and very light in weight.
Arm swivels 45° right and left.
WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines. Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
