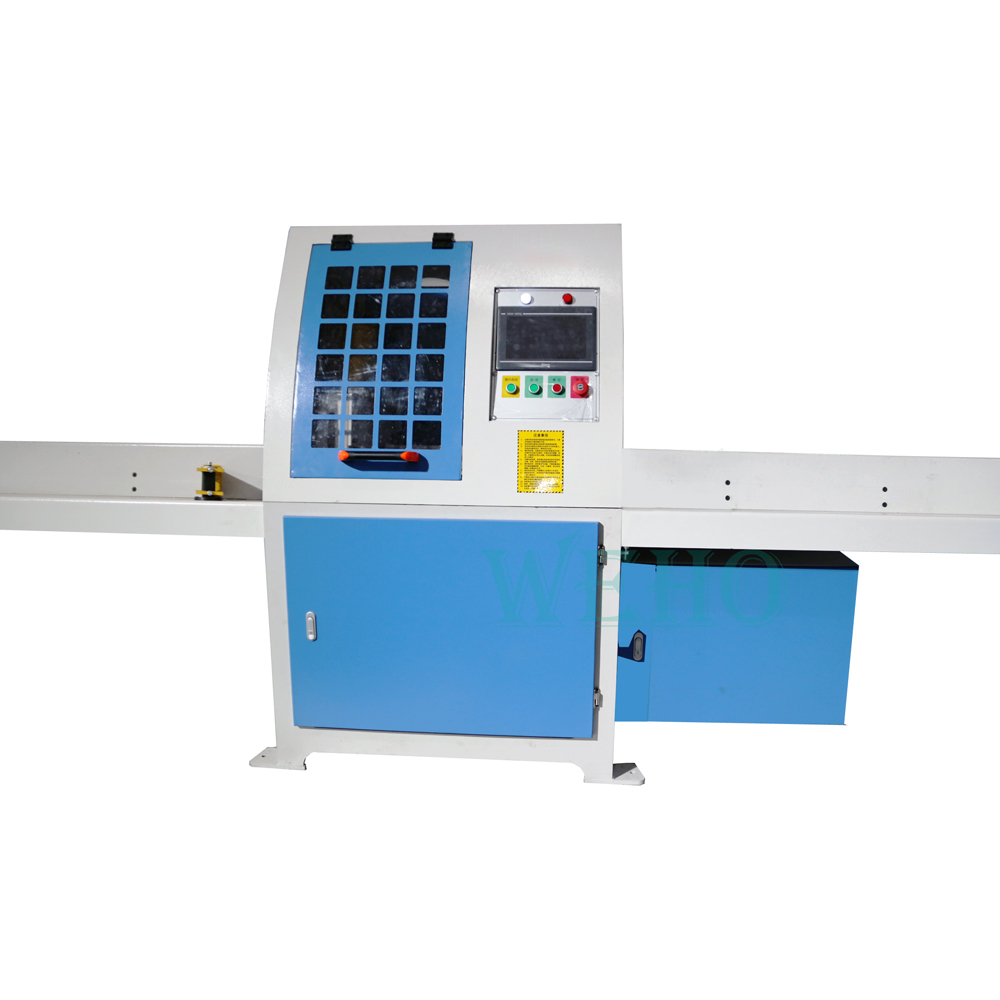

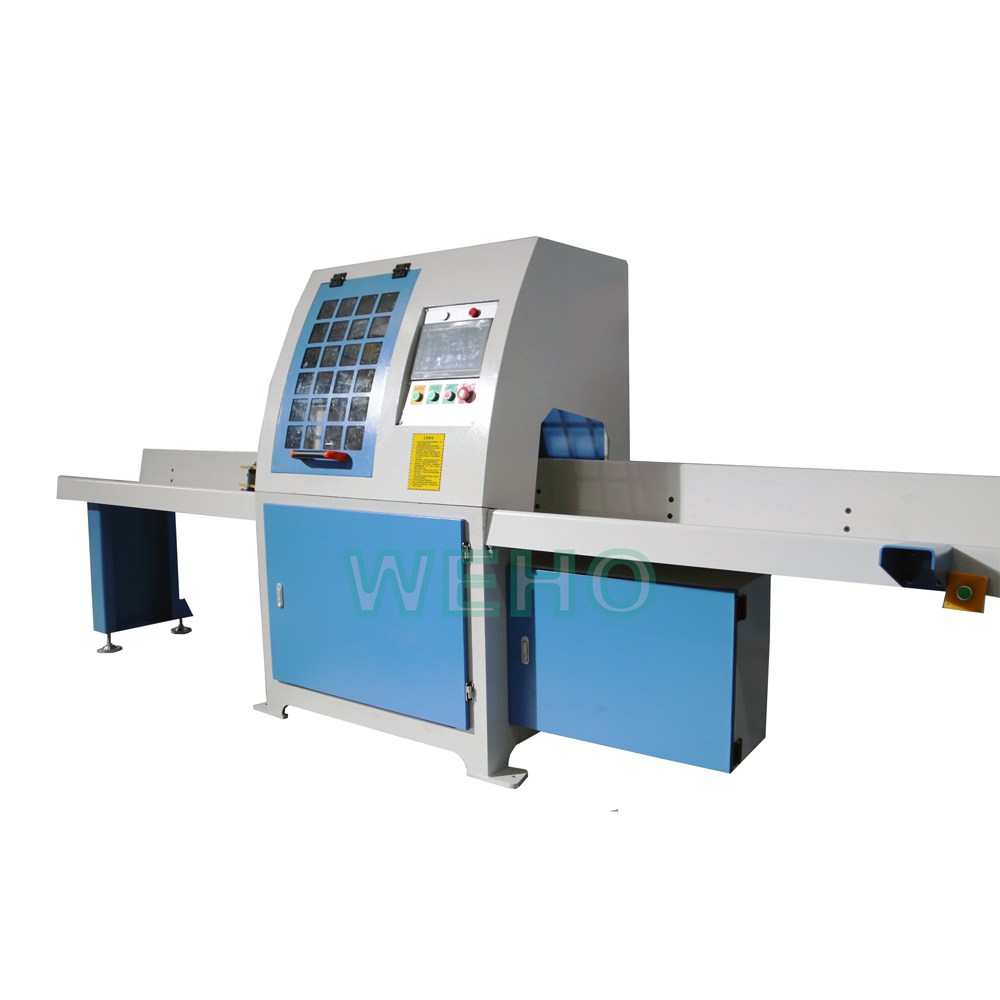

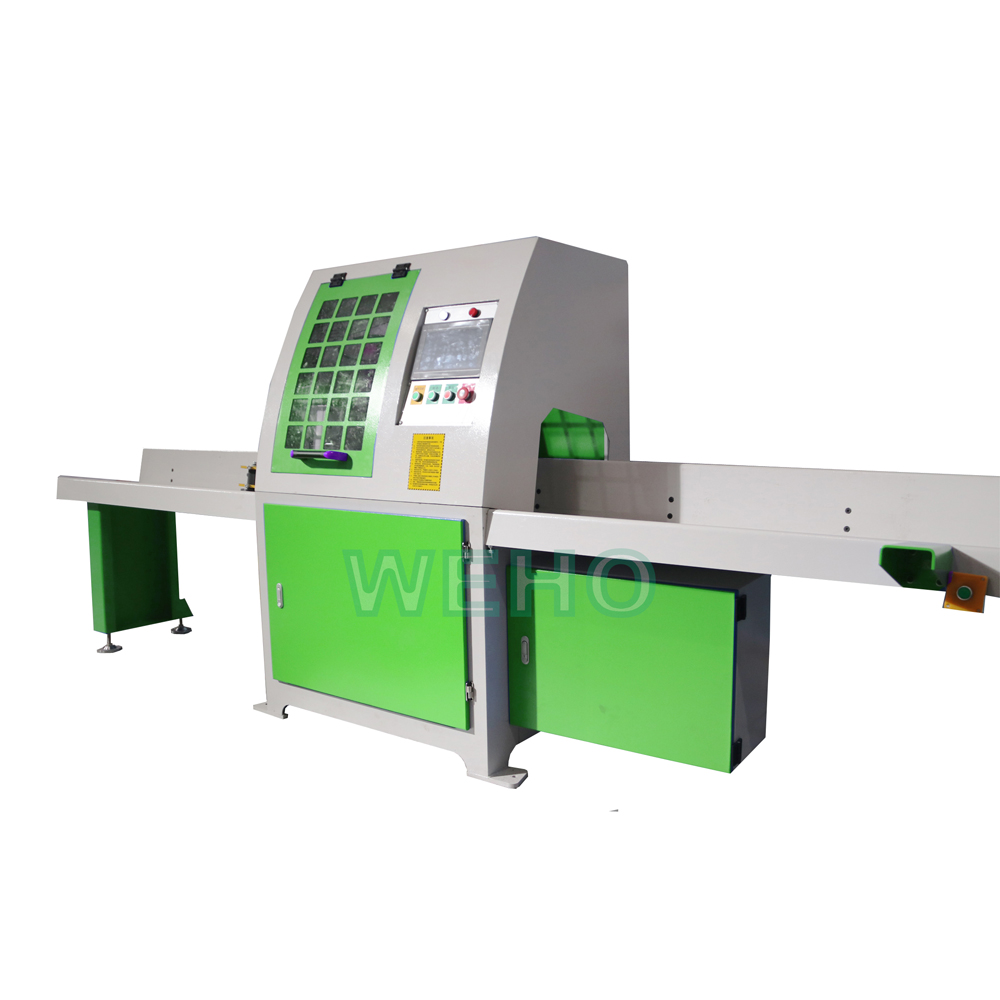

Circular saw for wood cross cutting 6 inch cut off saw machine
Sawing thickness:10-120mm
Sawing width:30-200mm
Max sawing length:6000mm
Saw shaft motor power:7.5KW
The automatic cutting saw is a high-efficiency cross-section saw with high efficiency , automatic control , safety and reliability.This model is suited for wooden,plastic board and other un-metral materials cutting off.
| Model | MJ6060 |
| Sawing thickness | 10-120mm |
| Sawing width | 30-200mm |
| Max sawing length | 6000mm |
| Max cutting cross section | 100*220mm |
| Feeding speed | 5-25m/min |
| Cutting speed | 4pcs/min |
| Saw blade size | 450mm*30mm |
| Saw shaft speed | 3500rpm |
| Feed servo motor | 750w |
| Saw shaft motor power | 7.5kw |
| Air pressure | 5-6kg/cm2 |
| Dust collecting port | 100mm*2 |
| Machanical dimensions | 9000*1200*1300mm |
| Sawing error | ±0.3mm |
Precision ground and balance chrome steel alloy arbor.Quick-adjust head clamp.Blade guard clamp holds the piece securely in place during the cut.Fast cutting rate,cucle speeds are adjustable for wood cut off saw machine.
Material clamp is easily adjusted for workpiece thickness variation.4' dust collection port,large side access door for quick easy blade changes.Easy belt tension is adjustment or replacement.
Motion cycles are pneumatically operated，easy operation,the cutting cycles is contrilled by twin buttons or a foot switch.Pneumatic foot pedal operation with adjustable cutting speed frome the front of the machine fast cutting rate.Material clamp is easily adjusted for workpiece thickness variation.
Powerful 7.5HP main motor.
After the operator pushes the wooden segment forward to resist the front fixed limit switch , the pressure cylinder automatically snaps into the wooden segment , and the saw blade automatically retracts after cutting off the wooden segment , repeating the operation a work cycles.
Heavy-duty steel cabinet is built with precision for extra stability and designed for maximun safety.In-feed and out-feed roller conveyors are standard for cut off saw.
The operation is simple and easy to understand , the working efficiency is more than 5 times that of the ordinary cutting saw , and the labor intensity of the operator is greatly reduced . It is a new and efficient wood processing equipment.
Circular saw for wood cross cutting
