| Model | MF2015AB |
| Precision | 0.01-0.02mm |
| Main spindle power | 10HP |
| Speed | 2800rpm |
| Max. Grinding Diameter | 300mm |
| Max. Grinding Length | 1500mm |
| Weight | 1400KG |
| Grinding wheel dimension | 205*115*145mm |
| Cutter rest adjustable angle | 0-90° |
| Wheel horizontal moving speed | 0-60Hz |
| Wheel head rotation speed | 1440r/min |
| Feeding electric motor power | 0.75kw |
| Water pump power | 90w |
| Working table size | 1500*200mm |
| Max. distance of wheel head horizontal lifting | 200mm |
| Overall size | 3400x1100x1600mm |
- Building 3 Shunheli Industrial Park,
- Lunjiao Shunde Foshan City Guandong China.
- Send Your Mail At
- weho@wehomachinery.com
- Working Hours
- Mon – Sat Day: 09.00 To 18.00
China factory High precise rotary cutter planer blade sharpening Guillotine knife paper cutter grinding machine | Planer Blade Sharpening Machine
Model:MF2515AB
Max. Grinding Diameter:300mm
Max. Grinding Length:1500mm
Grinding wheel dimension:205*115*145mm
Weight (KG):1600
Power (kW):7.5kw
Max. Grinding Diameter:300mm
Max. Grinding Length:1500mm
Grinding wheel dimension:205*115*145mm
Weight (KG):1600
Power (kW):7.5kw
Details
Spare Parts
Inquiry

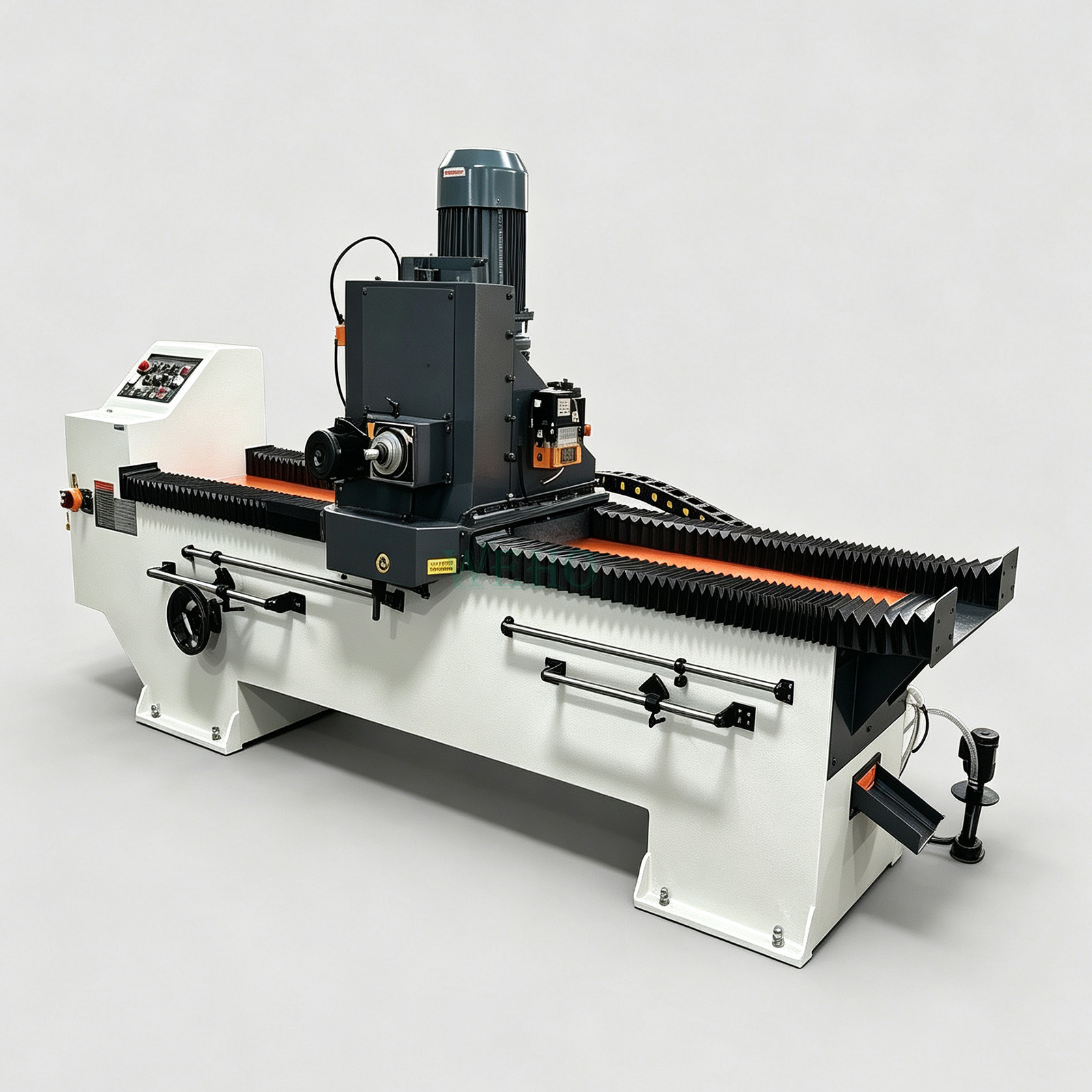

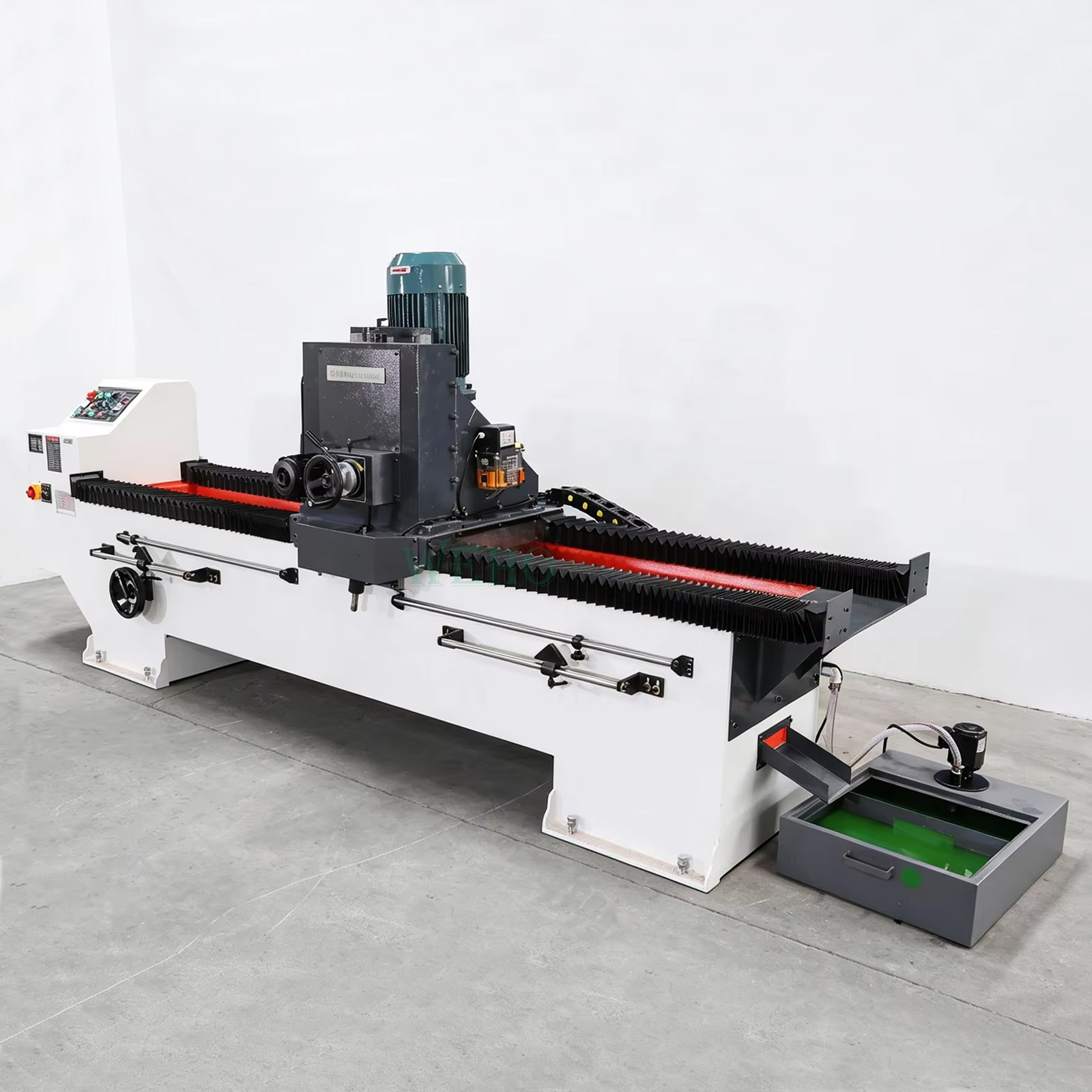

China factory High precise rotary cutter blade sharpener Guillotine knife paper cutter grinding machine
Available with grinding lengths ranging from 1500 mm to 3100 mm, or longer for special grinding purposes.Grinding wheel quick up and down approach, and slow down approach.
Suitable for a broad range of industrial straight knives, such as crusher knife blade, chipper knives, granulator blades, veneer knives, guillotine blades and paper knives. Rotating magnetic chuck from 0 to 90 (Polarity 20 mm)
Grinding motor 7.5 kW (7HP).Variable carriage speed from 1 to 30 m/min with carriage run adjustment.
China factory manufacture Straight Guillotine knife paper cutting blade sharpening machine
Automatic grinding wheel downfeed.
Programmable work cycles: roughing, finishing, spark-out;Separate coolant collection tank fitted with 90W motor pump.
It features a heavy-duty reinforced machine base which gives the maximum stability. PLC controls the carriage movement during the various stages of the working cycle.
35mm Linear guide rail made in Taiwan Hiwin, with sliding block , the grinding head moves more stable and precise.Mass production for the heavy duty knife grinding machines.
We provide 2 optional packaging ways for ocean shipment: Film / Wooden box
Note: Please confirm packaging type before order, extra cost will be generated for wooden crate package.
Note: Please confirm packaging type before order, extra cost will be generated for wooden crate package.
Professionally trained personnel inspect all phases of production to maintainWeho's high quality. Incoming and in-process material
testing and final machine inspection are only part of our rigorous quality assurance program.
testing and final machine inspection are only part of our rigorous quality assurance program.
What kinds of blades can this linear knife grinder sharpen?
It sharpens straight blades: abandoned blade, planer blades, jointer knives, guillotine shearing knives, paper cutter knives, wood chipper blades and other long straight industrial cutting blades.
What is the maximum sharpening length of the machine?
Multiple working lengths optional, common models: 1000mm /1500mm /2000mm/3000mm. Custom length is available.
Is it automatic or manual feeding?
Automatic traverse feeding, the grinding head moves automatically along the blade; blade clamping is manual quick‑fix. PLC control panel for easy operation.
What material of grinding wheel does it use?
Standard with white corundum grinding wheel; diamond/CBN grinding wheel is optional for high‑speed‑steel & carbide blades. Grinding wheels of different materials are designed for different grinding blades.
How to fix the blade on machine?

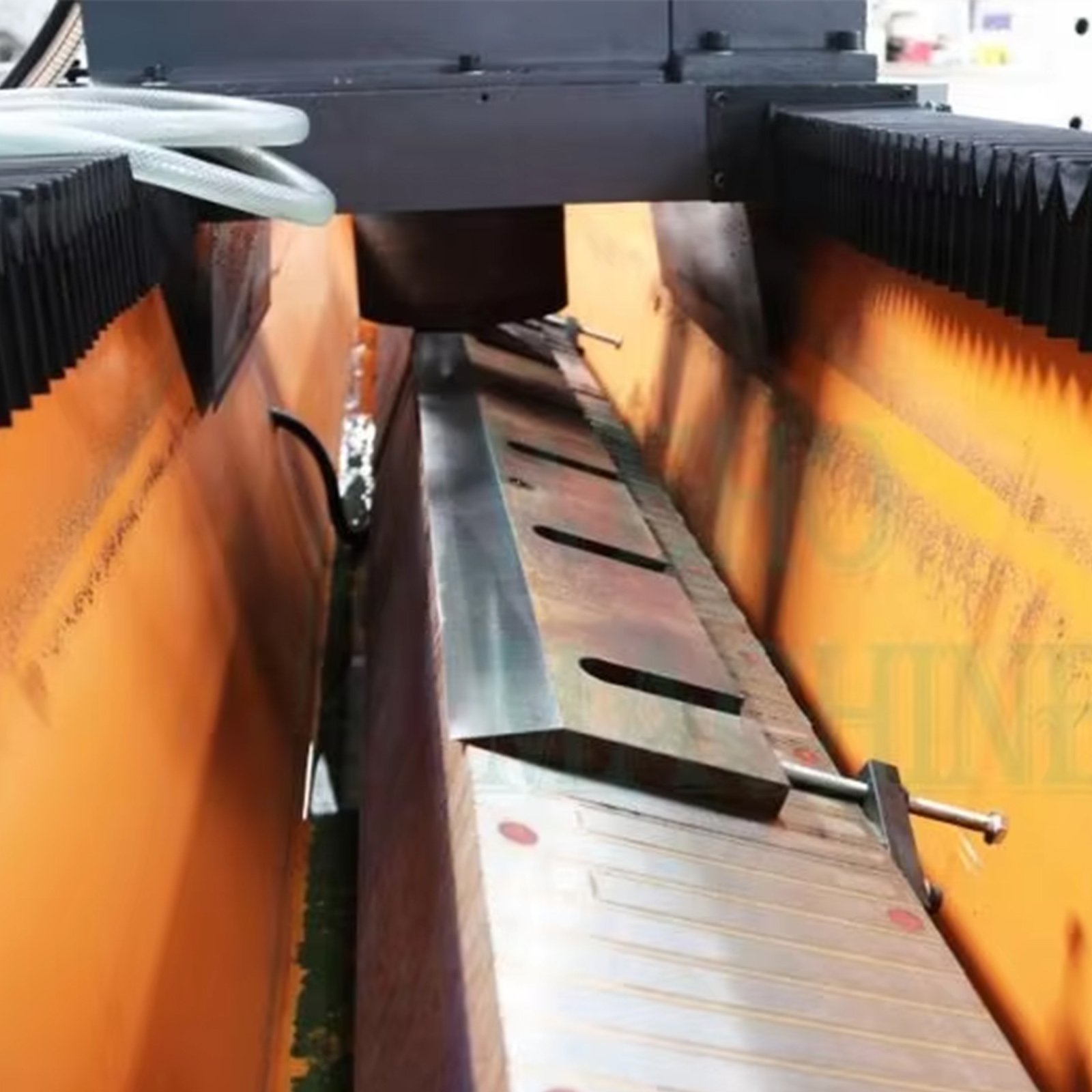

Equipped with heavy‑duty clamping fixture. Lay blade flat, lock side pressing blocks, ensure blade tightly fixed before grinding. Magnetic options available.
How to buy?
1. Contact WEHO sales and provide your requirents to get best solutions
2. Order confirmed, get invoice, contract from WEHO.
3. Normally, producton started against TT by 30% deposit.
4. After one week, WEHO sales inform you production state and delivery date.
5. Order finished, WEHO sales send you photos, videos and spare parts for confirmation.
6. Book shipping order, delivery the machine to your port.
1. Contact WEHO sales and provide your requirents to get best solutions
2. Order confirmed, get invoice, contract from WEHO.
3. Normally, producton started against TT by 30% deposit.
4. After one week, WEHO sales inform you production state and delivery date.
5. Order finished, WEHO sales send you photos, videos and spare parts for confirmation.
6. Book shipping order, delivery the machine to your port.
How to do if I can not operate?
When you get the machine, if you have operation problem, we will make video meeting to teach you. If video teaching can not solve, our engineers will go to your place, and all charges paid by customer's side.
When you get the machine, if you have operation problem, we will make video meeting to teach you. If video teaching can not solve, our engineers will go to your place, and all charges paid by customer's side.
How to get spare part after warranty?
After many years using, service will be important. We will always responsible for weho machines, including find problems, send spart parts, and teach you to replace the parts.
After buying, technical supporting contact 008613326792205
Planer Blade Sharpening Machine
After many years using, service will be important. We will always responsible for weho machines, including find problems, send spart parts, and teach you to replace the parts.
After buying, technical supporting contact 008613326792205
Planer Blade Sharpening Machine
