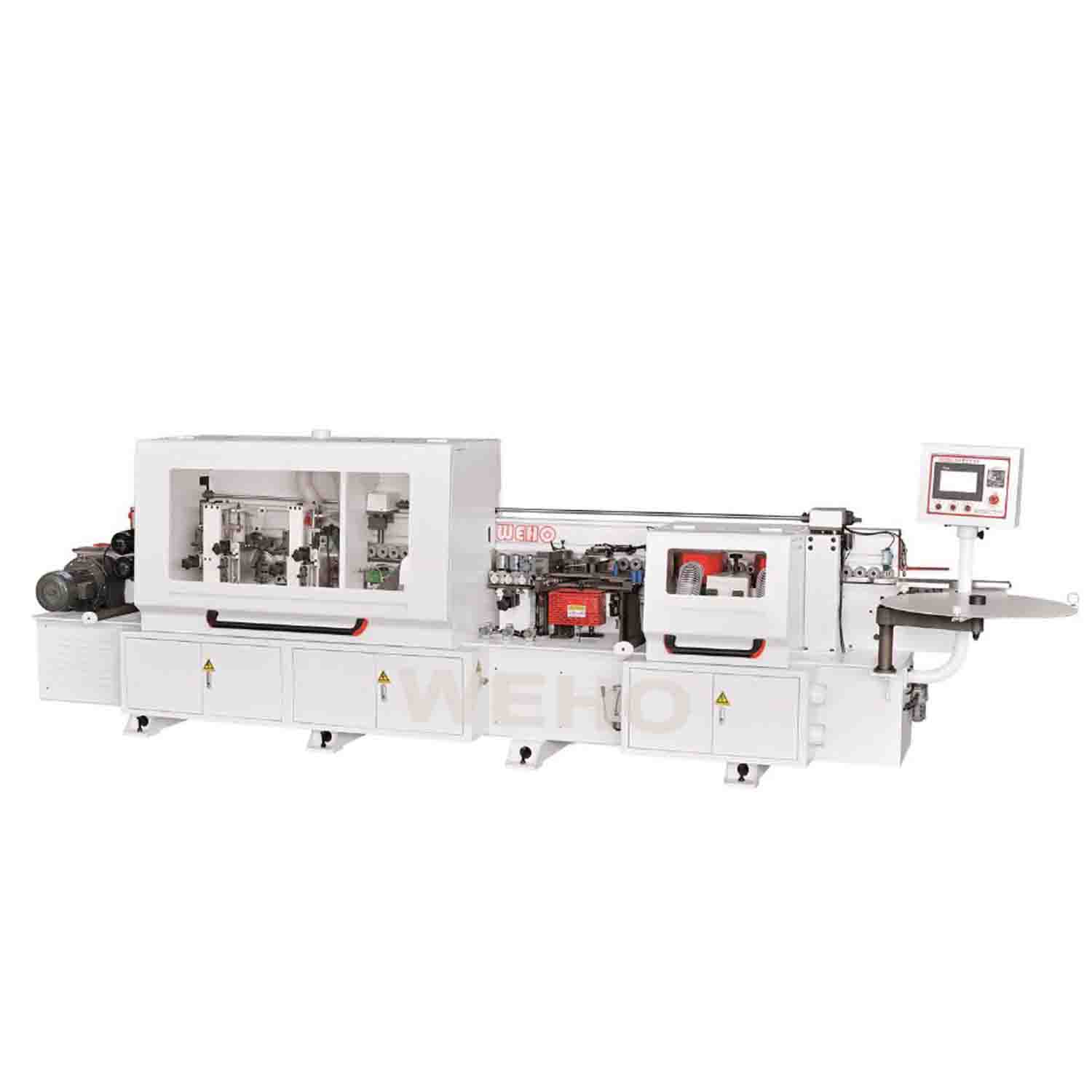

Cabinet plywood melamine edge banding trimming machine

Model:MW336B
Min. panel length:150mm
Min width of board:150mm
Feeding speed:13-22m/m
Packing size:4400*1100*1200mm
Weight:1000
Power (kW):10.5
Contact Us Send Inquiry
Details
Spare Parts
Inquiry

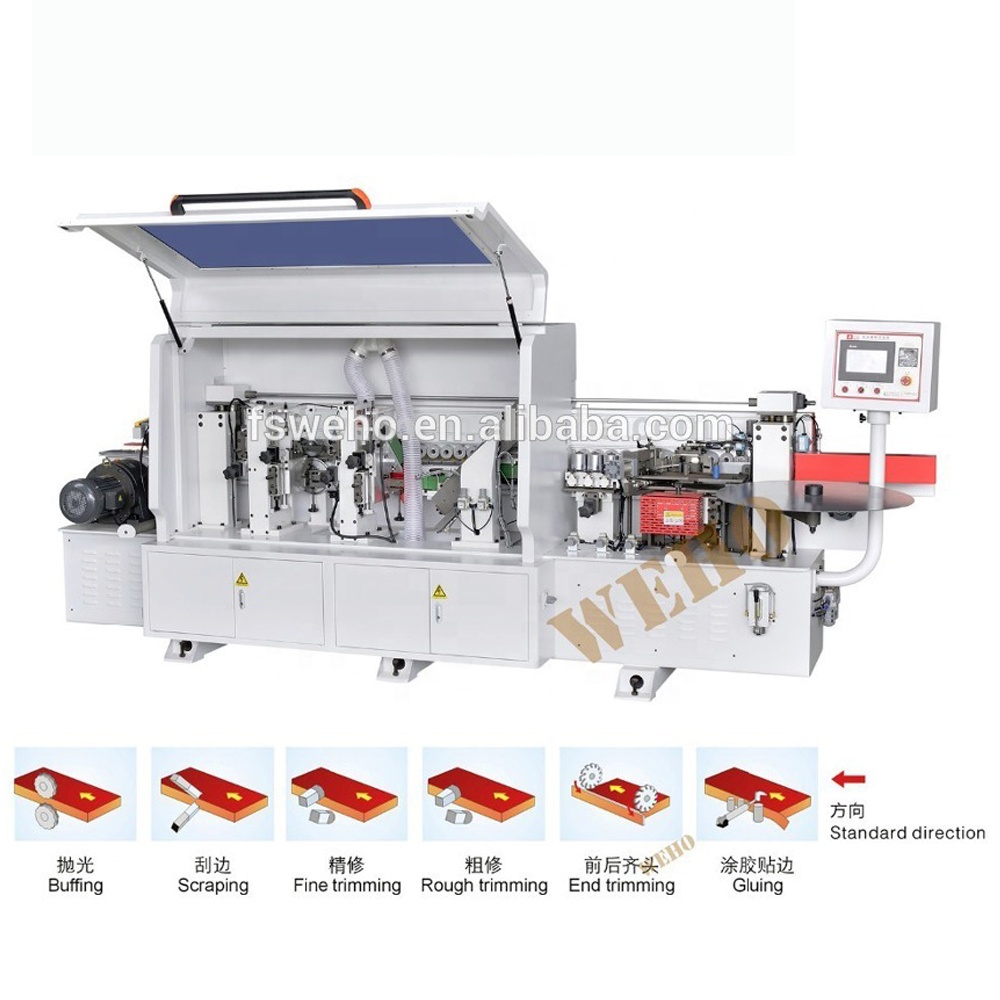

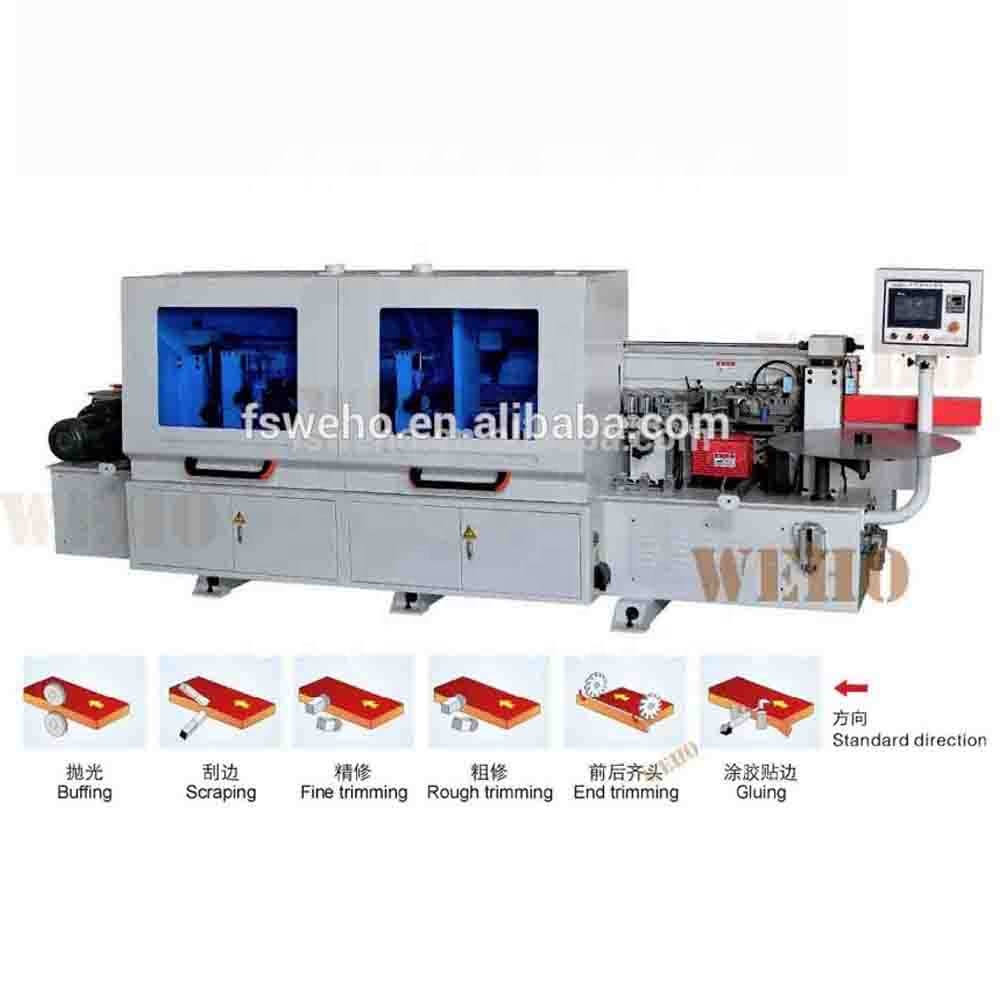

This machine is suitable for functions,gluing, end trimming,rough trimming, fine trimming, scrapping, buffing.
Product Name
Edge banding machine manufacturers suppliers in China
Model
MW336B
Min. panel length
150mm
Min. panel width
150mm
Panel thickness
10-60mm
Edging thickness
0.3-3mm
Feeding speed
13-22m/min
Machine power
10.5kw
Air pressure
0.6mpa
N/W
1000kg
Overall size
4420*900*1600mm

This wood edge banding machine adopt PLC control system, man-machine dialogue friendly interface, easy to operate.





Characters: Equipped with fault alarm device, it shut down automatic once failure appears. It has failure detected automatic, easy to check failure reason.
Edge banding machine structure is compact and have a reasonalbe disposition. It works steadily and operates safely.

Installed with optimization software, automatic positioning by barcode data importing directly, adjust position automatically to seal edge band.
Wood cabinet CNC premill contour edgebander for sale is adjustable.The machine adopts the devices of sound insulation, controlling of dust, prevent the overlading,auxiliary frame electrical adjusted.Blow up and down the side, surface polishing up and down and so on

WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines.
Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
