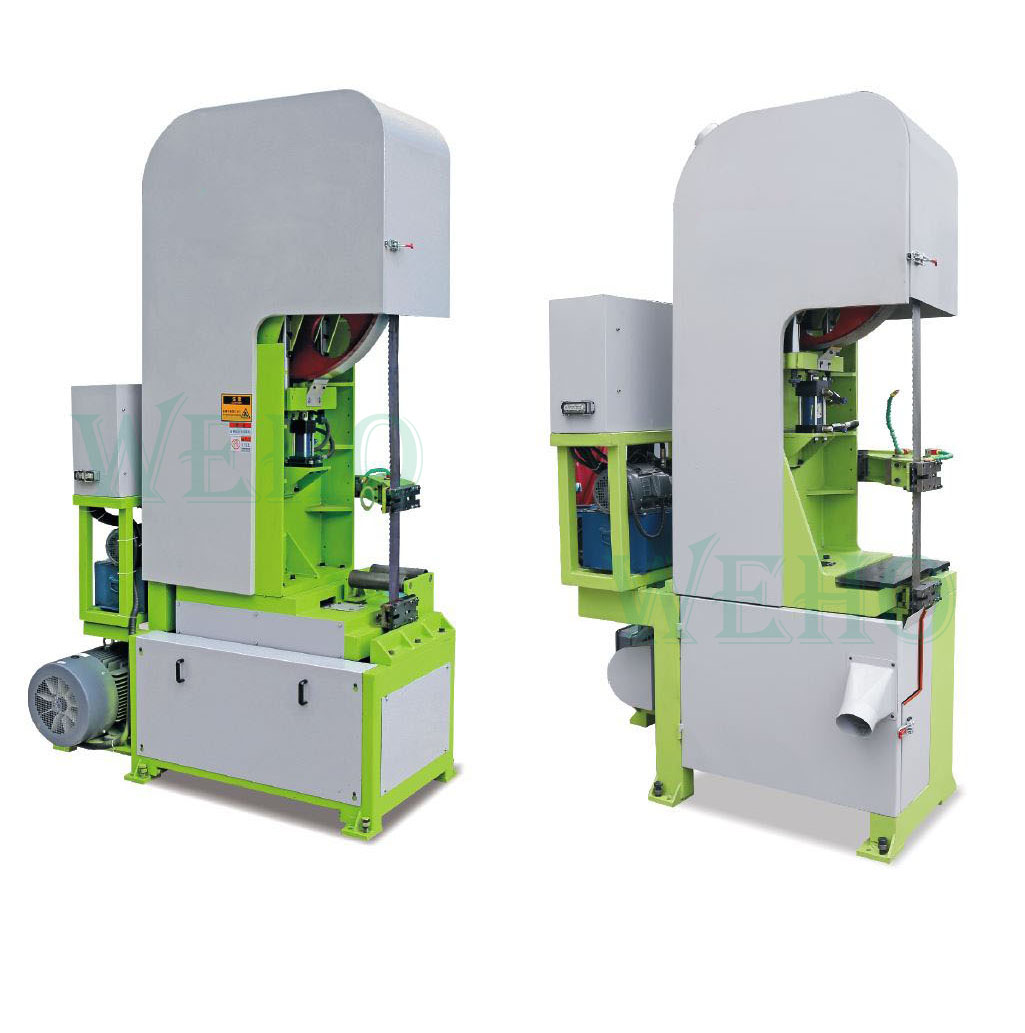

Band saw machine Fully automatic vertical bandsaw mill to cut logs and carrage band log machine
Model: MJ500-3000
Length of blade: 6000mm
Feed speed: 5-35m/min
Return speed: 50m/min
Specification of sawing plate: >=300
Total motor power: 380V~50HZ3.5KW
Packing dimensions: 4500*1500*2000mm
Cutting capacity: >=800-2000mm
Min cutting thickness: 3mm
Max cutting dia: 500mm
Min cutting dia: 100mm
Wheel width: 810mm
Wheel width: 80mm
Width of blade: 90mm
Length of blade: 6000mm
Feed speed: 5-35m/min
Return speed: 50m/min
Specification of sawing plate: >=300
Total motor power: 380V~50HZ3.5KW
Packing dimensions: 4500*1500*2000mm
Cutting capacity: >=800-2000mm
Min cutting thickness: 3mm
Max cutting dia: 500mm
Min cutting dia: 100mm
Wheel width: 810mm
Wheel width: 80mm
Width of blade: 90mm
Details
Spare Parts
Inquiry

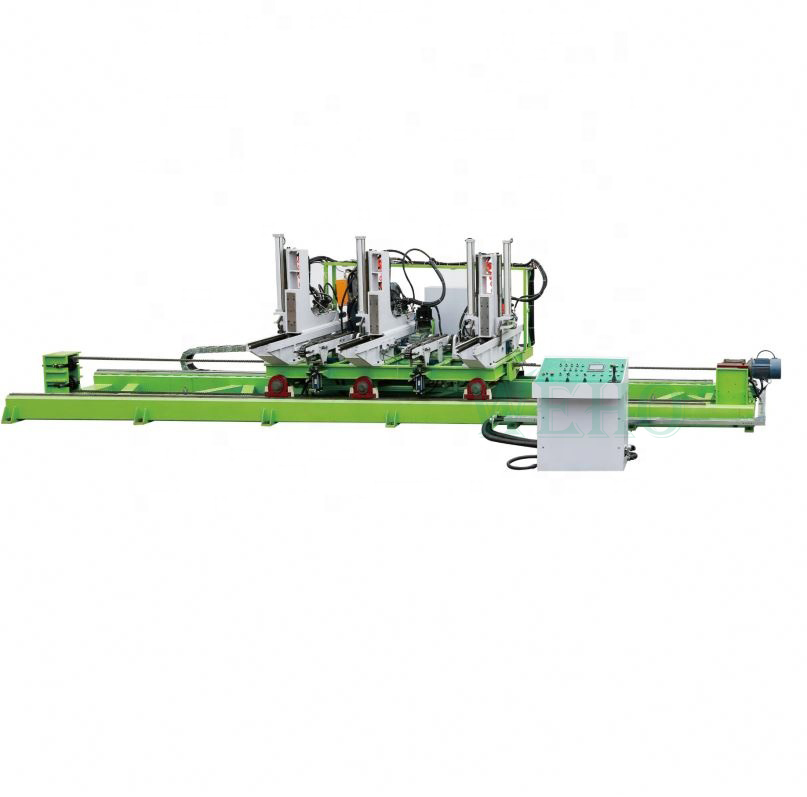

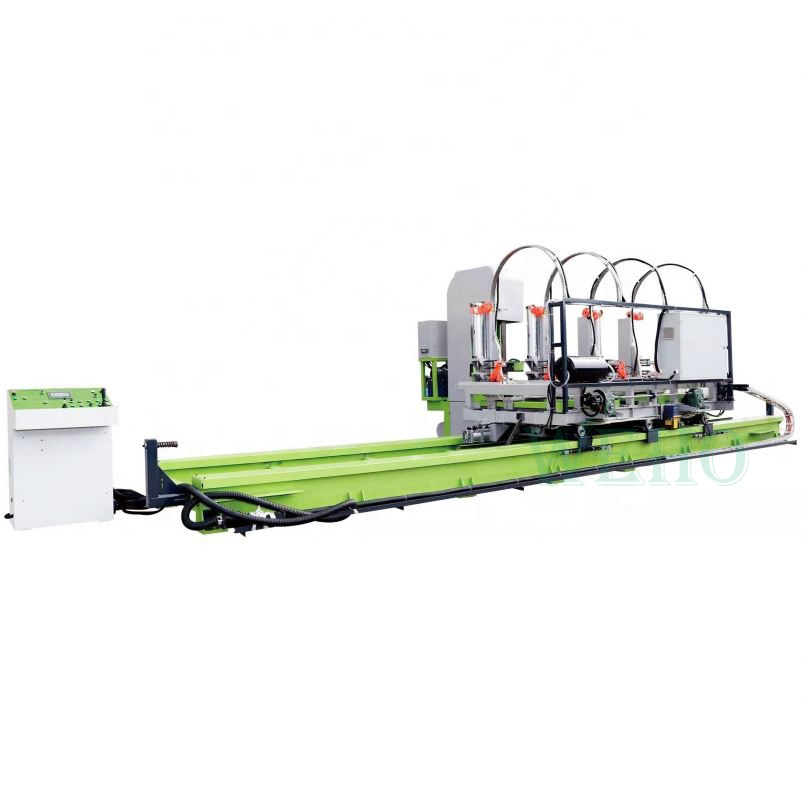

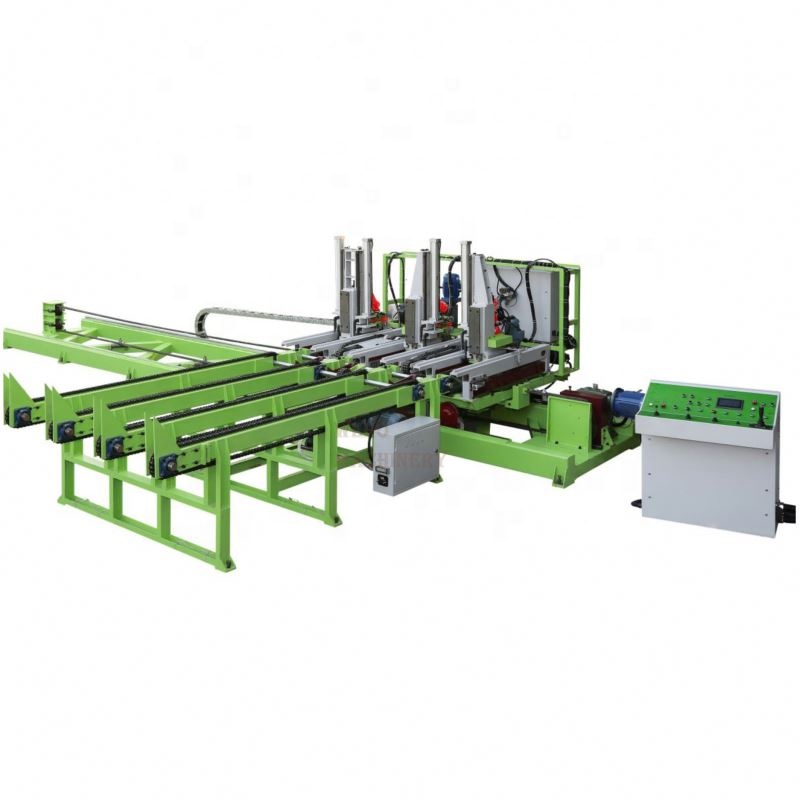

Fully automatic vertical bandsaw mill to cut logs and carrage band log machine
The pvertical bandsaw mill to cut logs and carrage suitable for large diameter Virgin forest [harbor freight log mill1].

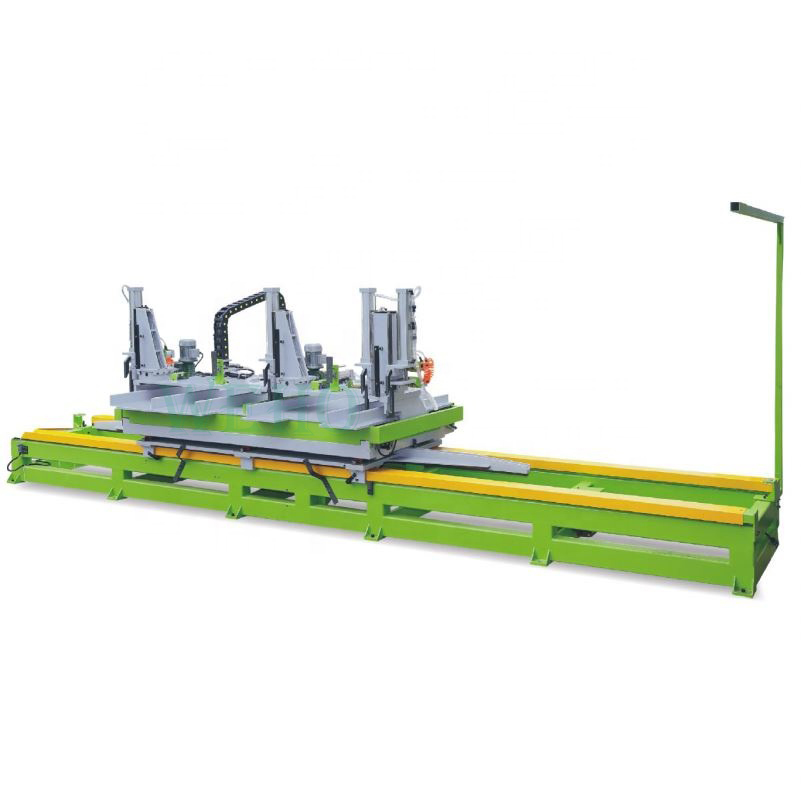

Slide the table adopt linear guide rail,fast and smooth cutting, Straightness is very high.
| Model | MJ500-3000 |
| Length of blade | 6000mm |
| Feed speed | 5-35m/min |
| Return speed | 50m/min |
| Specification of sawing plate | >=300 |
| Total motor power | 380V~50HZ 3.5KW |
| Packing dimensions | 4500*1500*2000mm |
| Cutting capacity | >=800-2000mm |
| Min cutting thickness | 3mm |
| Max cutting dia | 500mm |
| Min cutting dia | 100mm |
| Wheel width | 810mm |
| Wheel width | 80mm |
| Width of blade | 90mm |
The log saw machine using the HMI controll, flexible operation, convenient and use friendly.
All tracks are all sealed, in order to better dustproof, waterproof,improve the service life of the tracks.
The [harbor freight log mill system comes standard with pneumatic clamping wood, also be changed to a hydraulic system devices
according to customer requirements.
The band saw machine footage is used in combination of precision ball screw servo motor control,it can quickly and accurately reach the desired size of the footage.
WEHO is professional for [harbor freight log mill1] designing, you will get satisfied solution, just contact us now.
How to buy
1. Contact WEHO sales and provide your requirents to get best solutions2. Order confirmed, get invoice, contract from WEHO.
3. Normally, producton started against TT by 30% deposit.
4. After one week, WEHO sales inform you production state and delivery date.
5. Order finished, WEHO sales send you photos, videos and spare parts for confirmation.
6. Book shipping order, delivery the machine to your port.
How to do if I can not operate
When you get the machine, if you have operation problem, we will make video meeting to teach you. If video teaching can not solve, our engineers will go to your place, and all charges paid by customer's side.
How to get spare part after warranty
After many years using, service will be important. We will always responsible for weho machines, including find problems, send spart parts, and teach you to replace the parts.
