Automatic length feeder wood circular cross cutting saw machine | Circular Saw Machine
Model:MJ2445R
Spindle rotation speed:1850rpm
Max. cutting Width:300*20mm
Saw blade size:diameter300mm
Max. cutting thickness:110*220mm
Spindle rotation speed:1850rpm
Max. cutting Width:300*20mm
Saw blade size:diameter300mm
Max. cutting thickness:110*220mm
Details
Spare Parts
Inquiry
Circular saw Wood cross cutting machine with automatic length feeder, imput cutting length to touch screen, finished cross cutting to suitable size automatically.

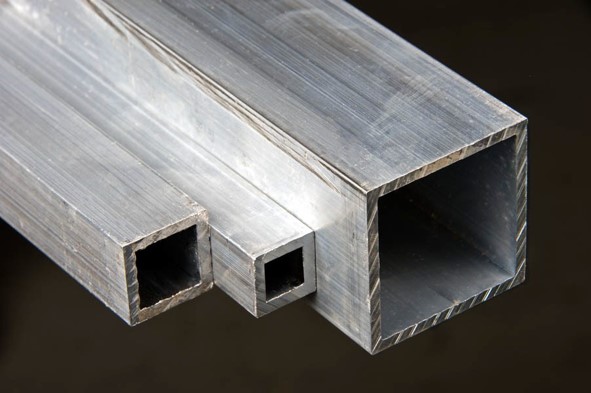

This model is suited for wooden ,plastic board, aluminium and other similar materials cutting off.
|
Produce name
|
circular saw Wood cross cutting machine
|
|
Model
|
MJ2445R
|
|
Cutting power
|
5.5Kw
|
|
Max cutting Width
|
300x20mm
|
|
Max cutting thickness
|
110x220mm
|
|
Saw blade diameter
|
300mm
|
|
Spindle rotation speed
|
1850rpm
|
|
Pneumatic control
|
By Foot switch
|
|
Machine size
|
4250x1150x1650mm
|
|
Machine Weight
|
350kg
|
|
Supporting roller
|
4000mm
|
Fast cutting rate, Cycle speeds are adjustable for wood cut off saw machine. Motion cycles are pneumatically operated, and conveniently controlled by a foot switch. Easy belt tension is adjustment or replacement. In-feed and out-feed roller conveyors are standard for cut off saw.
4" dust collection port. Large side access door for quick easy blade changes.
Precision ground and balanced chrome steel alloy arbor. Blade guard clamp holds the piece securely in place during the cut.Heavy-duty steel cabinet is built with precision for extra stability and designed for maximum safety. Easy operation, the cutting cycle is controlled by twin buttons or a foot switch (included).

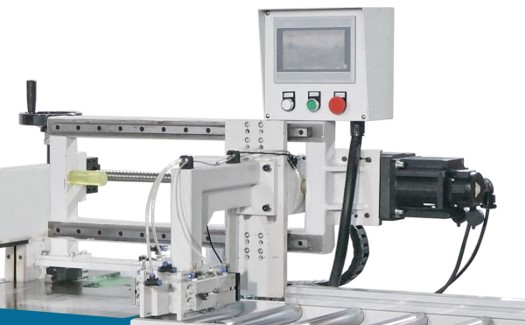

Circular saw Wood cross cutting machine with automatic length feeder
Available in Right Hand & Left Hand configuration Powerful 7.5HP main motor Pneumatic foot pedal operation with adjustable cutting speed from the front of the machine Fast cutting rate.
Material clamp is easily adjusted for workpiece thickness variation.
STANDARD EQUIPMENT – Pneumatic blade feed. – Two-handed safety starting system. – Variable blade feed speed. – TCT saw blade Ø 350 mm. – Working table of 1.2 mt. left from the blade. – Working table of 1.2 mt. right from the blade.
WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines. Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
