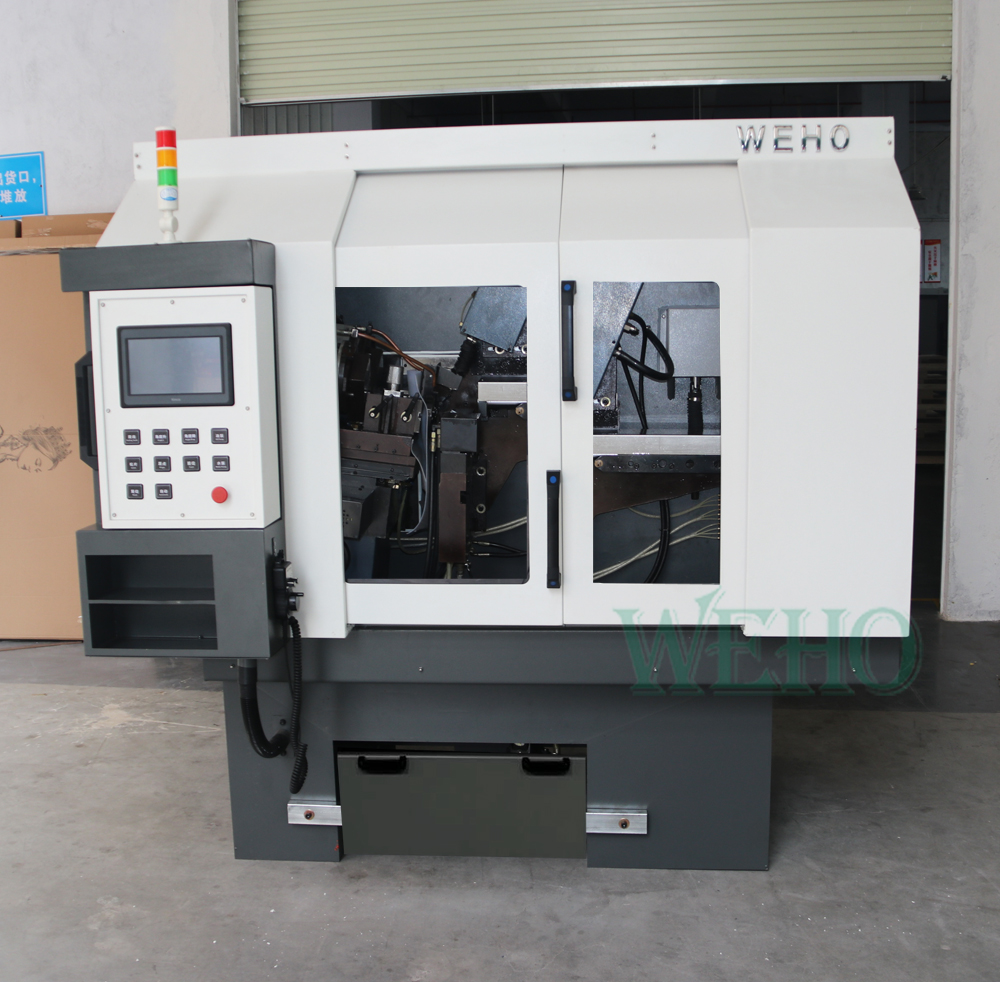

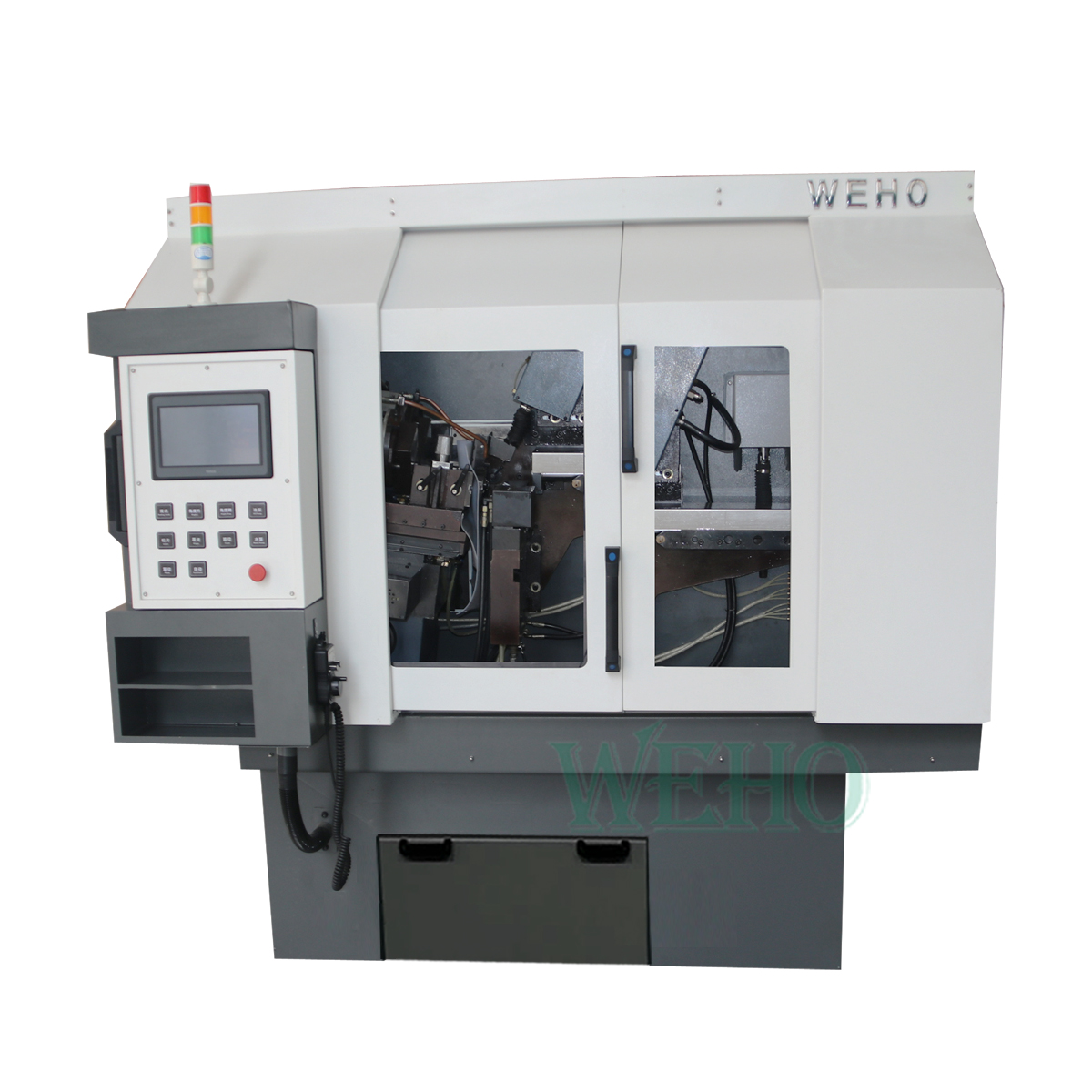

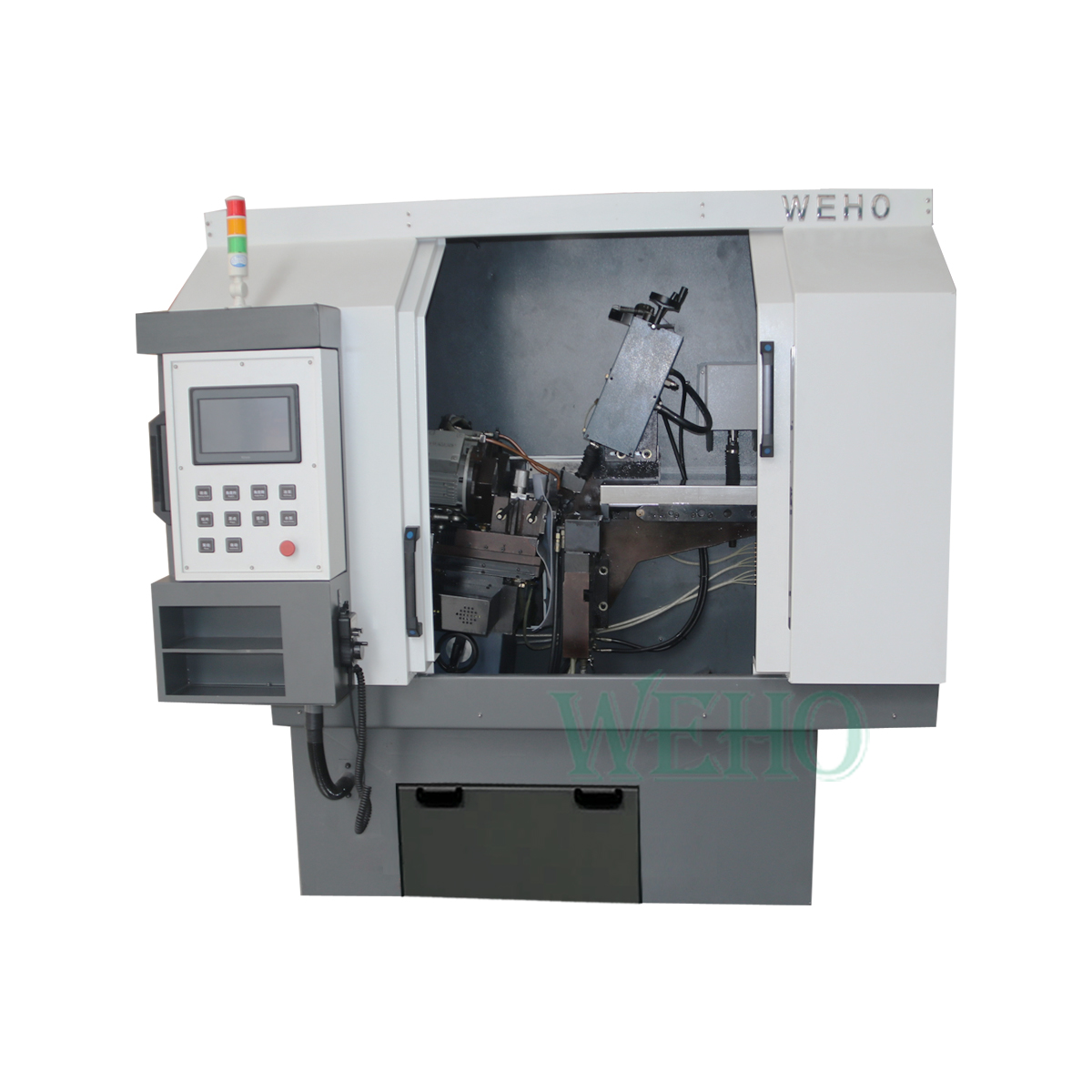

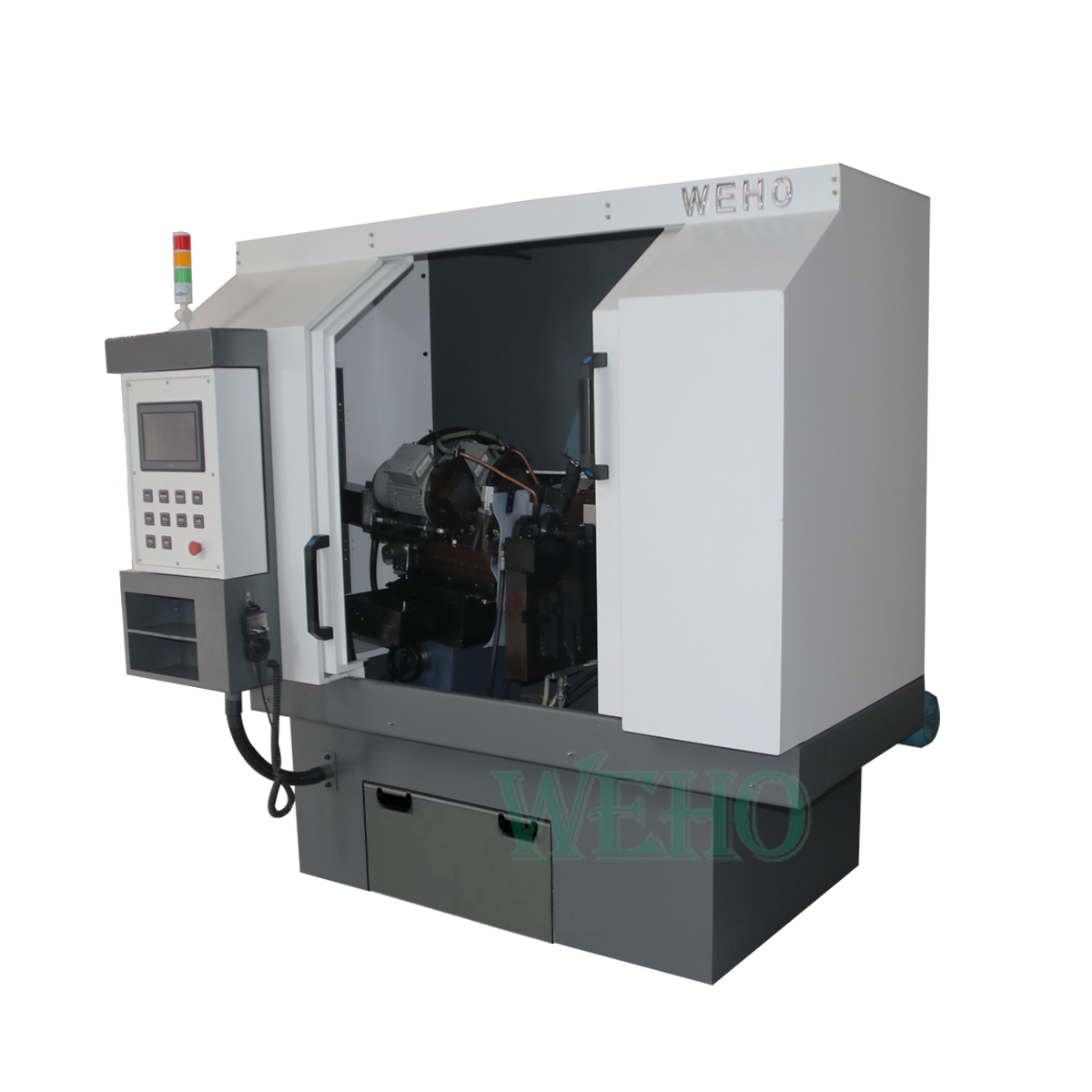

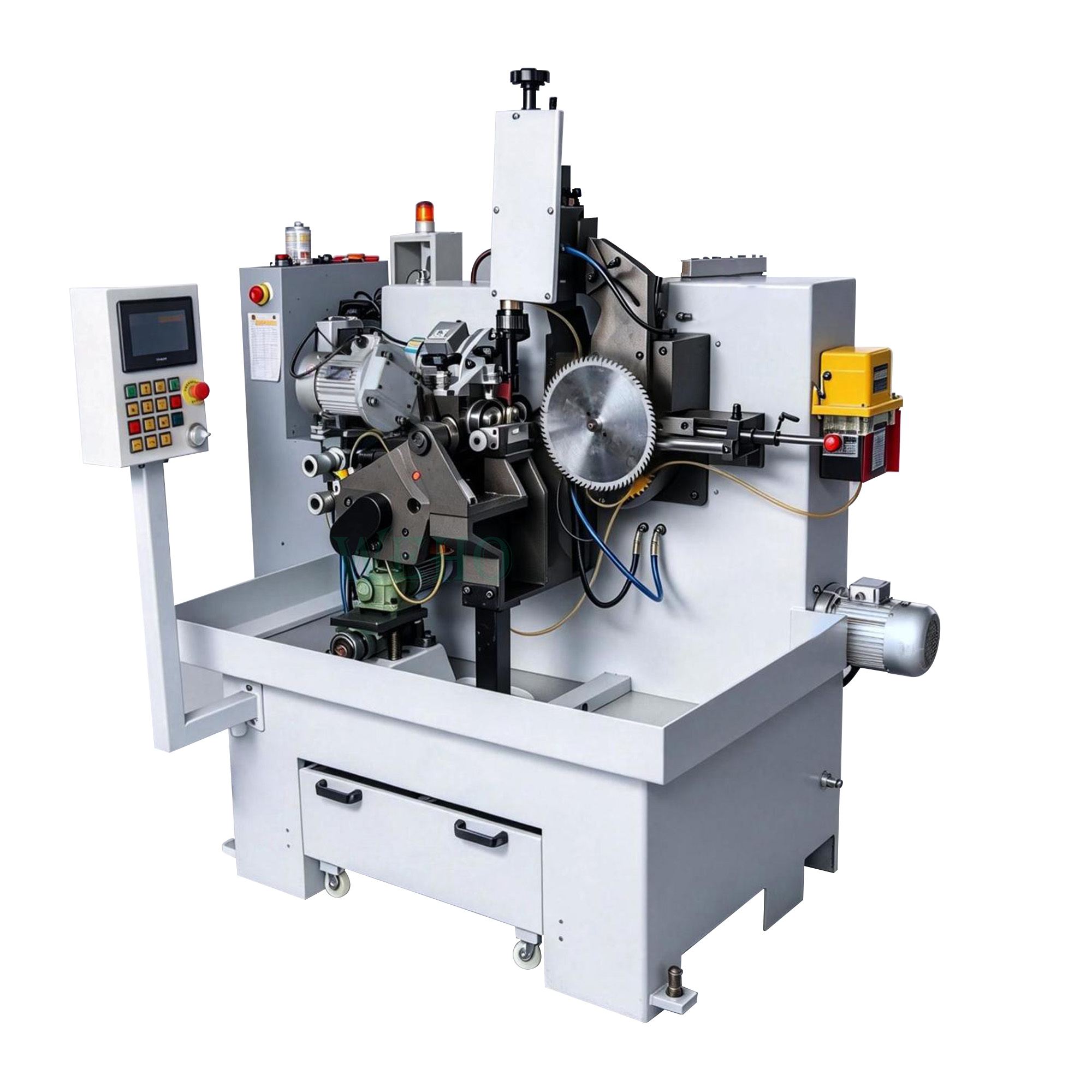

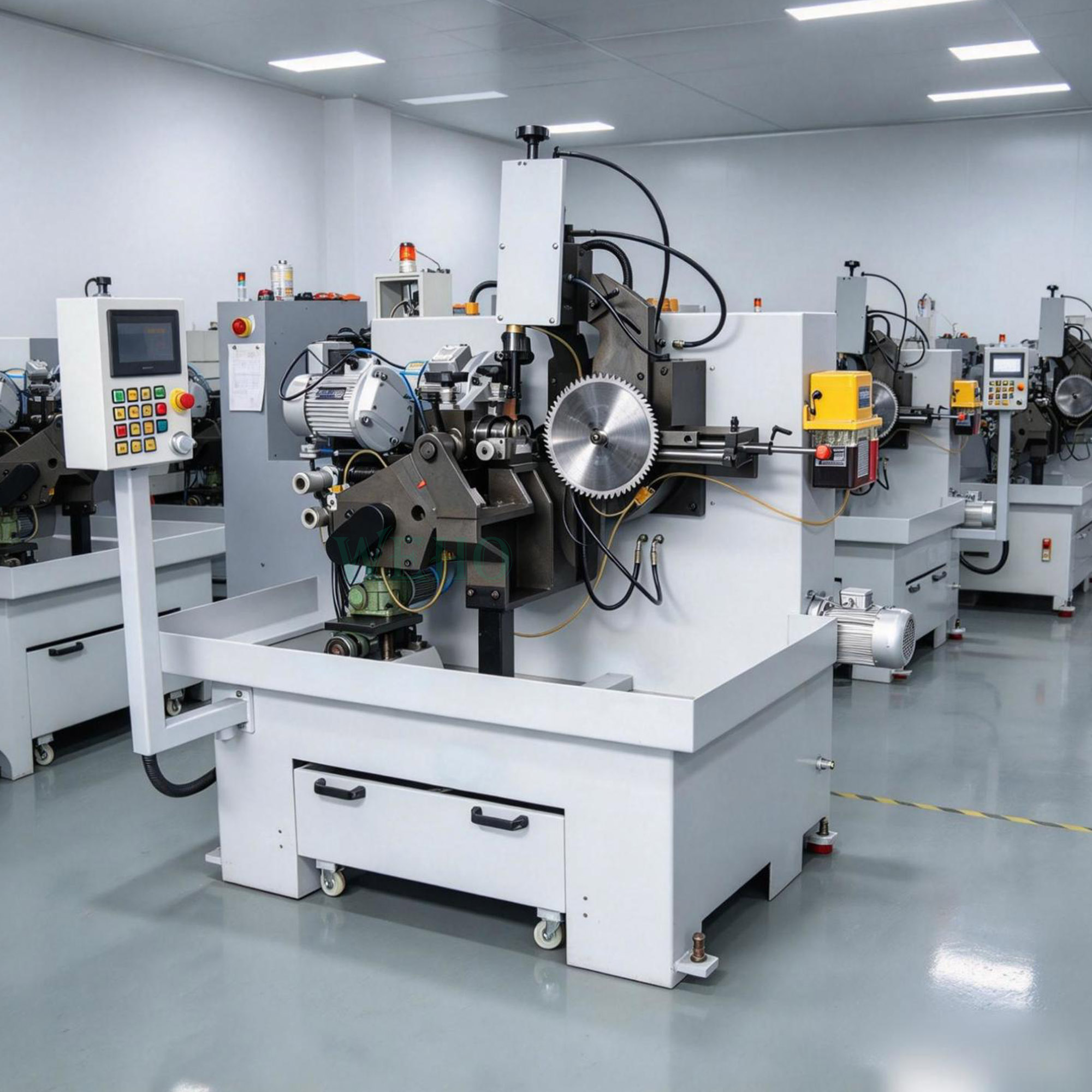

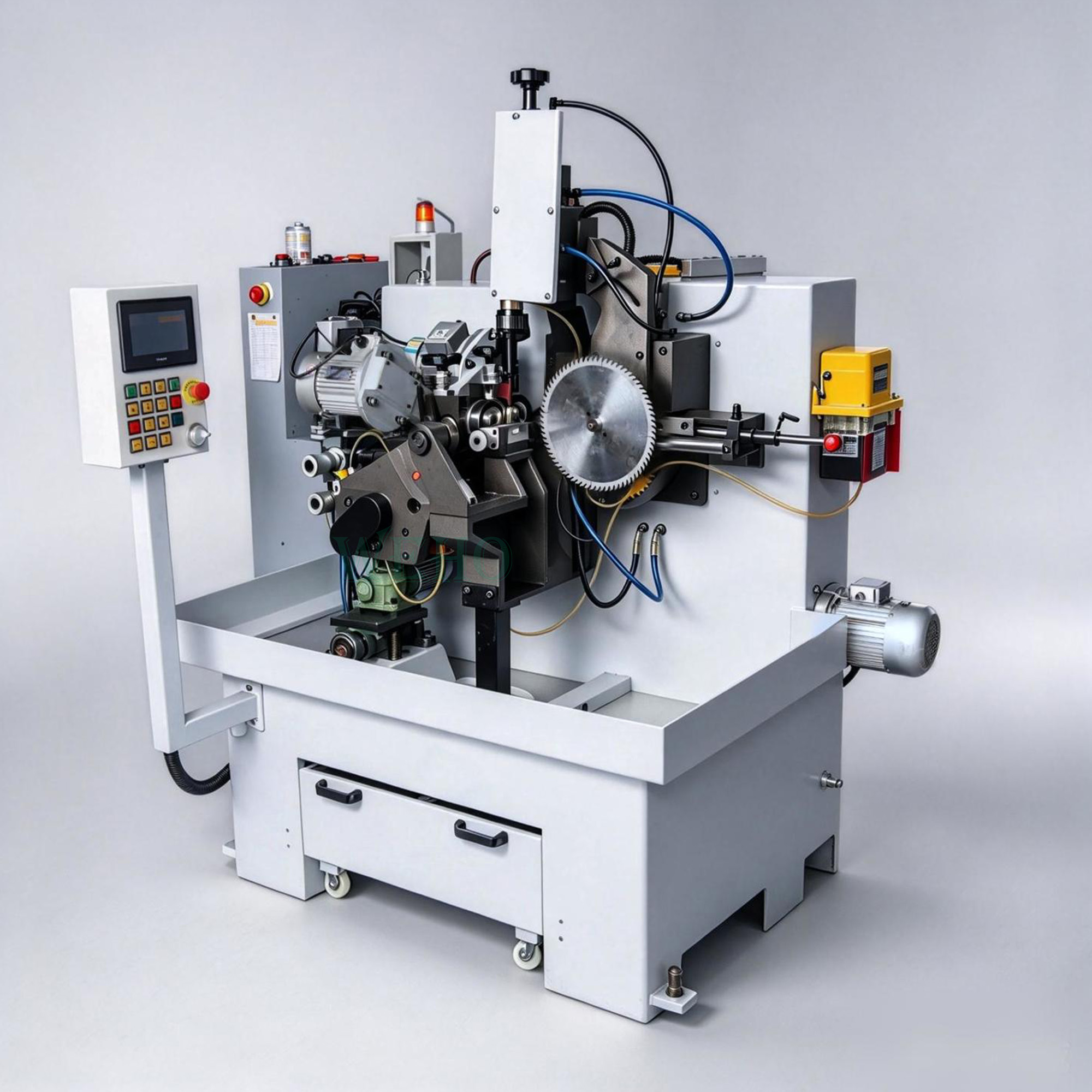

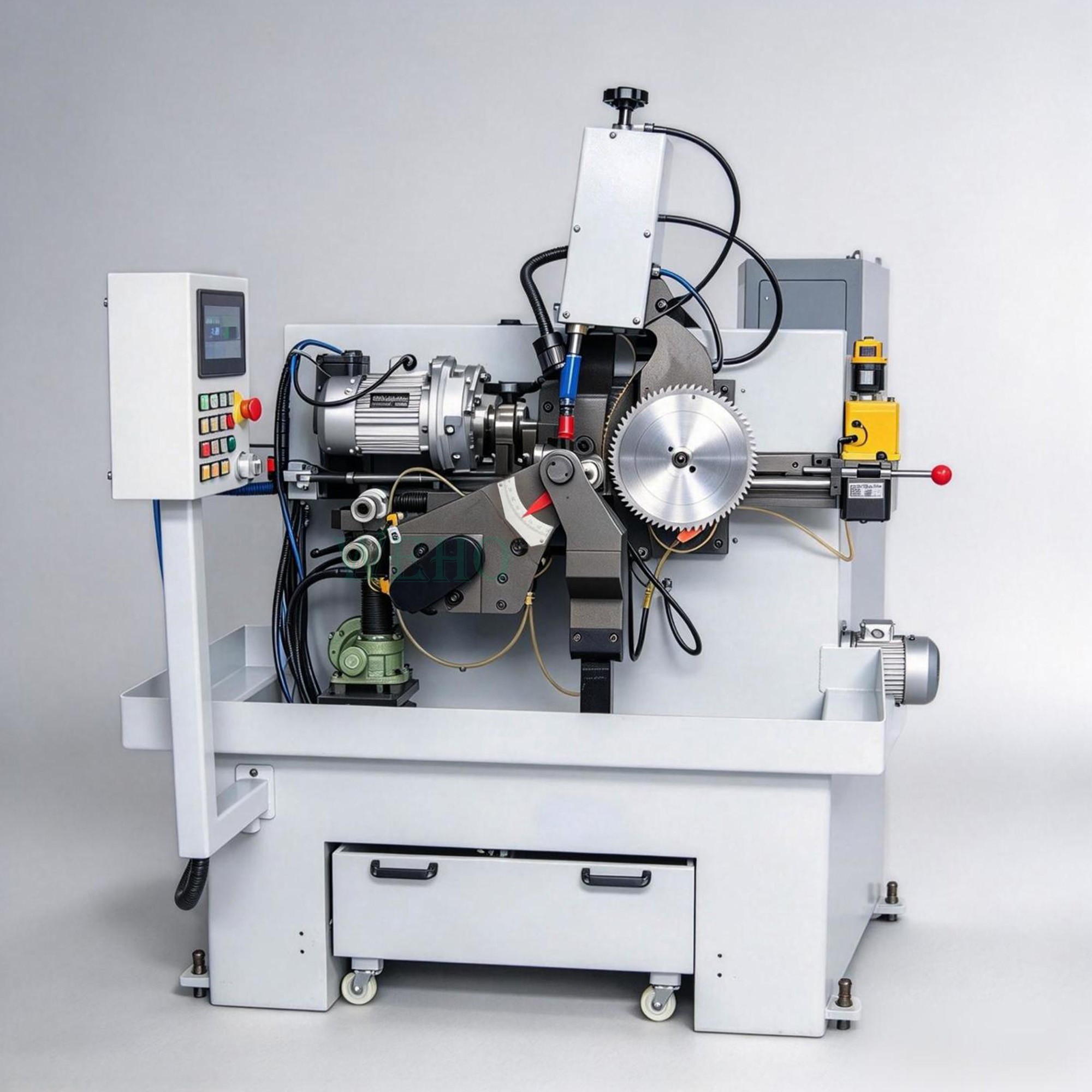

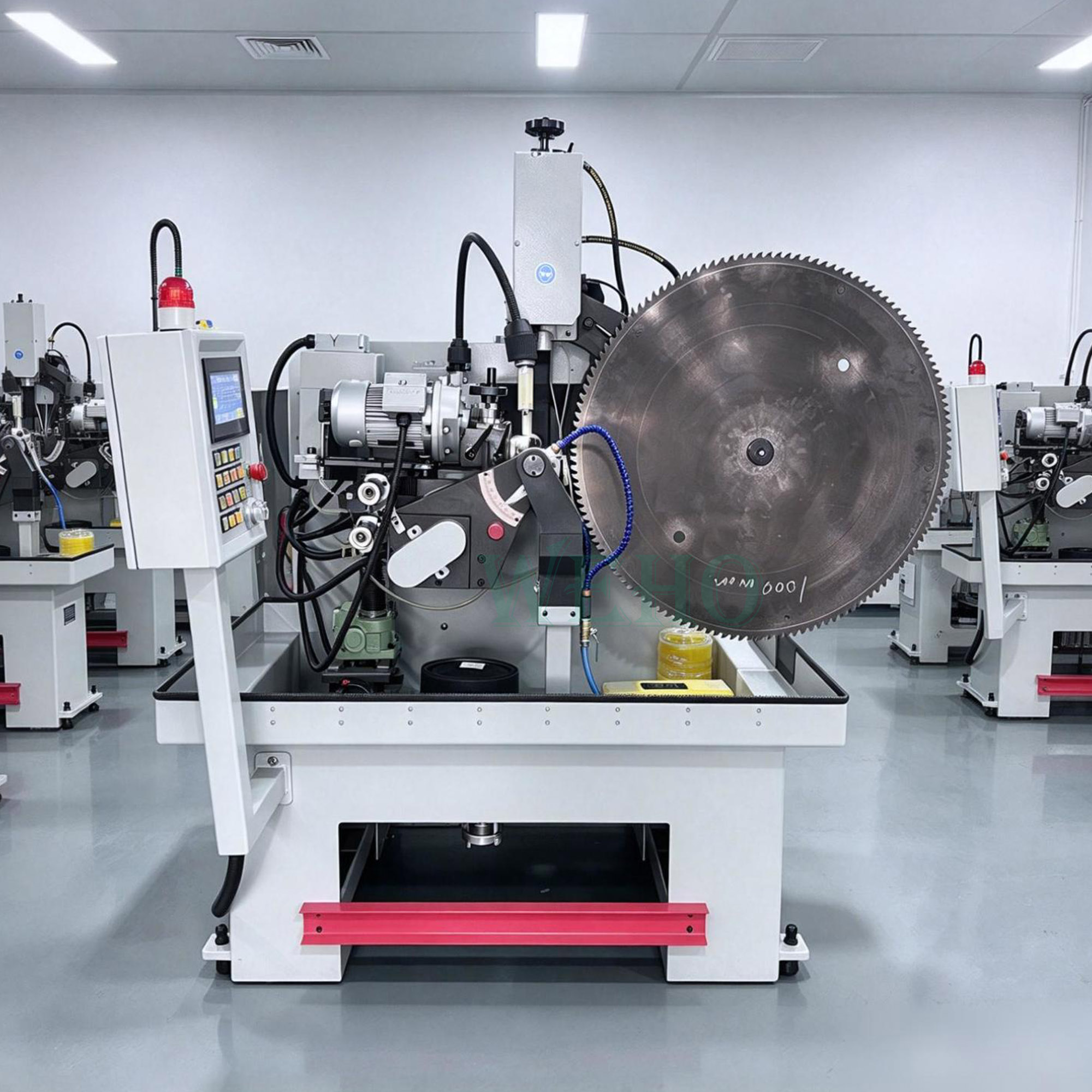

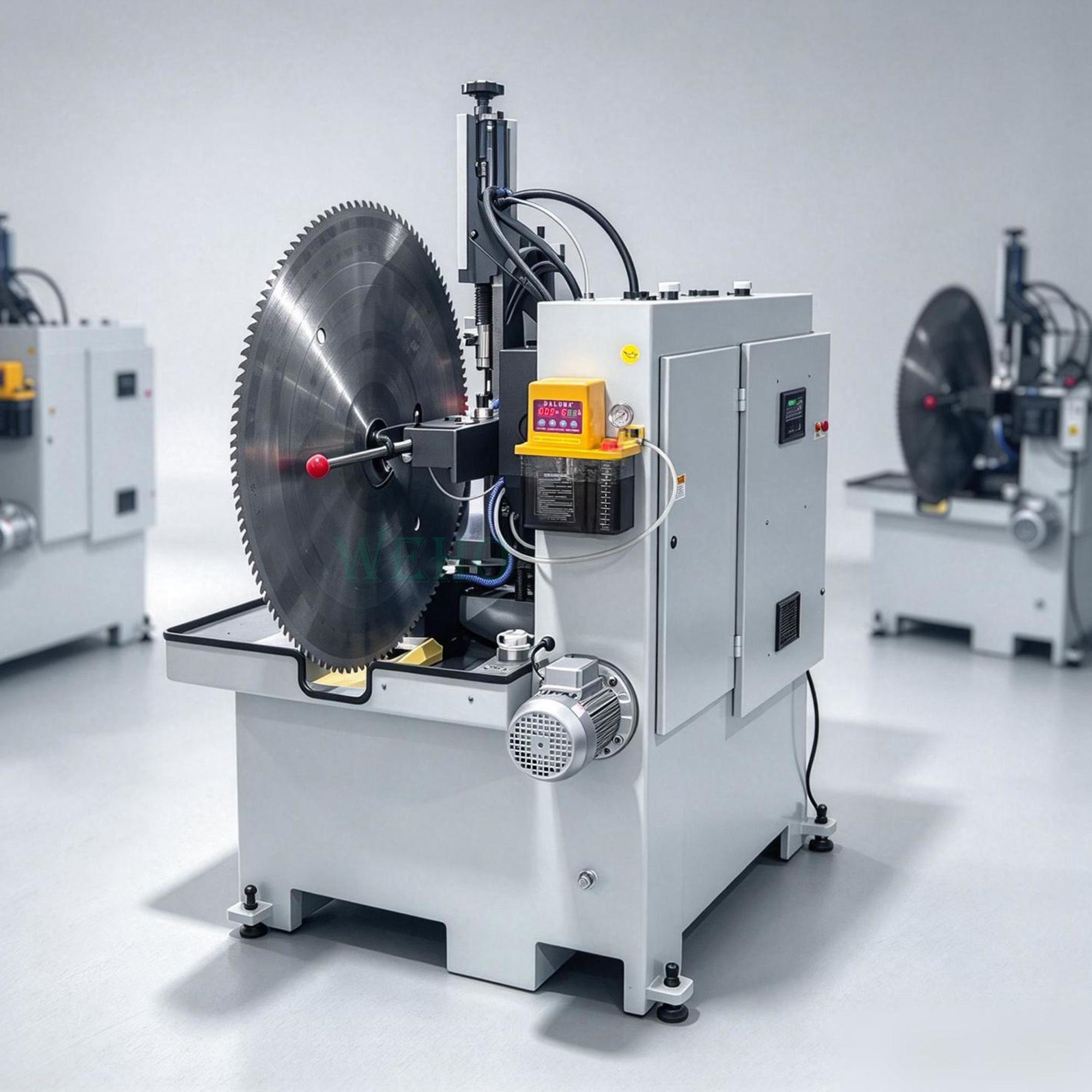

Automatic dual double flank side grinder TCT circular carbide teeth saw blade grinding machine
- Model:MF-D110
Max thickness: 12mm
Tooth pitch:7-70mm
Radial angle:-15°~30°
Maxmum grinding stroke:20mm - Grinding wheel linear speed:28m/s, 35m/s
- Water pump flow:24L/min
Total power:3.8KW
It's designed specially for side grinding the teeth of circular saw blades. Double Side Grinder features two Siemens grinding motors.The aim is to provide a clean and an undamaged cutting edge for the materials used.
| Model | MF-D110 |
| Circle saw outside dia | φ100-900mm |
| Bore dia | φ12-105mm |
| Max thickness | 12mm |
| Tooth pitch | 7-70mm |
| Radial angle | -15°~30° |
| Tangential angle | -4°~6° |
| Maxmum grinding stroke | 20mm |
| Grinding speed | 0.5-7mm/s |
| Grinding wheels outside dia | φ80,φ100,φ125mm |
| Grinding wheel linear speed | 28m/s, 35m/s |
| Water pump flow | 24L/min |
| Content of coolant pump | 90L |
| Voltage | 3PH/380V |
| Total power | 3.8KW |
| Equipment size | 1950*1550*1950mm |
| Packing size | 2150*1750*2350mm |
| Total weight | 1500kg |
Main Features
Hydraulic driven.

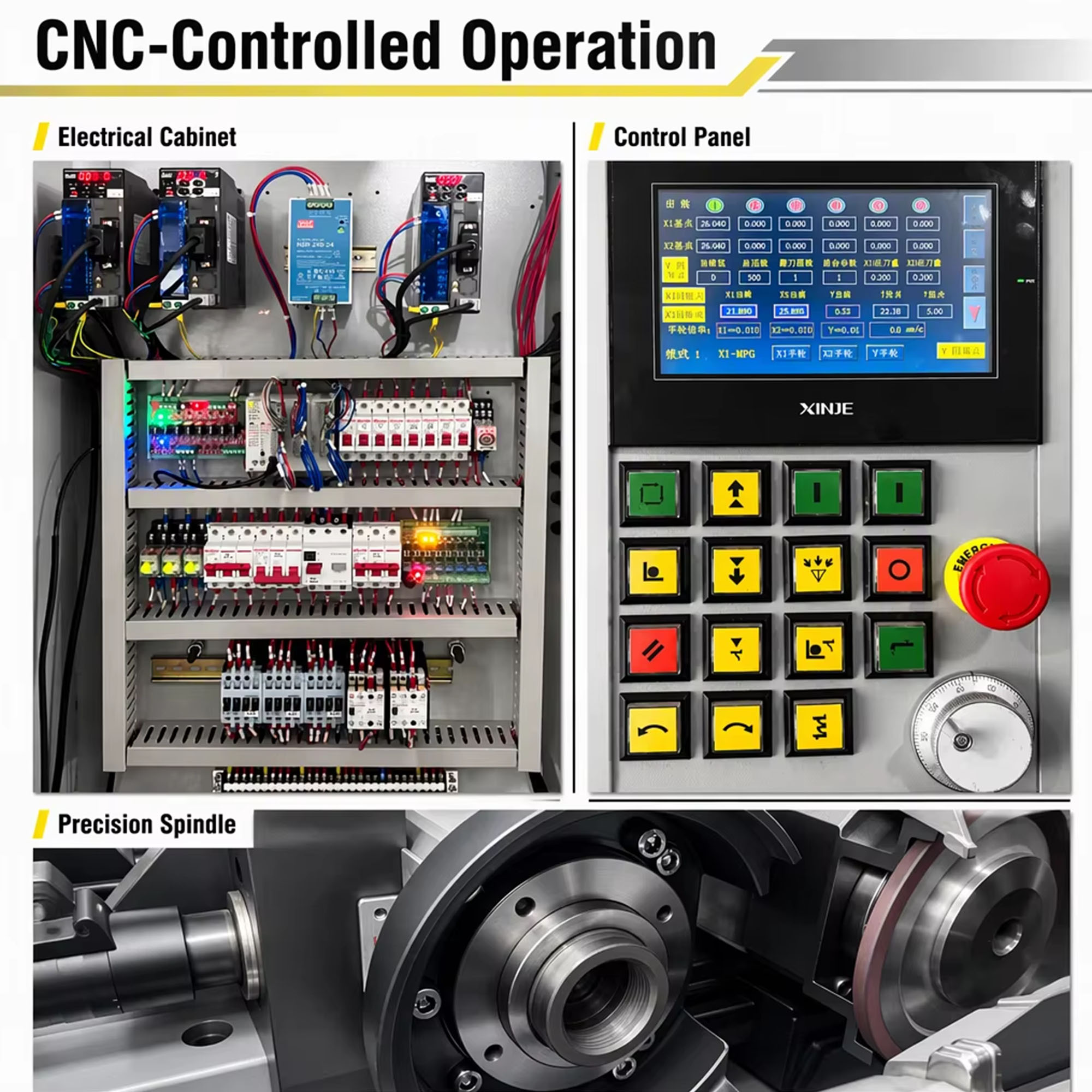

Microprocessor controlled.

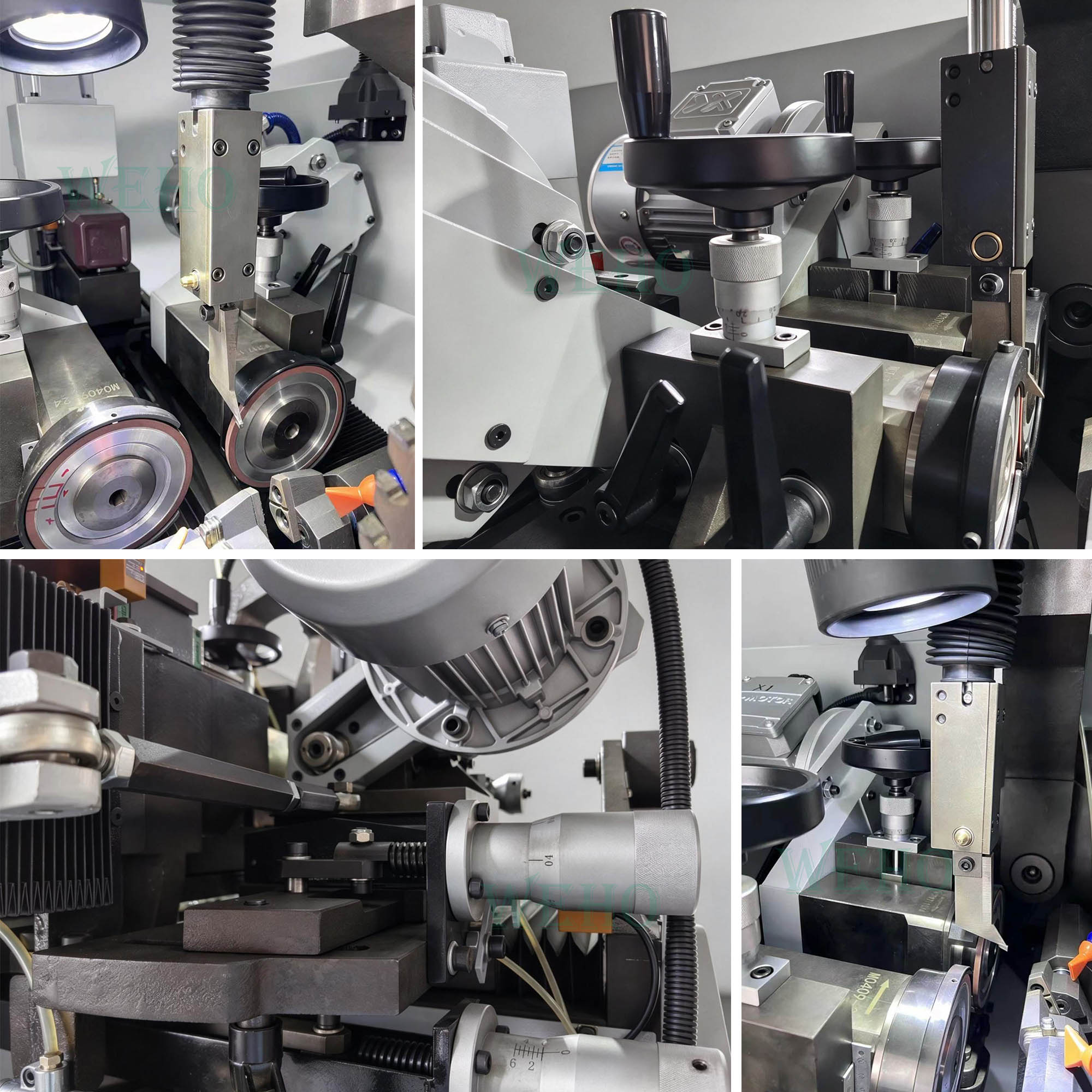

Independently adjustable grinding heads.
Quick setup of blade thickness, tangential clearance and radial clearance angles.
Linear bearing slide system.
Variable grinding feed rate Hydraulic saw blade clamp
Enclosed cabin for operator safety.
Simple controls for ease of use. Ergonomic cabin.
Production conformed with CE standards.
The machine has automatic compensation program to compensate.It can adjust grinding speed and it has automatic lubrication system.

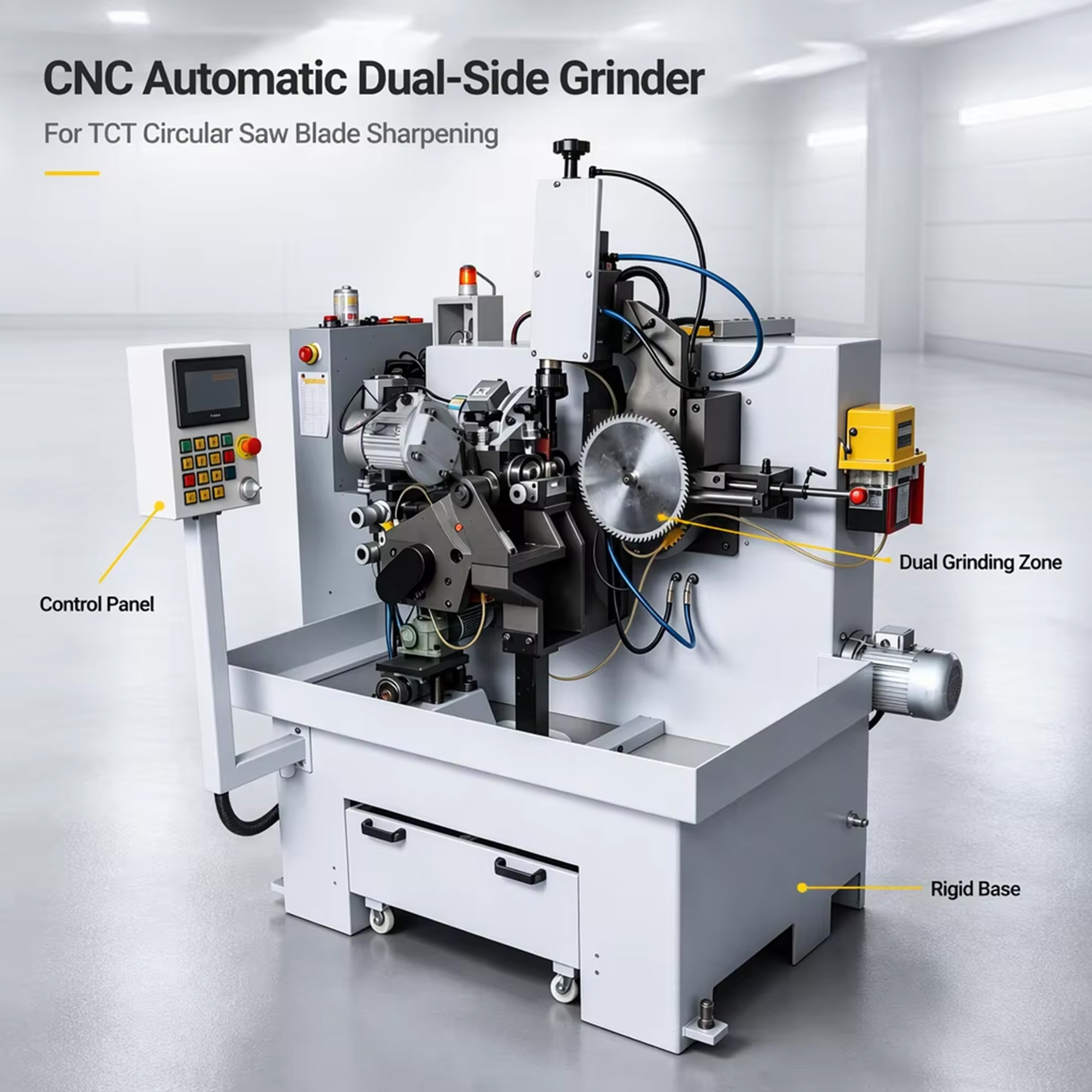

Automatic tct circular saw blade Dual Side grinding machine carbide teeth double flank side grinder

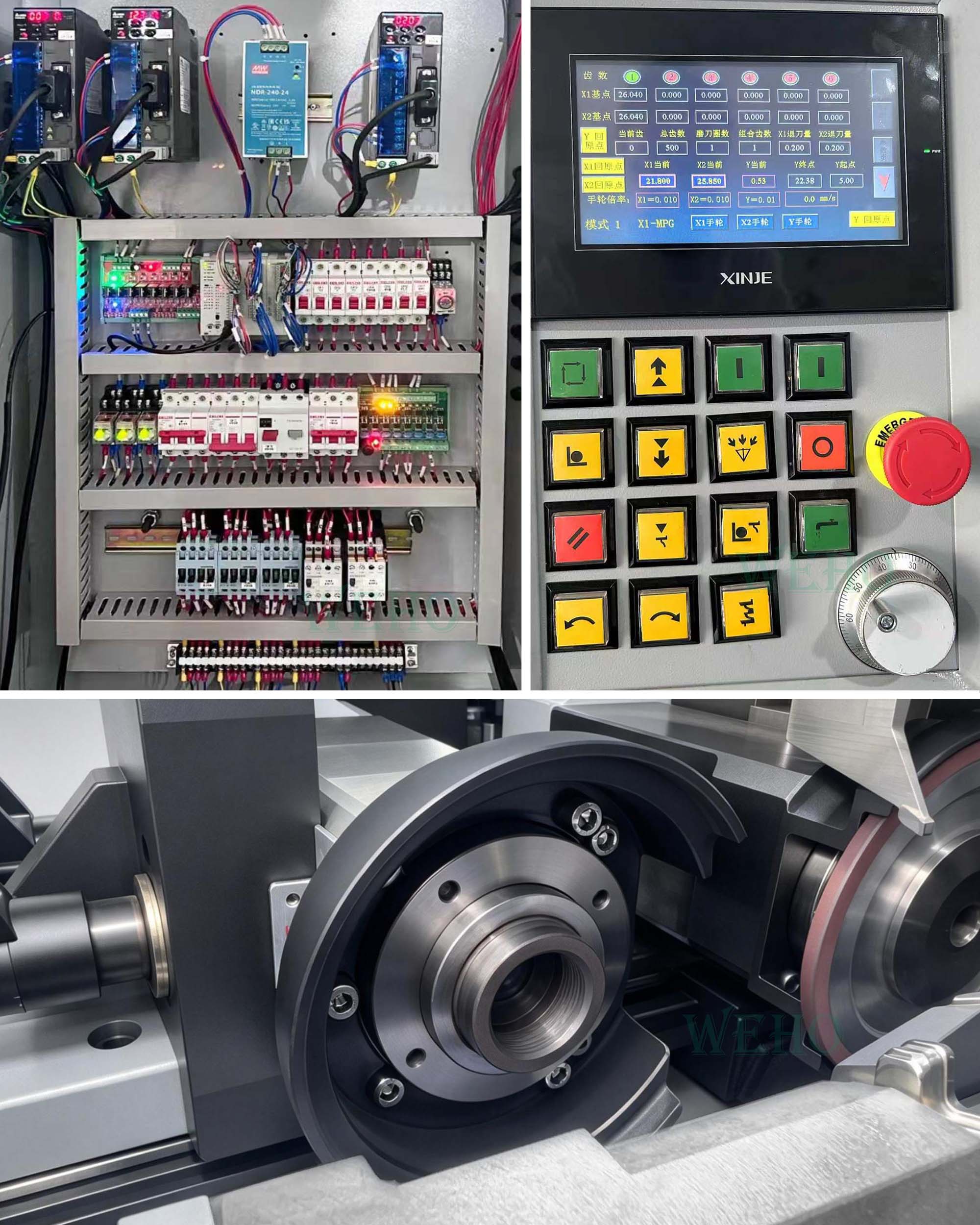

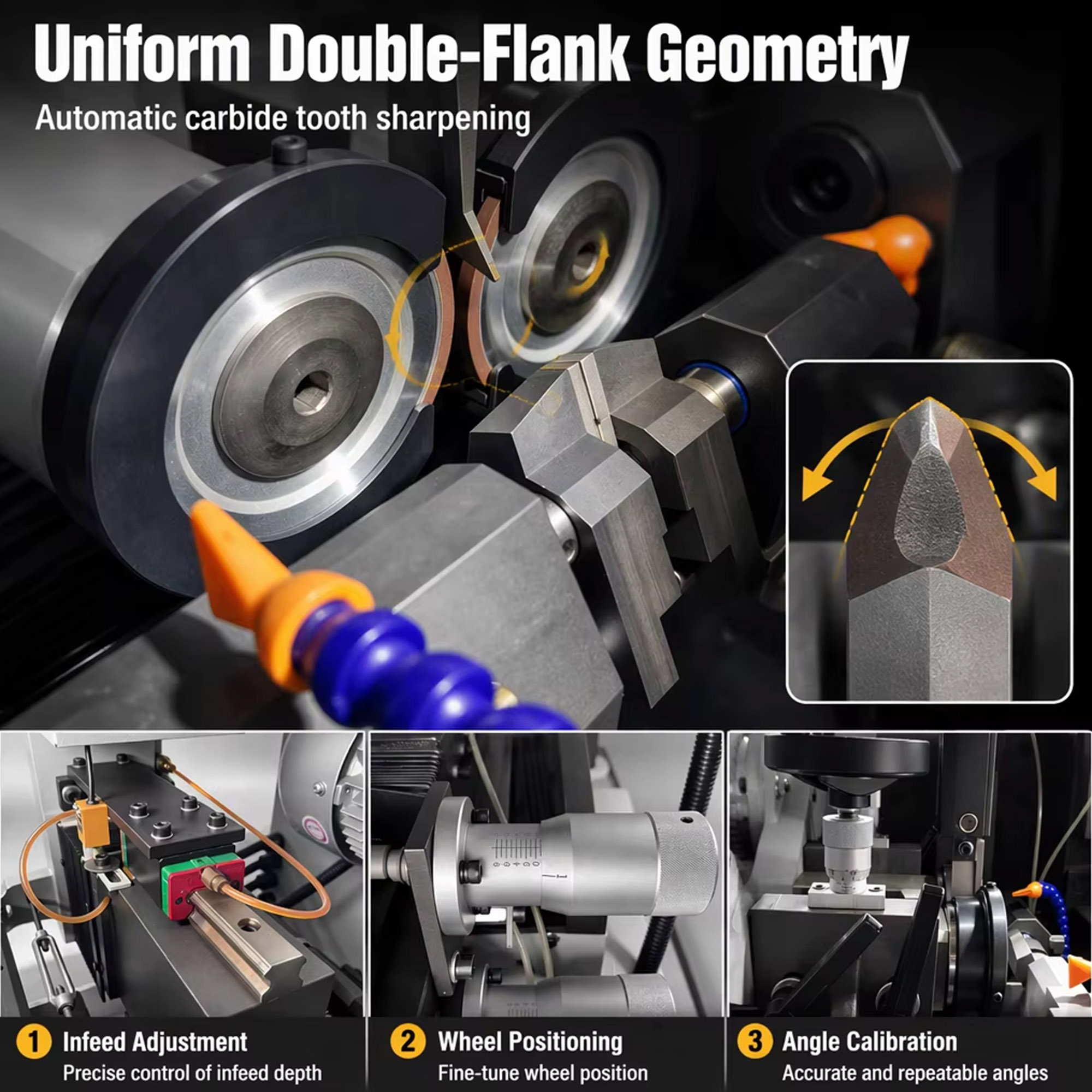

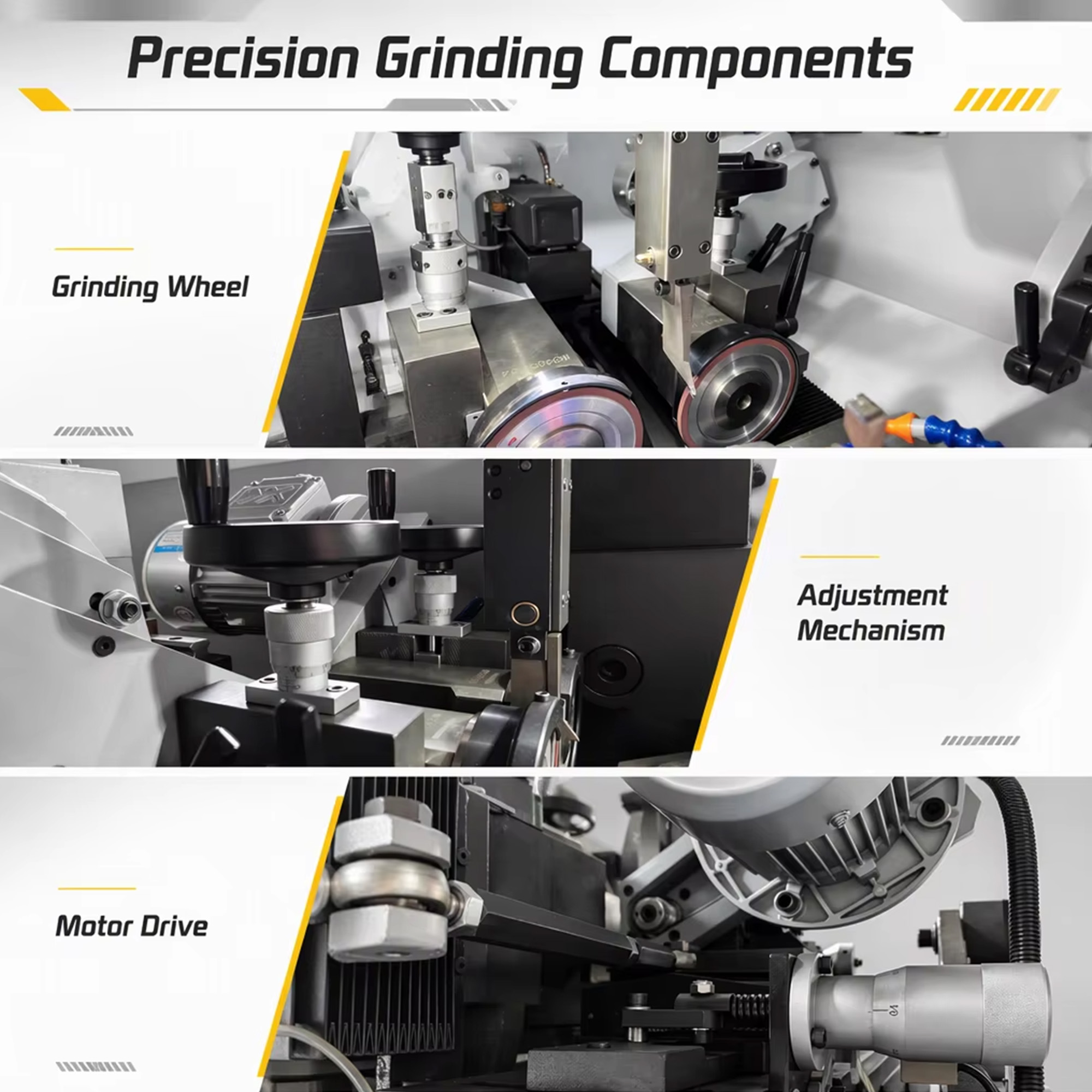

Grinding wheels main spindle
circular saw blade Dual Side grinding machine carbide teeth double flank side grinder

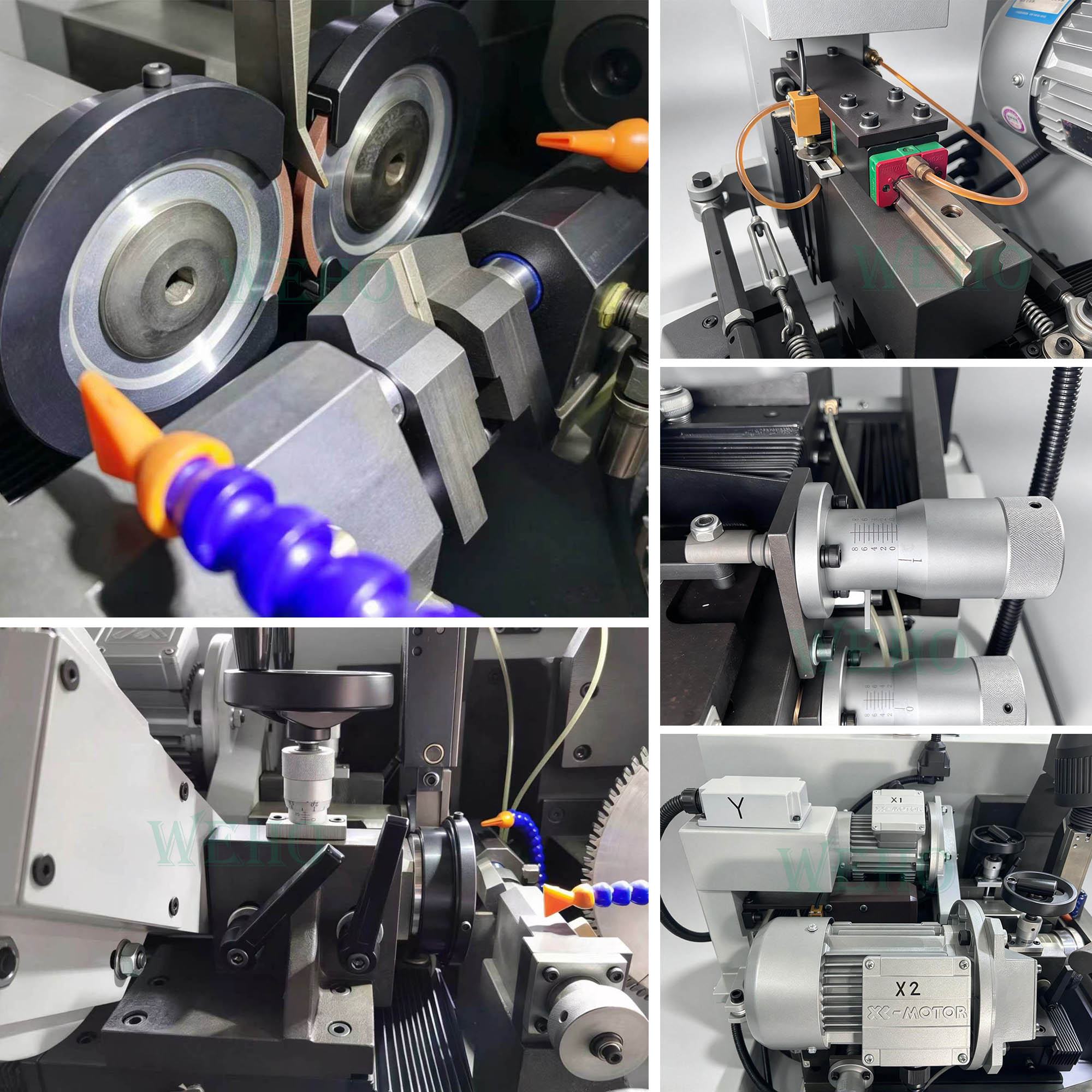

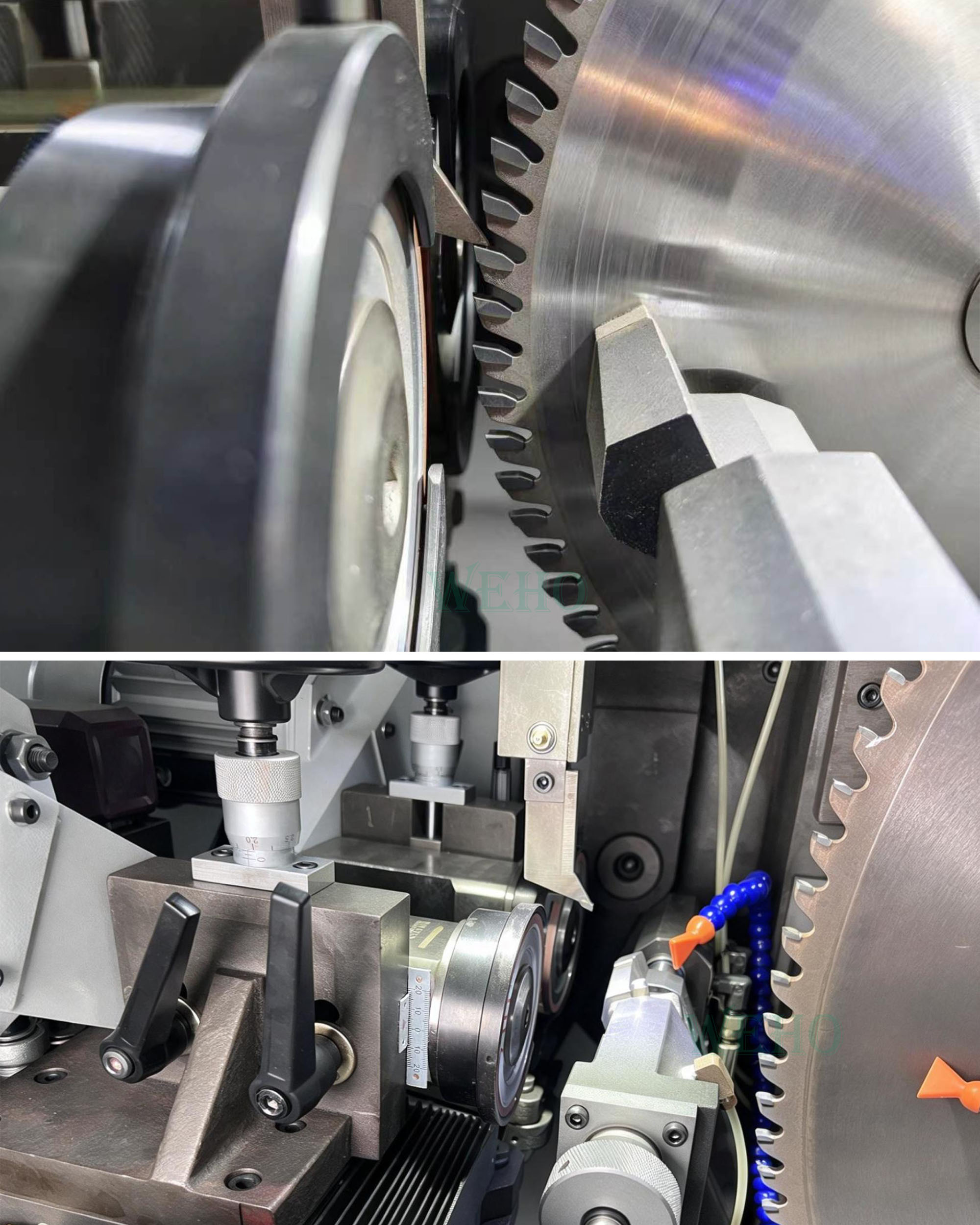

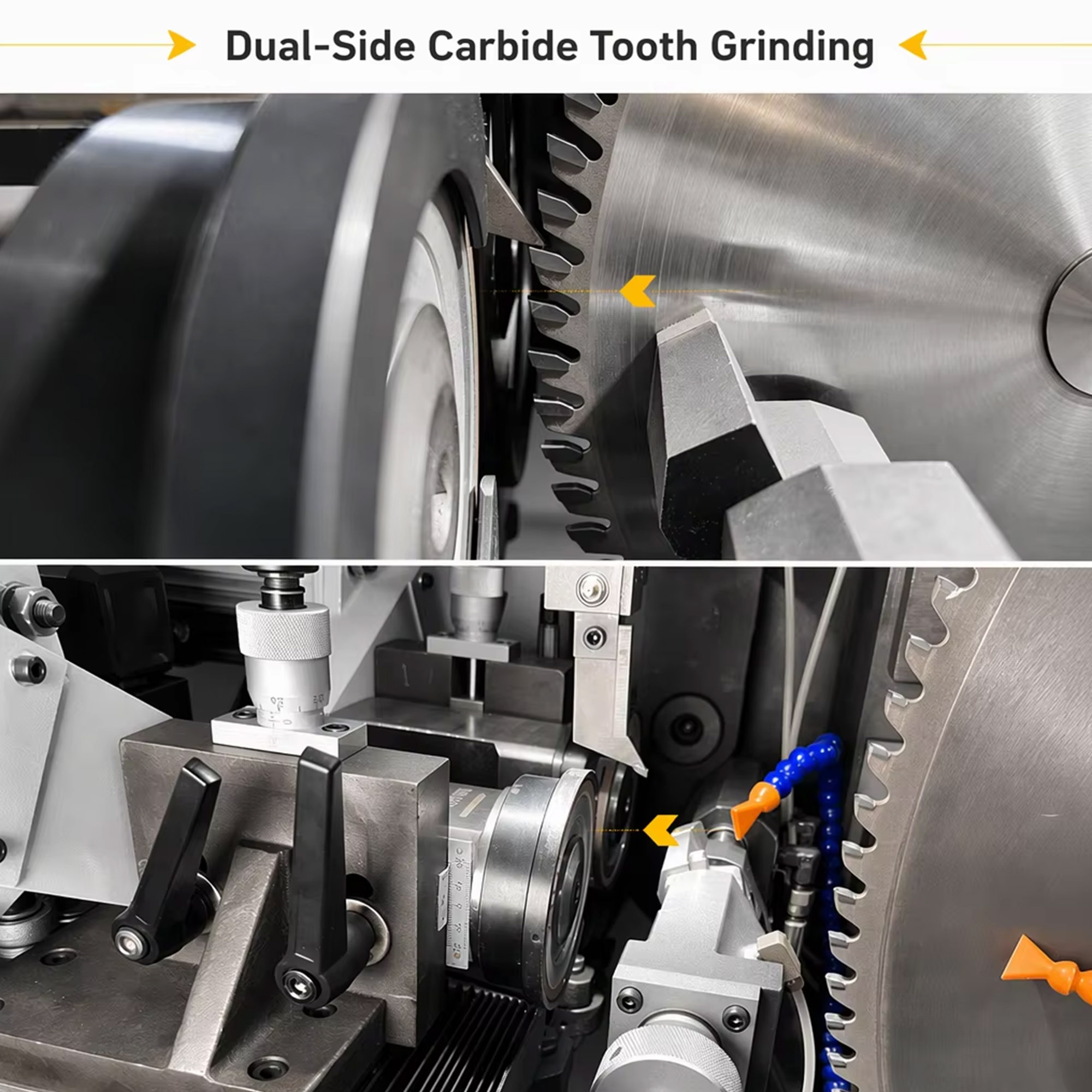

Double side grinding wheels.Saw blade holders in variant sizes.Taiwan spindle with has 18 months warranty.
Inovance servo system or Delta servo system,Siemens grinding motor
We provide 2 optional packaging ways for ocean shipment: Film / Wooden box
Note: Please confirm packaging type before order, extra cost will be generated for wooden crate package.
WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements.
We can design and manufacture most of wood processing machines. Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
What kind of saw blades can this CNC grinder process?
It is specially designed for TCT carbide tipped circular saw blades, support double flank /two sides grinding of carbide teeth. Max blade thickness up to 12mm
What is the grinding precision?
CNC servo control, high repeat accuracy, consistent tooth angle and flank surface after grinding, stable for mass production of saw blade sharpening.
Does it support grinding different tooth profiles?
Yes. You can set and store multiple tooth profile programs on CNC panel, quickly switch for different saw blade tooth shapes.
What grinding wheel fits this machine?
Match diamond grinding wheel for carbide tips. We can supply original diamond wheels as spare parts together with machine.
Is this machine fully automatic? How many workers to operate?
Automatic CNC operation. One operator can manage several machines after simple training.
How to buy？
1. Contact WEHO sales and provide your requirents to get best solutions
2. Order confirmed, get invoice
3. Normally, producton started against TT by 30% deposit.
4. After one week, WEHO sales inform you production state and delivery date.
5. Order finished, WEHO sales send you photos, videos and spare parts for confirmation.
6. Book shipping order, delivery the machine to your port.
How to do if I can not operate？
When you get the machine, if you have operation problem, we will make video meeting to teach you. If video teaching can not solve, our engineers will go to your place, and all charges paid by customer's side.
How to get spare part after warranty？
After many years using, service will be important. We will always responsible for weho machines, including find problems, send spart parts, and teach you to replace the parts.
After buying, technical supporting contact 008613326792205
