Service life 15000 ~ 20000 H.Expand the range of printing materials.Light up instantly without preheating.
Simple structure and easy operation.No pollution, no ozone, no mercury and no sound. Intelligent adjustment,adjustable power.
- Building 3 Shunheli Industrial Park,
- Lunjiao Shunde Foshan City Guandong China.
- Send Your Mail At
- weho@wehomachinery.com
- Working Hours
- Mon – Sat Day: 09.00 To 18.00
automatic drying four-lamp wood veneer dryer machine
Model：600 900 1300
Processing length range (max, min) ：Min300mm Min300mm Min300mm
Processing width range (max, min)：Max600mm Max900mm Max1300mm
Machining thickness range (max, min)：3-80mm 3-80mm 3-80mm
Feeding speed：0-20m/min 0-20m/min 0-20m/min
Feeding power：0.4kw 0.75kw 0.75kw
Lugs power：5kw 8kw 11kw
Processing length range (max, min) ：Min300mm Min300mm Min300mm
Processing width range (max, min)：Max600mm Max900mm Max1300mm
Machining thickness range (max, min)：3-80mm 3-80mm 3-80mm
Feeding speed：0-20m/min 0-20m/min 0-20m/min
Feeding power：0.4kw 0.75kw 0.75kw
Lugs power：5kw 8kw 11kw
Details
Spare Parts
Inquiry
Widely used to dry flat articles which are coated by UV coagulated paint.The inside of the lamp house module enjoys good aeration, which prolongs the working life of UV lamps, transducers and capacitor glass automatic four-lamp drying machine.
| Model | 600 | 900 | 1300 |
| Processing length range (max, min) | Min300mm | Min300mm | Min300mm |
| Processing width range (max, min) | Max600mm | Max900mm | Max1300mm |
| Machining thickness range (max, min) | 3-80mm | 3-80mm | 3-80mm |
| Feeding speed | 0-20m/min | 0-20m/min | 0-20m/min |
| Feeding power | 0.4kw | 0.75kw | 0.75kw |
| Lugs power | 5kw | 8kw | 11kw |
| Temperature range | 60-120° | 60-120° | 60-120° |
| Package size | 2500*1100*2100mm | 2500*1400*2100mm | 2500*1800*2000mm |

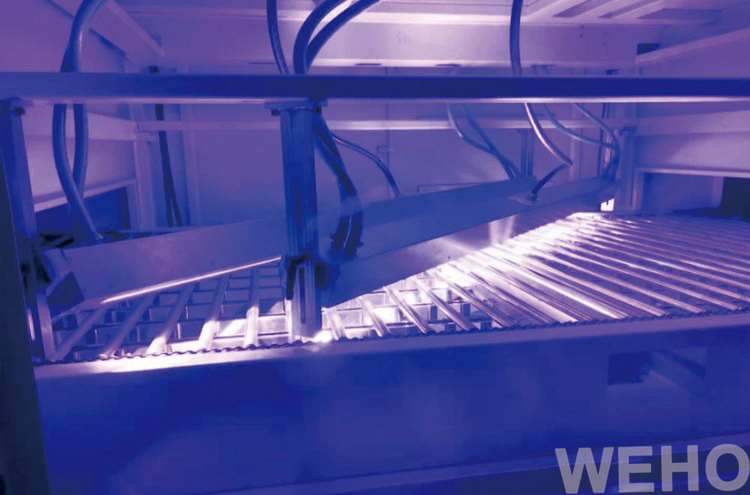

The four-lamp Uv dryer machine widely used to dry flat articles which are coated by UV coagulated paint.

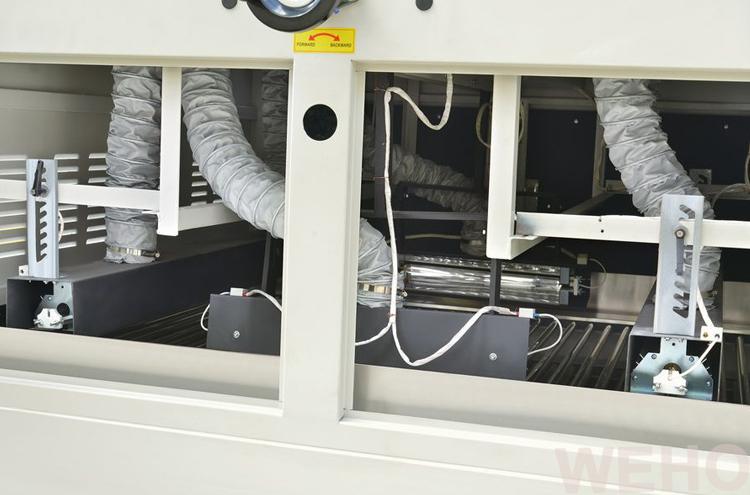

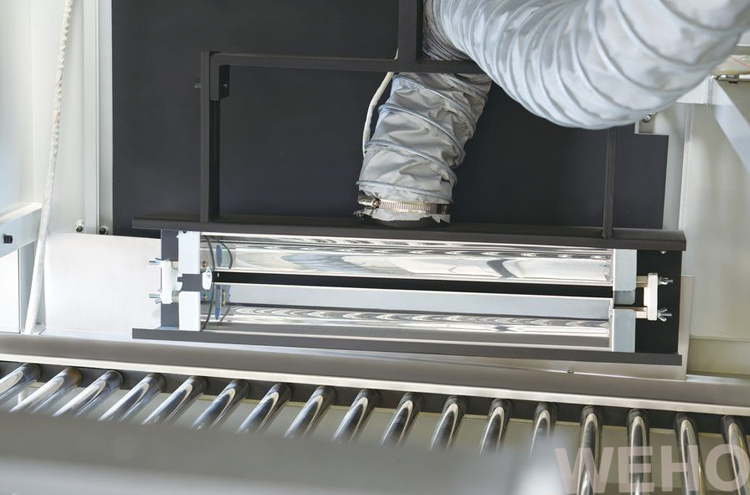

The inside of the lamp house module enjoys good aeration, which prolongs the working life of UV lamps, transducers and capacitor.
The inside of the lamp house module enjoys good aeration, which prolongs the working life of UV lamps, transducers and capacitor.

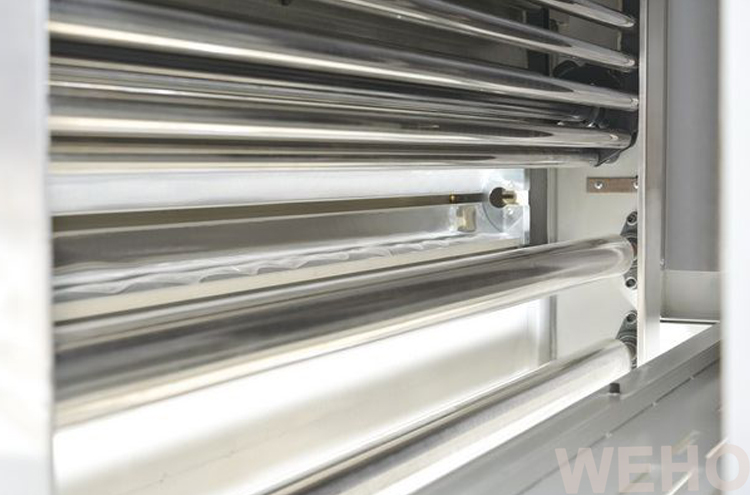

The four-lamp wood veneer dryer well-designed structure of conveyor prolongs the life of the belt and ensures the brightness of the painted workpieces.Imported gallium lamps can be selected to dry solid UV curing paints.Optional Distribution of Electronic Power Supply.
Wood Veneer Dryer Machine
