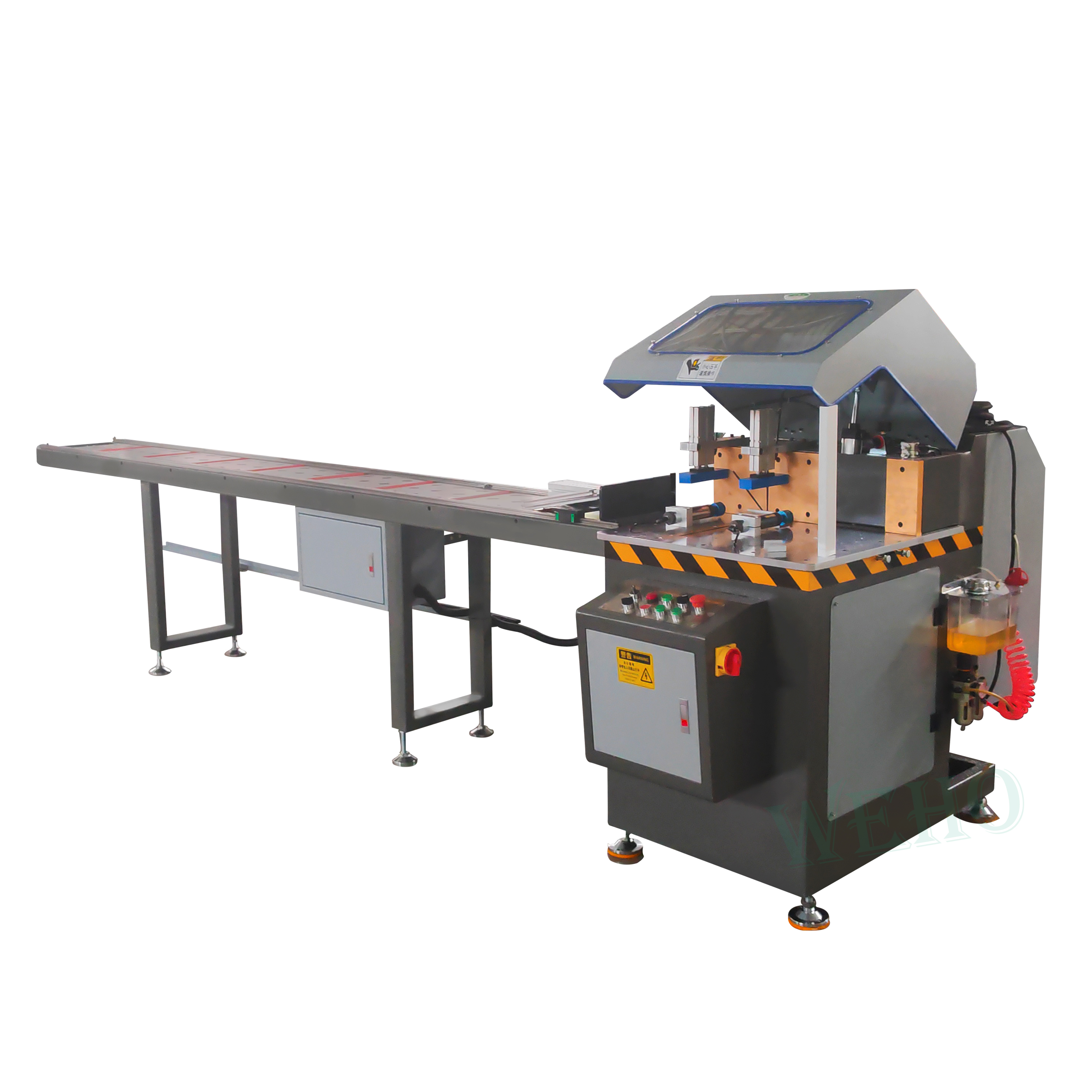

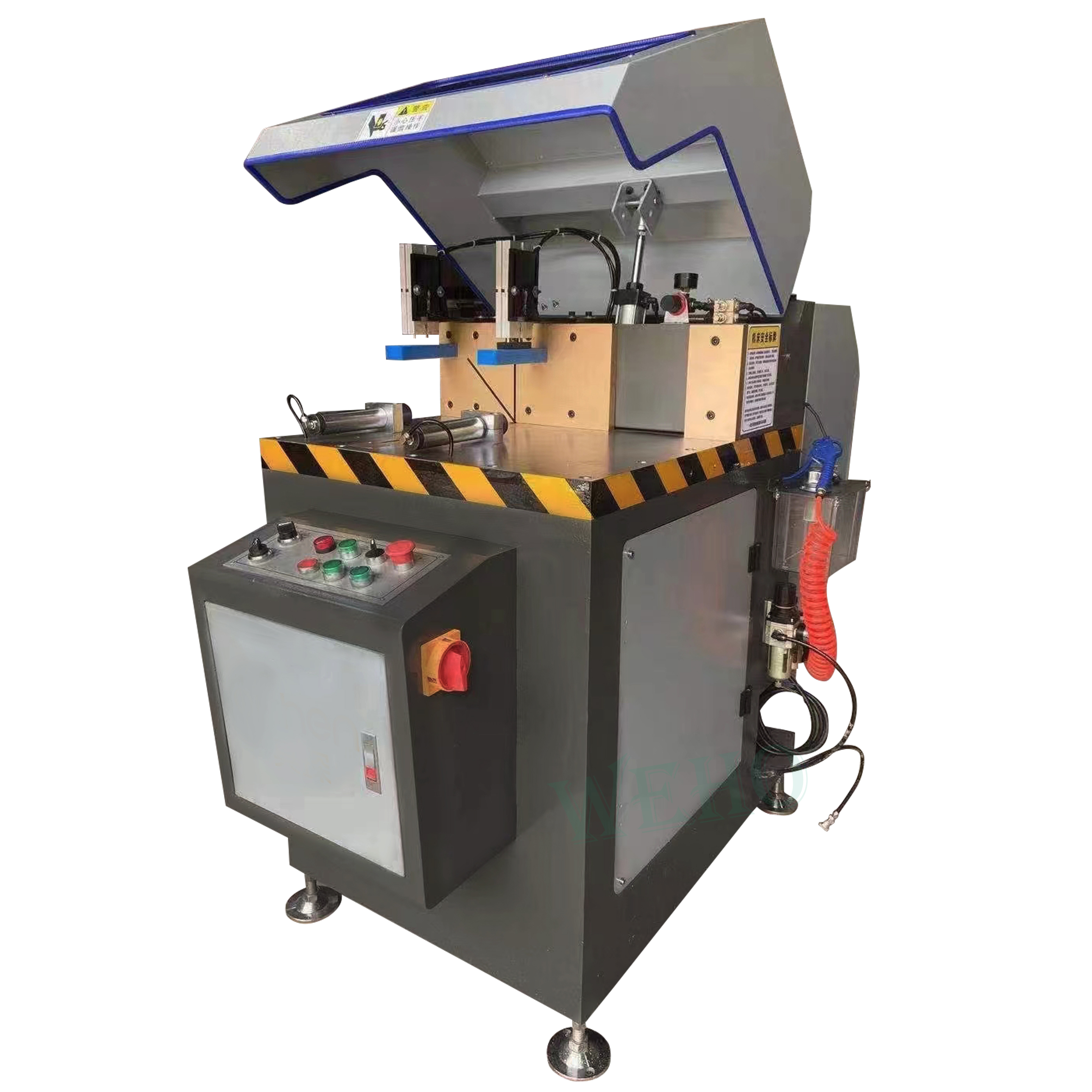

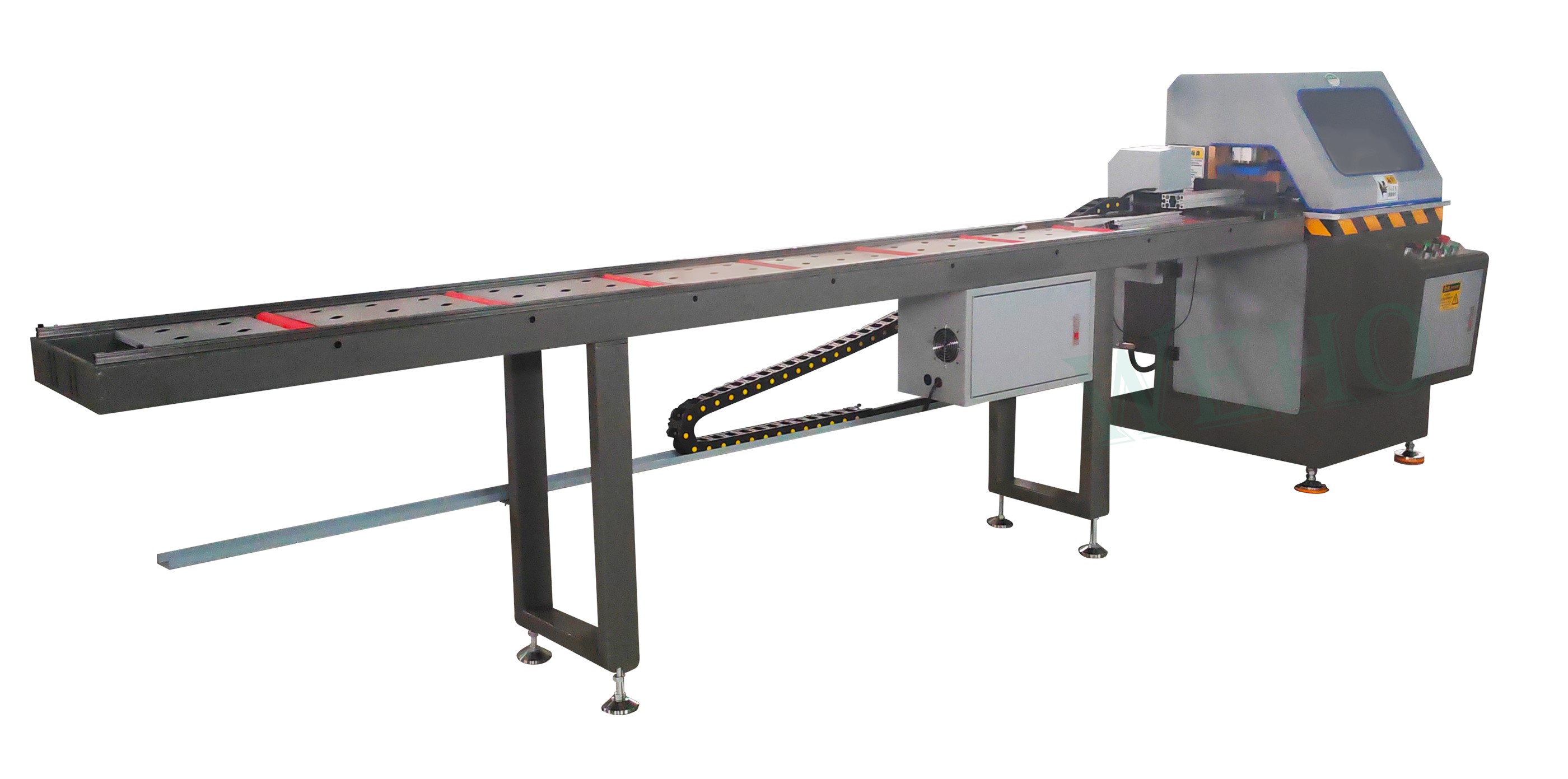

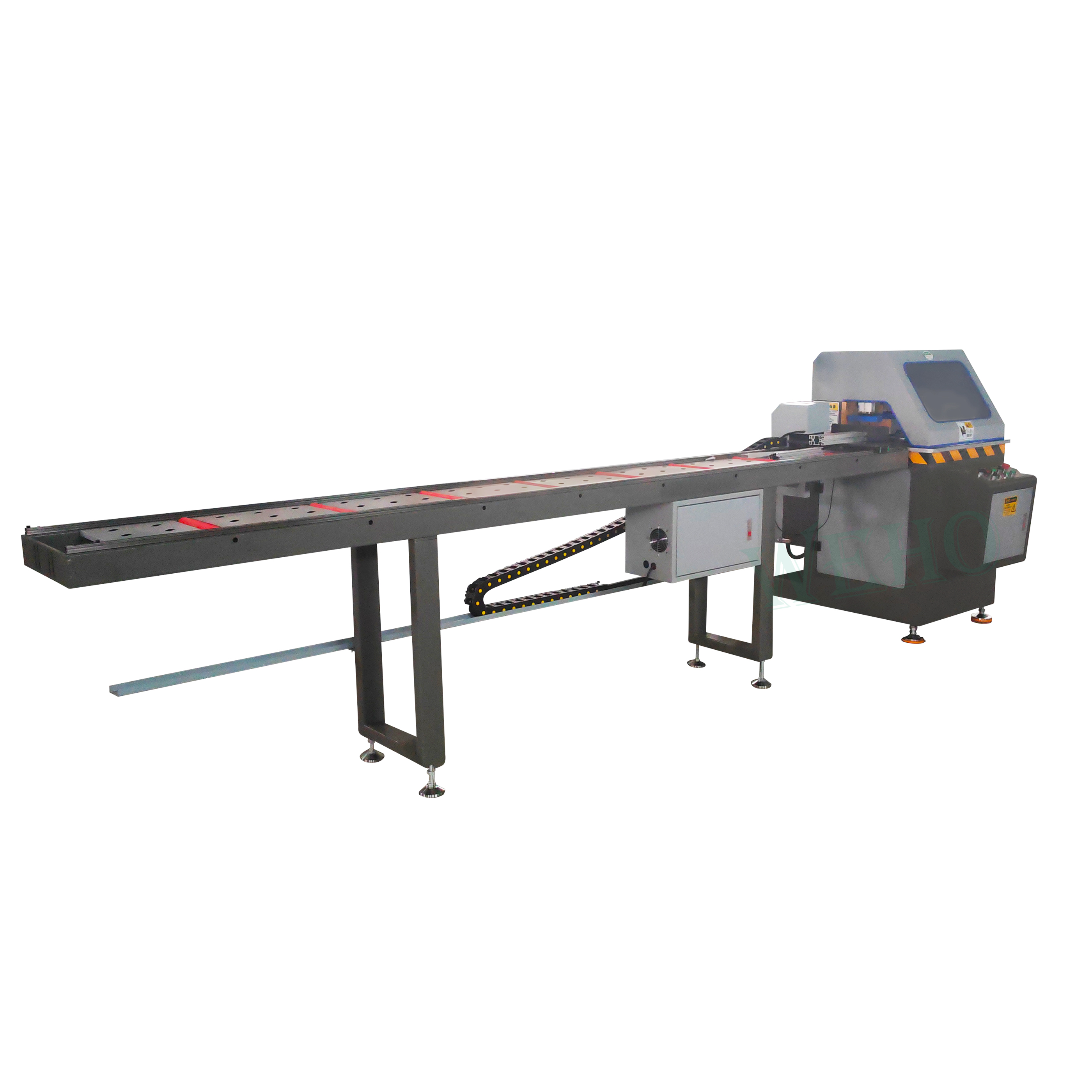

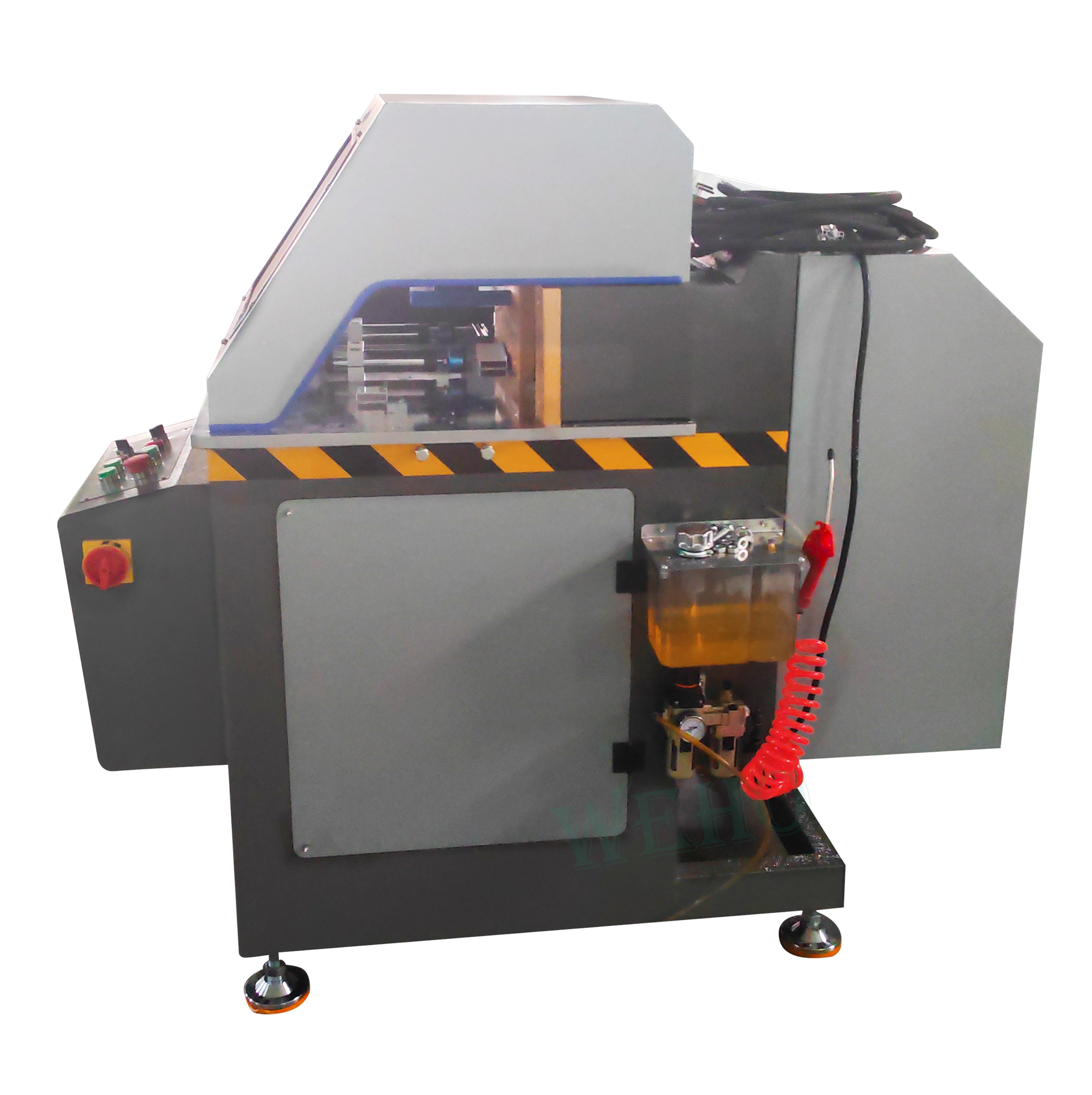

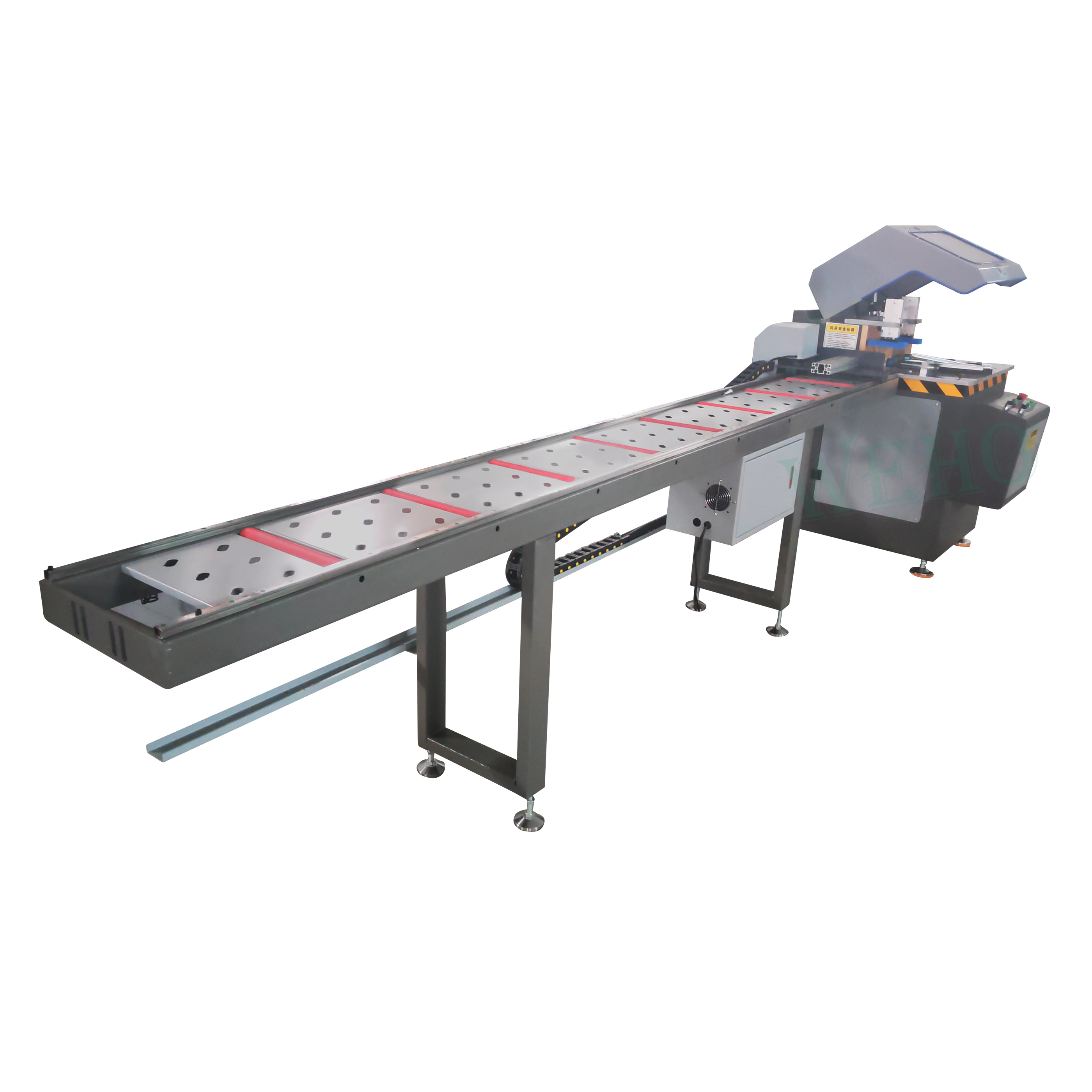

Automatic Circular saw machine for aluminum cutting with miter saw Cutting Machine
45°cutting width: MAX 220mm
45°cutting height: MAX 120mm
90°cutting width: MAX 220mm
90°cutting height: MAX 170mm
Cutting angle: 45°, 90°
Saw head motor: 3KW
Working air pressure: 0.5--0.8MPA
Saw head speed: 3400R/MIN
Gas consumption: 60L/MIN
Weight: 400KG
Overall dimensions: 1200×1300×1500
Blade size: 550*30*120T
| Model | MJL250 | ||
| 45°cutting width | MAX 220mm | ||
| 45°cutting height | MAX 120mm | ||
| 90°cutting width | MAX 220mm | ||
| 90°cutting height | MAX 170mm | ||
   Cutting angle |
45°,90° | ||
| Saw head motor | 3KW | ||
| Working air pressure | 0.5--0.8MPA | ||
| Saw head speed | 3400R/Min | ||
| Gas consumption | 60L/Min | ||
| Weight | 400KG | ||
| Overall dimensions | 1200×1300×1500 | ||
| Blade size | 550*30*120T |
Used for cutting processes of aluminum, vinyl, and wooden profiles.
Hydro-Pneumatic cutting process.
Secure cutting by the cover equipped with a safety sensor.
Cutting speed adjustment based on the profile.
Cutting at any desired angle between -90° and +45° (Optional function).
Cutting at -67.5°, -45°, -30°, -22.5°, -15°, 0°, 15°,22.5°,
30°, 45° right and left fixed angles (Optional functions).
Increase in cutting capacity with automatic measuring table (Optional).
Pneumatic vertical and horizontal clamps.
How to buy
1. Contact WEHO sales and provide your requirents to get best solutions2. Order confirmed, get invoice, contract from WEHO.
3. Normally, producton started against TT by 30% deposit.
4. After one week, WEHO sales inform you production state and delivery date.
5. Order finished, WEHO sales send you photos, videos and spare parts for confirmation.
6. Book shipping order, delivery the machine to your port.
How to do if I can not operate
When you get the machine, if you have operation problem, we will make video meeting to teach you. If video teaching can not solve, our engineers will go to your place, and all charges paid by customer's side.
How to get spare part after warranty
After many years using, service will be important. We will always responsible for weho machines, including find problems, send spart parts, and teach you to replace the parts.
