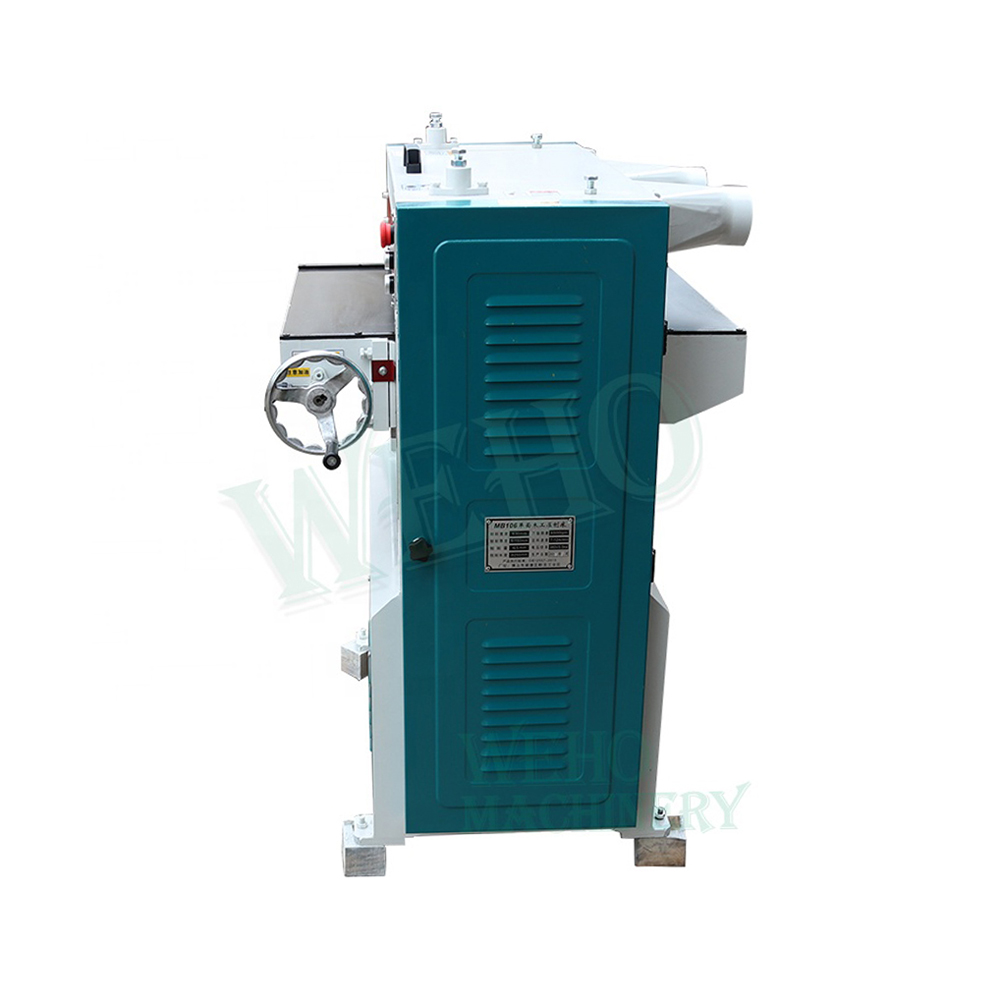

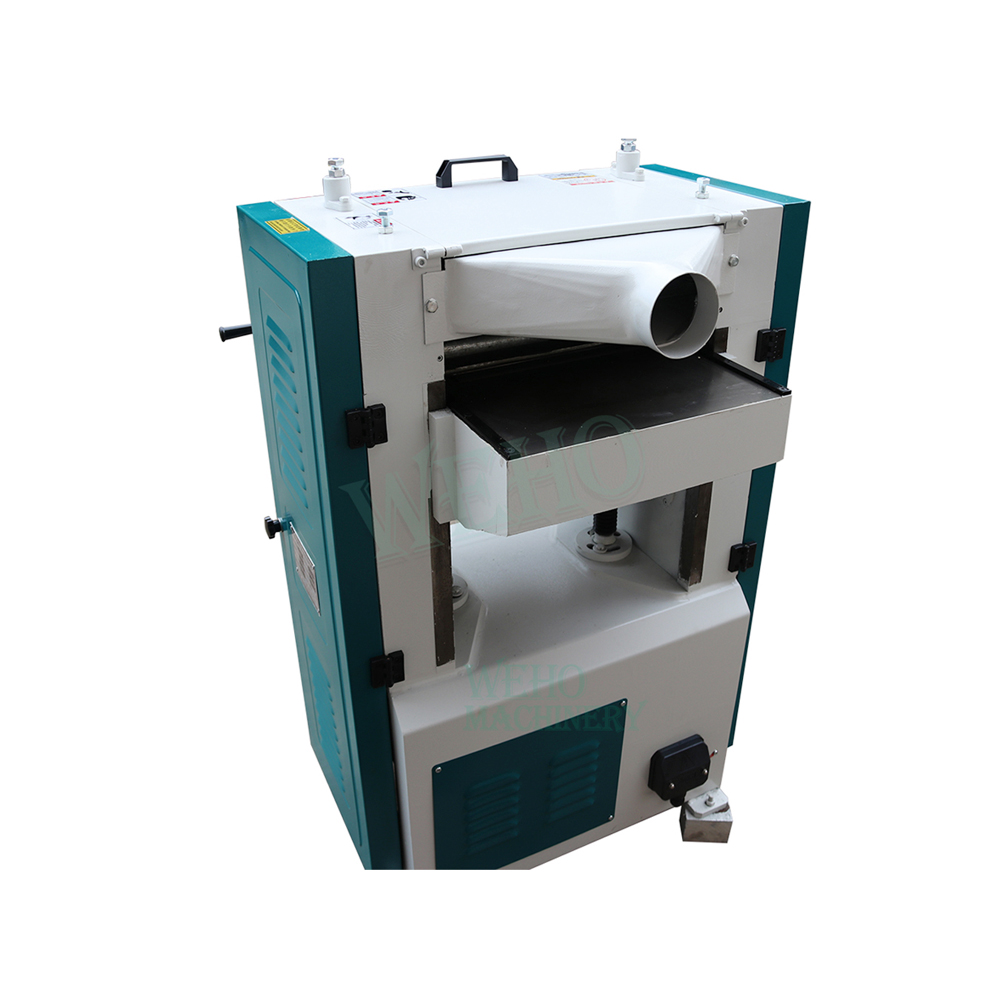

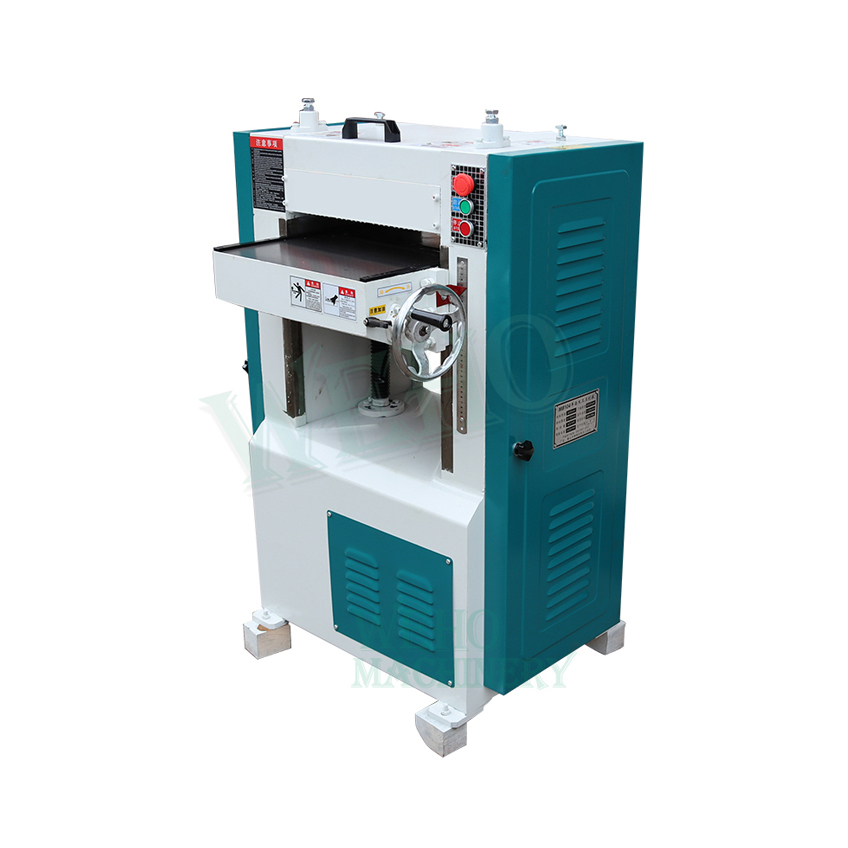

600mm hard wood thickness planer veneer jointer machine for sale
Working width:630mm
Working Thickness:3-180mm
Working length:≥250mm
Feeding Speed:6.8m/min
Cutter head speed:6500rpm
Weight: 550 Kg
Electric wood thickness planer projects with router, apply to wood board manufacturing, solid wood furnitures such as wood chairs, wood tables, wood bed, wood cabinet, wood door etc.
| Model | MW106BM |
| Max. working width | 630mm |
| Max. working thickness | 180mm |
| Min. working thickness | 3mm |
| Max. cutting depth | ≤4mm |
| Working length | ≥250mm |
| Cutting head speed | 6500rpm |
| Feed speed | 6.8m/min |
| Voltage | 380V |
| Power | 5.5kw |
| Total weight | 550kg |
| Total size | 760*1060*1270mm |
Table of thicknesser is accurately positioned with an easy-to-use crank handle.
Electric wood thickness planer projects with router,high-speed refine planing.Its four precision ground columns provide extra stability when raising and lowering the table.
High-speed refine planing.Its four precision ground columns provide extra stability when raising and lowering the table.
Spiral cutter is optional.
Reasonable struction, ensure machine running smooth.
Heavy-duty rigid cast iron frame supports the work table and helps dampen vibration and ensures years of dependable service.

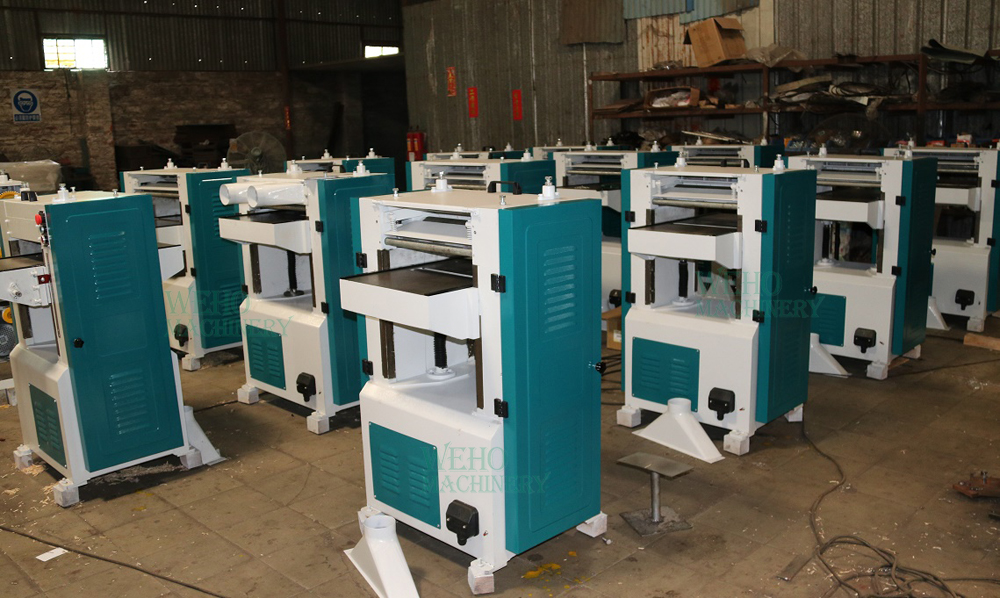

Factory
Wood thickness planer suitable for wood board jointing, solid wood furniture manufacture, surface planing, moulding etc.
Thickness Planer
