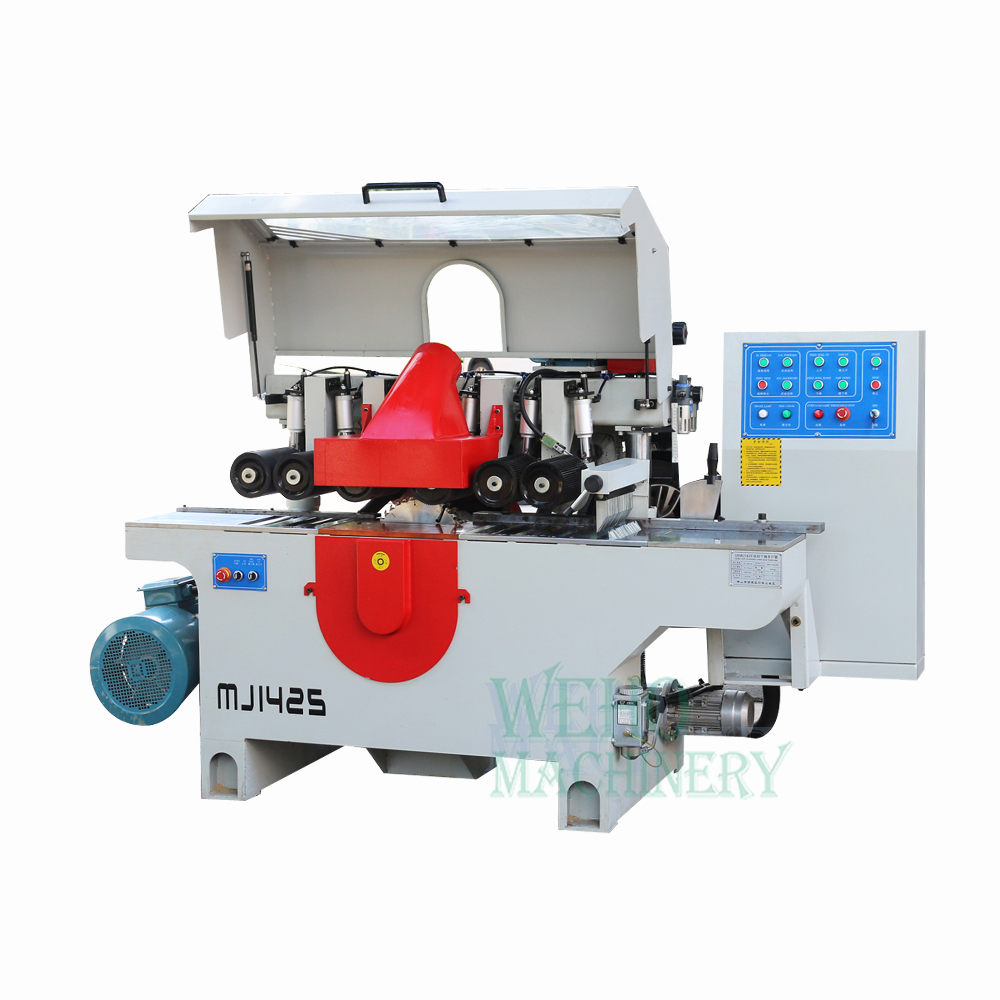

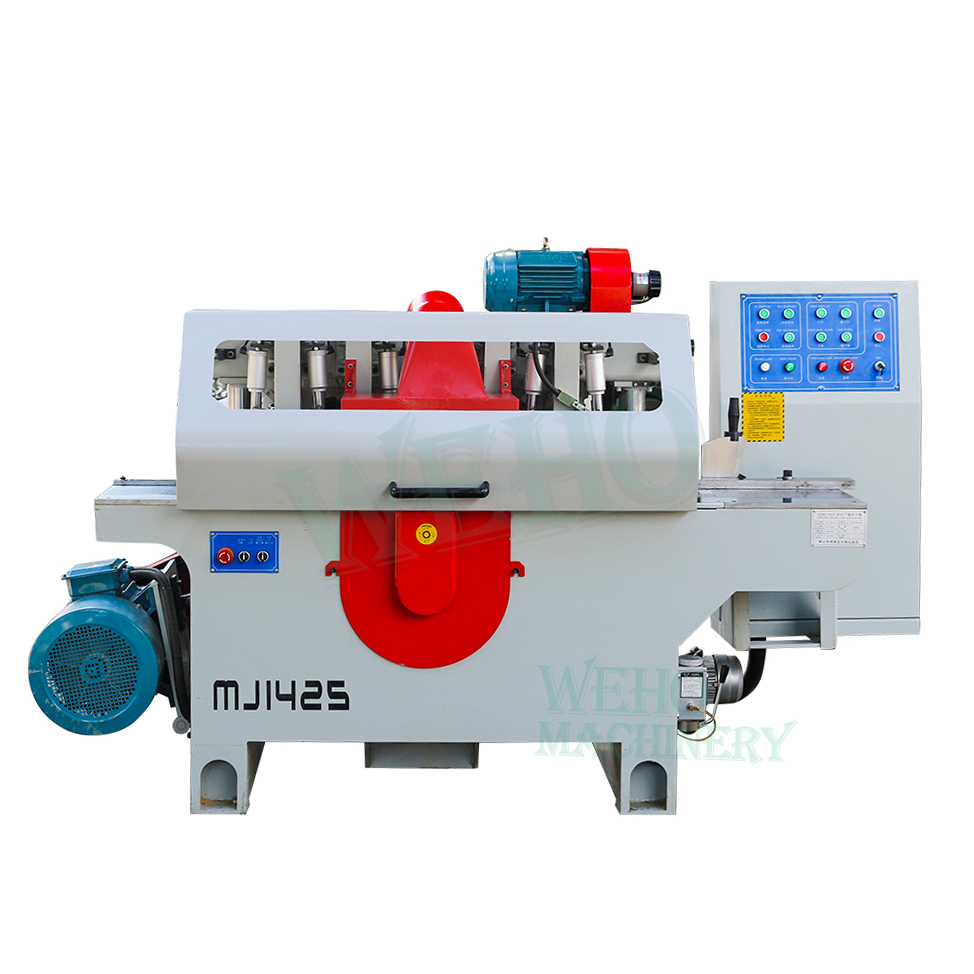

12" nation timber wood multi cut rip saw machine manufacturers cutting
Max working width：250mm
Max working thicknes：75mm
Saw blade speed：4500rpm
Saw blade diamter：300mm
Multiple blade lift motor：0.37kw
Wood cutting multi rip saw machine,multiple Rip Saw machine is used to cut strips from sheets of wood, plywood, pressed boards, press board, fiberglass, densified wood or insulation sheets.We get multiple strips from a single pass as the Multiple Rip Saw uses multiple carbide tipped special saws to cut sheet into separate strips of required width.
| Wood cutting multi rip saw machine | |||
| Working size | Max working width | mm | 250 |
| Max working thicknes | mm | 100 | |
| Rotating speed | Saw blade | rpm | 4500 |
| Main parameter | min working length | mm | 250 |
| Saw blade diamter | mm | 300 | |
| Multiple blade spindle | mm | 50 | |
| Motor power | Total ppower | kw | 24.24 |
| Multiple blade spindle | kw | 22 | |
| Multiple blade lift motor | kw | 0.37 | |
| Cover Lift motor | kw | 0.37 | |
| Feeding motor | kw | 2.2 | |
| Size and weight | Overall dimension | mm | 2780x1050x1540 |
| Weight | kg | 1700 | |
Main Features
1) Perfect cut quality
2) Short setup times
3) Quick fix
4) Easy to operate multi blade rip saw machine
It is necessory equipment for timber cutting, national wood furniture such bed, sofa, chairs processing. Max cutting width to 400mm, suitable for most lines timber cutting.
We have up-down multiple saw blade, or all down multiple saw blade for wood strips cutting. Feeding material parts designed with prevent springback.
Rip Saw Machine Manufacturers
