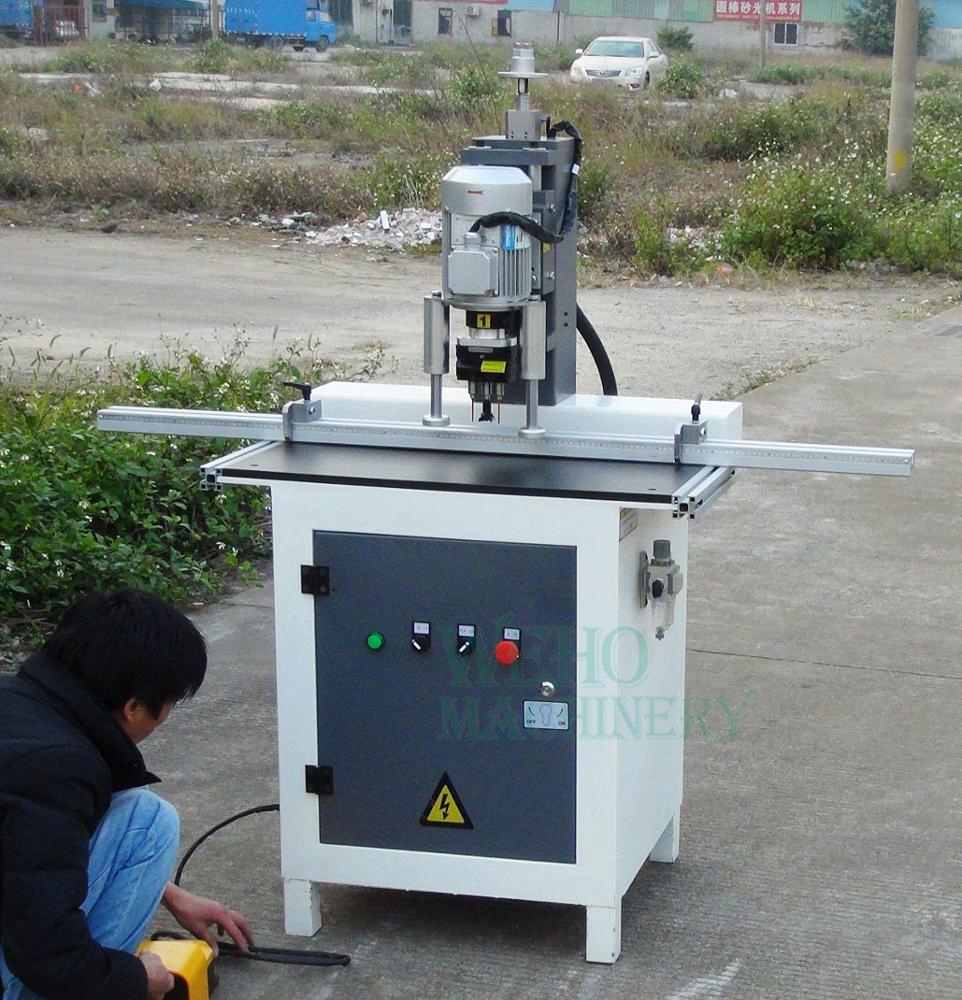

1 head Wood door hinge inserting machine MWZ7131A
Model：MWZ7131A
Max. panel thickness:60mm
Vertical max. boring depth:65mm
Number of vertical spindle:1*3
Working height:820mm
Dimension(L*W*H):800*710*1530mm
Weight (KG):200 KG
Power (kW):1.1
Max. panel thickness:60mm
Vertical max. boring depth:65mm
Number of vertical spindle:1*3
Working height:820mm
Dimension(L*W*H):800*710*1530mm
Weight (KG):200 KG
Power (kW):1.1
Details
Spare Parts
Inquiry
1 head Wood door hinge inserting machine MWZ7131A
Wood door hinge inserting machine mainly used to drill the hole in the wooden door for hinge.It is widely used in the panel-type furniture and wooden door industry.
.
The boring unit is ruggedly constructed and precision ground making it ideal for precise boring.Hinge Driller mainly used to drill the hole in the wooden door for hinge.It is widely used in the panel-type furniture and wooden door industry.
| Product Name | 1 head Wood door hinge inserting machine MWZ7131A |
| Model | MWZ7131A |
| Groups of main spindle | 1pc |
| Groups of vertical spindle | 1pc |
| Number of main spindles | 3 |
| Number of vertical spindle | 1*3 |
| Max. panel thickness | 60mm |
| Vertical max. boring depth | 65mm |
| Total power consumption | 1.1kw |
| Motor power of vertical group | 1.1kw |
| Working height | 820mm |
| Rotation speed of the main spindle | 2800r/min |
| Working pressure | 0.6-0.8Mpa |
| The max. air consumption of producing 10 plates per minute | 1.2L/min |
| Overall size | 800*710*1530mm |
.The boring unit is ruggedly constructed and precision ground making it ideal for precise boring.Hinge Driller mainly used to drill the hole in the wooden door for hinge.It is widely used in the panel-type furniture and wooden door industry.
This machine is ideal for hinge holes drilling.Drilling and clamping of workpieces are pneumatically controlled.Drilling head infeed and moving is pneumatically controlled，Drillingdepth can be adjusted.
